Автоматический сепаратор твердой жидкости из нержавеющей стали твердого жидкого навоза для молочных коров экструзионная
- Категории: Other Farm Machines >>>
- Поставщик: Zhengzhou,Angd,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
1. Brief introduction of Manure Dewatering Machine:
This cow manure dewatering machine is used to separate and dehydrate water from animal's manure to reduce the water content of the animal's manure. It is not only widely used in poultry's manure,such as chicken manure and duck feces, but also widely used in livestock's manure, like pig manure, cow manure and so on.
This cow manure dewatering machine is used to separate and dehydrate water from animal's manure to reduce the water content of the animal's manure. It is not only widely used in poultry's manure,such as chicken manure and duck feces, but also widely used in livestock's manure, like pig manure, cow manure and so on.

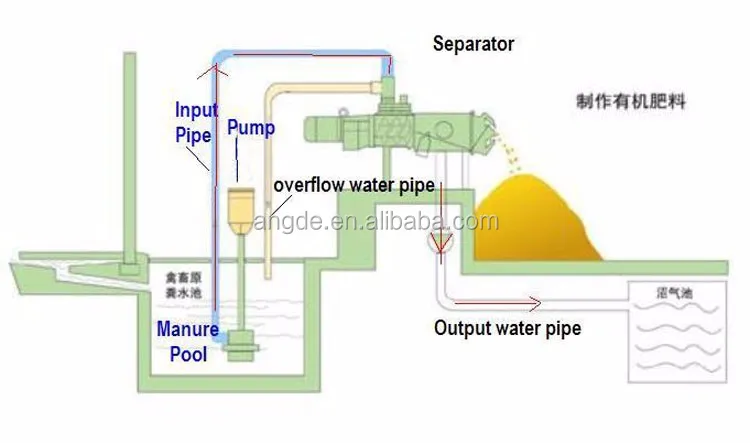

2. Working principles of Manure Dewatering Machine:
1). Dung slurry pump will pump the animal manure into the main body of the cow dung dewatering machine.
2). In the body of the machine, there are a screw and screen. When the cow manure enter into this machine, the screw will pull the manure from the left to the right at the speed of 45 r/min.
3). When the manure are transported the right of cow manure filtering machine, the screen will continuous press the manure to dewater the manure.
4). The cow manure is discharged at the end of the machine, and waste water is discharged from the liquid discharge pipe into the water discharging pool.
1). Dung slurry pump will pump the animal manure into the main body of the cow dung dewatering machine.
2). In the body of the machine, there are a screw and screen. When the cow manure enter into this machine, the screw will pull the manure from the left to the right at the speed of 45 r/min.
3). When the manure are transported the right of cow manure filtering machine, the screen will continuous press the manure to dewater the manure.
4). The cow manure is discharged at the end of the machine, and waste water is discharged from the liquid discharge pipe into the water discharging pool.
3. Features of Manure Dewatering Machine:
1). Reduce the subsequent CODcr content of dung wastewater;
2). Isolated after the solid material containing dry matter can be up to 40%;
3). Low energy consumption, less investment, high efficiency;
4). Compact structure, the main parts adopt stainless steel manufacturing;
5). The stainless steel adopts imported materials;
6). Easy operation and maintenance.
1). Reduce the subsequent CODcr content of dung wastewater;
2). Isolated after the solid material containing dry matter can be up to 40%;
3). Low energy consumption, less investment, high efficiency;
4). Compact structure, the main parts adopt stainless steel manufacturing;
5). The stainless steel adopts imported materials;
6). Easy operation and maintenance.
Specification
model | power supply | monitor rate | Pump power | Size(mm) | Processing raw materials | Dry material |
180 powerful (220V) | Single phase 220V | 3KW | 3KW | 1800*700*1300 | 8-10 cubic meters/hour | 1.5-2 cubic meters/hour |
180 powerful (380V) | Three-phase 380V | 4KW | 3KW | 1800*700*1300 | 8-12 cubic meters/hour | 1.5-2 cubic meters/hour |
180 powerful extended type | Three-phase 380V | 4KW | 3KW | 2060*700*1300 | 8-12 cubic meters/hour | 1.5-2 cubic meters/hour |
200 powerful | Three-phase 380V | 5.5KW | 3KW | 1950*700*1300 | 8-12 cubic meters/hour | 2-3 cubic meters/hour |
200 powerful extended type | Three-phase 380V | 5.5KW | 3KW | 2200*700*1300 | 8-15 cubic meters/hour | 4-5 cubic meters/hour |
300 powerful | Three-phase 380V | 7.5KW | 4KW | 2060*800*1400 | 8-30 cubic meters/hour | 6-7 cubic meters/hour |
300 powerful extended type | Three-phase 380V | 7.5KW | 4KW | 2300*800*1400 | 8-35 cubic meters/hour | 8-10 cubic meters/hour |
400 powerful | Three-phase 380V | 11KW | 4KW | 3100*1200*1700 | 8-40 cubic meters/hour | 8-10 cubic meters/hour |
Packing & Delivery
1.Packed by standard import & export wooden cases or carton boxes.
2. Shipping:Courier?service,Air?transport,Sea?Transport
2. Shipping:Courier?service,Air?transport,Sea?Transport
Company Profile
FAQ
Q1: What’s the delivery time?
A : 5-10 work days after receiving client’s payment
Q2: What’s package?
A: wooden box packaging
Q3: Do you have any timely technology supports?
A: we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (googletalk, MSN, skype, yahoo…).
Q4: What’s the payment method?
A: T/T, WESTERN UNION, MONEY GRAM, ESCROW,LC...
Q5: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm?product undamaged, otherwise, please contact within 2days. Because we've bought?insurance for you, we or shipping company will be responsible!
A : 5-10 work days after receiving client’s payment
Q2: What’s package?
A: wooden box packaging
Q3: Do you have any timely technology supports?
A: we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (googletalk, MSN, skype, yahoo…).
Q4: What’s the payment method?
A: T/T, WESTERN UNION, MONEY GRAM, ESCROW,LC...
Q5: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm?product undamaged, otherwise, please contact within 2days. Because we've bought?insurance for you, we or shipping company will be responsible!
