Плата контроллера ЖК RTD2483 V1.0 Сигнал LVDS с емкостным сенсорным экраном 21 5 дюйма поддержка
- Категории: Модули дисплея >>>
- Поставщик: Shenzhen,Caison,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
GENERAL DESCRIPTION
➢ RTD2483 V1.0 is a multi-purpose LCD monitor controller board. It is designed to support dual/single 6/8 bit LVDS LCD panel. Thesupported resolution can up to 1920X1080 @60Hz.➢ RTD2483 V1.0 only support HDMI signal input. HDMI and DC power input connector can be use internal pinconnection to instead of standard connector .
➢ RTD2483 V1.0 with Audio function, Support Audio signal input form HDMI , The power of the audio amplifier’s output for speaker is 2X4Ω/2.5W. It also support earphone output .
➢ RTD2483 V1.0 can support Keypad control, brightness control , Firmware Jumper, Also these features support customized. .
Specification
CHIPSET | RTD2483BD(Realtek) | ||
Support LCD Panel | Interface | Single/Dual 6/8 bit LVDS | |
Resolution | Up to 1920X1800@60Hz | ||
Power | For board | 12V DC Power Supply | |
To LCD panel | 3.3V,5V,12V | ||
Management | Low Power Consumption Mode | ||
Standby | ≤0.5 W | ||
OSD Language | Simple Chinese、English is default. Other language support customized. | ||
Key functions | 5 keys | ON/OFF,Menu,Right,Left,Exit | |
Video input | HDMI | 480i,480p,576i,576p,720p 1080i,1080p | |
Audio input | 0.2 – 1.5 Vrms | ||
Audio output | 2X2.5W (4Ω) THD+N<10% | ||
Extend function | Factory Setting, Brightness Control(Default is DC dimming mode, PWM dimming mode is optional),On board several type of different firmware(Optional), Vertical Mode for OSD Menu | ||
Dimension | 76mm(L)*55mm(W)*11mm(H) | ||
Products Description

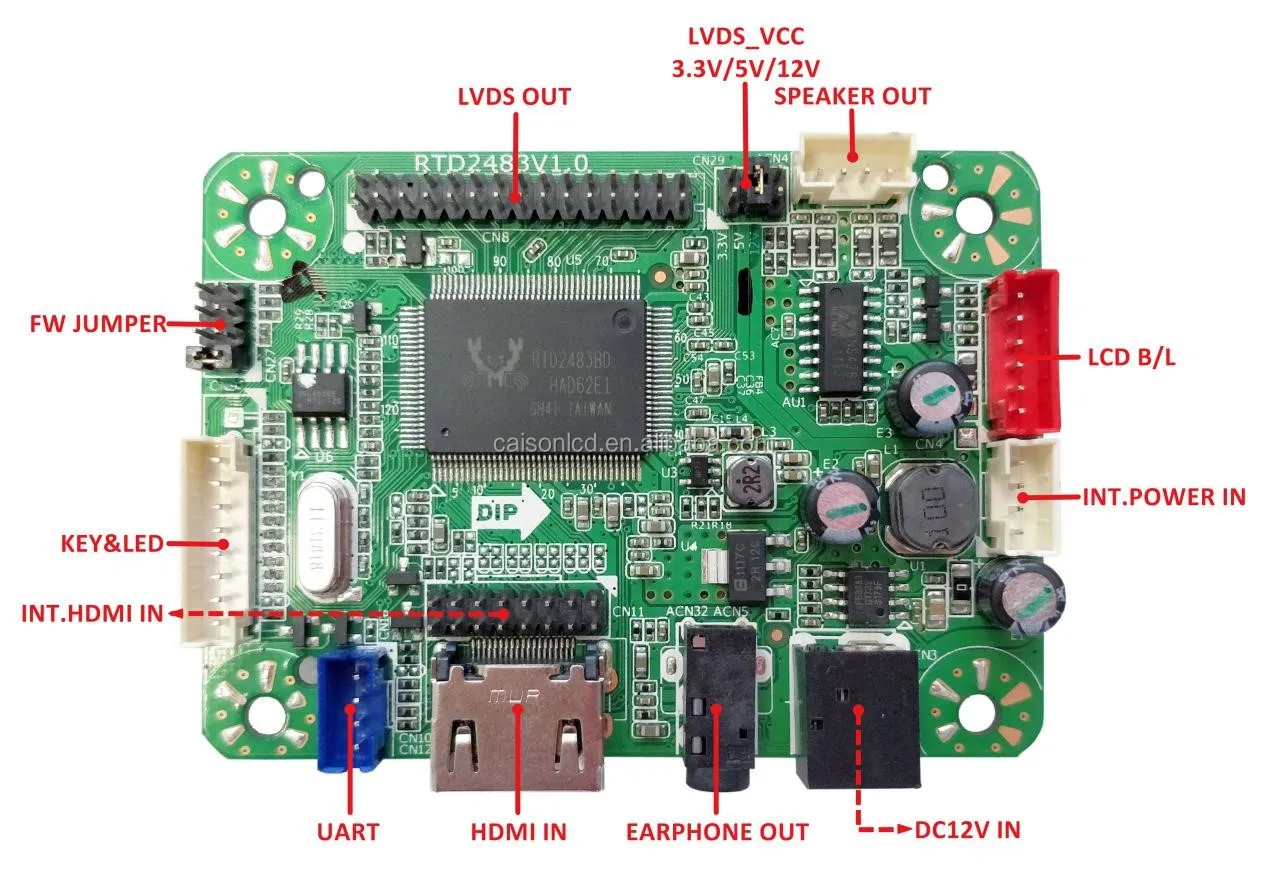

Interface Picture

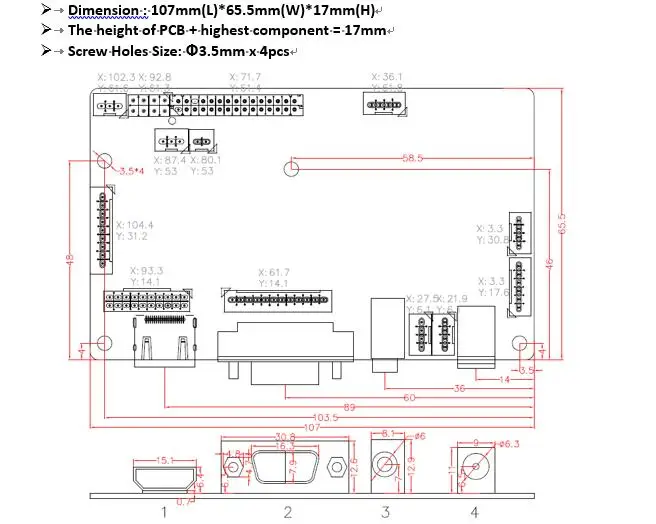

Size of the board
Application
