Автоматический роликовый конвейер для поддонов с переводной
- Категории: Другое грузоподъемное оборудование >>>
- Поставщик: Qingdao,Ausense,Packing,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

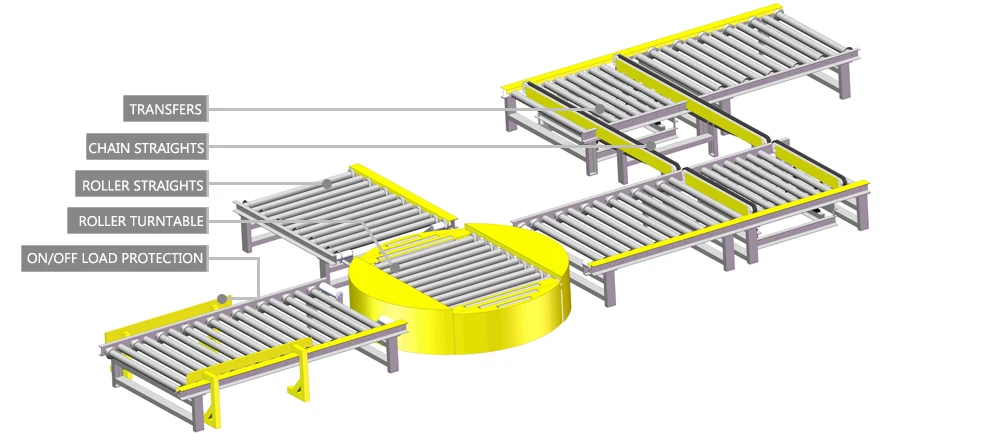

Automatic electrical power expandable roller and gravity flexible conveyor system are the most common conveyors applied in conveying flat-bottomed items, like cases, boxes and pallets. As for small, soft or irregular items are supposed to put on trays or other flat containers to convey. The conveyor is characterized with large and efficient distribution, convenient connection to other lines and easy maintenance.
Product Paramenters

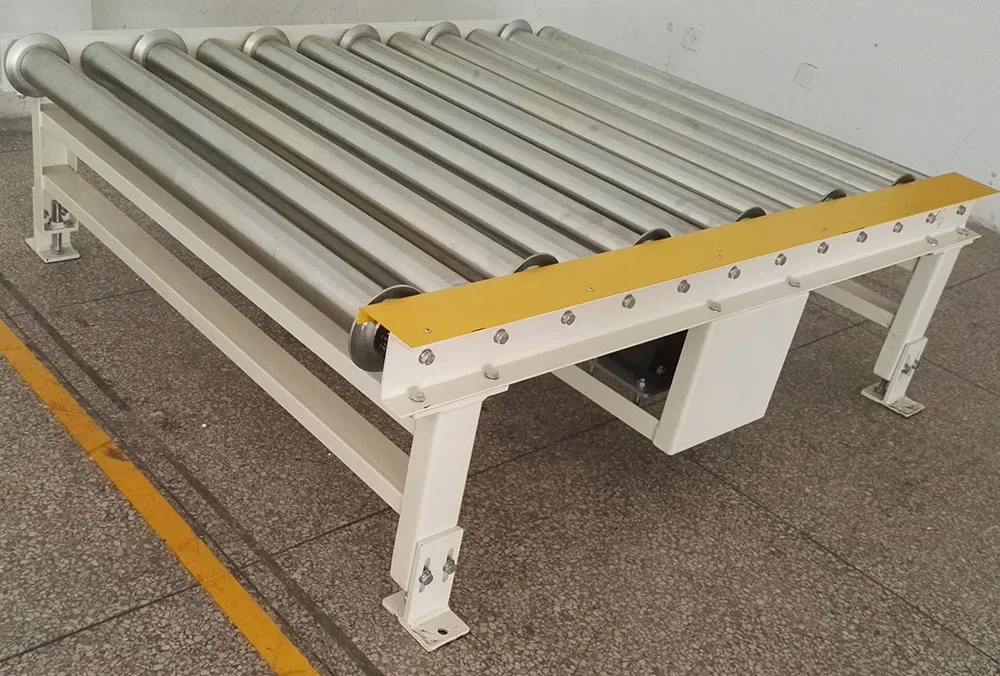

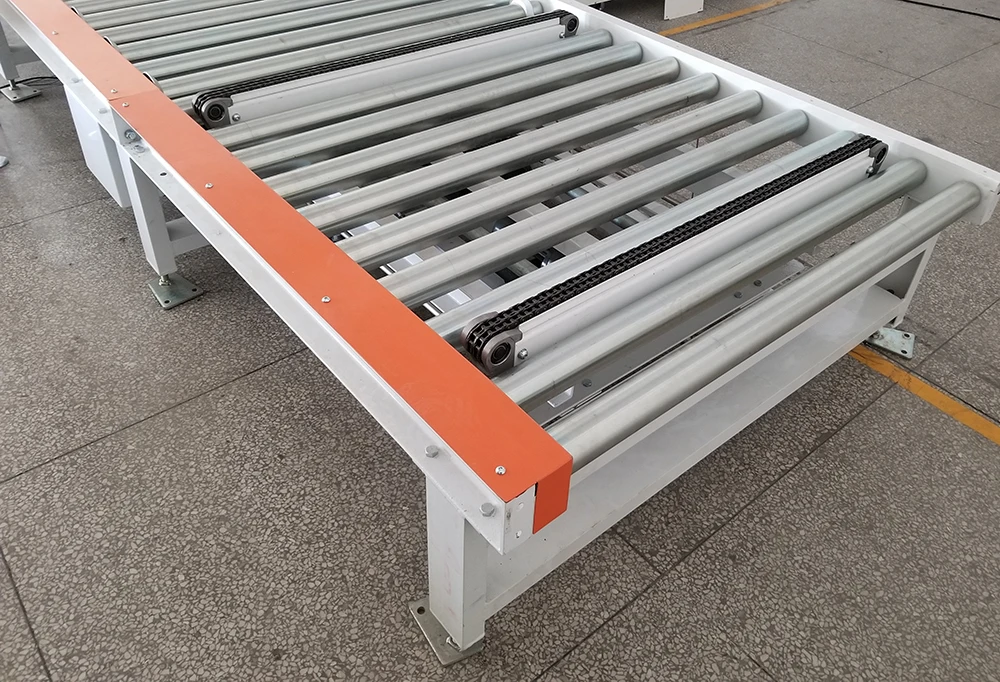

Roller Conveyor
Model | TBC-01 |
As your requirements or pallet sie | CPG or SEW brand |
Roller diameter | 76 or 89mm |
Roller material | Galvanized steel |
Max Loading | 1000-2000kg |
Turntable diameter | 2000mm |
Table height | 500mm adjustable(also can be customized) |
Frame material | U shape steel/carbon steel |
Voltage | 220V-480V 3phase |
Motor power | 0.75-1.5KW 50HZ/60HZ |
Conveyor length | As your requirements or depend on your pallet size |
Conveyor speed | 10-15m/min |
Warranty period | one year |
Control system | As Required |
Lead time | Basised on your order |
Conveyor wide | Customeried |
Drive type | Motor driven |

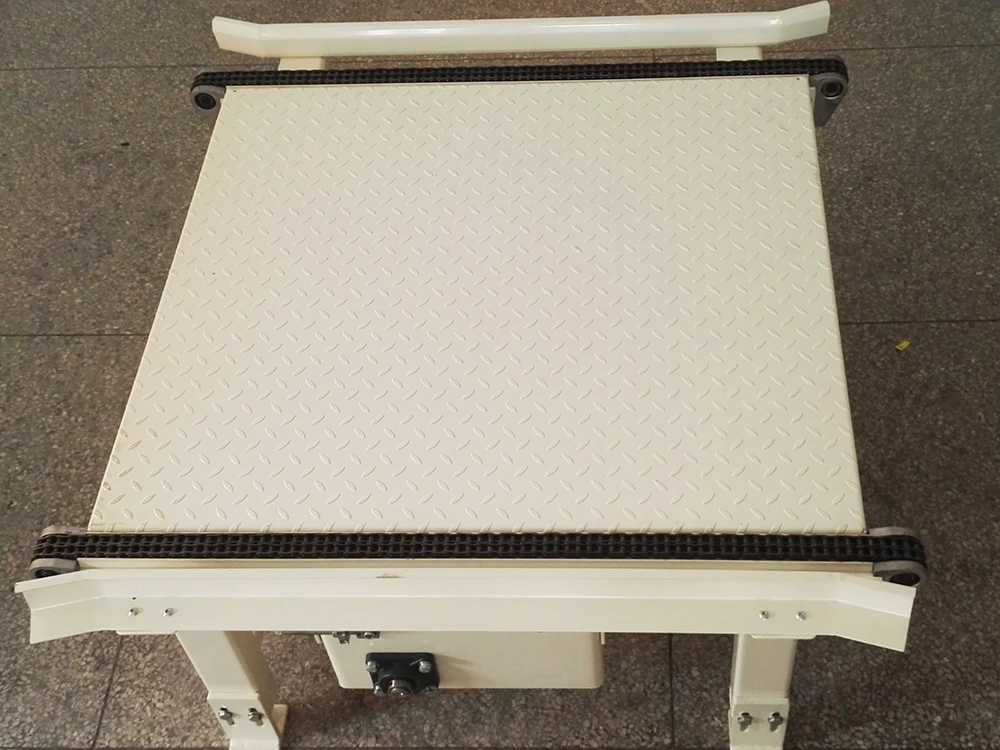

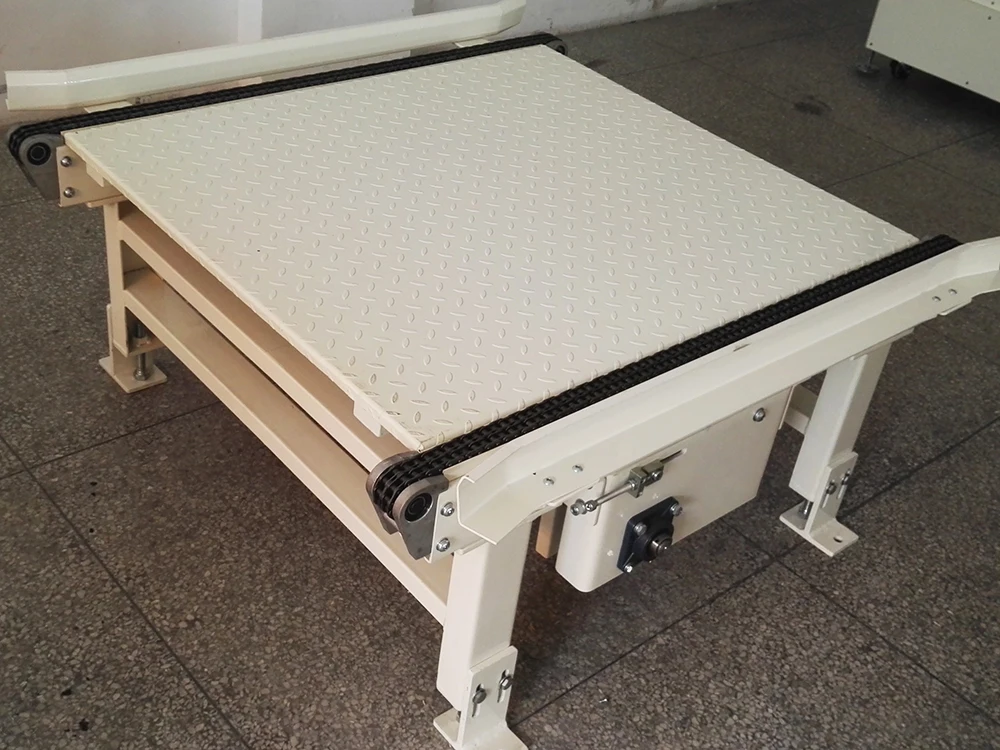

Chain Conveyor
Model | TBC-02 |
Drive type | Chain |
Width of conveyor | belt width+ 100mm |
Length of conveyor | belt width+ 100mm |
Height of conveyor | 350mm-600mm |
Power of Motor | 0.75kw |
Table height | 500mm adjustable(also can be customized) |
Conveyor speed | 5-15m/min |

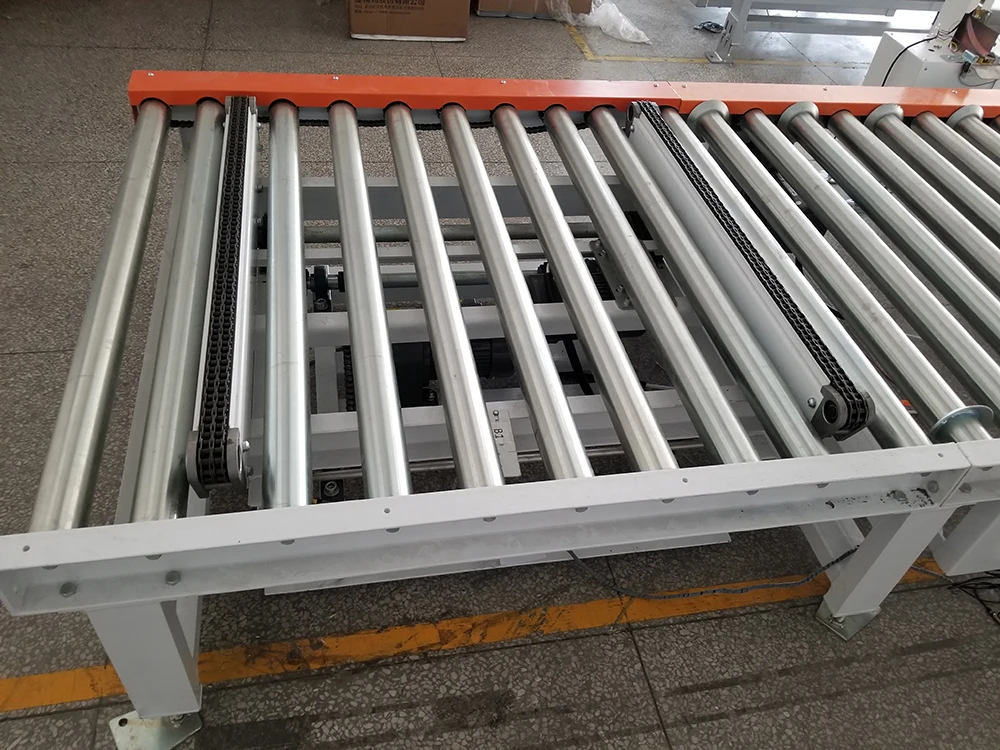

Transfer Conveyor
Model | TBC-03 |
Drive type | Chain drive + motor(Technical parameters:Non - standard can be customized)) |
Width of conveyor | belt width+ 100mm |
Length of conveyor | belt width+ 100mm |
Height of conveyor | 500mm |
Power of Motor | 0.75kw |
Conveyor speed | 5-15m/min |

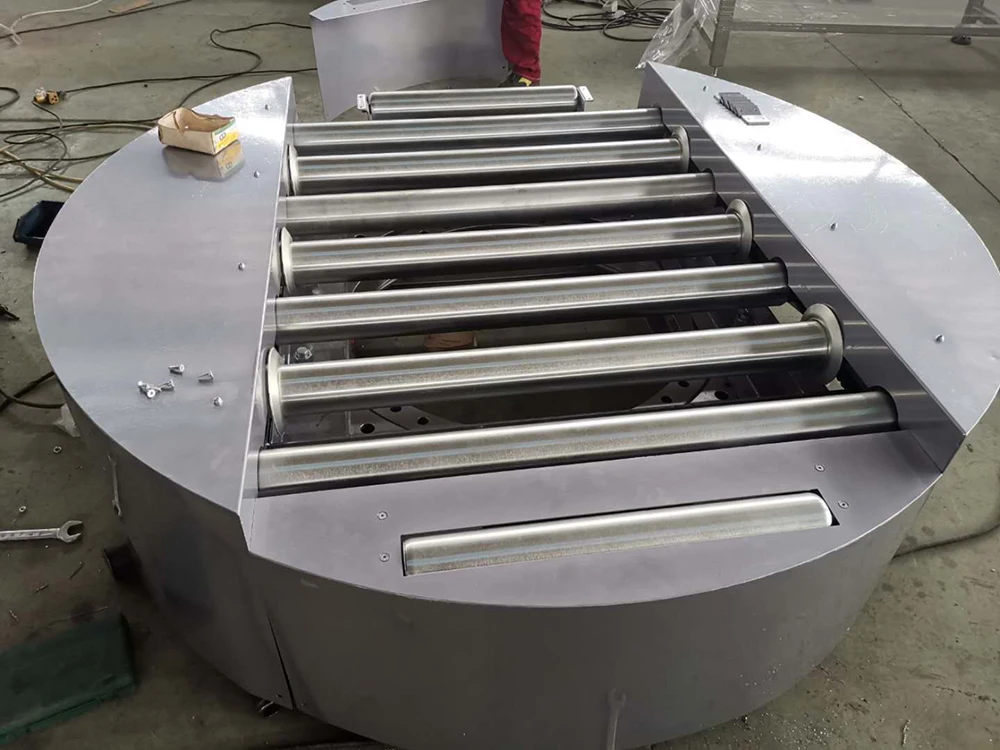

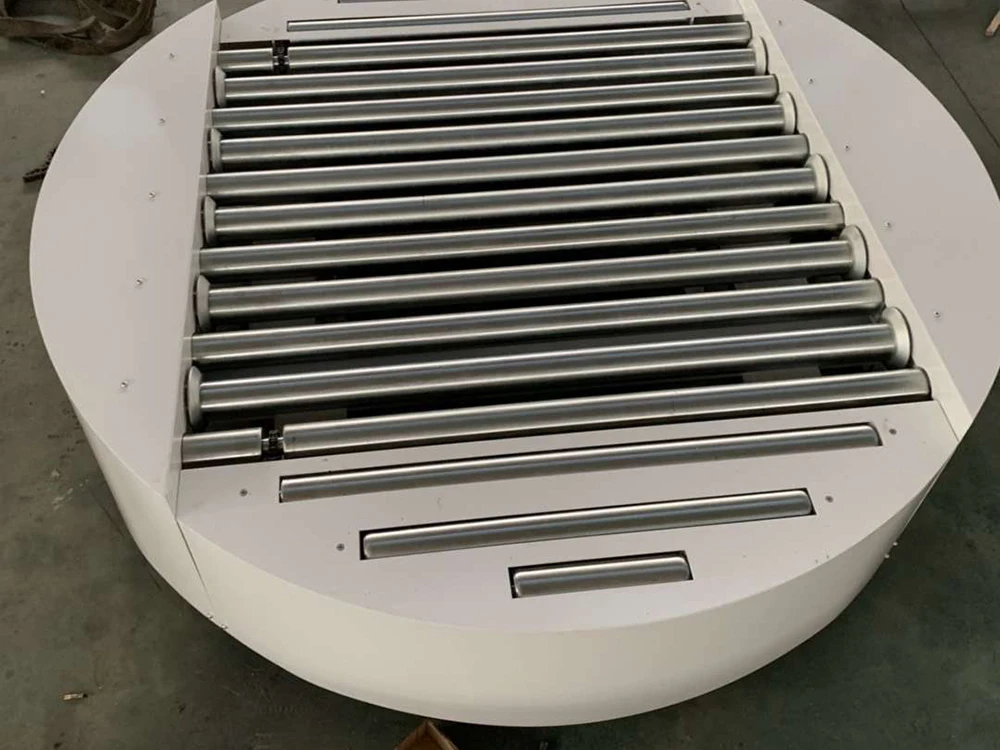

Turntable Conveyor
Model | TBC-04 |
Motor | 2pcs CPG brand(made in Taiwan) |
Roller diameter | 76mm/89mm |
Roller material | galvanized steel |
Max Loading | 1000-2000kg |
Turntable diameter | 2000mm(customized) |
Table height | 500mm adjustable(also can be customized) |
Frame material | 220V-480V 3phase |
Motor power | 0.75-1.5KW 50HZ/60HZ |
Conveyor length | As your requirements or depend on your pallet size |
Conveyor speed | 10-15m/min |
Warranty period | one year |
Control system | As Required |
Lead time | Basised on your order |
Conveyor wide | Customeried |
Drive type | Motor driven |
Our workshop
More Related Products

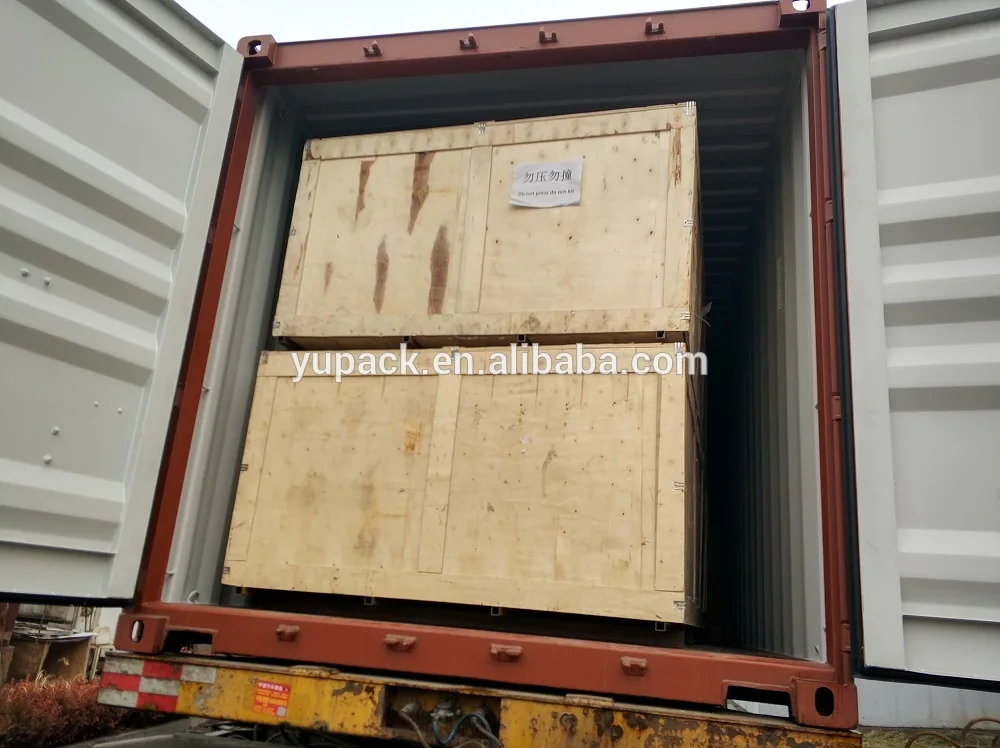

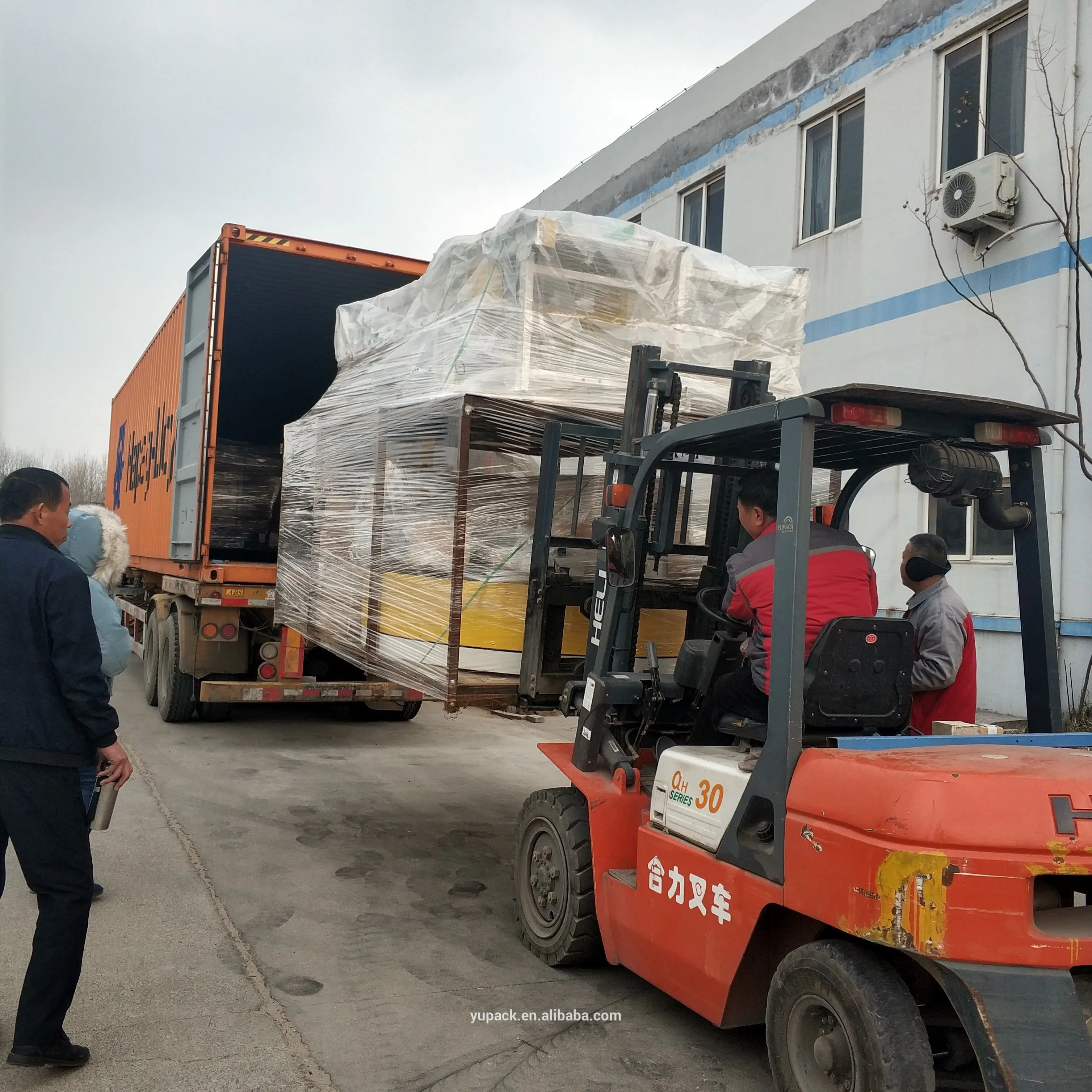

Packaging & Shipping
Automatic electrical power expandable roller ,skate wheel ,gravity flexible conveyor system standard sea packaging.
Company Profile
Qingdao Ausense has been established in 2008, which focus on the planning, R&D and manufacturing of automatic packaging production line. such as automatic carton packing line,shrinking wrapping line, fully automatic pallet strapping line,Conveyor system and soon......
Ausense main brand is YUPACK. All products have passed the CE certification of the European Union; Our productions have being exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Ausense main brand is YUPACK. All products have passed the CE certification of the European Union; Our productions have being exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Since 2017, Qingdao Ausense had successfully introduced robots into our end of packaging production line which can effectively integrate into the application of enterprise MES manufacturing execution system, and provide a complete set of automation industry 3.0 to 4.0 transformation and upgrading services.
FAQ
1.Are you manufacturer or trading company?
We are a professional manufacturer of packaging machine in Qingdao,China. We have more than 10years experiences.
2.Can you do OEM?
Yes,we can do OEM and also can print your logo on machine.
3.Approved CE?
All of our machines had approved CE&BV. And we will do our best to every customer.
4.Can you help us contact the shipping agent in your loading port?
Of course,we have our own shipping forwarder who always provide the best services&price to us. And you can check the
machine size and gross weight in production description. Thus you will have no problem to check freight by yourself.
machine size and gross weight in production description. Thus you will have no problem to check freight by yourself.
