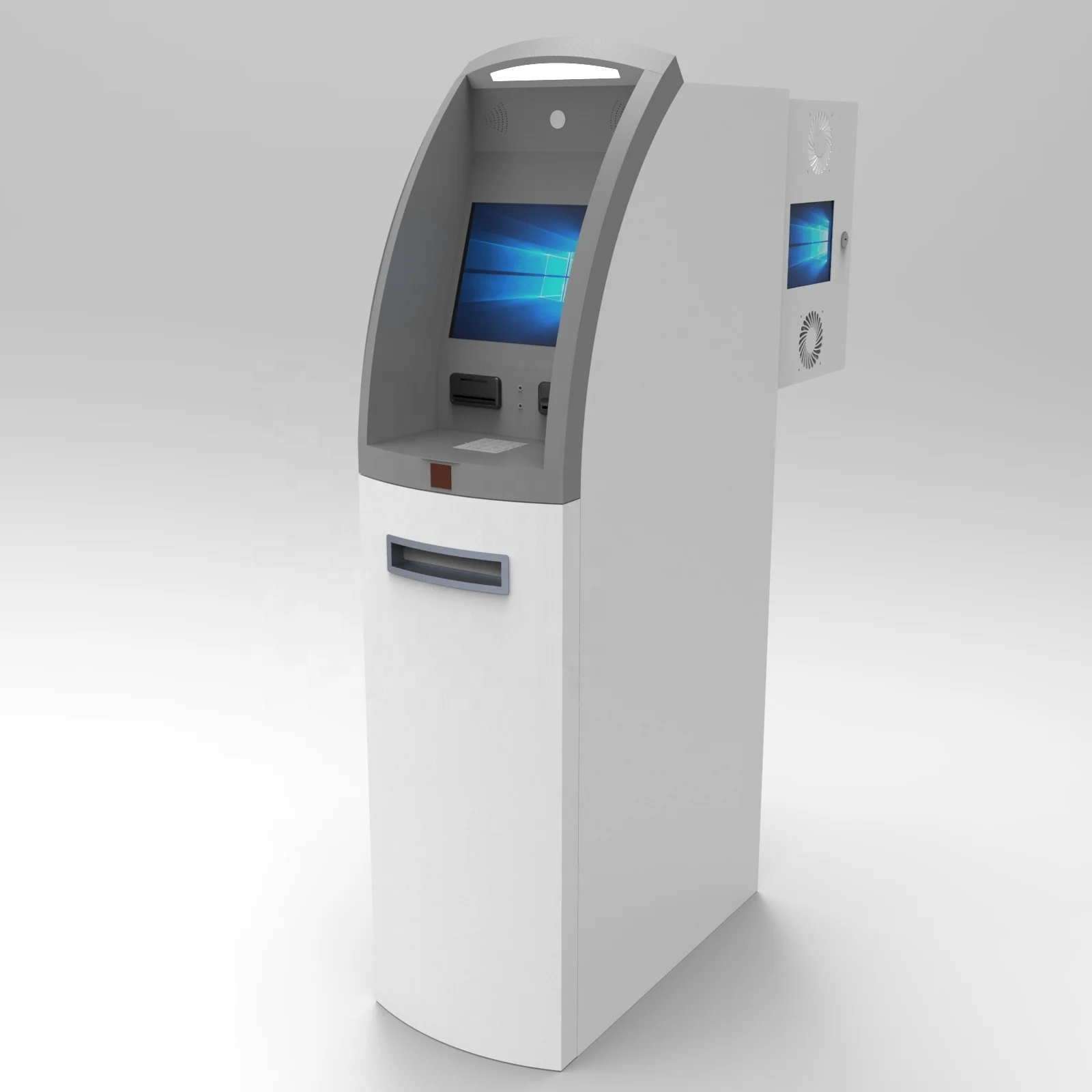

Новые Большие кассеты (12000 заметок) двойной сенсорный банкомат с 12 мм безопасным и двухцветным журнальным принтером

No.

Part Number

Specifications

1

Processor

Intel® XEON E3-1235L V5 CPU 2.0GHz(burst upto 3.0GHz)

2

Main board

ª      Chip set:Intel H110;

ª      Memory Type: DDR3/4 533/667 MHz;

ª      Display Card: Lvds, HDMI VGA;

ª      SSD: mSATA, 64GB;

ª      Network card: GbE network card;

ª      WIFI

ª      Voice guidance.

3

RAM

4G DDR4 2011 MHz Memory

4

HD

More than 250G space SATAII,    300 MB/s

5

Driver

DVD ROM

6

Display

ª      Sunlight viewable TFT LCD;

ª      Display Size: 15” inch;

ª      Resolution:     1024 X 768;

ª      Brightness: 350-550 CD/M2;

ª      Magic screen.

7

Peripheral

Interface

ª      8 x USB 2.0 port;

ª      1 x RJ-45 network port;

ª      2 x Audio port: the microphone input and linear output;

ª      1 x PS2 mouse port;

ª      1 x PS2 keyboard port;

ª      1 x LPT parallel port;

ª      10 x COM seria port;

ª      2 x VGA port (D-SUB 15 )

8

Dispenser

ª      Size: 280x752x810 mm;

ª      Note Cassette capacity: 3000 notes

ª      Reject Vault capacity:up to 250 notes;

ª      Note Cassette:standard 1, maximum 5;

ª      Less Note detection:standard 100 notes, can be adjusted;

ª      Dispensing speed:7 notes/second;

ª      Max. 60 notes per transaction;

ª      Bundle notes dispense and recycle;

ª      Communication interface:RS232, Baud rate: 9600bps;

ª      Power: DC :24v±10%, maximum current: 10A, quiescent current:

4A;

ª      Kafong Slice.

9

Card processing module

ª      Motorized card reader;

ª      Magnetic   Card   processing   comply   with   ISO/IEC   7810,   7811 series7813;

ª      IC processing comply with ISO/IEC 78161/1-3;

ª      Support IC card protocol (T=0 and 1);

ª      Comply with EMV2000 ver4.0 level1 standard.

ª      Comply with PBOC2.0 standard;

ª      Read and write magnetic card 1/2/3 track;

ª      Card return on power failure and card recycle on card untaken;

ª      Support vibrating card input, anti-fishing and skimming;

ª      Automatically identification of foreign matter, waterproof;

ª      Contactless smart card reader/writer(optional);

ª      Standard RS-232C control interface, Baud rate: 9600bps, 19200bps or 38400bps.

10

Receipt printer

Thermal printer

ª      Support local character printing and picture printing;

ª      Print speed:150mm/s;

ª      Chart drive speed:32 lines/s;

ª      Communication  interface:serial  interface,  RS-232  compatible,

Baud rate: 38400bps(adjustable), USB interface;

ª      Printing head life:100km;

ª      Cutter life:1.5 million times;

ª      Thermal paper size:width:82.5mm, paper roll external diameter:

maximum 254mm, paper roll inner diameter: 11 /18 /25 /40 or

50mm,   paper   roll   weight : 60-90   g/m2,   paper   thickness :

0.07-0.1mm.

11

Journal Printer

Dot matrix printer-double directions

ª      Print style: nine needles double directions printing;

ª      Print speed: 4.18lines/s; chart driver speed:100mm/s

ª      Communication  interface:Serial  interface,  RS-232  compatible,

Baud rate: 9600bps/19200bps, USB.

ª      Printer  life:printing  head  life:200,000,000character;  printing

unite: 8,000,000 lines;

ª      Reliability: 9 million lines(MCBF);

ª      Paper   size:   paper   width : 76.2mm-1mm(3inch),   paper   roll

external diameter:maximum 120mm, paper roll inner diameters:

12.5mm+1mm, paper color: white, paper roll weight: about55-75 g/m2,paper thickness:about 0.05-0.08mm

12

EPP Keyboard

ª      High quality tactile numeric metal keyboard, local language keys

are optional;

ª      EPP standard keyboard:vandal resistant, waterproof, dust proof;

ª      RS-232  connection(RJ45  socket),  USB port,  independent  power, side button interface;

ª      High performance software support, comply with XFS 2.0/3.0 rule;

ª      EPP support DES and 3 DES, RSA, etc;

ª      Complete and flexible hierarchical key management technology;

ª      Encryption and MAC calculation are not limited by byte count;

ª      Complete invasion detection mechanism;

ª      RS232:comply with  EIA-RS232-D ‘s RJ45 RS232  port standard,

support Baud rate: 57600;

ª      Keyboard life>2.000.000 times/key

ª      Usage  life>10  years,  battery  life  >10  years(  when  there  is  no external power supply);

ª      Calculation time<1 s when 512 bytes 3DES MAC.

13

Power Module

ª      Protection   function:  over   load  protection:   105%-150%   rated power,                              recover automatically; over                   voltage       protection:

115%-135% nominal value voltage, recover automatically;

ª      Boot, hold: ≤1s, ≥20ms;

ª      Insulation strength: input-output AV 1500V /1min;

ª      Efficiency: 78%~86%;

ª      Output ripple noise< 1% of output voltage;

ª      EMI standard: comply with GB9254 level B;

ª      Certified by UL, TUV, CB, EMC, and CE.

14

Safety box

ª      Mechanical or electronic lock, the password can be changed;

ª      Mechanical lock comply with GA/T 73;

ª      Electronic lock comply with GB 10409;

ª      The structure of safety box complies with ANSI/UL 291.

15

UPS Power

ª      Rated capacity:     1000VA/600W;

ª      Working principle: impulsion backup;

ª      Input Frequency:     ≥40Hz

ª      Output Frequency: 50Hz±1

ª      Output voltage stable rate: 5%

ª      Output   overload   capacity:   automatically    power   off   when overload > 130%UPS;

ª      Storage battery quantity: 2;

ª      Storage battery charging time: ≤10 hours;

ª      Exchange time: <10ms;

ª      Noisy value:(1m): <45dB;

16

Heater

ª      Start temperature and overheating protection: start temperature>-35℃; overheating protection <25℃(relative error ±5℃);

17

LED Light

ª      Typical power value: 65.0 MW;

ª      positive pressure drop temperature coefficient: -2.0 MV/℃;

ª      Positive maximum current: 1000MA;

ª      Dynamic resistance: 0.8 MΩ;

ª      Junction temperature: 25℃;

ª      ESD (electrostatic discharge) sensitivity: ±16,000 V HBM ;

18

Electronic Journal

Electronic Journal can be kept for 1 year.

19

Software

Operation system: Windows XP

20

Monitoring

System

ª      4 cameras are installed at the dispenser gate, front panel, safety

box and transaction environment ;

ª      Adopt H.264 video compression, MPEG-Ⅱaudio compression;

ª      5 tracks of alarm input, 2 tracks of alarm output;

ª      Retained time >3 months;

ª      Embedded  real-time  operating  system,  graphical  interface,  and support USB mouse operation;

ª      Track 1( for the end users) support D1 high definition resolution;

ª      Support 2 tracks playback simultaneously;

ª      Integrate hard disk video and alarm function, support DVR and alarm;

ª      Dynamic picture adjustment, video detection. Alarm video can be set to high definition to make sure the important moment video quality;

ª      Support HD fault alarm, main board fault alarm, motion detecting, external alarm. etc;

ª      Support remote monitoring camera;

ª      High definition colorful wide-angle rearview mirror;

ª      520 TVL;

21

ATMC

ª      Support ATMC software unified remote update;
