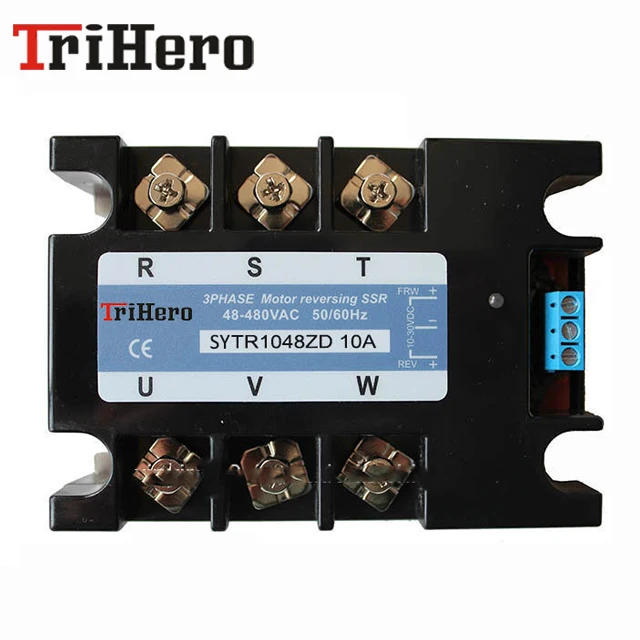

Trihero SYTR6048ZD3 10A Three Phase Motor Control Module SSR Solid State Relay Motor Reversing SSR dc Input

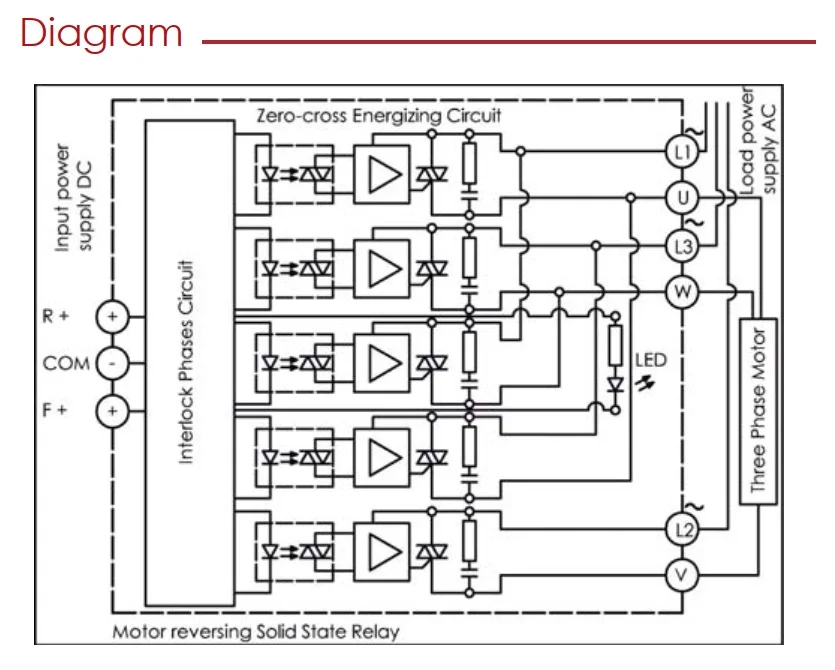

Trihero offers a Solid State Three Phase Motor Reverser to control the direction of rotation of a 3-phase asynchronous motor (Forward or Reverse). This motor reversal relay is designed with a built-in snubber to protect against voltage spikes (or excessive voltage fluctuation) and to prevent un-intentional switching of SSR.
Important Features
- 3 Phase Motor Forward/Reverse Operation Control
- No moving contacts
- Immediate switching/reversal response

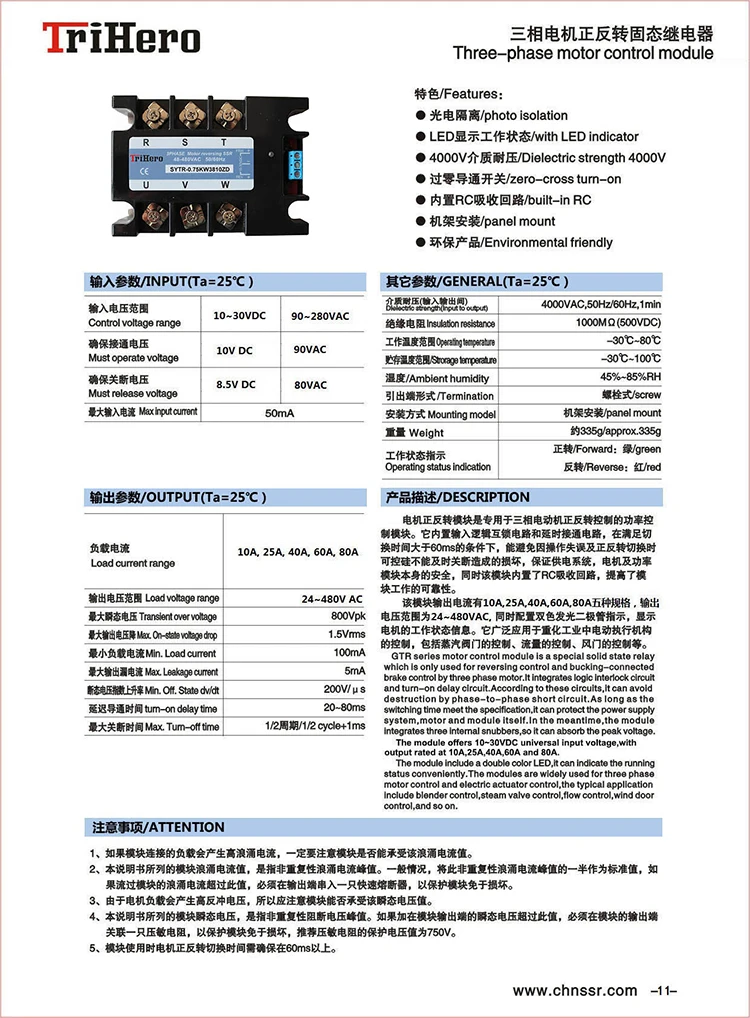

Specifications
- Control Input – 3-32VDC
- Load: 48 – 440 VAC rms, 10-80Amps.
Applications
- Conveyer Belts
- Escalators
- Solar Panels
- Large Antenna
- Assembly Lines
and many more.
Trihero is the leading manufacturer and exporter of Relays, sensors, controllers, and measuring instruments in China. We produce over 6,000 items which are marketed in over 100 countries, satisfying customer needs in various fields of industrial automation.
