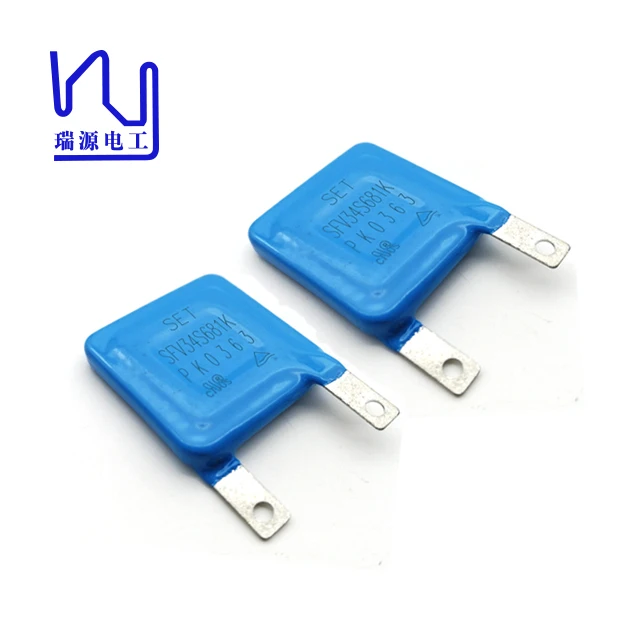

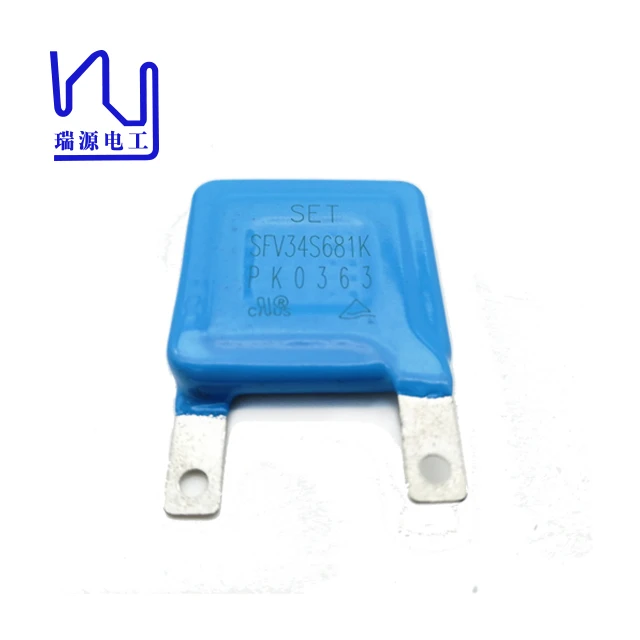

Синий Варистор из оксида металла хорошего качества 34S 561K MOV
- Категории: Пассивные компоненты >>>
- Поставщик: Tianjin,Ruiyuan,Electric,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Blue Good Quality 34S 561K MOV SMD Varistors Metal Oxide Varistor
Metal Oxide Varistor(MOV) as one nonlinear resistance element is mainly made of zinc oxide(ZnO),which has very high surge capacity and big nonlinear coeffcient.Below the threshold voltage,its resistance is very high, narly no current fows through, but above the threshold voltage,the resistance reduces sharply, huge current can be discharged. Due t this charac-tersic, Varistor as a protection component in electronic and electrical quipment can absorb abnormal over-volage and light-ning surge.
Rvyuan's Varistor is with High Surge Current Density, Low Clamping Voltage, and Good Surge Capacity. It can also be customized as required.\u2029
Application | power supply,LED driver,power adapter,power strip |
Supplier Type | Original manufacturer |
Media Available | datasheet |
Tolerance | ±10% |
Place of Origin | Fujian |
Model Number | 10D271K |
Type | VARIABLE RESISTOR |
Technology | Metal Oxide |
Package Type | Throught Hole |
Features | Low leakagecurrent,High-surge current |
Size / Dimension | 34S |
Product name | 10D Metal Oxide Varistors |
Brand | SET |
Certificate | TUV,CQC, UL,cULRoHS,ISO9001 |
Color | Blue |
Composition | zinc oxide |
Surge Level | S/K |
Density | 7000A/m^2 |
Operating Temperature | -40℃-+85℃(Max.125℃) |
Varistor voltage | 560V(506-616V) |
Resistance Tolerance | ±10% |

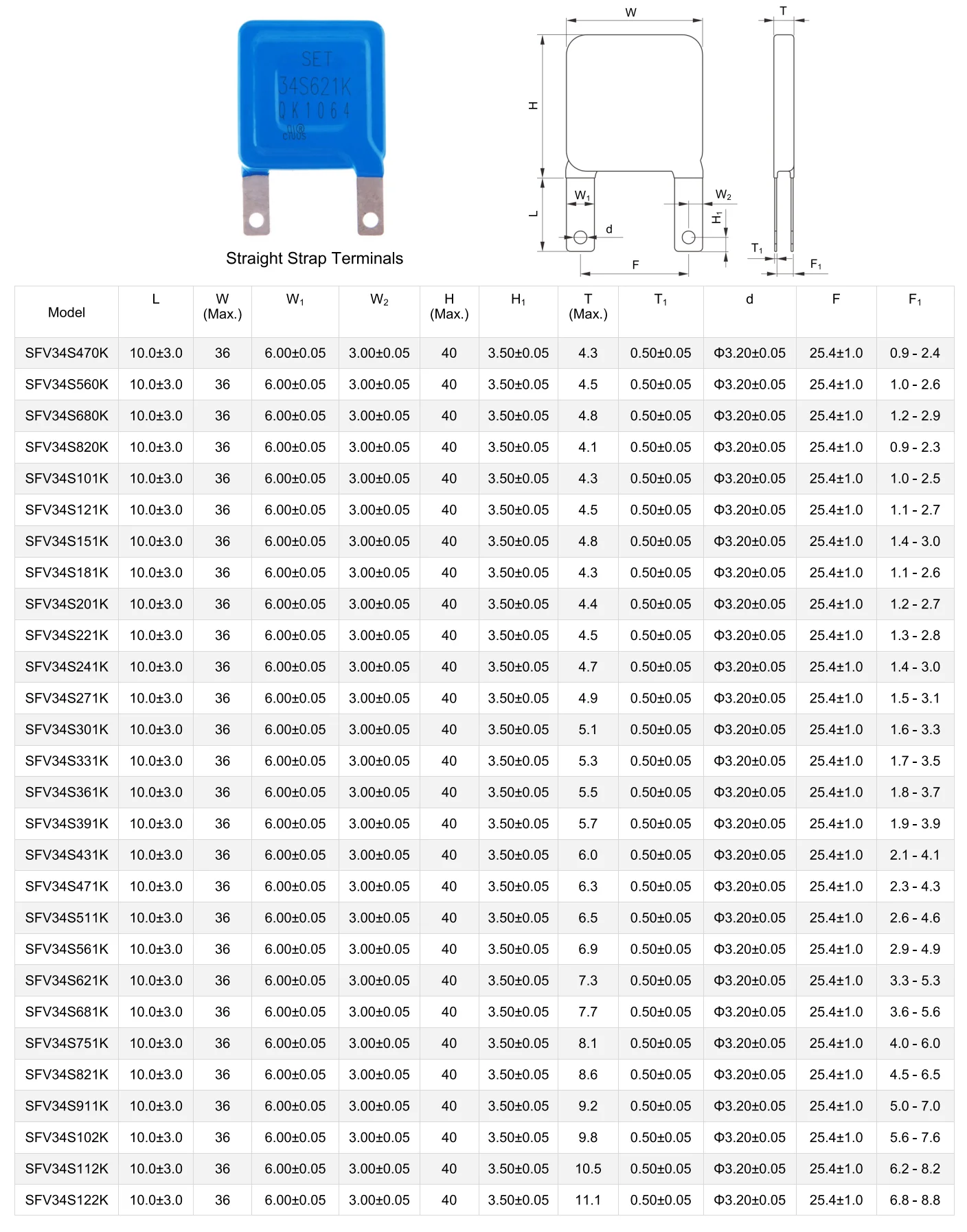

Specification

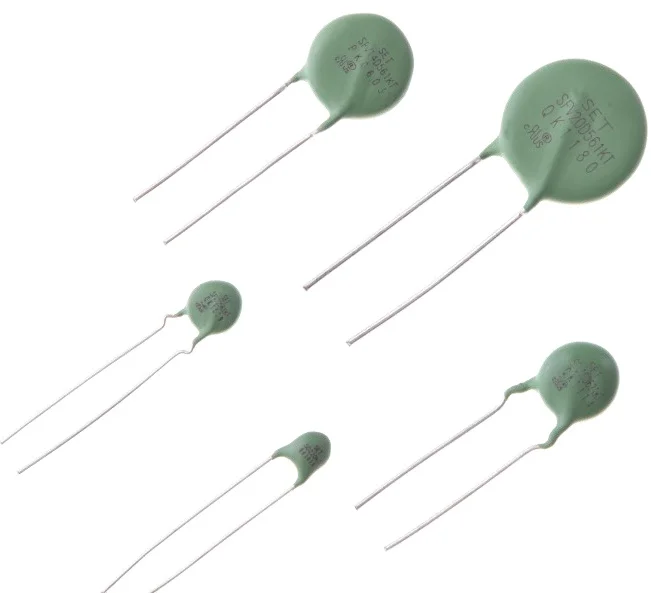

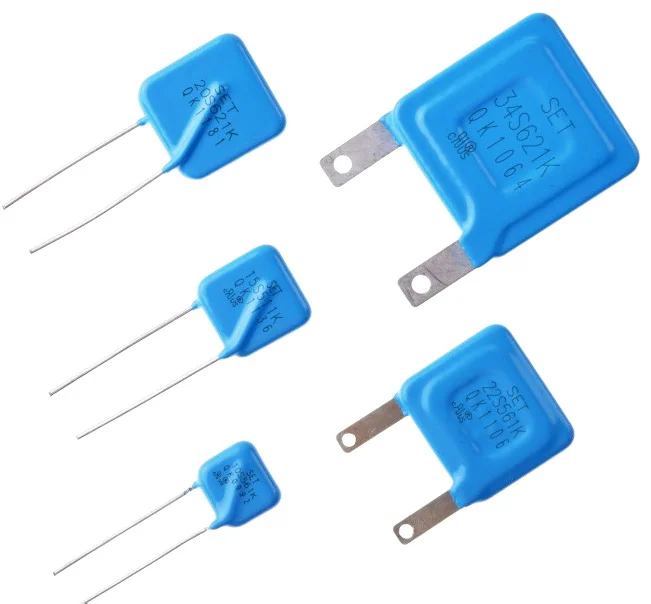

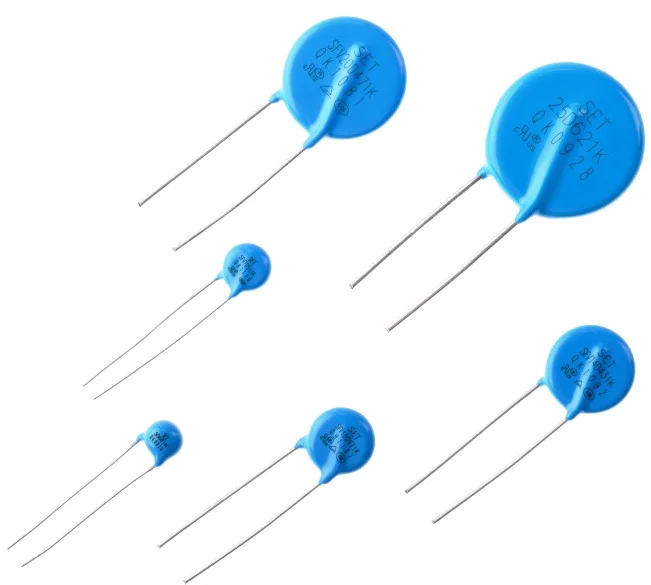

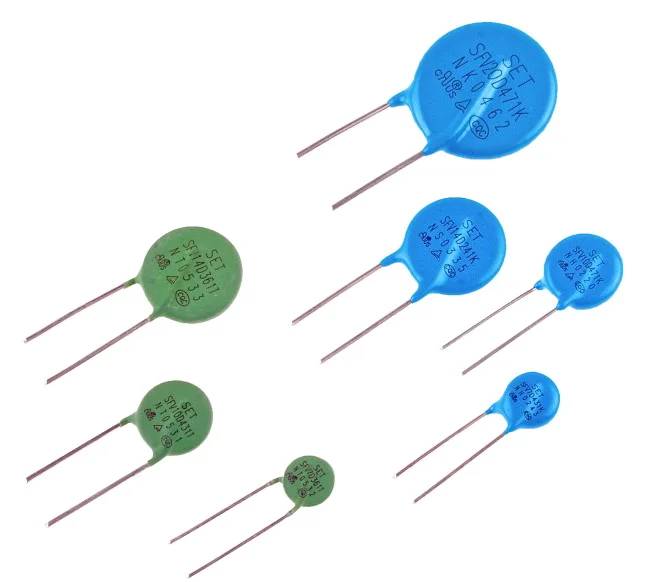

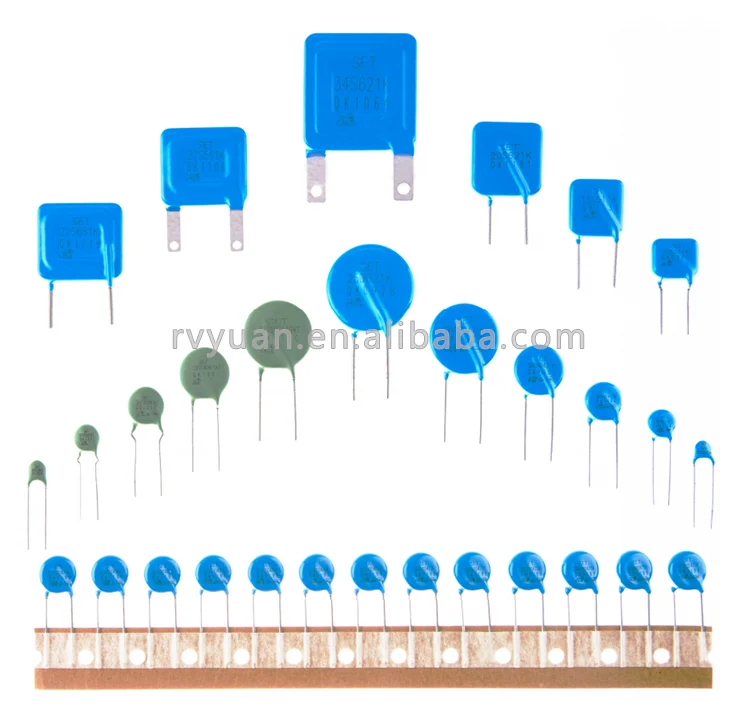

Product Display
FEATURES AND BENEFITS
High Surge Current Density∶7000 AMcm² |
Voltage Clamping Ratio Can Below To 1.9 |
Comply Wth IEC 60950-1:2005+A1 ANNEX Q, GB 898-2011/GB 4943.1-2011 |
RoHS & REACH Compliant |
Max. Energy Capacity Can Be High To 800 J |
Operation Temp. Can Be High To 135℃, Comply |
With UL, TUV, COC Agency Approvals |
Key Features
TYPE K
Standard type MOV for common over-votage protection.
●Varistor Voltage: (22-1800)V
●Max.Discharge Current(8/20 us): (500-20000)A
TYPE T
●Varistor Voltage:(22-1800)V
●Max. Discharge Cuent (8/20 us):(500-2000)A
TYPE Q
High-impact type MOV with multiple surge withstanding capability,complies with IEC61000-4-5.
●Varistor Voltage∶(22-1200)V
● Max.Discharge Current (8/20 us)∶(2000-2000)A
TYPE H
High energy type MOV with high surge withstanding capabityfor SPD applica-tions, complies with IEC 61643-1.
●Varistor Voltage:(82-820)V
●Max.Discharge Current(8/20 us):(6000-60000)A
●Max.Peak Current(10/350us）∶5000A

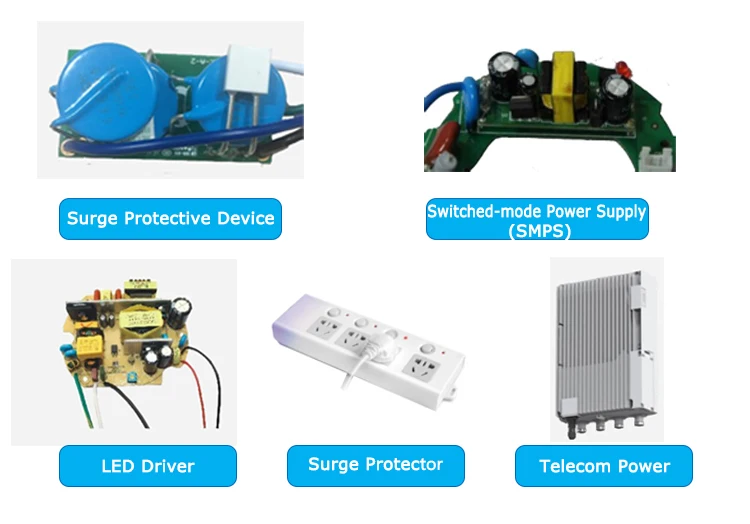

Application
Certifications
Product packaging
Our Customer
Our Company
COMPANY PROFILE
Tianjin Ruiyuan Electric Materials Co., Ltd. was established in 2002. For 17 years, we have focused on enameled round copper wire,three-layer insulated wire and enameled copper flat wire. We have clear advantages in enamel round copper wire sizes ranging from 0.012mm to 4.5mm. Ultra-thin copper wire 0.012-0.8mm F grade 0.35mm UL certified three-layer insulated copper wire.
All of our products are UL, RoSH certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.We are located in China's second largest port city. We work with internationally renowned courier companies.
We also have our own warehouse, and all warehouses can be delivered in time.
We look forward to being your most trusted partner.
Related Products
FAQ
1. Can I get sample for testing before bulk order?
Of course.Samples can be offered to you by free, but express costs should be undertaken by buyer.
2..What is your lead time?
Small sample order 3-5 working days; Large order should be within 15 working days after order confirmed.
3. What's your Guarantee?
Within 2 years, if any quality problem, the defect products will be all replaced at once.
4. How to purchase from us?
Offer Requirement for Inquiry →Producing Sample →Sample Confirmation → Quotation →PI → Confirm PI → Arrange Payment→ Manufacture → Shipping
5.How to Pay with your visa&master card:
a. Please creat a personal buyer account before you buy from alibaba.
b.Write your email address, when place an order.
c. Go to your email and click the link, "send initial payment/pay balance" or "go to pay"
d. Then choose "+Add a new card to pay in USD($)"
e. Fill in the bank card information, "Confirm and Pay", that charge from your card derectely, place an order successful
6. What's your trade term?
EXW,CPT FOB CIF DDU DDP are all acceptable.
7. Can I order with my logo printing, size and shape?
Sure, but MOQ should be negotiated.
8.What's your payment term?
T/T, D/P, D/A, L/C, PayPal.
9. What's your express service?
Fedex, DHL,TNT,UPS with great discount up to 80%.
