LY2 110V/120V переменного тока катушки 2 полюса миниатюрное силовое реле печатного
- Категории: Relays >>>
- Поставщик: Yueqing,Xijie,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Application
Specifications
| Model | LJQX-13F-2Z | LJQX-13F-3Z | LJQX-13F-4Z | |
| Dimention(mm) | 27.3*21*35.2 | 30.8*27.3*35.2 | 41*27.3*35.2 | |
| Contact Form | 2Z 2H 2D | 3Z 3H 3D | 4Z 4H 4D | |
| Contact Material | Silver Alloy | |||
| Resistance Performance Of Contactor Capacity | 10A/28VDC 10A/240VAC | |||
|
Coil Power at 23°C |
DC(W) | 1Z 2Z≤0.9W, 3Z≤1.5W, 4Z≤1.6W | ||
| AC(VA) | 1Z 2Z≤1.2VA, 3Z≤2VA, 4Z≤2.5VA | |||
| Coil Voltage | DC(V) | 6~220V | ||
| AC(V) | 6~380V | |||
| Pick-up Voltage at 23°C | DC≤75% AC≤80% | |||
| Drop-out Voltage at 23°C | DC≥10% AC≥30% | |||
| Max Voltage at 23°C | 110% | |||
| Contact Resistance(at 6VDC 1A) | ≤100mΩ | |||
| Dielectric Strength | Between Open Contacts | ≥1200VAC 50Hz/1min Leakage Current 1mA | ||
| Contacts Pieces | ≥1500VAC 50Hz/1min Leakage Current 1mA | |||
| Between Coil & Contacts | ≥1500VAC 50Hz/1min Leakage Current 1mA | |||
|
Insulation Resistance(MΩ) at 500VDC |
≥500MΩ | |||
| Service Life | Electrical | 105 Times(Frequency:On 1 Time/1S,Off Time/1S) | ||
| Mechanical | 106 Times(Frequency:300 Times/1min) | |||
| Ambient Temperature | -25°C ~ +55°C | |||
| Teminal Type | Insert Type, Welding Type | |||
| Suitable Socket | LPTF08A | LPTF11A | LPTF14A | |
| Product Weight | 40g | 50g | 60g | |
| Same Reference | HH62P, LY2 | HH63P, LY3 | HH64P, LY4 | |

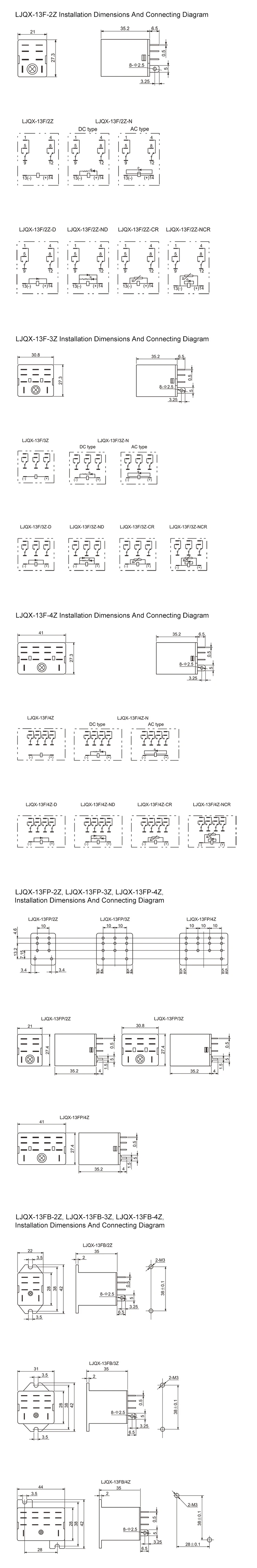

Installation Dimensions And Connecting Diagram
Part Number Description
Company
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Yueqing Xijie Electric Co., Ltd. is located in Xinguang Industrial Zone, Liushi town, Wenzhou city, Zhejiang province, China. It's 11 km from the train station, 39 km from the airport.
Main products are industrial relay for auto control, relay socket, time switch, foot switch, AC contactor and so on.
We've got OEM service experience for customers from UK, Germany, Malaysia and so on. MOQ as low as 50 pcs is available for some of our products, such as time switches.
As an officially authorized agent of Korea Kacon Auto Controls Import&Export Co., Ltd, we provide a discount rate of Kacon foot switch, limit switch, micro switch, relay, push button, etc.
