UHP Графитовый Электрод высокой плотности низкорезистивный электрод графитовые Углеродные электроды для дуговой
- Категории: Графитовые электроды >>>
- Поставщик: Henan,Rongxing,Carbon,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

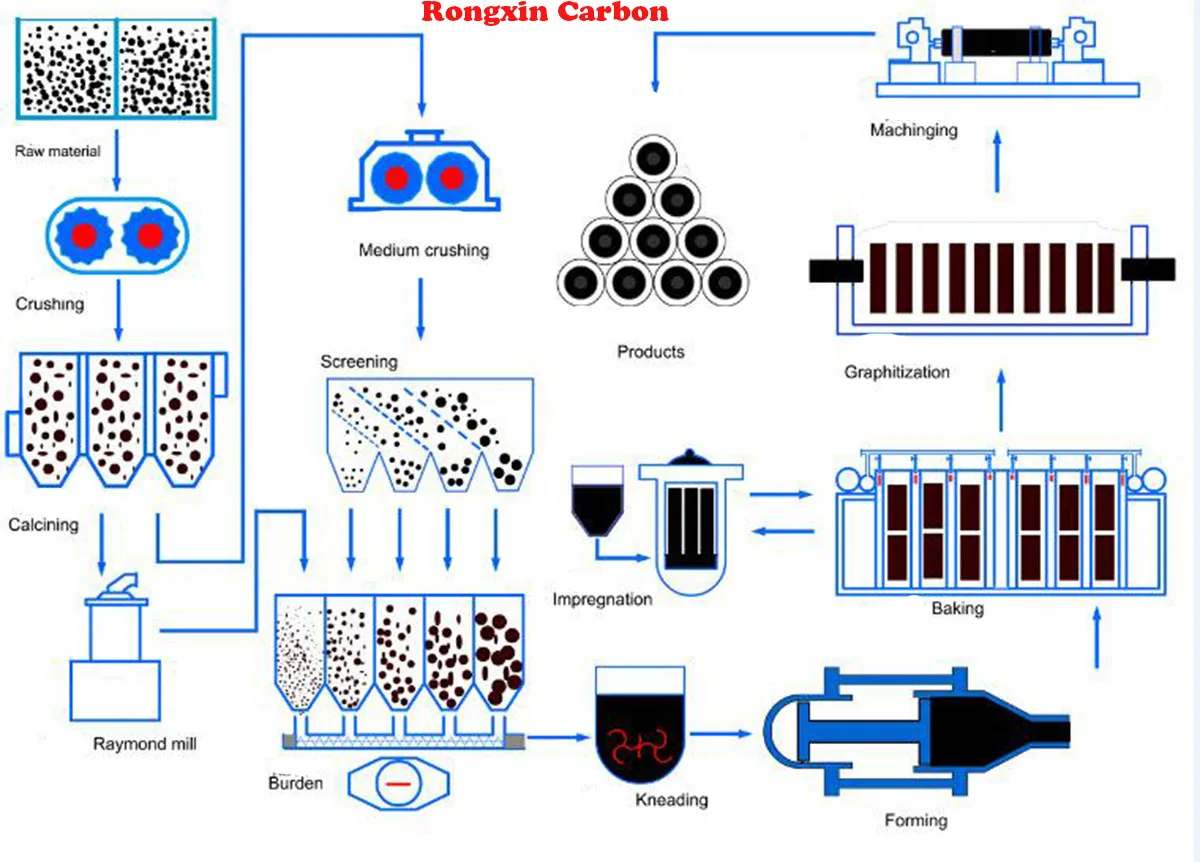

The graphite electrode mainly uses petroleum coke and needle coke as raw materials and coal tar pitch as binder. It's a conductor
that release electrical energy in the form of electric arc in the electric arc furnace to heat and melt the charge.It has the features of low electrical resistivity, good conductivity, low ash content, uniform structure, good oxidation resistance and high
mechanical strength. Our factory provides a variety of sizes and grades to meet the specific application requirements of customers.
mechanical strength. Our factory provides a variety of sizes and grades to meet the specific application requirements of customers.
333

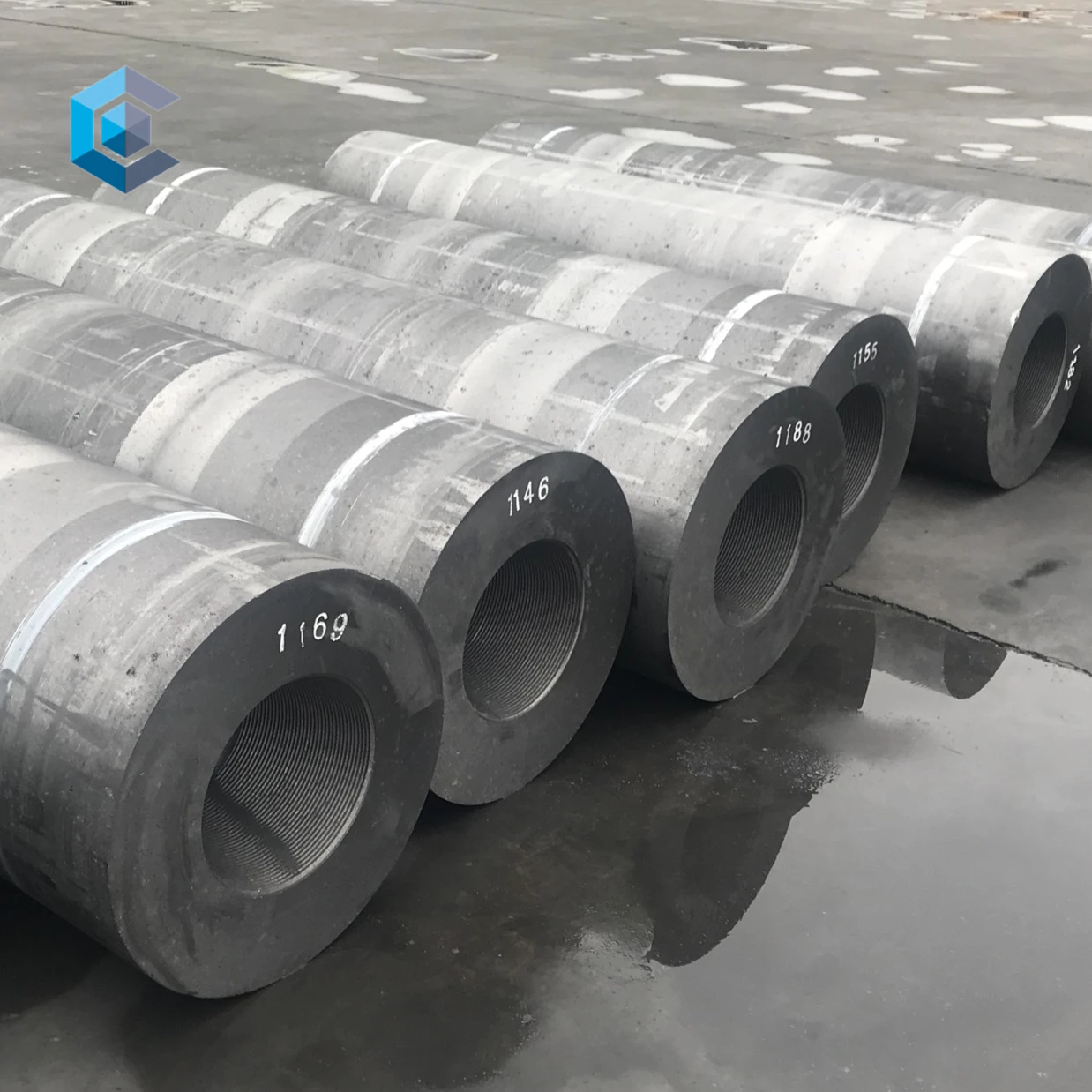

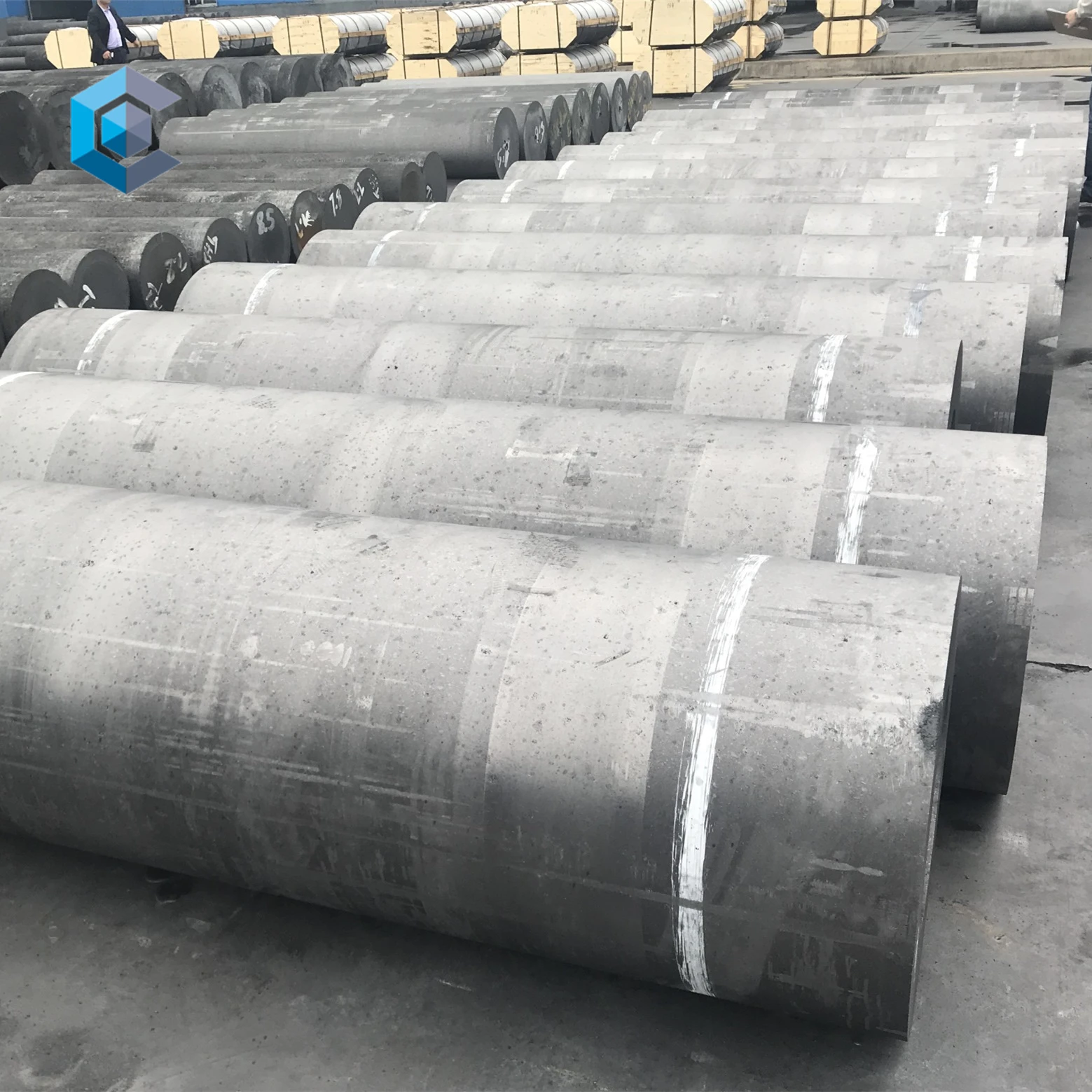

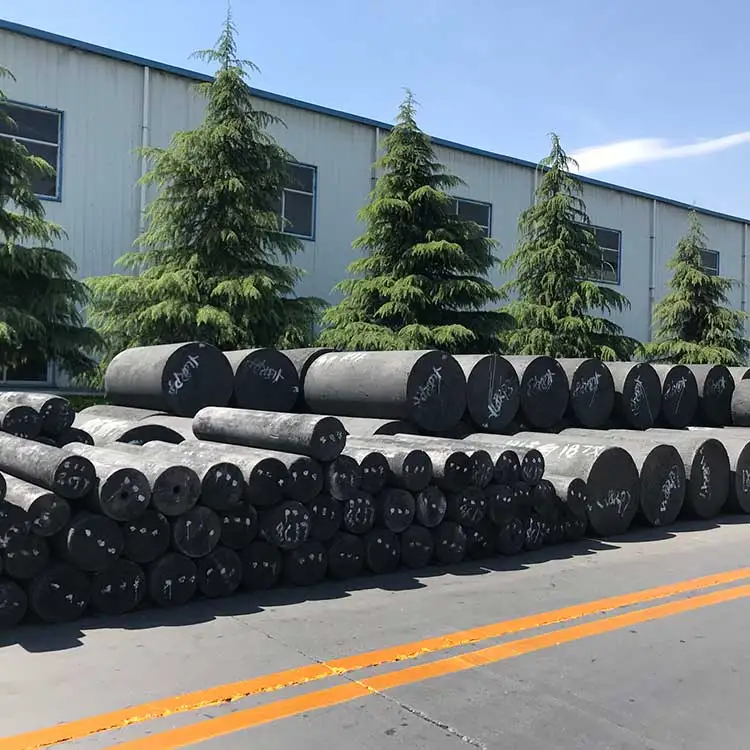

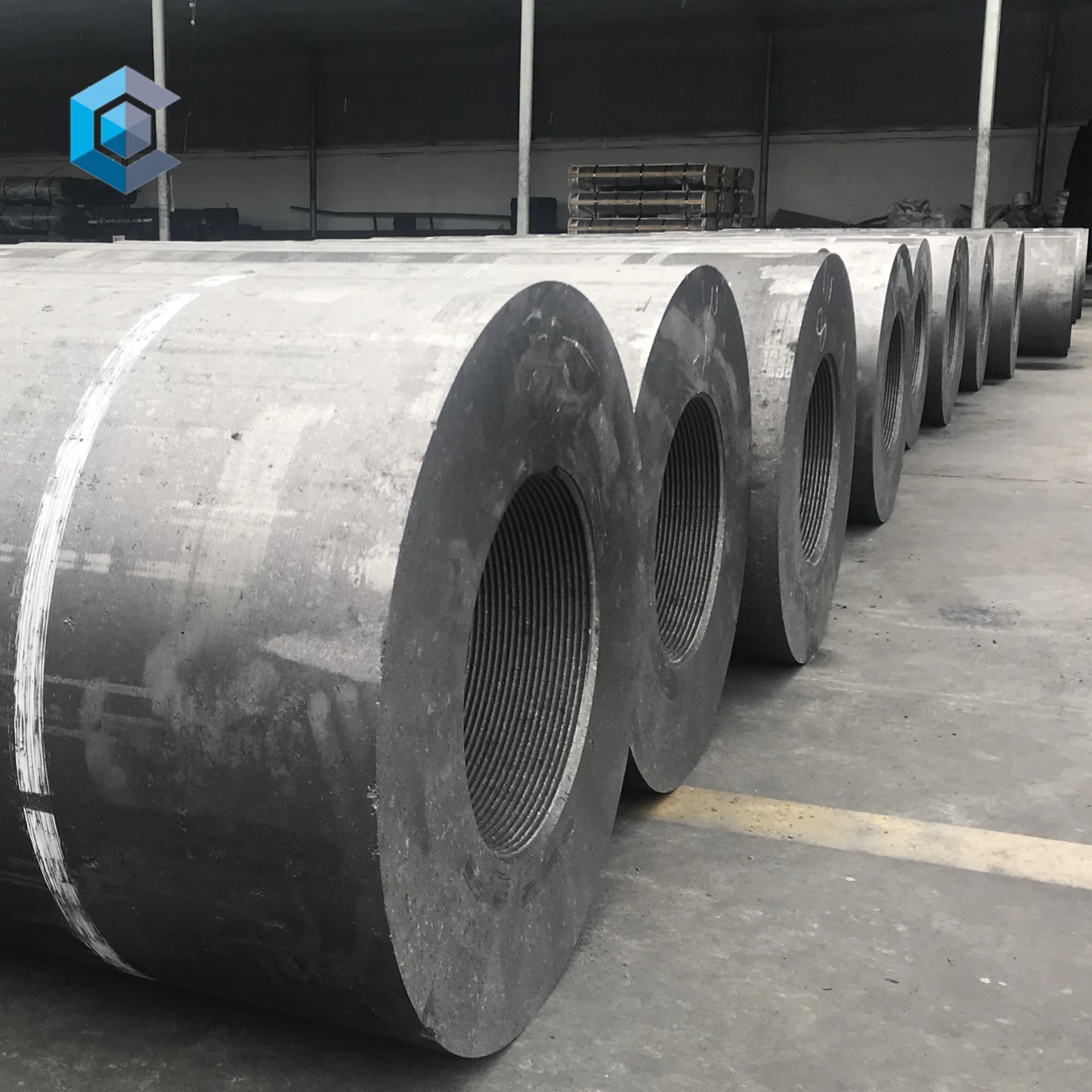

Details Images
Specification
item | value |
Place of Origin | China |
Province | Henan |
Brand Name | Rongxing Group |
Model Number | UHP600 |
Type | Electrode Block |
Application | Conductor |
Length | 2100, 2400, 2700 mm |
Grade | UHP (Ultra High Power) |
Resistance (μΩ.m) | 4.5-4.7 |
Apparent Density (g/cm³ ) | >1.68 g/cm^3 |
Thermal Expansion | 1.1-1.4 |
Flexural Strength (N/㎡) | 10.0-14.0 |
BULK DENSITY | 1.70-1.74 g/cm^3 |
Modulus Of Rupture | 10-14 Mpa |
Young's Modulus | 10.-14 Gpa |
Ash Content | Max 0.3% |

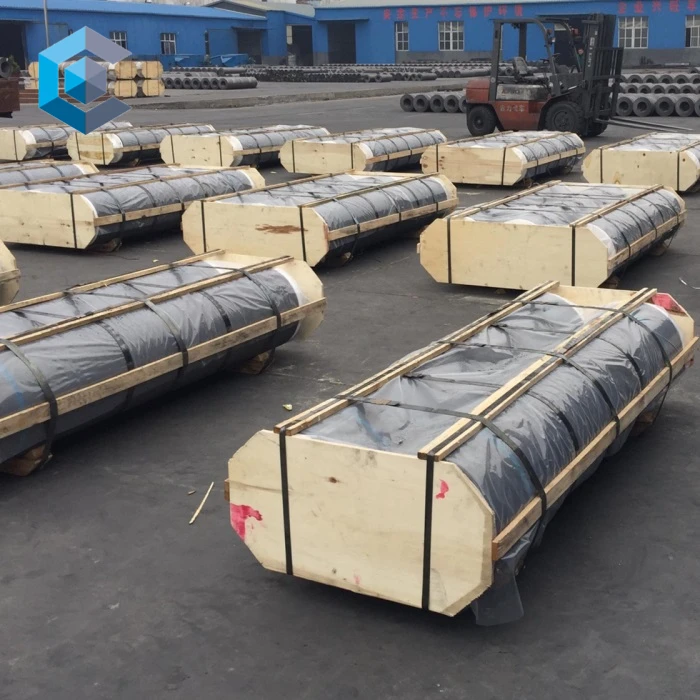

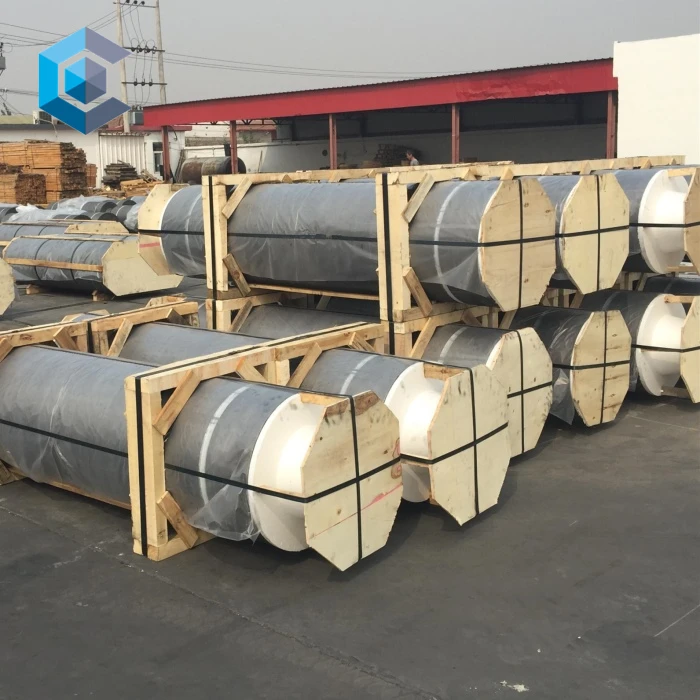

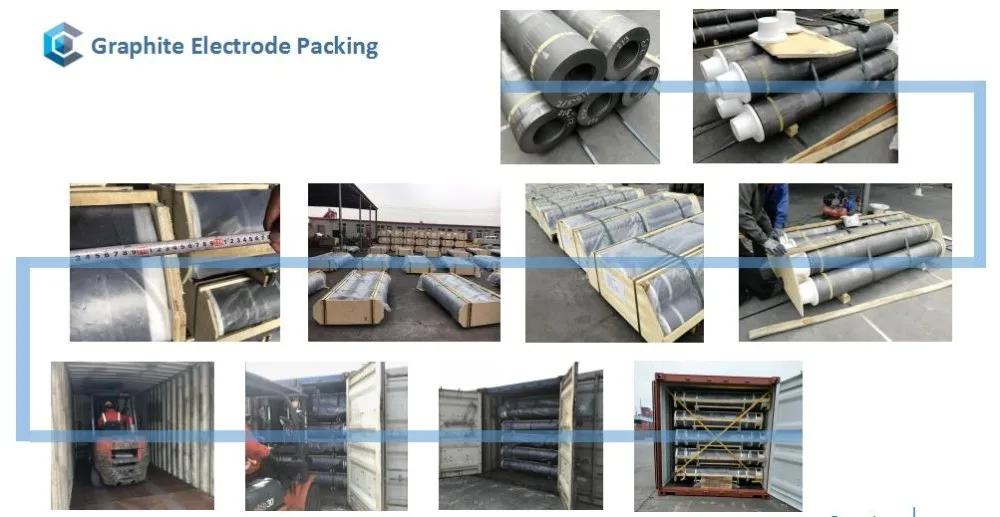

Packing & Delivery

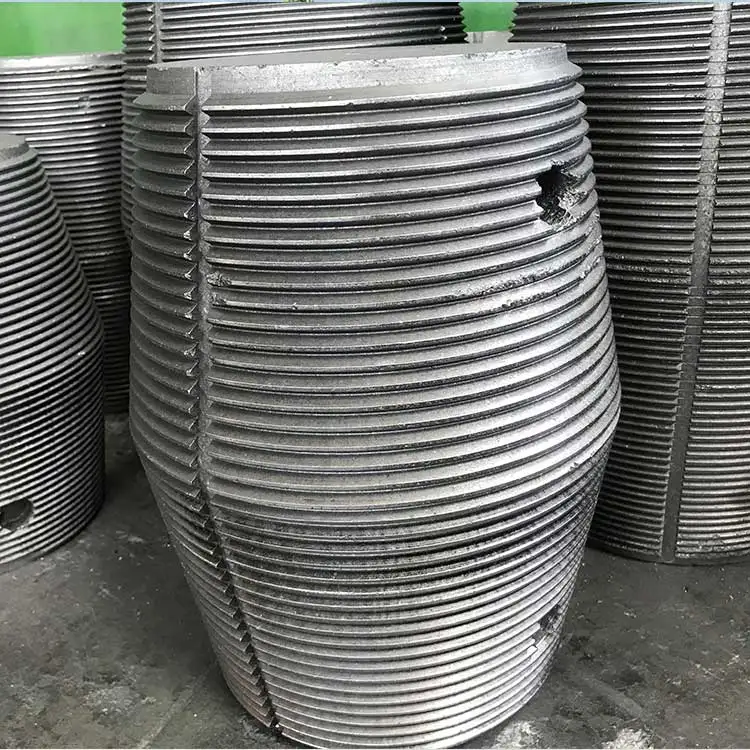

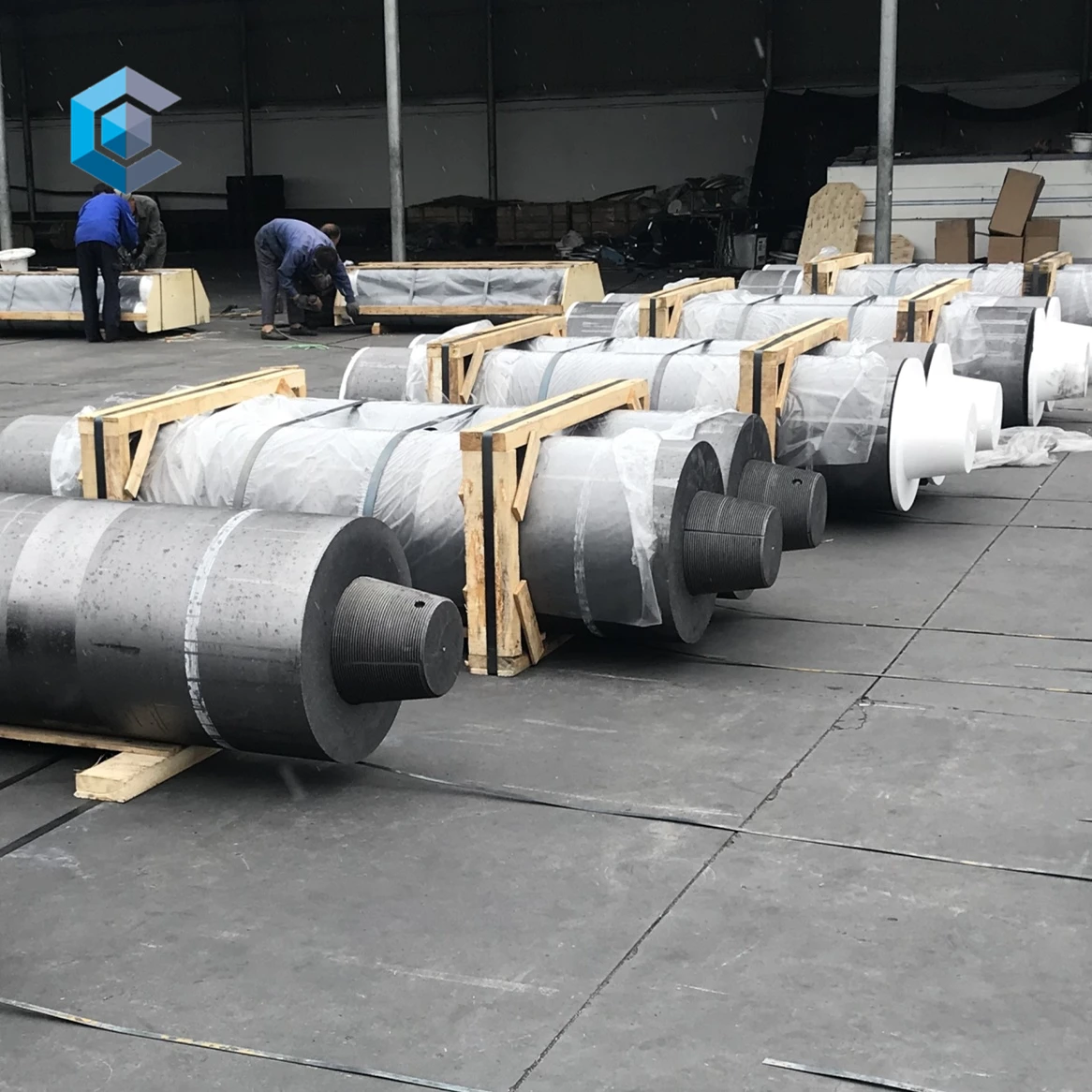

1.The electrode and the nipple are separately packaged and shipped.
2.One end of the electrode is equipped with a nipple,and both ends are equipped with protective cap,which is then shipped
2.One end of the electrode is equipped with a nipple,and both ends are equipped with protective cap,which is then shipped
Company Profile
Rongxing Group is China's leading supplier dedicated to providing its customers with the quick quotes, superior quality products, competitive prices and fastest possible deliveries of carbon metallurgical materials and solutions. Founded in 1992 in east-central China, it develops closer customer relationships and taking on a larger role in the total supply and manufacturing chain. With over 20 years of expertise in carbon metallurgical industry, the company is committed to research & development, and providing a range of high quality, innovative, cost-effective carbon metallurgical products and solutions. Its main products are graphite electrode,electrode paste, calcined petroleum coke, and refractory. The range of product line covers carbon materials, graphite materials, refractory and water treatment materials. The annual production capacity of graphite electrode, electrode paste, calcined coke and refractory reaches 50,000 tons, 200,000 tons, 250,000 tons and 20,000 tons respectively. The company's corporate headquarters is currently located in the Zhengzhou.

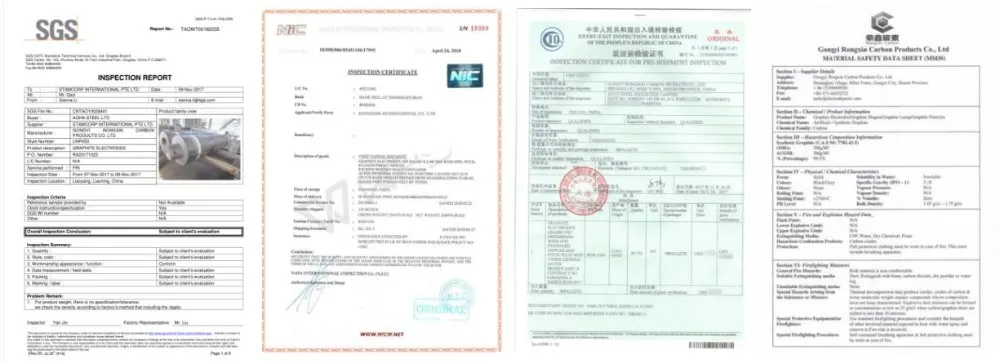

Certifications
FAQ
1. who are we?
We are based in Henan, China, start from 2013,sell to South Asia(30.00%),Mid East(30.00%),Eastern Asia(20.00%),Southern Europe(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Graphite electrode,electrode paste,carbon raiser,carbon product,graphite product
4. why should you buy from us not from other suppliers?
China's leading supplier in carbon and metallurgical industry, Providing its customers with the quickest quotes, best quality products, competitive prices and fastest possible deliveries,Production operation and process is certified under ISO9001 quality.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2013,sell to South Asia(30.00%),Mid East(30.00%),Eastern Asia(20.00%),Southern Europe(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Graphite electrode,electrode paste,carbon raiser,carbon product,graphite product
4. why should you buy from us not from other suppliers?
China's leading supplier in carbon and metallurgical industry, Providing its customers with the quickest quotes, best quality products, competitive prices and fastest possible deliveries,Production operation and process is certified under ISO9001 quality.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
