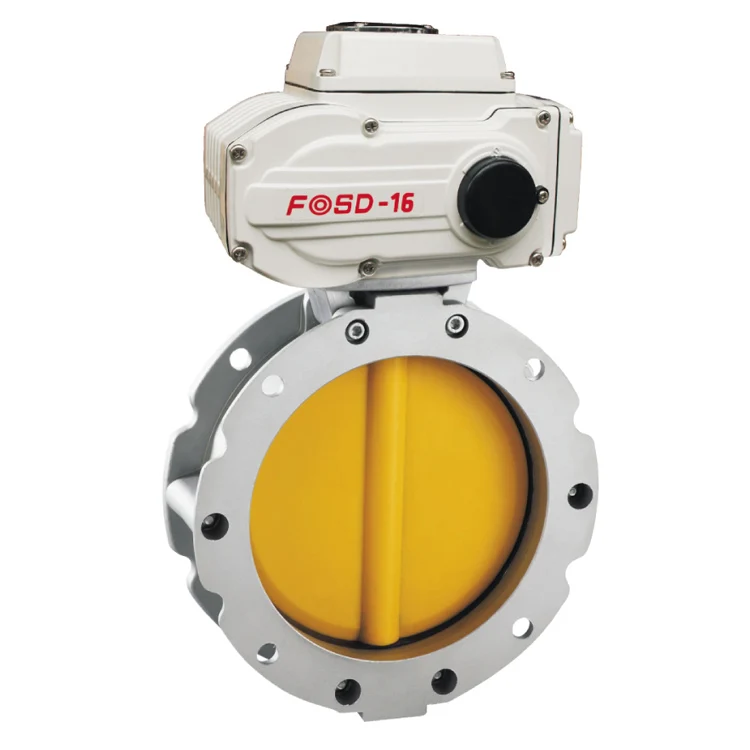

electric powder two flange cement butterfly valve





· Our Advantages ·



Advantages:

• Guangzhou Fols Valve Technology Co., Ltd. aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.



• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.



• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.



• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.



• OEM / ODM service available.





· Product Specification ·



Electric powder butterfly valve is used in workbin or bin that contain powdery or granular material, they control the powdery and granular material of pipe in the bottom of workin or bin.

The single flange powder butterfly valve has top flange and folding parts, it is suitable for flexible bushing. The double flange butterfly valve has the same flanges in two ends, manufactured by gravity casting that better than pressure casting, are characterized by high wear resistance, less components, light weight.

Features
1. Design reasonable, unique structure, light weight, open and close quikly.
2. Operation torque small, easy operation.
3. Mounted in any position, and easy maintenance.
4. The seal part can be replaced, zero leakage of reliable seal performance.
5. The seal material anti-aging, corrosion resistance, long life and other



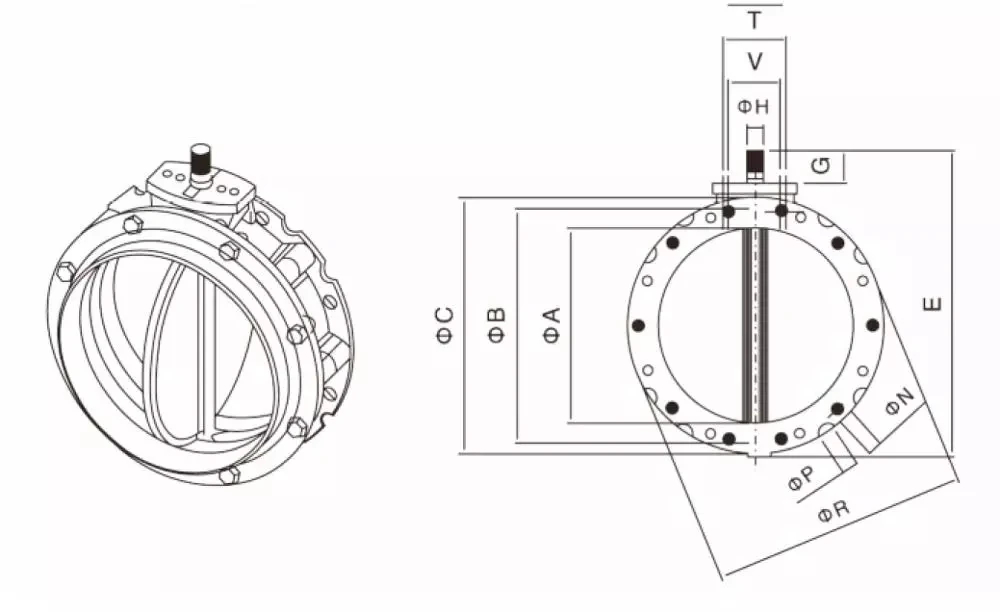

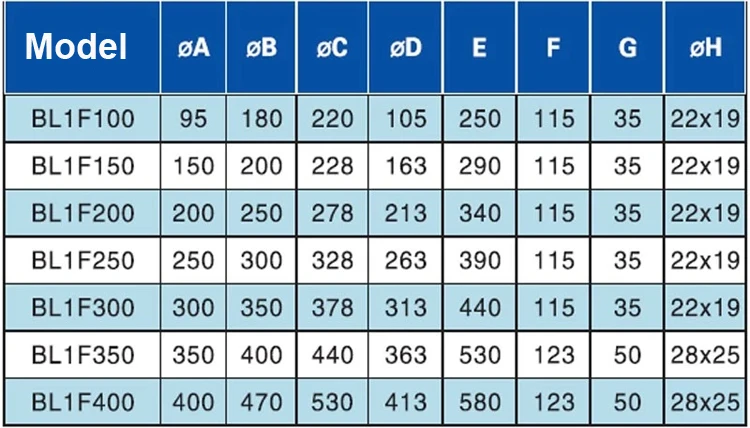

Body
Nominal size: DN100-DN400
Body material: Cast Aluminiem alloy
Connection type: flange, double flange

Pressure class: PN10,PN16
Structure type: The midline structure



Valve components
Disc material: Ductile iron nickel plating, Cast Aluminiem alloy, aluminum bronze, 304, 316, 316L, 1.4529, 2507
Stem material: Stainless steel 410,304
Applicable medium: Water, liquids, gas, oil, powder, steam, acid-base corrosive medium.



Design and manufacturing standards
Thread standard: GB, NPT, BSPT, BSP, DIN259/2999
Top flange: ISO5211
Pressure testing: ISO5208 API598





Electric actuator ( Optional)

Type	Control type	Function
Electric actuator	ON-OFF type	Feedback: the active signal, passive contact signal, resistance
(optional)	Regulation type	Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
	Filed operation	The field, remote control switch regulation and  MODBUS, PROFIBUS field bus





Specification of Electric Actuator
Items Parameter	FOSD-05	FOSD-10	FOSD-16	FOSD-30	FOSD-60	FOSD-125	FOSD-250	FOSD-400
Output torque	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
Rated travel time	10S/20S	15S/30S			30S/60S	100S	100S	100S
Rotation angle	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°
Working current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting power	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Motor power	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Power	AC220V,       AC24V,     AC110V ,    AC220 ,       AC380,      DC24V (choose options)
Input signal	4-20mA (Modulating type)
Output signal	4-20mA (Modulating type)
Insulation resistance	100M/500VDC
Pressure withstanding	1500 VAC ,   one minutes
Inbreaking protection	IP65/IP67
Installation angle	360° any angle
Electrical Interperation	one G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity	-30°C  to +60°C
Pilot circuit options	A:with limit position switch style (standard)
	B: with neutral position switch style ( passive contact)
	C:with potentiometer style
	D: both potentiometer and neutral position switch style
	E: with control module style ( Modulating Applications)
	F: DC motor control circuit style
	G:Three-phase current 380V control circuits style
	H:Three-phase current 380V, both neutral position switch and potentiometer style
