12vdc modulating electric actuator butt welding sanitary butterfly valve





· Our Advantages ·



Advantages:

• Guangzhou Fols Valve Technology Co., Ltd. aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.



• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.



• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.



• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.



• OEM / ODM service available.





· Product Specification ·



thread sanitary butterfly valve was manufactured by standard electronic polishing, it is smooth, clean, compact structure, easy install and uninstall,and easy maintenance, widely used in food, pharmacy, cosmetics, clean steam, wine industry, beverage industry, chemical industry etc.

FOLS series electric sanitary butterfly valves have passed the sophisticated testing process and strict quality management. The circulation pased polishing and antibacterial treatment. With the seal EPDM or FPM, no dead ends and easy to clean. The actuator is easy to install with the valves and take up small space.

Features
1. Using the stainless steel fefining.
2. The circulation with polishing makes the fluid flow smoothly.
3. Adopt the seal EPDM or FPM, no dead end and keep healthy.
4. easy to install.



Body
Nominal size: DN20-DN108
Body material: WCB,Ductile iron,304,316
Connection type: Wafer, flange, LT- lug wafer type
Pressure class: PN10,PN16
Structure type: The midline structure



Valve components
Disc material: Ductile iron nickel plating, nylon coating, aluminum bronze, 304, 316, 316L, 1.4529, 2507
Stem material: Stainless steel 410,304
Applicable medium: Water, liquids, gas, oil, powder, steam, acid-base corrosive medium.

Design and manufacturing standards
Design and manufacture:GB/T 13927-92.





Electric actuator ( Optional)

Type	Control type	Function
Electric actuator	ON-OFF type	Feedback: the active signal, passive contact signal, resistance
(optional)	Regulation type	Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
	Filed operation	The field, remote control switch regulation and  MODBUS, PROFIBUS field bus





Specification of Electric Actuator
Items Parameter	FOSD-05	FOSD-10	FOSD-16	FOSD-30	FOSD-60	FOSD-125	FOSD-250	FOSD-400
Output torque	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
Rated travel time	10S/20S	15S/30S			30S/60S	100S	100S	100S
Rotation angle	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°
Working current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting power	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Motor power	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Power	AC220V,       AC24V,     AC110V ,    AC220 ,       AC380,      DC24V (choose options)
Input signal	4-20mA (Modulating type)
Output signal	4-20mA (Modulating type)
Insulation resistance	100M/500VDC
Pressure withstanding	1500 VAC ,   one minutes
Inbreaking protection	IP65/IP67
Installation angle	360° any angle
Electrical Interperation	one G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity	-30°C  to +60°C
Pilot circuit options	A:with limit position switch style (standard)
	B: with neutral position switch style ( passive contact)
	C:with potentiometer style
	D: both potentiometer and neutral position switch style
	E: with control module style ( Modulating Applications)
	F: DC motor control circuit style
	G:Three-phase current 380V control circuits style
	H:Three-phase current 380V, both neutral position switch and potentiometer style





· Wiring Diagram ·

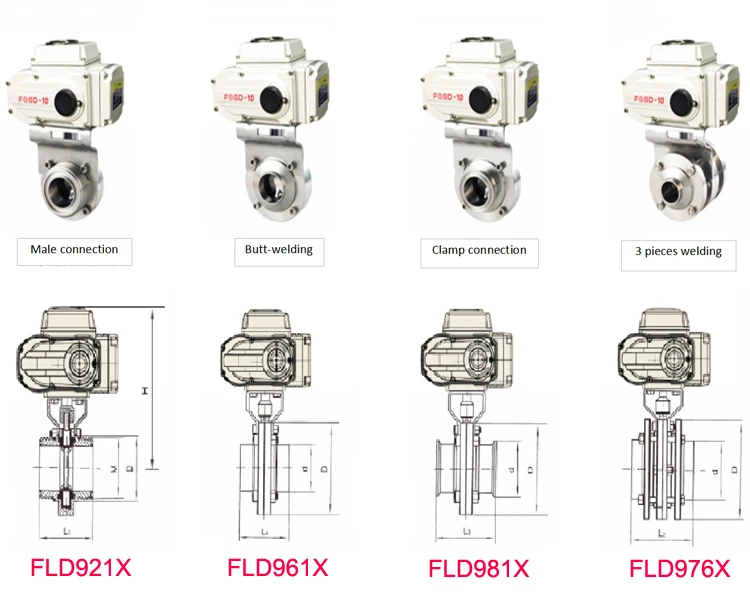

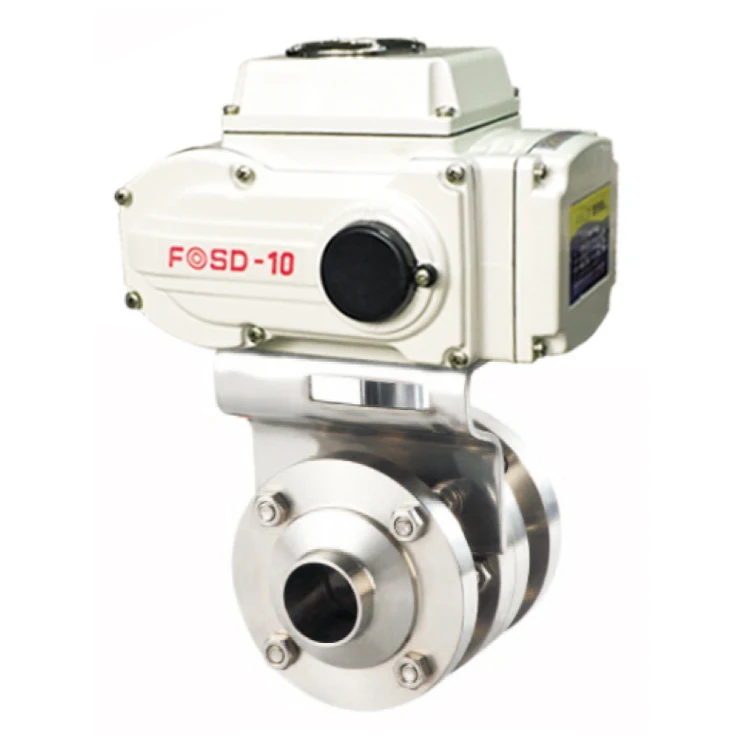

· Product Picture ·





· More type of electric actuator ·

Explosion-proof                        With handwheel                              Multiturn                           Small





ISO 5211 Mounting
