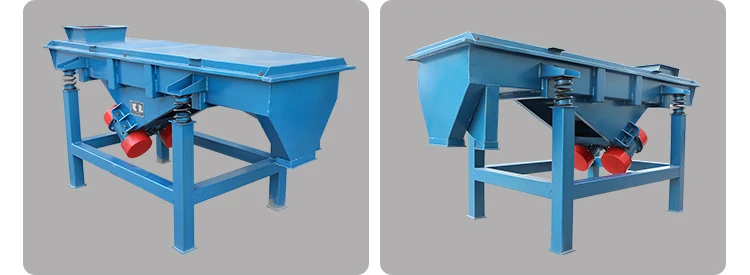

Sugar salt linear vibrating screen filter machine
Products Description
Working Priniciple

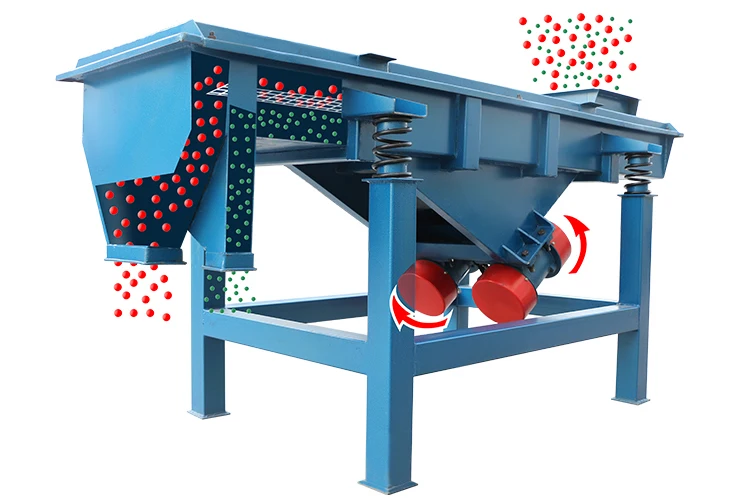

CZSF series linear vibrating screen uses the vibration motor installed at the bottom of it as vibration source. When working, the two motors spin in opposite directions, the eccentric blocks at the ends of motor produce vibration force. Under the action of vibration force, the screen box which supported on the four compression spring produces a continuous linear vibration. In the process of the movement, the materials do the projectile motion and keep going in a straight line at the same time. The materials enter into the feed port, go through the multi-layer screen, then different size of materials was separated out from different outlet.
Advantages
1. With exquisite and durable design, simple operation.
2. Easy to clean up and change the mesh.
3. Impurities and coarse materials are able to be expelled automatically, realizing automated operation.
4. Fully stainless steel construction, ensuring material purity.
5. Less malfunctions, easy maintenance.
6. Light weight and base equipped with castor wheels, easy to move and place.
7. The mesh size is able to be customized apart from standard configuration.
2. Easy to clean up and change the mesh.
3. Impurities and coarse materials are able to be expelled automatically, realizing automated operation.
4. Fully stainless steel construction, ensuring material purity.
5. Less malfunctions, easy maintenance.
6. Light weight and base equipped with castor wheels, easy to move and place.
7. The mesh size is able to be customized apart from standard configuration.
Application
1. Food industry: it can be used for processing starch powder, sugar powder, sale, rice flour, milk power, soybean milk, sauce, fruit juice, condiment, spice powder and so on.
2. Battery: it is mainly used in battery materials, powder granulation and making process.
3. Chemical industry: it is widely used for handling resin powder, paint, detergent powder, cosmetic, and so on.
4. Metallurgy industry: widely used in metallurgy industry, silicon carbide, aluminum powder, lead powder, mineral alloy powders, electrode powder, manganese dioxide and so on.
5. Medicine industry: Used in Chinese-Western powder, Chinese-Western liquid, industrial drugs, pharmaceutical intermediates, cellulose.
6. Ceramics industry: Mainly used in Mud, slurry and ceramic materials.
2. Battery: it is mainly used in battery materials, powder granulation and making process.
3. Chemical industry: it is widely used for handling resin powder, paint, detergent powder, cosmetic, and so on.
4. Metallurgy industry: widely used in metallurgy industry, silicon carbide, aluminum powder, lead powder, mineral alloy powders, electrode powder, manganese dioxide and so on.
5. Medicine industry: Used in Chinese-Western powder, Chinese-Western liquid, industrial drugs, pharmaceutical intermediates, cellulose.
6. Ceramics industry: Mainly used in Mud, slurry and ceramic materials.
Product Parameters
Model | Size (mm) | Material size (mm) | Inclination | Amplitude (mm) | Layer | Power (KW) |
CZSF-520 | 500*2000 | 0.074-10 | 0-7 degree | 4-10 | 1-5 | 2 x (0.4-0.75) |
CZSF-525 | 500*2500 | 2 x (0.4-0.75) | ||||
CZSF-530 | 500*3000 | 2 x (0.4-0.75) | ||||
CZSF-535 | 500*3500 | 2 x (0.4-0.75) | ||||
CZSF-815 | 800x1500 | 2 x (0.4-0.75) | ||||
CZSF-820 | 800x2000 | 2 x (0.4-0.75) | ||||
CZSF-1020 | 1000*2000 | 2 x (0.4-0.75) | ||||
CZSF-1025 | 1000*2500 | 2 x (0.4-0.75) | ||||
CZSF-1030 | 1000*3000 | 2 x (0.4-1.1) | ||||
CZSF-1040 | 1000*4000 | 2 x (0.4-1.1) | ||||
CZSF-1225 | 1200*2500 | 2 x (1.1-1.5) | ||||
CZSF-1235 | 1200*3500 | 2 x (1.1-1.5) | ||||
CZSF-1540 | 1500*4000 | 2 x (1.1-2.2) | ||||
CZSF-1560 | 1500x6000 | 2 x (2.2-3.7) | ||||
CZSF-1845 | 1800x4500 | 2 x (2.2-3.7) | ||||
CZSF-2050 | 2000x5000 | 2 x (2.2-3.7) | ||||
CZSF-2260 | 2200x6000 | 2 x (2.2-3.7) |
FAQ
1. How can we hanld the problem of blocking mesh ?
Except the ultrasonic vibrating screen adopts ultrasonic cleaning system, other vibrating screen adopts bouncing ball and PU ring below every deck to cleaning screen surface.
2. How about the sealing of this machine ?
Between two decks, there are silica gel ring to seal. Then the clamp would lock two decks tightly with the extended copper nut.
3. Could this machine be refitted or designed to suit to my production line ?
All of machines in our company could be customized by clients' specific requirement such as the height from outlet to ground, the inlet shape, the outlet shape and the gate design on first deck.
4. How can I get the matched spares for maintaining ?
The matched spares such as seal ring, bouncing ball, screen surface, clamp screws and nut could be ordered one set or more as customers' need.
5. How many payment terms can I choose ?
L/C, T/T,Western Union and Paypal are available.
Except the ultrasonic vibrating screen adopts ultrasonic cleaning system, other vibrating screen adopts bouncing ball and PU ring below every deck to cleaning screen surface.
2. How about the sealing of this machine ?
Between two decks, there are silica gel ring to seal. Then the clamp would lock two decks tightly with the extended copper nut.
3. Could this machine be refitted or designed to suit to my production line ?
All of machines in our company could be customized by clients' specific requirement such as the height from outlet to ground, the inlet shape, the outlet shape and the gate design on first deck.
4. How can I get the matched spares for maintaining ?
The matched spares such as seal ring, bouncing ball, screen surface, clamp screws and nut could be ordered one set or more as customers' need.
5. How many payment terms can I choose ?
L/C, T/T,Western Union and Paypal are available.

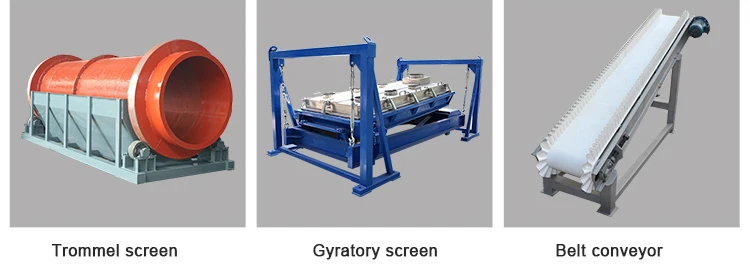

Related Products
Company Profile
HENAN CHINYING ENVIRONMENTAL PROTECTION Equipment Co., Ltd., located in Xinxiang city, Henan province, China, which is an enterprise integrated scientific researching, device producing and product marketing. We mainly produces CY series vibrating screen, linear vibration sieve, test sieve, vibration conveyor, vibration feeder and other handling equipment.
Our company mainly produces the products for sieving, conveying, and elevating equipment. Our company has strong technical force, with the strategy aiming to obtain enterprise reputation, be bold in innovative technology and provides good servic.
Our company mainly produces the products for sieving, conveying, and elevating equipment. Our company has strong technical force, with the strategy aiming to obtain enterprise reputation, be bold in innovative technology and provides good servic.
Our Service
1. Installation, Debugging
Provide installation files, technical data and related soft copies or videos etc. to ensure customer could install and debug by themselves.
2. Warranty
The provider guarantee the vibrating screen could meet production technical standard and performance requirements indicated in the contract, warranty: 18 months, not include the wearing parts.
3. Technical Support
Our company will make occasional call to find problems and solve them in time.Provide technical support timely.
4. Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours.
Provide installation files, technical data and related soft copies or videos etc. to ensure customer could install and debug by themselves.
2. Warranty
The provider guarantee the vibrating screen could meet production technical standard and performance requirements indicated in the contract, warranty: 18 months, not include the wearing parts.
3. Technical Support
Our company will make occasional call to find problems and solve them in time.Provide technical support timely.
4. Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours.
