Медная фольга с углеродным покрытием Высококачественная проводящая медная для R & D Li-Ion батареи по заводской

Описание и отзывы

Характеристики

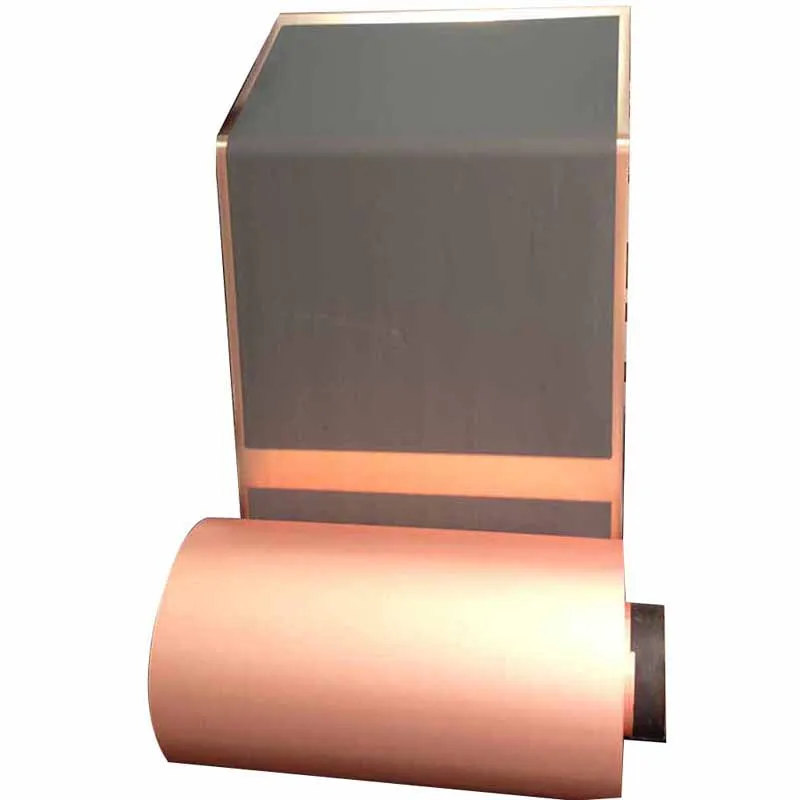

Copper Foil with Carbon Coating High quality conductive carbon coated copper foil For R&D Li-Ion Battery With Factory Price



Product Description





1.Conductive carbon coating

a) Double side coating with 1 micron thickness each side

b)Density: 0.54 g/m2

c)Surface resistivity:  < 30 ohms per 25um^2



2.Substrate of Copper

a) Purity > 99.9%.

b)Thickness: 9 micron



3.Coating Width : 1 ~ 239 mm

4.Total Width: 280 mm

5.Thickness: 11 um



Surface	Double-side smooth	PBB	≤1000ppm
Thickness	10um	PBDE	≤1000ppm
Copper content	≥99.8%	High temperature oxidation resistance	160℃ 10min no oxidation, discolor and brittle fracture
Cadmium and cadmium compounds	≤100ppm	High temperature Elongation	≥3%









Packaging & Shipping







Our Services



We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
