Product Description
Beidou Agricultural Machinery Auto-steering System is a self-developed and comprehensive system that integrates satellite reception, positioning and control. Agricultural producers can operate the steering mechanism of the tractor according to the walking route set by its position sensor, and drive the tractor for agricultural farming, such as plowing, harrowing, rotary tillage, ridging, sowing, spraying, harvesting and various parts of the agriculture operation. Through the automatic control of a large number of agricultural machinery, it improves the production quality and efficiency of agricultural land management.
Specification
Steering Control Type | Torque Motor Type |
On-board Computer Memory | 2GB |
On-board Computer Hard Disk | 16GB |
On-board Computer Operating System and Software Version | Windows xp, V2.0 |
On-board Computer Display Terminal Dimension and Resolution | 210*135*50mm, 800*480 |
On-board Computer Interface Type | LAN, USB, RS-232, RS422, 485, GPI0 |
On-board Computer Data Input and Output Protocol | Support Ethernet Protocol, CAN Port Protocol, Serial Port Protocol |
Satellite Receiver Type and Frequency Point | GPS (L1/L2), GLONASS (L1/L2), BDS (B1/B2) |
Satellite Receiver Mainboard Firmware Version | Build19856 |
Satellite Receiver Channel Number | 432 Channel |
Satellite Receiver Interface Type | RS-232 |
Satellite Receiver Differential Type | DGPS, SBAS, RTK |
Satellite Receiver Date Update Rate | 10Hz |
Satellite Receiver Receiving Antenna Type | GPS500 Double Measuring Antenna |

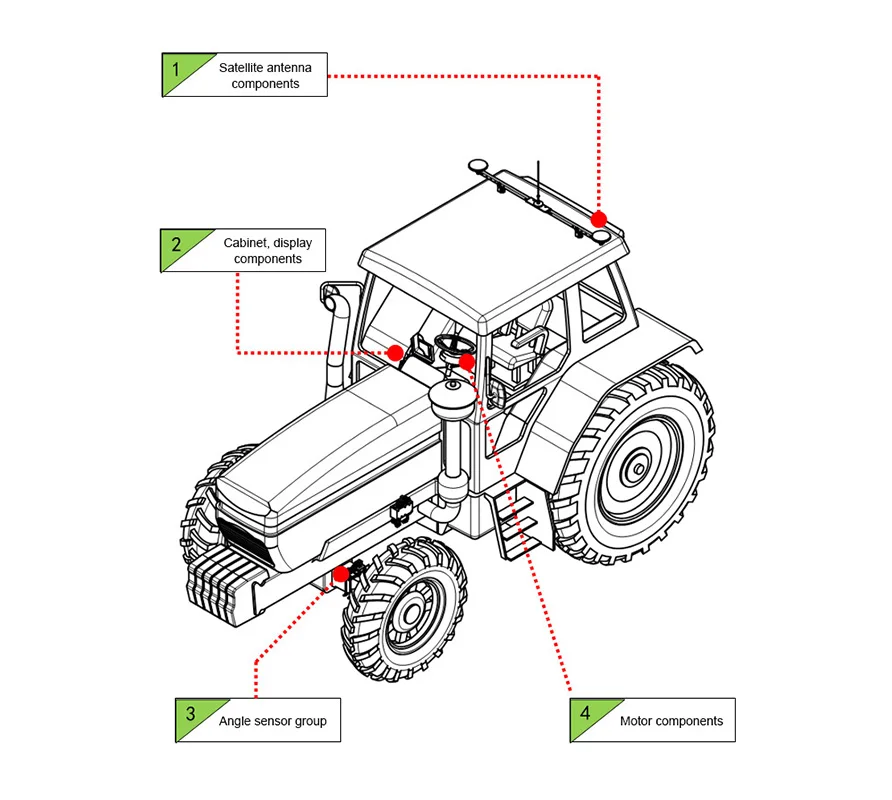

Product Structure
Beidou Agricultural Machinery Auto-steering System is mainly composed of ECU controller, display, high-precision Beidou / GNSS receiver, GNSS antenna, angle sensor, motor and other components.
Main Technical Parameters
Main parameters of the agricultural machinery : torque motor type, hydraulic type.
High operating precision, the error of a kilometer≤2.5cm;
Improve land utilization, increase output, and reduce labor intensity;
Reduce crop damage caused by mechanical harvesting;
Can work all day without interruption and multi-agricultural machinery joint operation;
Remote service platform management, scheduling, and acreage calculation;
Support AB line dotter to plan route;
Integrated chassis, convenient installation and beautiful appearance.
Product Certification
ISO9001, CE, RoHS
Display Terminal Platform Interface.
Track playback: Select the date to be viewed and click playback to view the track of agricultural machinery driving.
Back-stage management: intuitively see vehicle information and grouping, and can reset password, edit and delete vehicle information.
Statistical report: According to the grouping, select the query to see the working time and working area of the vehicle clearly. The tables and charts display more intuitively at the same time, and the required data can be exported to EXCEL and then saved.

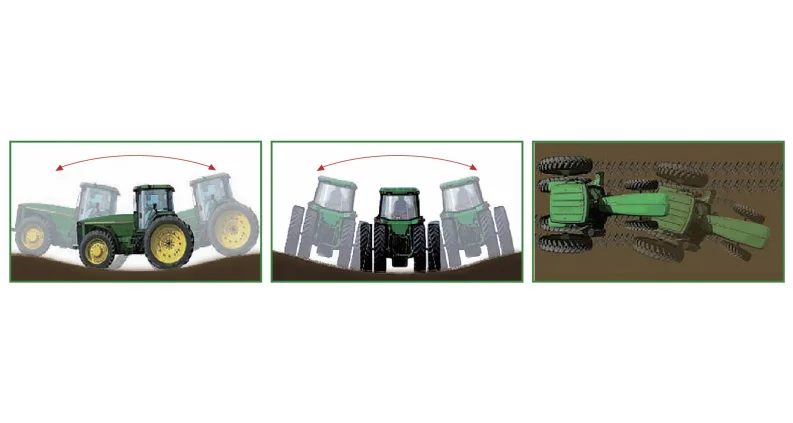

Terrain Compensation
JKBD-2.5GD uses sensors to calculate the actual position of the vehicle, helping minimize omissions and overlaps when working on wobbly and rolling terrain.
At present, more than 1,000 sets of the products has been sold in Xinjiang and Northeast China, which has initially formed a large-scale effect. The product performance is stable. According to the set route, it can automatically operate the steering mechanism of agricultural machinery to complete sowing, fertilizing, spraying, harvesting and various parts of the agriculture operation.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Who We Are
Zhejiang JEC Electronic Co., Ltd. is a wholly owned subsidiary invested and established by the 36th research institute in September 1998. It is a national high-tech enterprise with a registered capital of 100 million yuan, located in the Jiaxing Smart Industrial Park in Xiuzhou national high-tech zone, Jiaxing city, with a total construction area of nearly 15,000 square meters. The company's main business includes power supply, microwave, beidou, power amplifier and other products’ design, production and services; And Industrial sewage intelligent treatment, smart city and other fields of information system integration services.
Profile
With 20 years of integration experience in Military and security electronics business, we already been the leader of power supply, microwave, Beidou application, 5G application, explosion-proof interference and spectrum detection fields, also the leader of system integration and weak electricity industry. With the progress of smart city construction in the past two years, the company, with 5G, artificial intelligence, Internet of things and big data technology development as its traction, has actively built a leading intelligent public transportation industry circle in China, and formed an environmental protection industry circle focusing on industrial sewage treatment.
Now, JEC Electronic has a provincial high-tech enterprise R & D center, a high-quality design and R & D team, and first-class R&D, manufacture and testing equipment and it has obtained a number of national invention and utility model patents. In addition, it has passed ISO9001-2015 quality management system, GJB9001-2017 military standard quality management system, ISO14001-2015 environmental management system and ISO 45001:2018 occupational health and safety management system. At present, JEC Electronic has obtained the certificates of equipment contractor registration certificate, third-level confidentiality certificate for research and production of weapons and equipment, license for scientific research and production of weapons and equipment, etc.
With the spirit of collaborative innovation, we strive to be a first-class enterprise. While completing the major scientific research and production tasks with high quality, JEC Electronic focuses on its main business, developing the military industry and civil products industry in depth, steadfastly deepening the reform in an all-round way, and steadfastly pushing forward the innovation-driven development, so as to ensure that our enterprise sticks to the patriotism and serves the national strategy.
We will cooperate together for a win-win future through planning, discussion and sharing. We look forward to working with you hand in hand to create better future!
Now, JEC Electronic has a provincial high-tech enterprise R & D center, a high-quality design and R & D team, and first-class R&D, manufacture and testing equipment and it has obtained a number of national invention and utility model patents. In addition, it has passed ISO9001-2015 quality management system, GJB9001-2017 military standard quality management system, ISO14001-2015 environmental management system and ISO 45001:2018 occupational health and safety management system. At present, JEC Electronic has obtained the certificates of equipment contractor registration certificate, third-level confidentiality certificate for research and production of weapons and equipment, license for scientific research and production of weapons and equipment, etc.
With the spirit of collaborative innovation, we strive to be a first-class enterprise. While completing the major scientific research and production tasks with high quality, JEC Electronic focuses on its main business, developing the military industry and civil products industry in depth, steadfastly deepening the reform in an all-round way, and steadfastly pushing forward the innovation-driven development, so as to ensure that our enterprise sticks to the patriotism and serves the national strategy.
We will cooperate together for a win-win future through planning, discussion and sharing. We look forward to working with you hand in hand to create better future!
We Pay Our Hearts to Serve Customers all over the world!!
FAQ
What's the lead time?
If all in stock, can ship ASAP; If no stock, about 30 days.
Can be Customized?
Yes Of course, you can tell us your requirement.
JEC Will Pay its heart to serve you!!
