Product Description
The automatic mining machine fire system consists of a tank cylinder, a solenoid valve with pressure gauge, discharge tube, fire
alarm, control panel and thermal detection cord.
The tank could be filled with Water, AFFF3% Foam, FM200, or Dry Powder agent, and is filled with an appropriate amount of driving
gas nitrogen.
The systems with different agent are with different discharge tube and nozzles.
alarm, control panel and thermal detection cord.
The tank could be filled with Water, AFFF3% Foam, FM200, or Dry Powder agent, and is filled with an appropriate amount of driving
gas nitrogen.
The systems with different agent are with different discharge tube and nozzles.
Product Features.
* Fast detection and high efficiency
* Rechargeable
* Adapted to harsh environments
* Lightweight, not burdensome to equipment
* Simple installation and maintenance
* Suitable for heavy duty mining machine
* Comtrol panel shows real-time temperature
* Available in many agents: foam, novec1230, water mist, dry powder, FM200,etc
* Rechargeable
* Adapted to harsh environments
* Lightweight, not burdensome to equipment
* Simple installation and maintenance
* Suitable for heavy duty mining machine
* Comtrol panel shows real-time temperature
* Available in many agents: foam, novec1230, water mist, dry powder, FM200,etc
Specification
CAPACITY | 9KG AUTO ABC90% |
NECK THREAD OF CYLINDER | M30*1.5 |
MATERIAL | Steel red painting Or Stainless Steel 304 |
VALVE THREAD | M30*1.5 |
ACTIVATION TEMPERATURE | 140ºC |
SERVICE TEMPERATURE | -30ºC ~ +60ºC |
WORKING PRESSURE | 14Bar |
TEST PRESSURE | 27Bar |
DISCHARGE PIPE | Dia.16mm, Stainless Steel |
ACTIVATION TIME | <8s |
Application | Vehical Engine Room |
Packing | with High Quality Export Carton Box or Wooden Box |
System Activated Temperature | 140℃ or Customized Temperature |
MOQ | 50sets |
Product Details

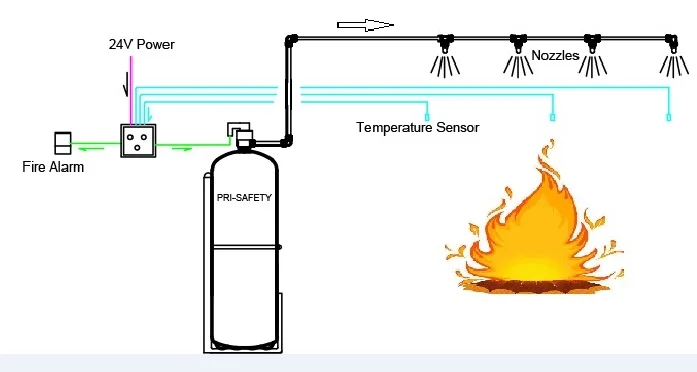

1). Product Activated Principle
The temperature sensor send temperature signal to control panel, the control panel can indicate the temperature at anytime, once
temperature reach 100 ºC, the fire alarm was activated. Once the temperature reach 140ºC, control panel will send signal to
electric valve to open it. Then the agent will be discharged from dischange tube and nozzles.
temperature reach 100 ºC, the fire alarm was activated. Once the temperature reach 140ºC, control panel will send signal to
electric valve to open it. Then the agent will be discharged from dischange tube and nozzles.

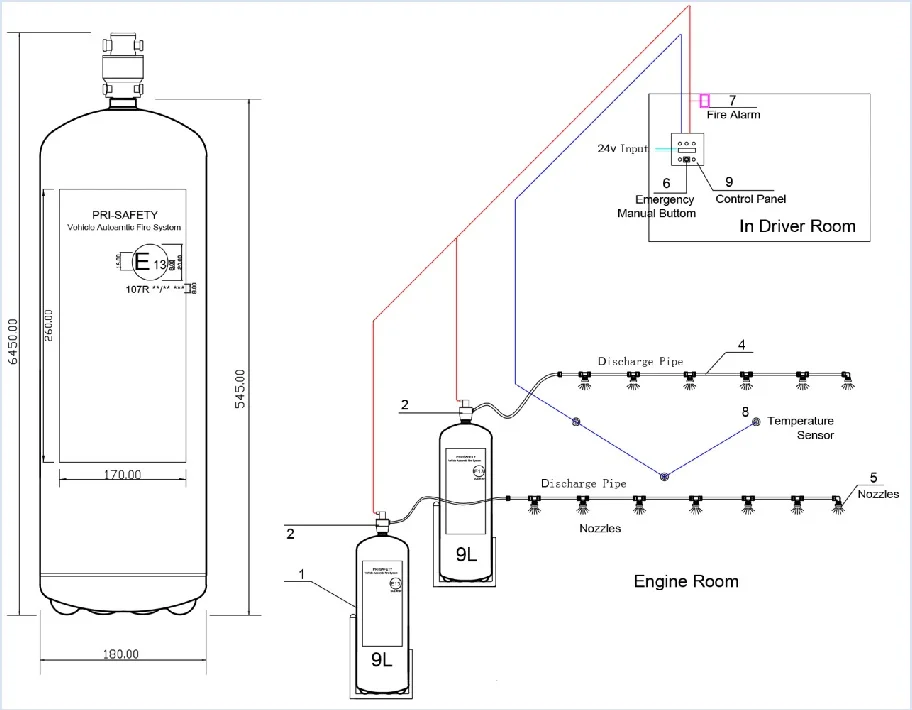

2). Drawing for reference
Diagram of R107 Systems for Detection Tube Model
Certifications

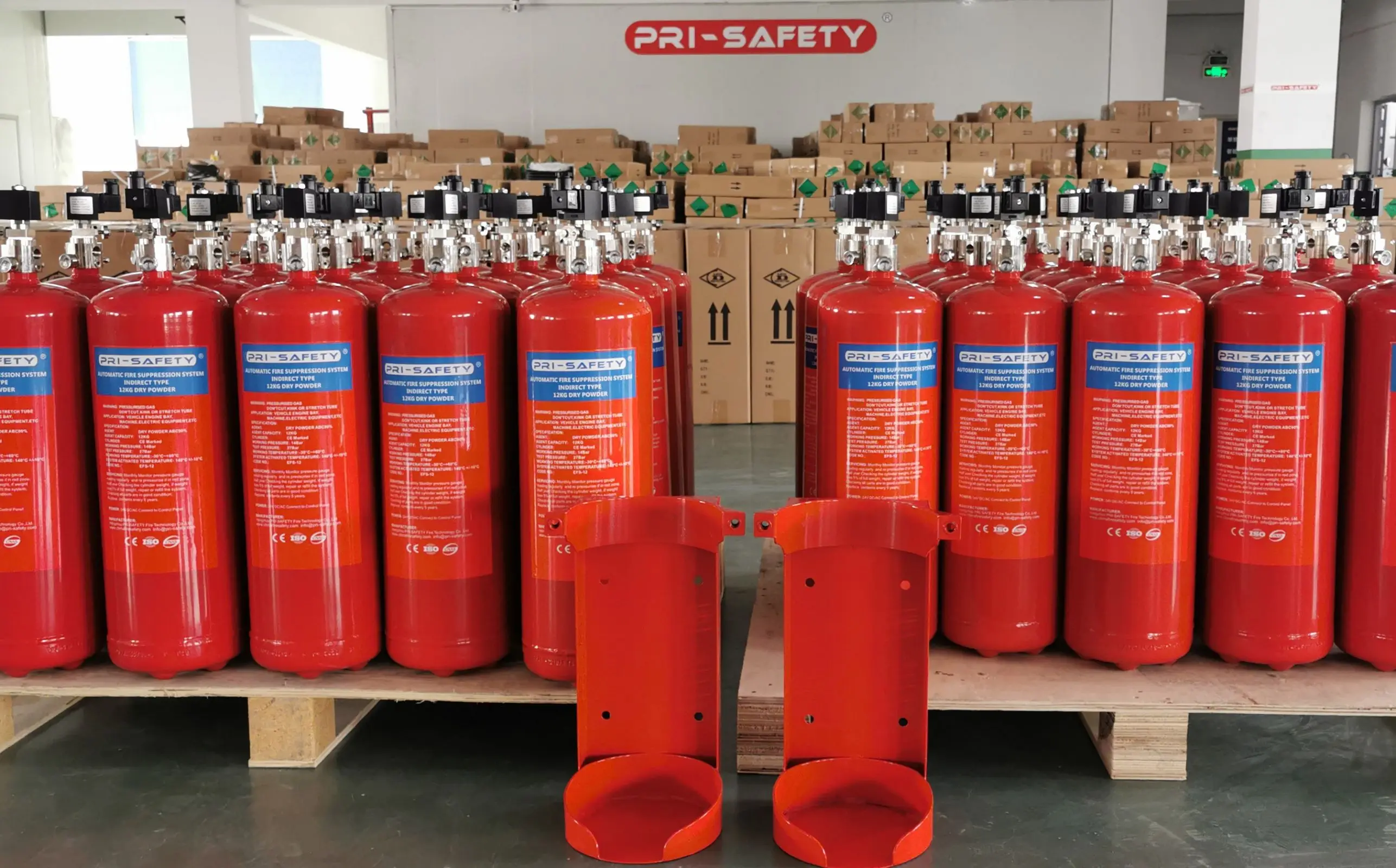

Details Images

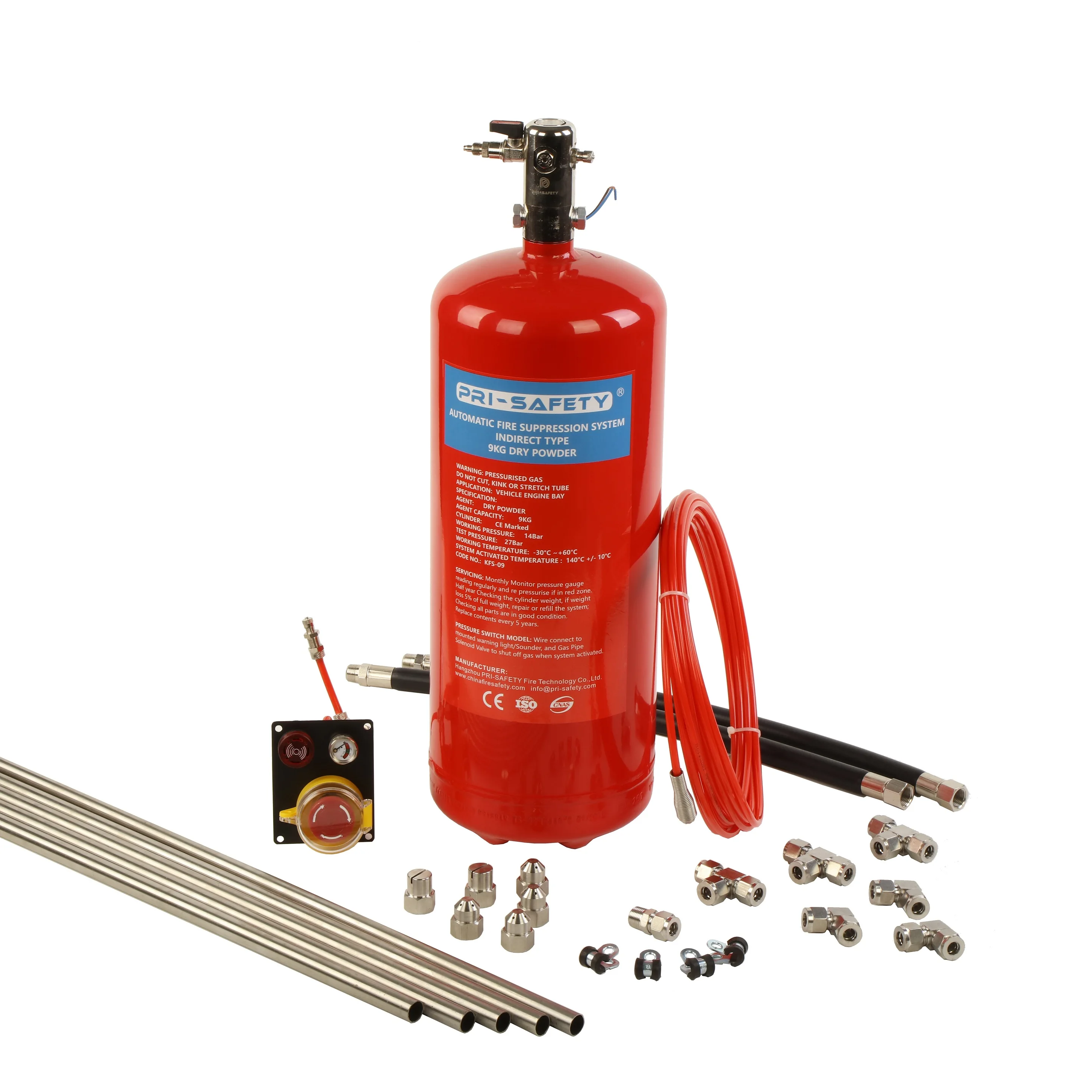

1). Steel red painting

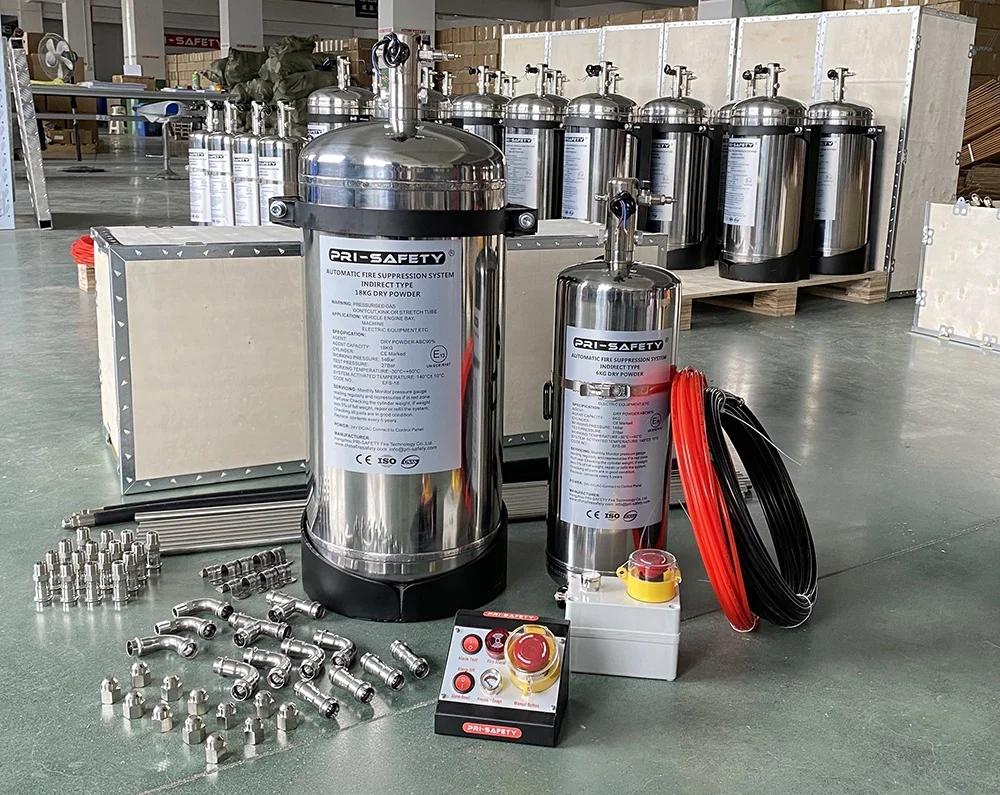

2). Stainless Steel 304

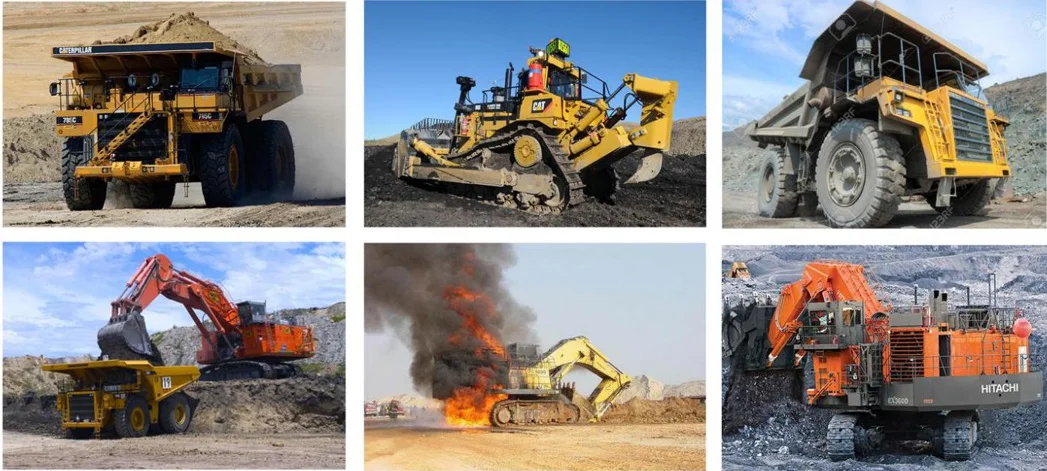

Application
Not only used in Mining Machines
but also could be used for All Vehicles
