Toilet Paper Production Line
Toilet Tissue Paper Making Machine Production Line
Function:
This full automatic Toilet Tissue Paper Making Machine Production Line is from a large roll of paper (also called the original paper roll) in turn rewinding, forming a long log of paper, and then after slitting, packaging, from the original paper to the final roll of toilet tissue paper products.
This full automatic Toilet Tissue Paper Making Machine Production Line is from a large roll of paper (also called the original paper roll) in turn rewinding, forming a long log of paper, and then after slitting, packaging, from the original paper to the final roll of toilet tissue paper products.
At the same time, the functions of rewinding, embossing and punching are added in the production process, which makes the finished toilet tissue paper high quality, beautiful appearance and easy to use.
Features:
1. Using range:Jumbo roll, Toilet tissue, Bathroom tissue, Roll paper, Non-woven.2. The working principle of the line: automatic rewinding roll → automatic cutting roll → automatic single roll packing → automatic muilt-rolls packing.
3. The line uses PLC programmable logic controller, making the whole machine run program.
4. The line uses high-sensitivity photoelectric detection sensor feeding, to prevent blocking material and feeding accuracy.
5. The line is equipped with manual and automatic modes of operation, selecting the manual program can be used to control their work speed; choosing automatically according to the need to freely adjust the bagging speed.
6. The line have temperature independent regulation and control, better for a variety of packaging materials, improving the sealing quality.
7. The whole structure is compact, packaging speed, stable and reliable performance, high degree of automation, simple operation.It is the optimization product of roll paper production line.
Youdeng machinery technology company can supply all the whole production line of
full automatic toilet tissue paper making machines, including Toilet Tissue Paper Rewinding Machine, Toilet Tissue Paper Cutting Machine, Toilet Tissue Paper Single Roll Packing Machine, Toilet Tissue Paper Bundling Packing Machine and other tissue and toilet paper making machine.

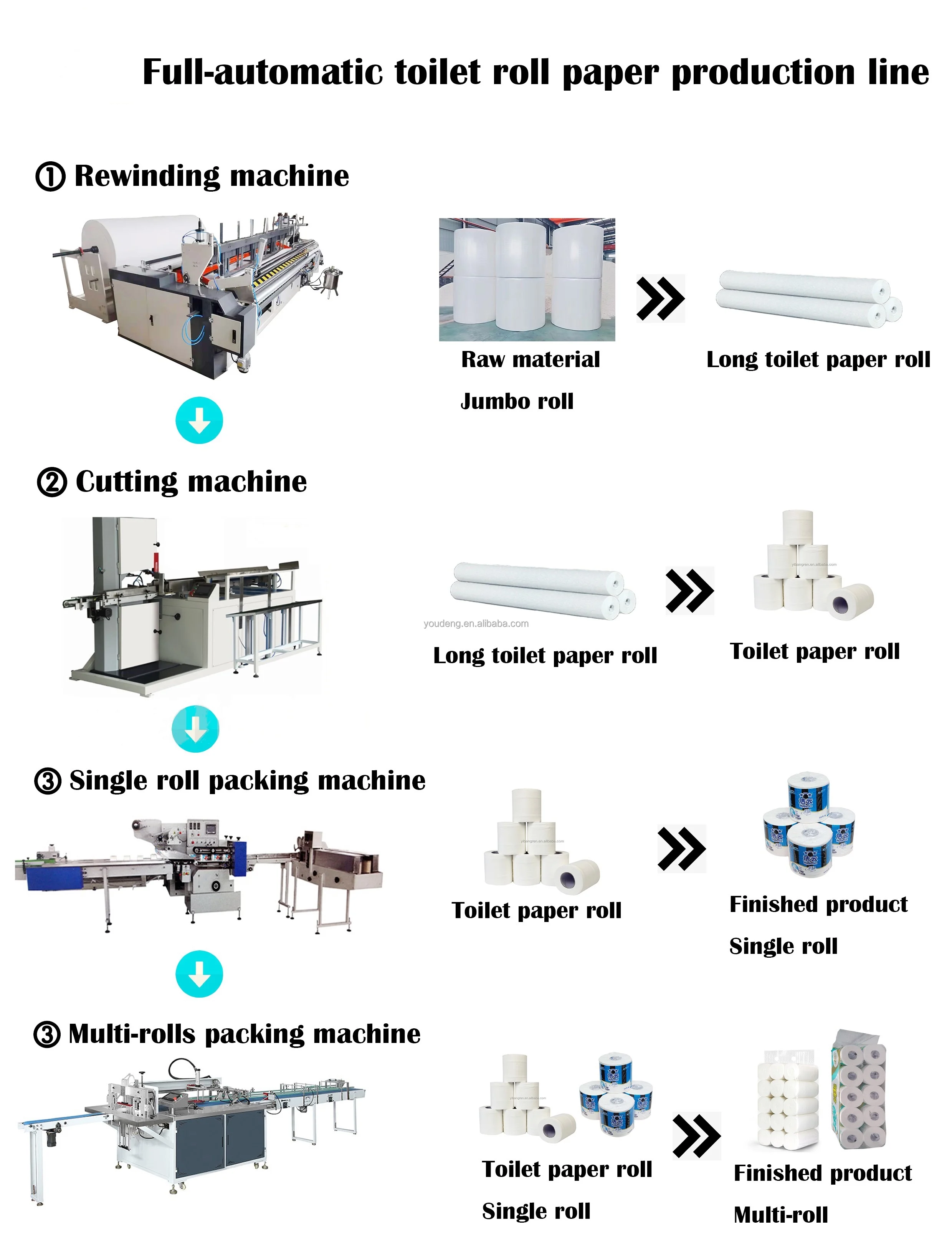

How to make toilet tissue paper roll ?
The following production line for your reference ~

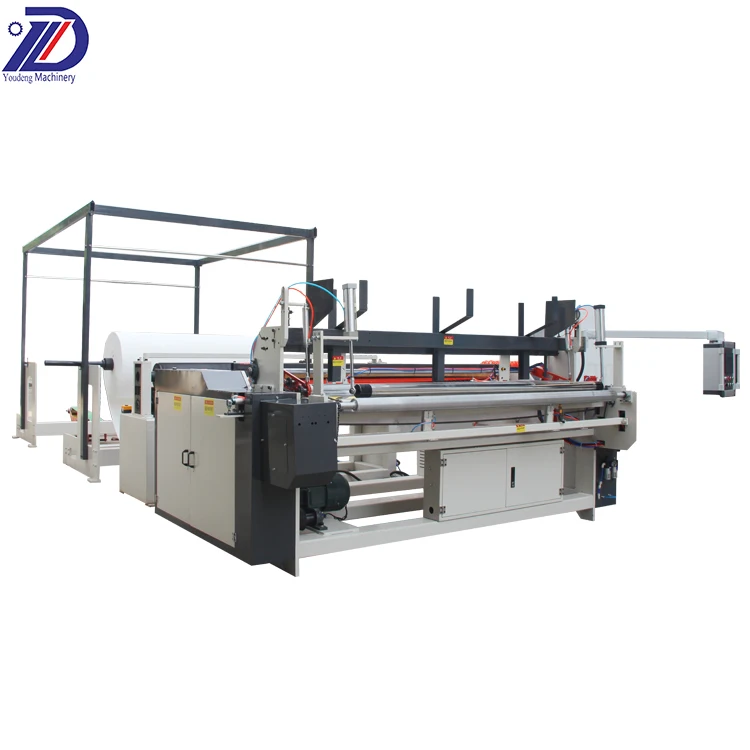

1. Toilet Tissue Paper Rewinding Machine
Product Description:
1. This machine adopts the international new PLC computer programming technology, frequency control, automatic electronic brake. The touch man-machine interface operating system adopts coreless rewinding system.
2. The air cylinder is used for automatic paper feeding, and the paper placing rack, that is the frame, so it can be detached from the head of the main machine.
3. Automatic paper feeding, embossing, punching (dotted line), rewinding (long roll web/log),
trimming, glue spraying and tail sealing.
trimming, glue spraying and tail sealing.
Parameter of Toilet Tissue Paper Rewinding Machine | ||
Model | YD-1880 | |
Machine Size | 8000*3000*1600mm | |
Length of the Base Paper | 2200mm | |
Width of the Base Paper | 1100mm—1300mm | |
Base Paper Core Diameter | 76.2mm | |
Diameter of the Finished Product | 60-120mm | |
Inner Diameter of Paper Core | 20-50mm | |
Embossing | Customized | |

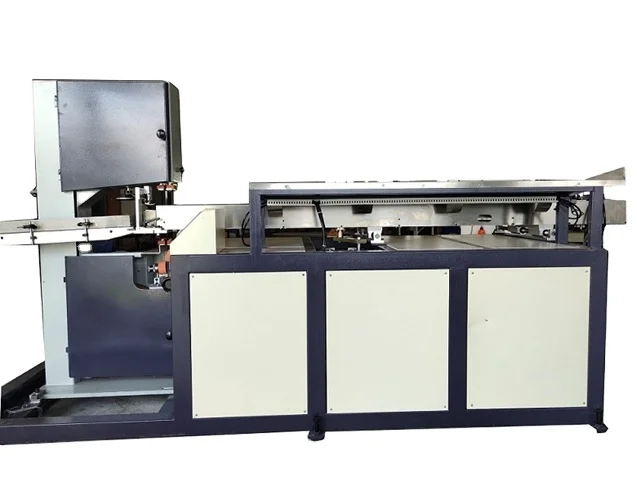

2. Full-auto Toilet Tissue Paper Cutting Machine
Product Description:
1. Design PLC control system, automatic production process, complete functions, high production speed.
2. Equipped with automatic alarm to indicate core tube filling. When there is no core pipe, the machine will stop automatically. Automatic paper cut-off alarm.
3. Cutting mode can be according to customer requirements: shear / press cutting (round knife) shaving blade cutting system.
Parameter of Toilet Tissue Paper Cutting Machine | ||
Model | YD-2 | |
Cutting Speed | 120-200 cuts/min | |
Power Type | 220/380V 50HZ | |
Air Pressure | 0.6Mpa | |
Total Power | 4.5KW | |
Machine Size | 3500*850*1100mm | |
Tissue Roll Height | 30-150mm | |
Machine Net Weight | 1500KG | |

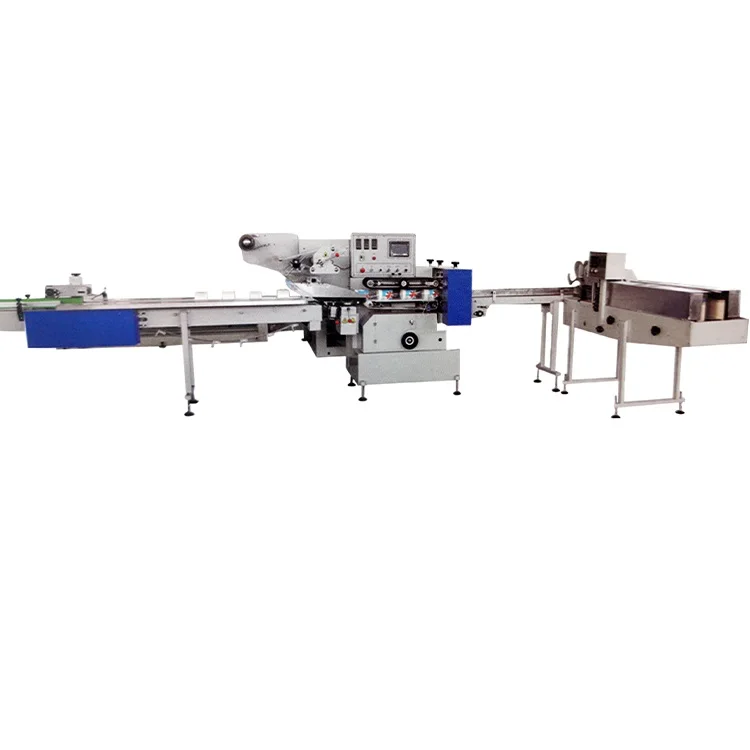

3. Toilet Tissue Paper Single Roll Packing Machine
Product Description:
1. It can be automatically connected with the front-end paper cutter without manual paper placement.
2. According to the speed of the paper cutter, the packaging speed can be adjusted automatically, so that the film will not go when there is no material, and the empty package will not be produced.
3. PLC and servo motor are used as the control and drive unit to realize the automatic process of product counting, bag making, sealing and packaging.
2. According to the speed of the paper cutter, the packaging speed can be adjusted automatically, so that the film will not go when there is no material, and the empty package will not be produced.
3. PLC and servo motor are used as the control and drive unit to realize the automatic process of product counting, bag making, sealing and packaging.
Parameter of Toilet Tissue Paper Single Roll Packing Machine | ||
Model | YD-220 | |
Max. Width of Film | 430mm | |
Design Speed | 20-220 roll/min | |
Production Speed | ≤200 roll/min | |
Packing Diameter | φ85-125mm | |
Packing Height | 90-170mm | |
Total Power | 3.5KW | |
Power Supply | 380V 60HZ | |
Machine Net Weight | 1800KG | |
Film Thickness | 0.018-0.03mm | |

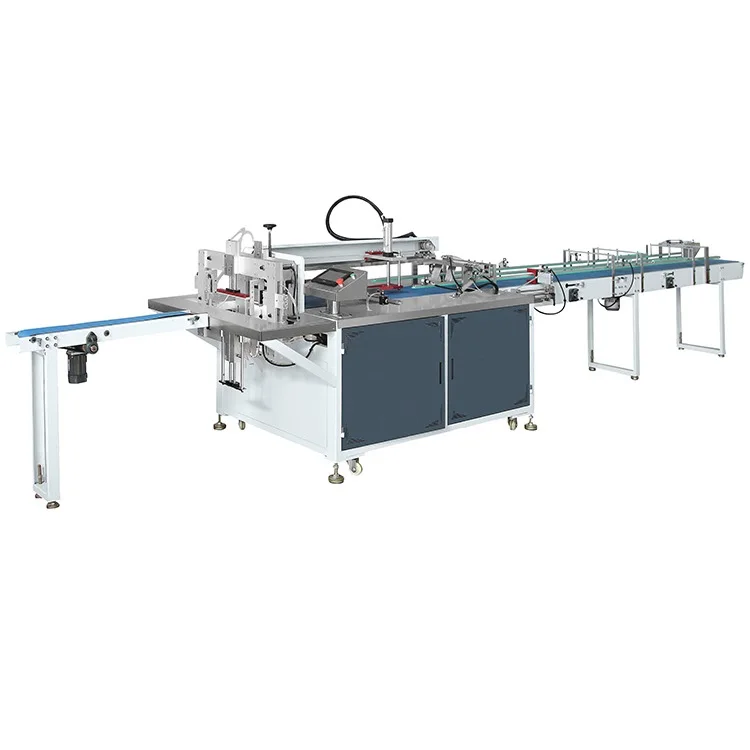

4. Toilet Tissue Paper Bundling Packing Machine
Product Description:
1. This machine includes belt conveyor, automatic paper drawing, bagging, sealing and cutting as a whole packaging machine.
2. Using advanced PLC computer programming control, LCD text display parameters, can accurately feed, can set parameters: single head or double head work (1 or 2 people work).
3. The whole process of packaging can be completed by manual material management, manual bagging and wrapping machine. It can reduce the production cost and improve the production efficiency.
Parameter of Toilet Tissue Paper Bundling Packing Machine | ||
Model | YD-ZDB | |
Packing Speed | 6-8 bags/min | |
Power Type | 220V 50Hz | |
Air Pressure | 0.6Mpa | |
Total Power | 0.75KW | |
Machine Size | 4500*1100*1500mm | |
Packing Size | 30-150mm | |
Machine Net Weight | 700KG | |

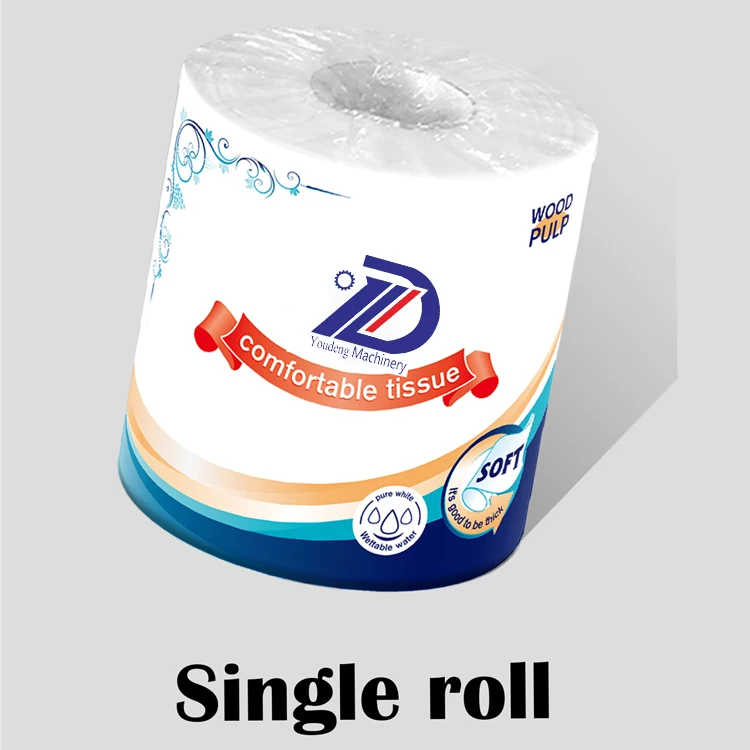

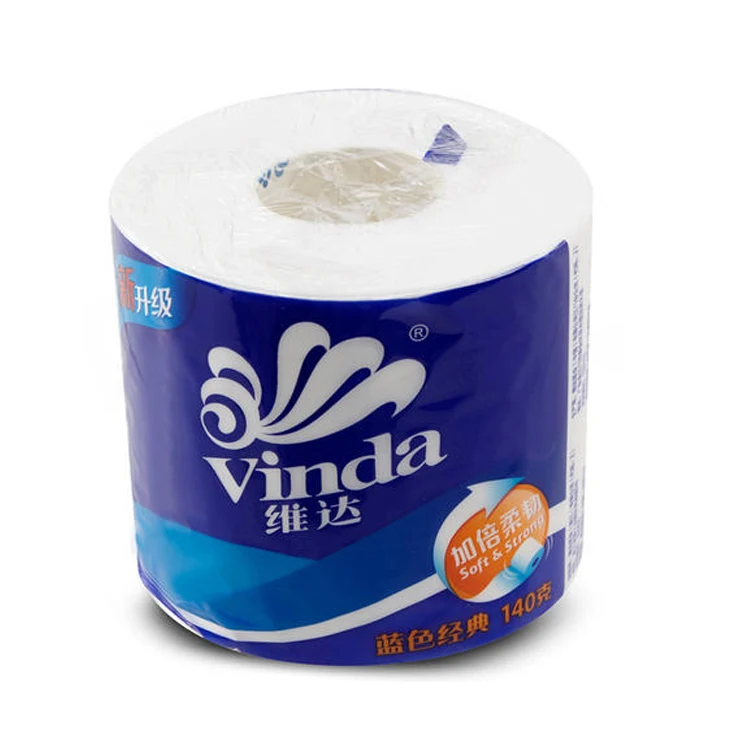

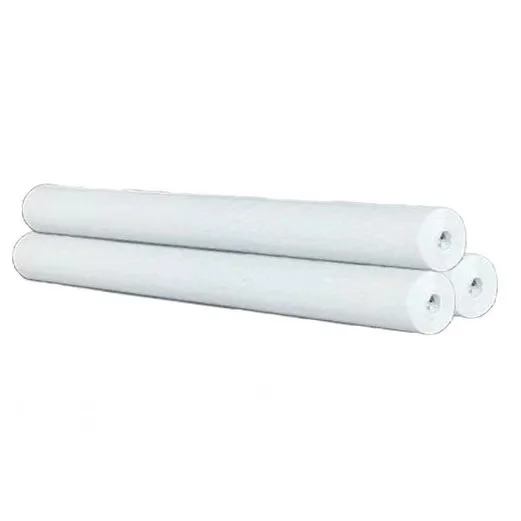

Finished Products Details
Embossing unit-----------
We can make various Customized Embossing Patterns and Lines on the paper.
Single and multi layer embossing，More than 100 kinds of patterns and edge lines to choose from, also can be designed by you.
Single and multi layer embossing，More than 100 kinds of patterns and edge lines to choose from, also can be designed by you.

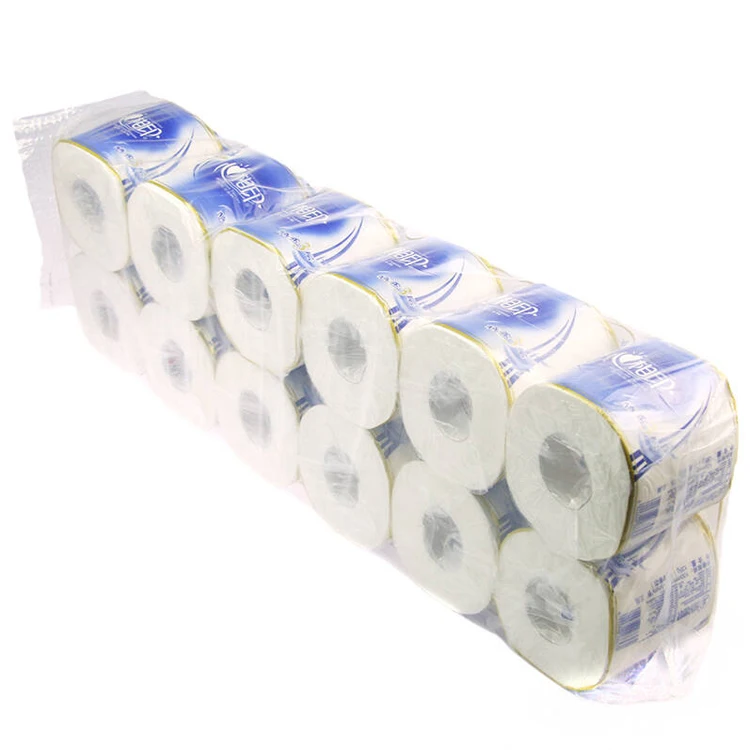

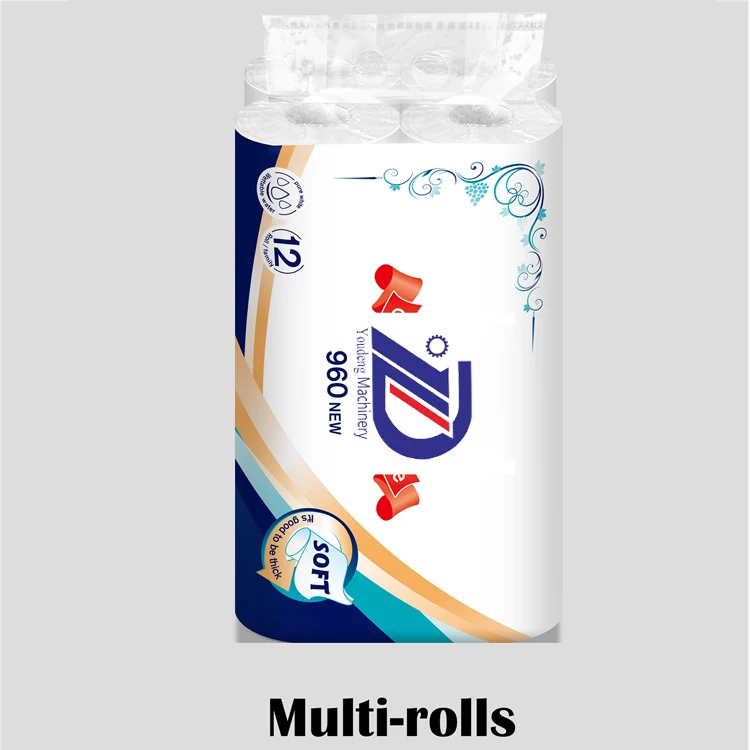

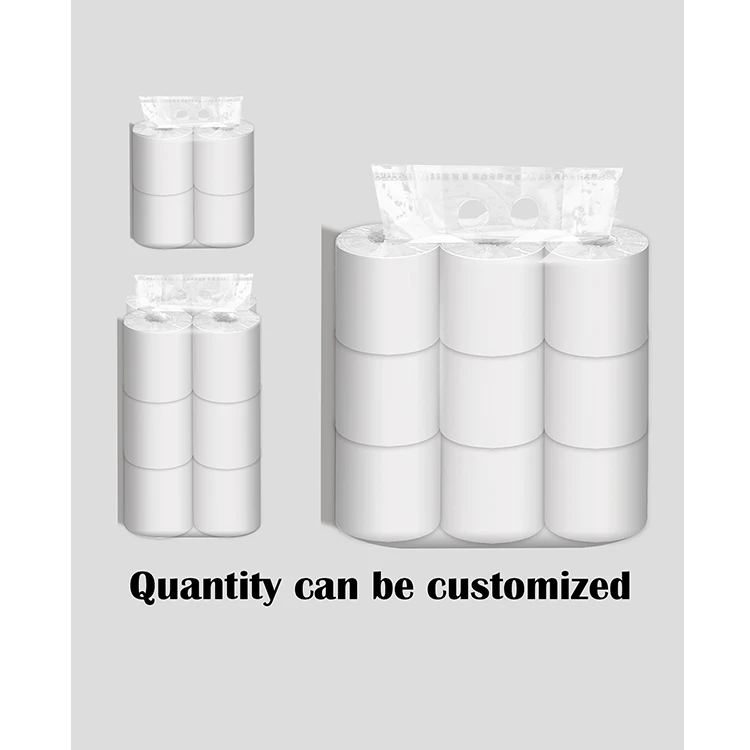

Packing-------
The packing way is up to you. And the logo and pattern of packaging materials can be customized design.
The packing way is up to you. And the logo and pattern of packaging materials can be customized design.
Company Profile
Liuzhou Youdeng Machinery Technology Co., Ltd
* Liuzhou Youdeng Machinery Technology Co., LTD. is professional tissue and toilet paper making machine manufacturer in China.
Main products and services including:
* Machinery and equipment of the whole production line for toilet/bathroom/kitchen paper making, facial/napkin/handkerchief paper making and other tissue and toilet paper making;
* Rewinding/rolling machine of tissue and toilet paper;
* Folding machine of facial/napkin/handkerchief/kitchen paper;
* Embossing rewinding/rolling machine of tissue and toilet paper;
* Embossing folding machine of facial/napkin/handkerchief/kitchen paper;
* Slitter/cutting/cutter machine of tissue and toilet paper;
* Packing machine of tissue and toilet paper;
* Shrinkage packing machine for tissue and toilet paper making;
* Sealing packing machine for tissue and toilet paper making.
7 days / 24 hours online service, fast response technical support team to reduce downtime.
All machines are of high quality and cost competitive.
Provide your machine one-stop solutions, factory planning, machine transportation and installation.
You are welcome to visit our factory on site and we will provide you with free accommodation.
Port of departure: Shenzhen or any port of China
Delivery: Within 20-45 days after the deposit
Price terms: FOB/CRF/CNF/CIF or others
Payment terms: 30% as deposit and 70% balance payment by T/T, L/C or other terms.
Packaging：Plastic film, pearl film, wood frame, export wooden case packaging or customized packaging according to order requirements.
*Office add.: Room 7022, Floor 7, Henglonghui, No. 2, Ruian Road, Liuzhou City, Guangxi Province， China.
*Factory add.: No. 9, Huarong Road, Luorong Town, Liuzhou City, Guangxi Province, China
*Plant area：3,000-5,000 square meters
Warmly welcome to negotiate business!
