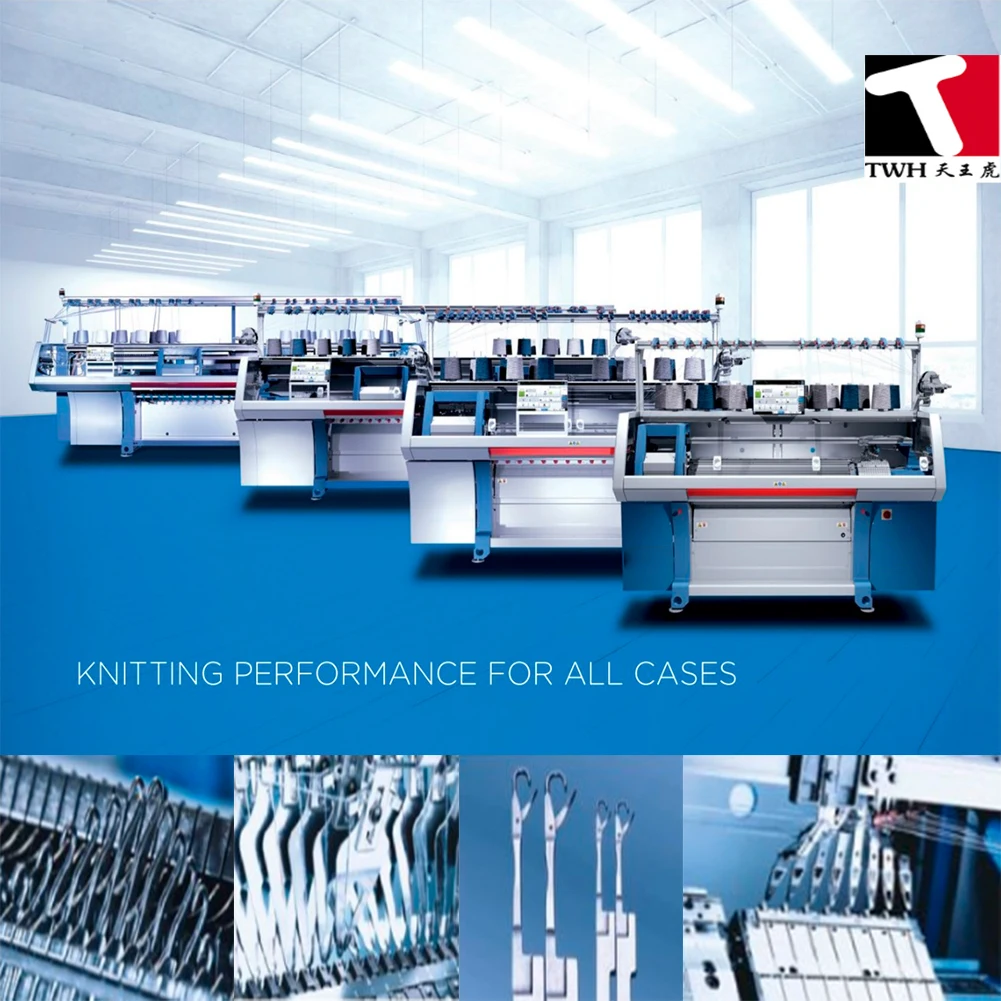

Горячий настраиваемый кабели и Терри для оборудования по производству перчаток витой узор занятий спортом

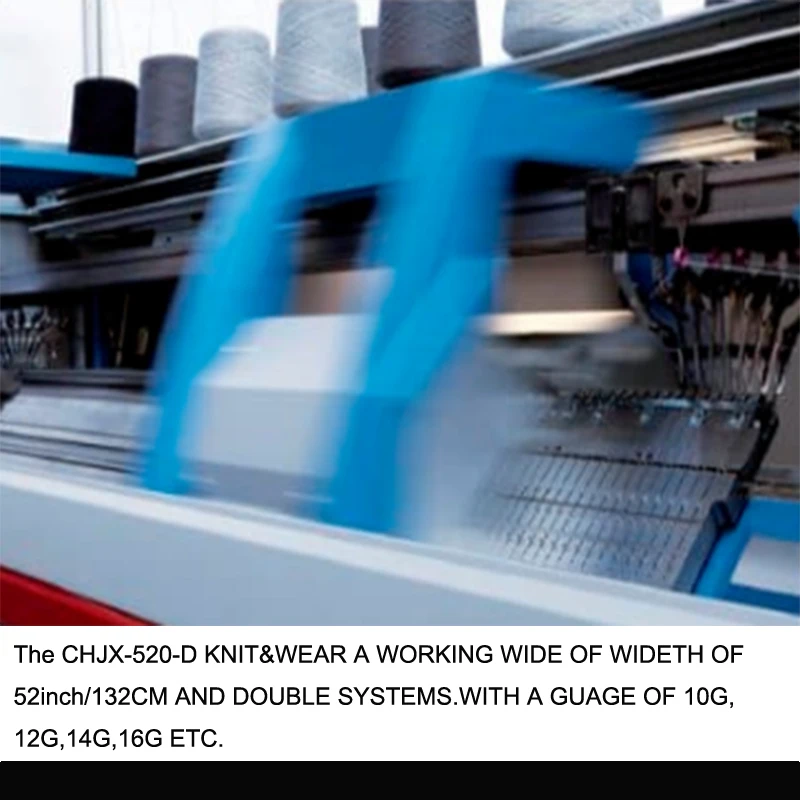

52 inch

Single carriage with double system

Knit, miss, turk, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns

Controlled by sevro-motor with 32 sections optional, max speed reach 1.2M/S

Controlled by servo-motor racking within 2 inches and with fine adjusting function.

Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width  jacquard needle selector.

Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.

Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer, another cam system for knitting, which will achieve high production.

Computer programs instruction,stepper motor control and
32-stagetension selection with an adjustable range between 0-100

2×8 yarn feeders at the single side of 4 guide rails, shiftable on any needle
position.

The machine will automatically alarm if yarn-breaking, knots, floating yarn,
rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect
device.

1. LCD industrial display, can display various parameters, which can be adjustable during operation.
2. USB memory interface,System memory 1G.
3. Free design system is visual and easy to understand and software upgrade free of charge.
4. Support multi-language operation as Chinese and English, Spanish,
Russian etc.

Has network interface,enable remote-monitoring via network

Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop.
