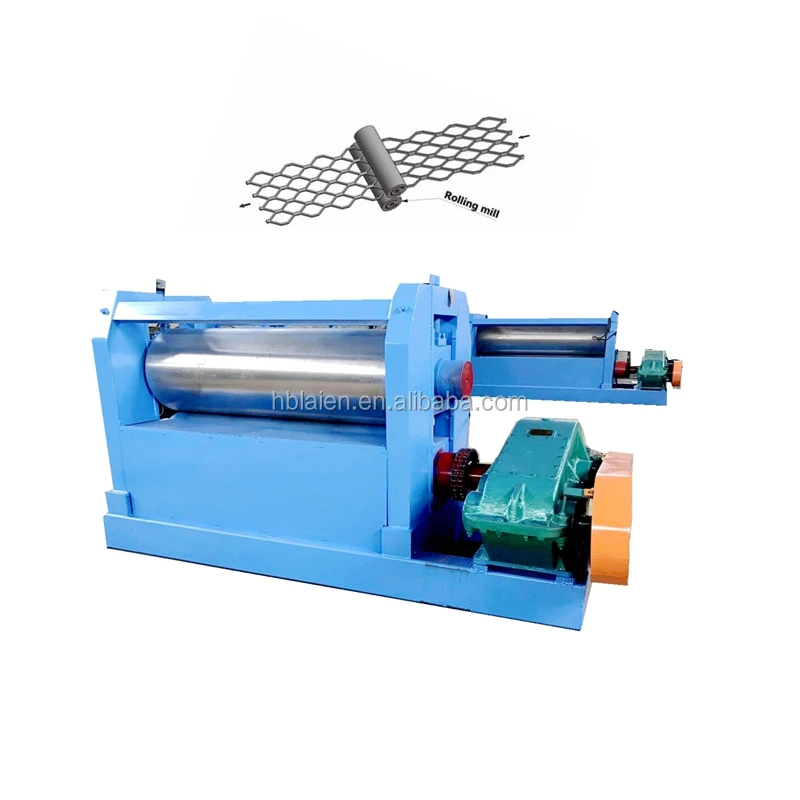

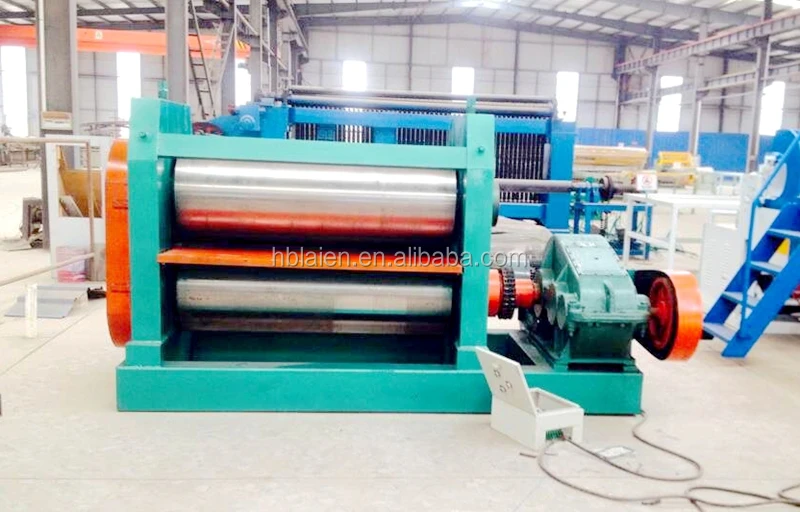

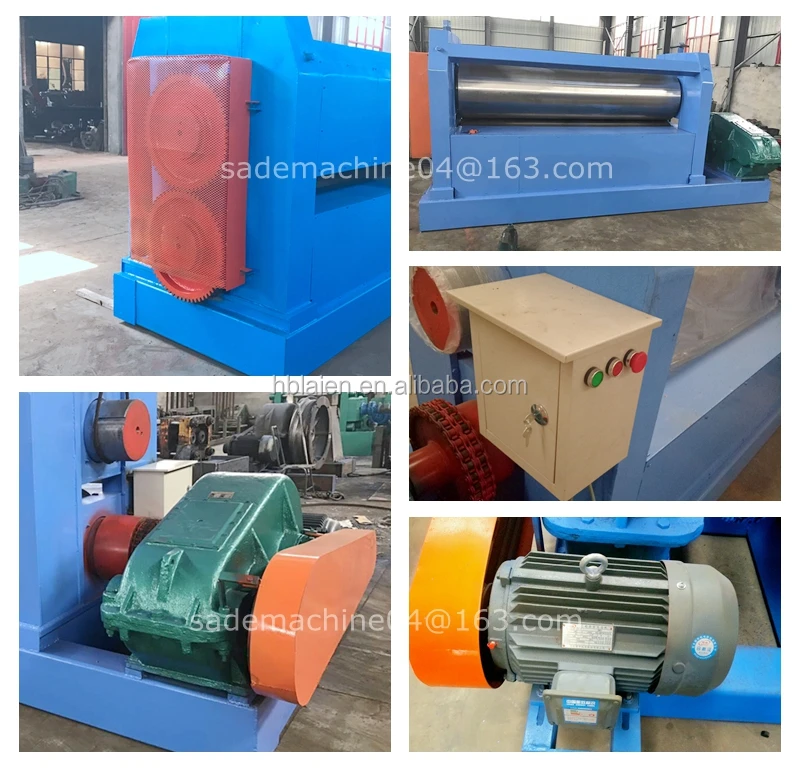

♣Introduction about machine

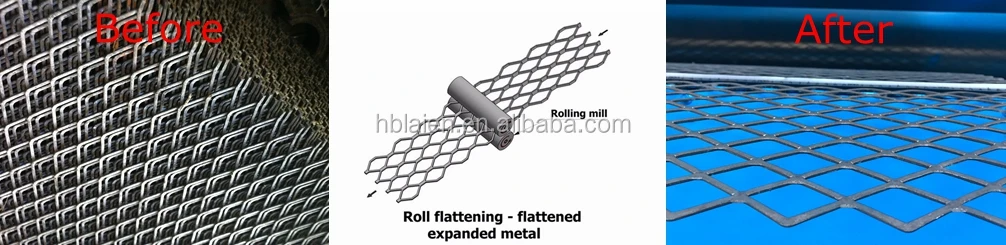

The flattening process reduces the original thickness of the base metal. We can supply all kinds of flatten machine, such as four-roller flatten machine, two-roller flatten machine, manual flatten machine, hydraulic flatten machine, etc. Currently the machine is applied to processing expanded metal with a maximum sheet thickness of 4mm and a length between 0.5m to 2.5m.
♣ Main Parameter
Model | LE-YPJ800 | LE-YPJ1000 | LE-J1300 | LE-J1500 | LE-J2500 |
Working width | 800mm | 1000mm | 1300mm | 1500mm | 2500mm |
Thickness | 0.5~2mm | 0.5~2mm | Max 2mm | Max 5mm | Max 6mm |
Roller diameter | 300/280mm | 320/300mm | 450mm | 550mm | 650mm |
Motor power | 3kw | 4kw | 11kw | 18.5kw | 22kw |
Machine weight | 2T/1.8T | 2.5T/2.8T | 4T | 8T | 16T |
Some data will be change according detal raw materail requirements.
Note:Our factory also can produce the special size according to the client’s req uirement, please enquiry with the following
technical parameter:
1. What material you want to flat
2. Width of the plate (mesh) you want to flat
3. What is the thickness of the material
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
1. Maintenance period: 1 year
2. Oversea debug service:
If the buyers need, we can send our technical staff to the buyers’ place to debug the machine and providing the training in 15 days after the machines arrive at the destination port.
3. About debugging fees: Visa, round trip tickets, restarante, accomodation all need pay by buyer. Per angineer salary 100 USD/Day.
4.The training fees: free training within debugging days
5.The numbers of technical persons: 1 or 2 technician
6.After the maintenance period: If you need the machine parts,we will provide it as our cost.

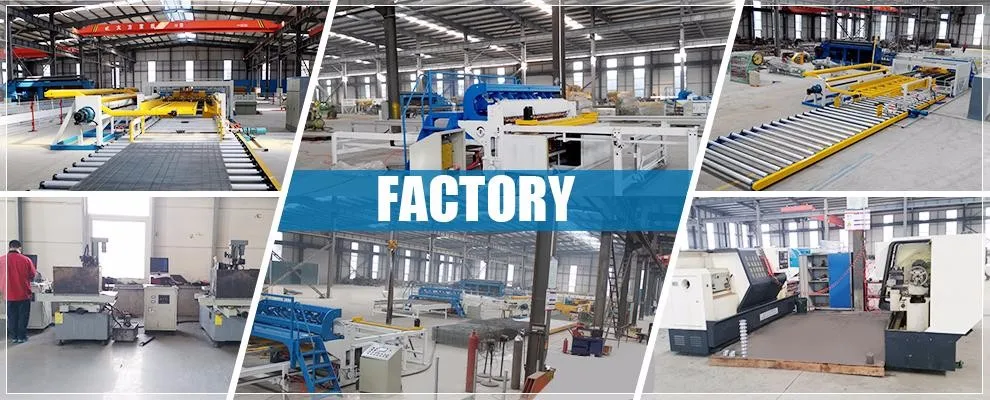

Hebei LaiEn Wire Mesh Machine Manufacuring Co., Ltd is a professional manufacturing specializing in producing and exporting various machinery and equipment. Factory covers about 67000 square meters,there are more than 200 employees in our company, including over 30 engineers and technicians. We have high quality professional teams, skillful talents, strong technical forces, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.We have passed through both ISO9001-2008 quality system and SGS inspection. Our machines have been exported to more than 60 countries till now.
Our product mainly kinds of mesh machines and full line reletive production line.

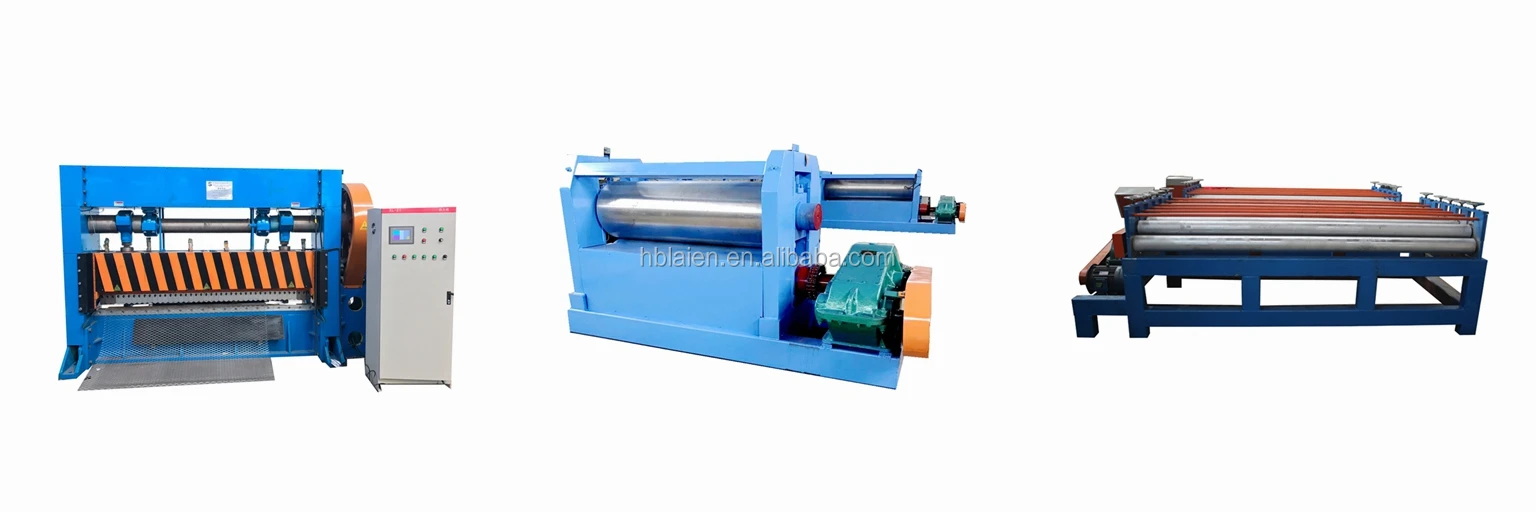

Wire mesh machine including: welded wire mesh machine, constriction welding mesh machine, scaffold mesh welding machine, animal cage welding machine, cable tray roll forming machine, full automatic chain link fence machine, hexagonal wire netting machines, gabion machine, gabion box machine, grassland fence machine, weaving machine, crimped wire mesh machine, expanded metal machine, flatten machine, flatter machine, perforated metal machine, dust suppression sheet machine, wire pvc coating machine , wire drawing machines, nail making machines etc.
Full line proctuction line: perforated type cable tray full production line, sound barrier production line, wire mesh welding cable tray production line, welding mesh rack production line, mesh cage welding full line, roller pvc coated line etc.
We believe that our machines with good quality&best price will be satify by you.
We adhere to the quality first, friendly service, your need is our guide!
Anping LaiEn Wire Mesh Machine Manufacturing Co., Ltd
20 years factory, 10 years export experience
ISO 9001: 2008 & SGS APPROVED
