Product details
WAHT IS ANP?
Our company main product called aluminum non combustible panel (ANP). ANP is a 3.5 - 4mm Aluminum Core Panel which is fully Non-Combustible and suitable for external panels and internal structures where Non-Combustibility and fire resistance is needed.

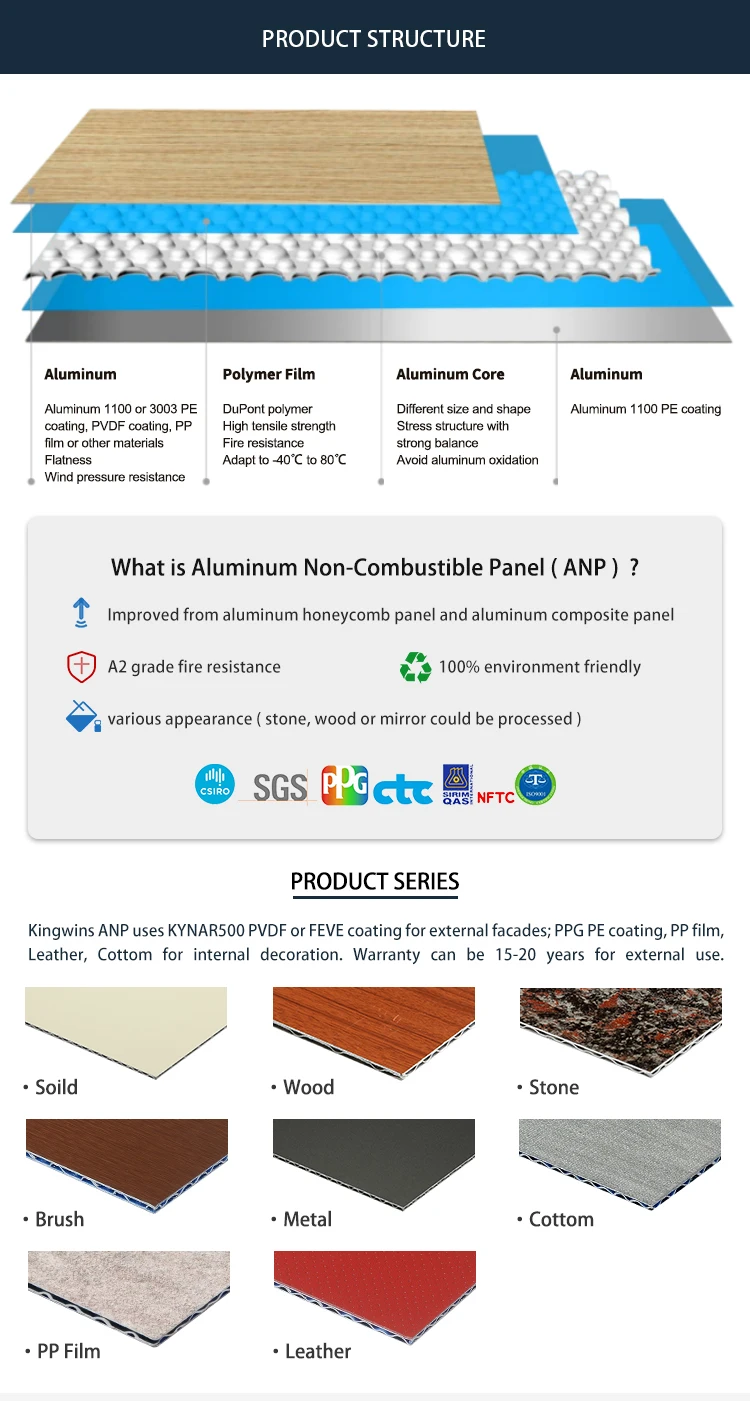

ANP is manufactured from high grade Aluminium throughout with top skin and rear skin, separated by ‘egg carton type’ Aluminium core. Unlike other non-combustible and fire proof panels and sheets ANP Aluminium does not use mineral core fillers to achieve fire resistance and is therefore lighter in weight with equal or better structural strength.
ITEM | DETAIL |
Product: | Aluminum non-combustible panel |

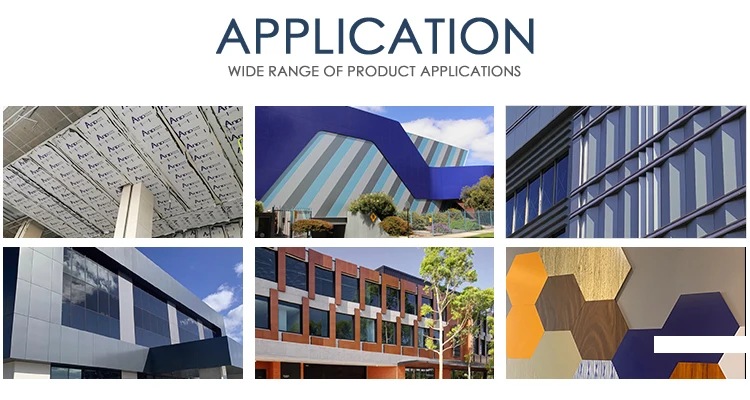

Product usage: | Fireproof aluminum cladding, wall panel, facades, curtain wall, ceiling, home decoration |
Material: | Aluminum alloy 3003, 1100 |
Panel thickenss: | 3.5 - 5 mm (regular thickness : 4mm ) |
Size: | Regular size : 1250 * 3000 mm Width:1220 mm, 1250mm or customized. Max 1550mm. Length : Max 6000 mm |
Finishes: | KYNAR500 (PPG)PVDF or FEVE coating Recommended use PVDF for exterior wall cladding |

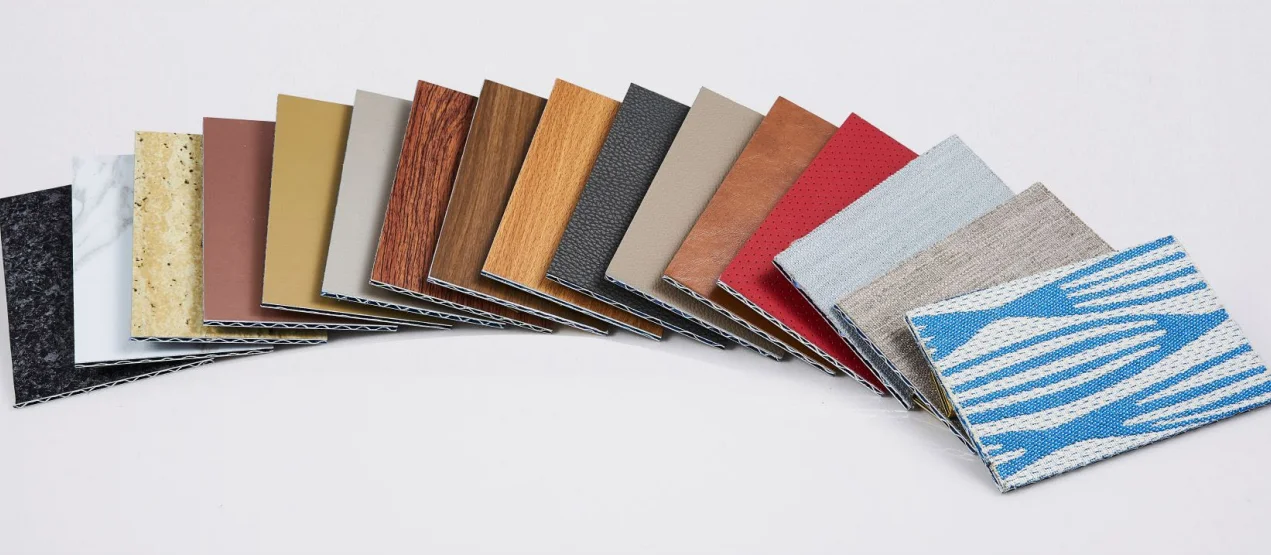

Colour: | Solid color, wood grain, stone grain, brush (hairline), pp film and others, normal or texture surface customized offer |
Shape: | Made to order |
Warranty: | Max 20 years |
Product | 4mm Kingwins ANP | 10mm Aluminum honeycomb panel | 4mm Aluminum composite panel | 3mm Aluminum solid panel |
Price | acceptable | high | low | expensive |
Weight/m2 | 4.5kg | 6.6kg | 7.kg | 7kg |
Fireproof | A2 | A2 | B1 | A2 |
Flatness | best | best | bad | better |
Product display
Contact us

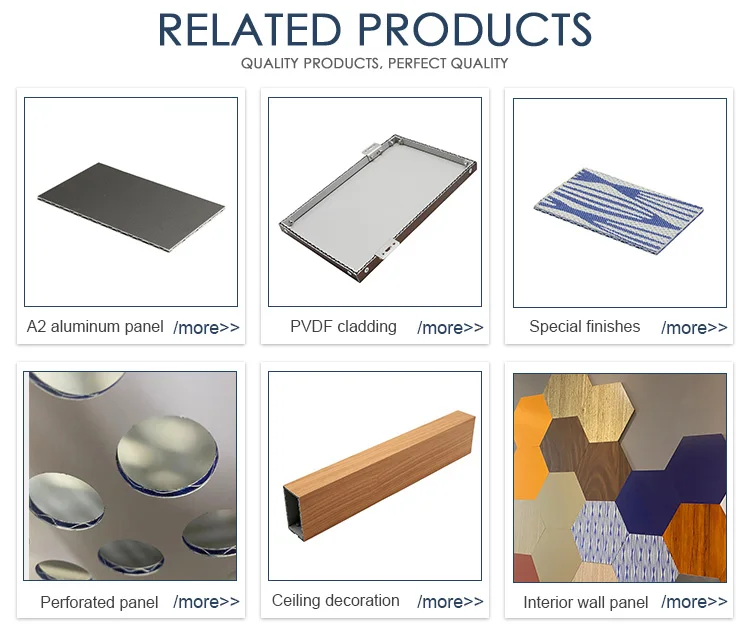

Related Products

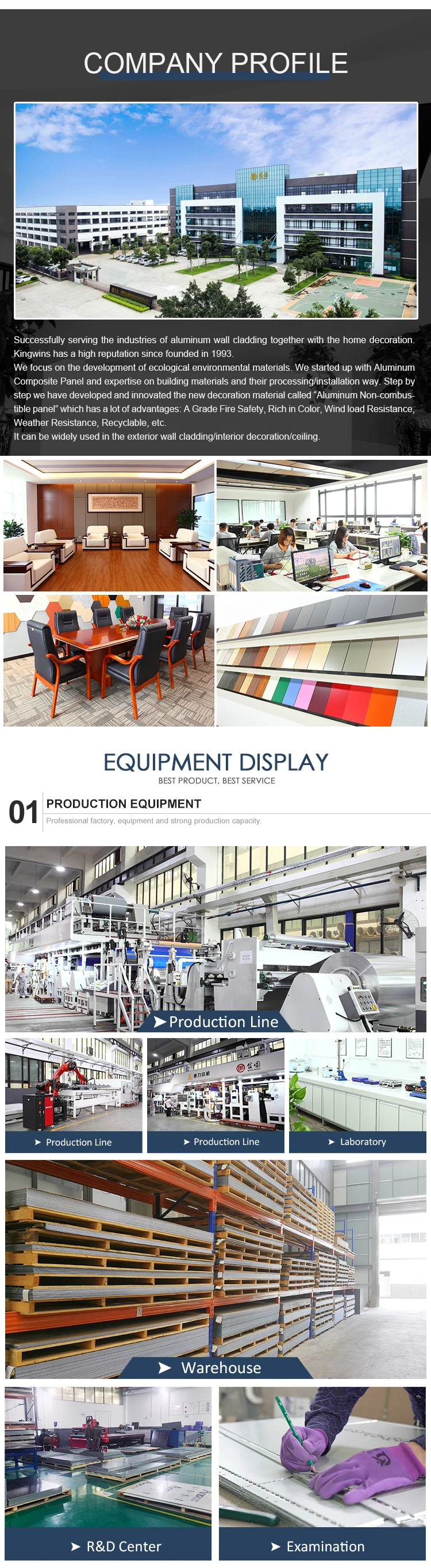

Company profile
Certificate Display
Our Exhibition
FAQ
Q1. Are you a factory or a trade company?
A1: We are manufacturer of Aluminum wall panel, we have our own factory in Foshan City, Guangdong Province.
Q2. What is delivery time?
A2: 10-15 working days after deposit,Except for public holidays.
Q3. Is possible to make products for my brand?
A3: Yes, it's possible. Please give us your brand or LOGO design, then we can make the products with your brand or LOGO.
Q4. Do you provide free samples?
A4: Yes, samples are free of charge. The delivery of sample usually takes 3-5 days.
Q5: What if you send me wrong size products?
A5: Shop drawing will be sent to you for final confirmation before production, if we send you wrong size products, we will replace new products free of charge.
Q6: How can you guarantee the quality?
A6: We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC .
