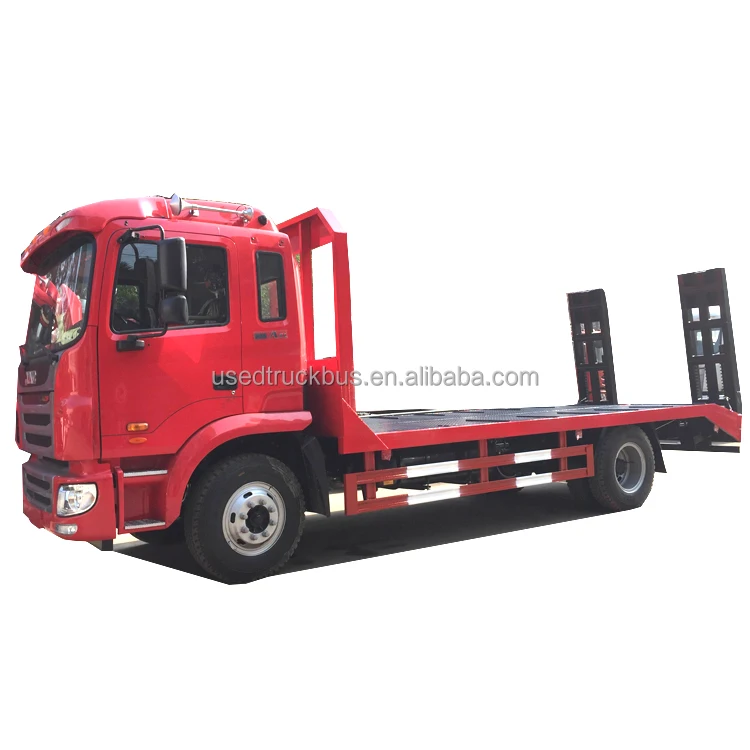

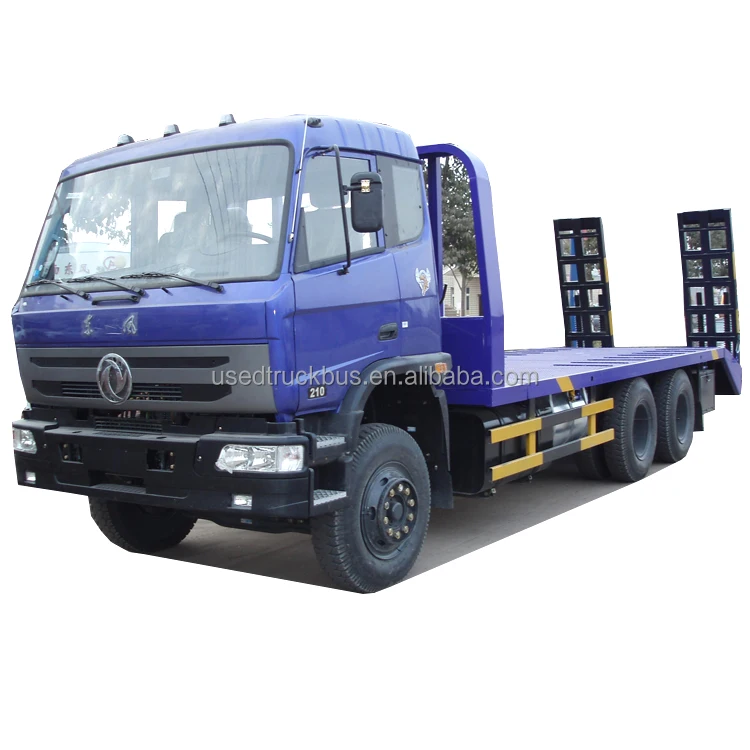

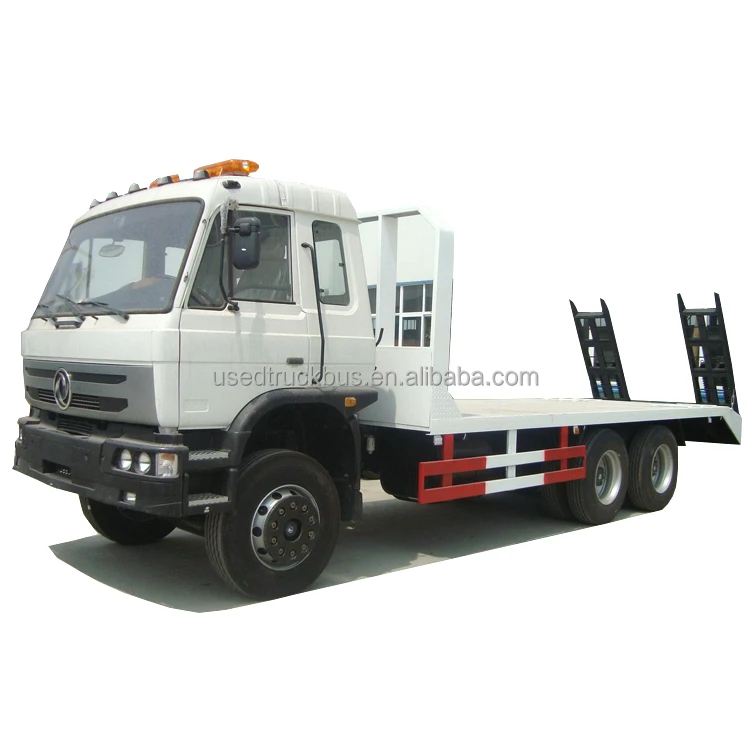

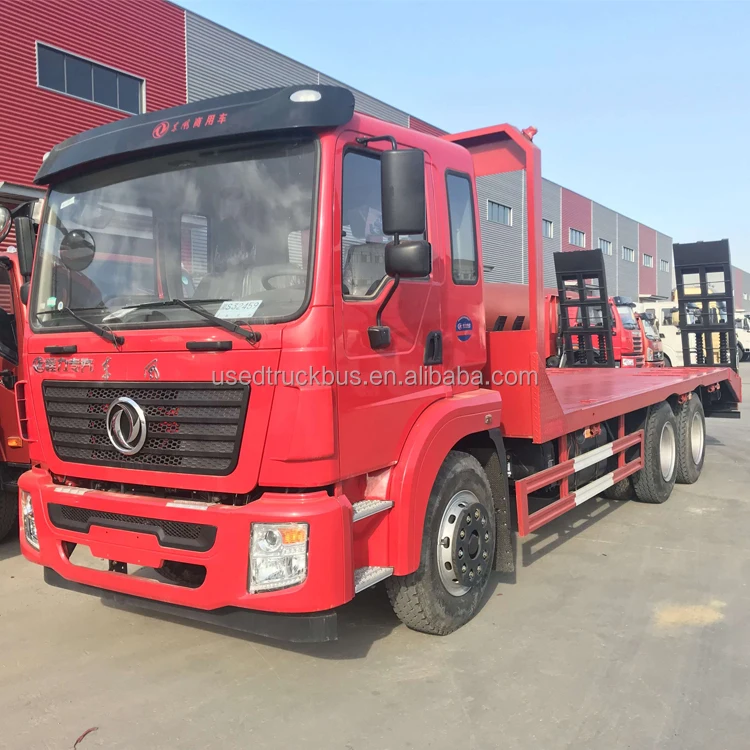

Китай Сверхмощный 15 тонн 6x4 строительная машина экскаватор погрузчик транспорт бортовой
- Категории: Commercial Truck Trailers >>>
- Поставщик: Zhengzhou,Cooper,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
China Heavy Duty 15 Ton 6x4 Construction Machine Excavator Loader Transport Flatbed Truck
Chassis parameters | ||||||||||
Chassis model | BJ5257GNFJH-S1 | Chassis brand | FOTON | |||||||
Overall dimensions | 10067x2490x3010mm | Wheel base | 4725+1300mm | |||||||
Front/rear wheel track | 1930/1860/1860mm | Front/rear suspension | 1532/2510mm | |||||||
Approach/departure angle | 11/12° | Maximum speed | 79km/h | |||||||
Chassis Manufacturer | Beijing Foton Daimler Motor Co., Ltd. | |||||||||
Cab | Configuration | ETX2420 a row and a half cab(with sleeping berth),allowable 3 passengers,air conditioner | ||||||||
Color | White,other color is optional | |||||||||
Engine | Model | SC9DK270Q3B1 | ||||||||
Emission | Euro 3 | |||||||||
Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,direct injection,exhaust valve brake,diesel engine | |||||||||
Rated power | 270hp,rated power speed 2200rpm | |||||||||
Displacement | 8820ml | |||||||||
Max.torque | 1125N.m | |||||||||
Bore x stroke | 114x144mm | |||||||||
Manufacturer | Shanghai Diesel Engine Co., Ltd | |||||||||
Tire | Size | 10.00-20 nylon tire | ||||||||
Number | 10+1 nos | |||||||||
Clutch | φ430 diaphragm clutch | |||||||||
Fuel tank | 350L aluminum alloy | |||||||||
Rear axle | 10.0 tons | |||||||||
Drive form | 6X4 | |||||||||
Rated voltage | 24V,DC | |||||||||
Transmissions | Gear box 9JS,9 speed forward 1 reverse | |||||||||
Steering device | Power assisted steering | |||||||||
Steering wheel | Left hand drive | |||||||||
Selective configuration | Steel wire tire | |||||||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||||||||||
