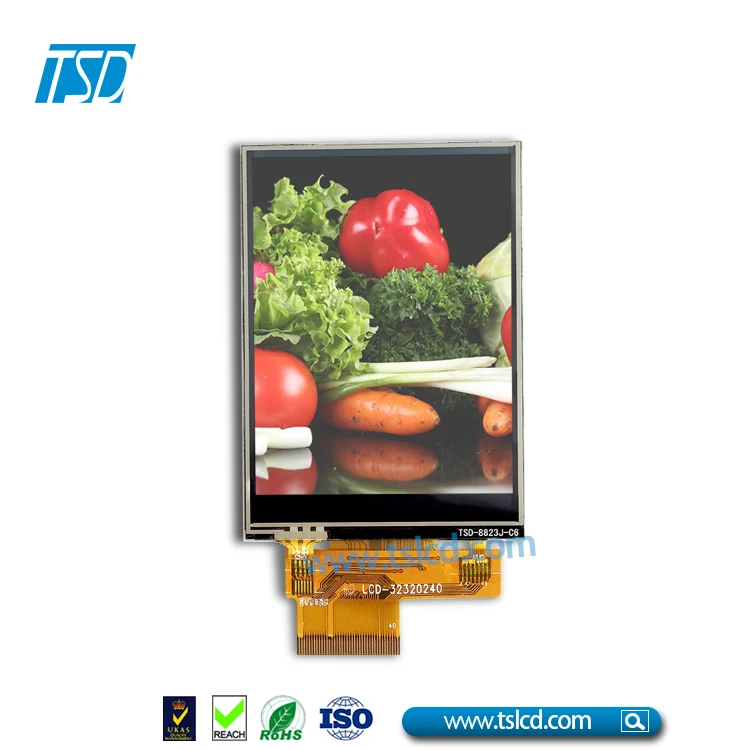

3.2 inch qvga 240x320 mcu interface tft lcd display module





LCD type	a-Si TFT,Transmissive,Normally white,TN
LCD Size	3.2 inch
Resolution(WxH)	240xRGBx320
LCM(WxHxD)	68.60W) x 94.8(H) x 3.92(D)
Active Area(WxH)	48.6(w)x64.8(H)
Dot Pitch(WxH)	0.2025(W)x0.2025(H)
Resolution	QVGA 240*RGB*320
Viewing Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Viewing Angle	Top:55 Bottom:35;Left/Right:55
Color Depth	65K/262K
Pixel arrangement	RGB Vertical Stripe
Backlight Type	6LEDs
Surface Luminance	250 cd/m2
Surface Treatment	Anti-Glare
Driver IC	ST7789V
Interface Type	MCU 8/16-bit
Input Voltage	2.8V
With/Withour TP	with Touch Panel
Weight	29g











3.2 inch touch screen tft lcd monitor lcm display	3.2" LCD Panel Color TFT LCD Module for Industial Use

1.We are professional LCD module manufacture in China with precise and advanced equipments.

 2.High quality Control with CE,ROHS and so on approved.

 3.More than 10 years of industry experience and involved main markets all over the world

 4.Dedicated and professional sales team will offer you 24 hours online and immediate service

 5.OEM and ODM support,12 months warranty for all of our products

 6.Our mission is to help our customers achieve success, then fulfill our both dreams



Pre-sales service :

1.Our team design and make solutions based on different requirements from different customers.

 2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.



After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

 2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

 3. We have professional engineer  customer to keep fastly reply.
