Product Description

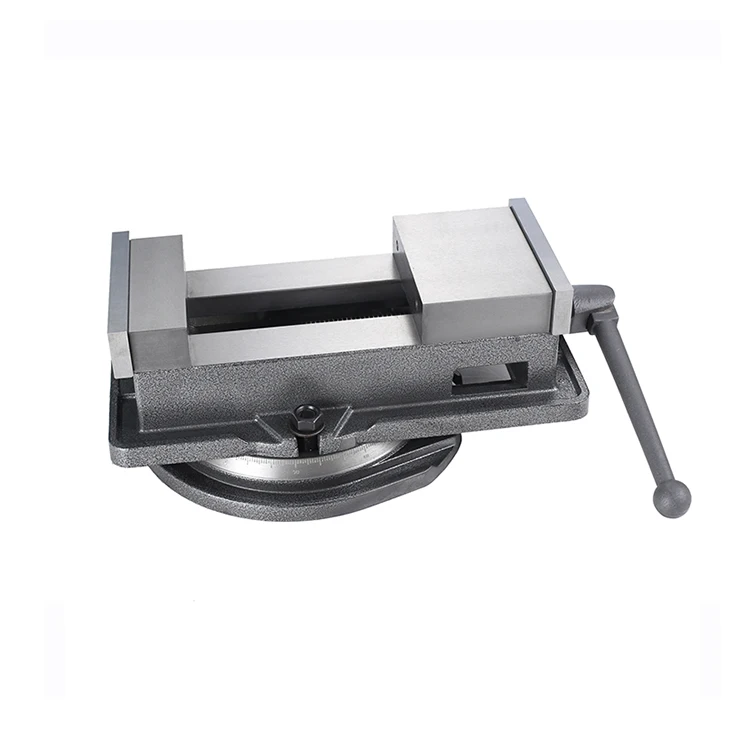

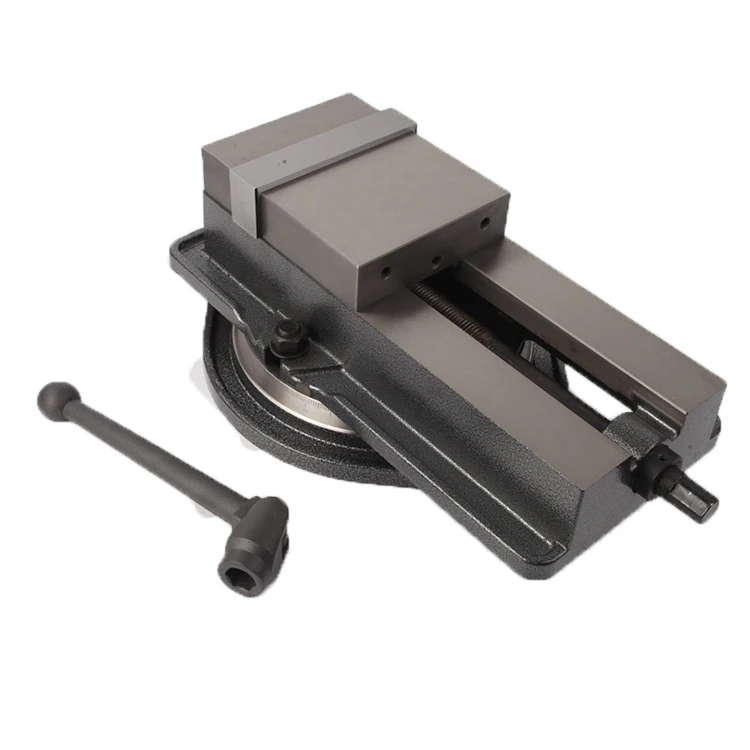

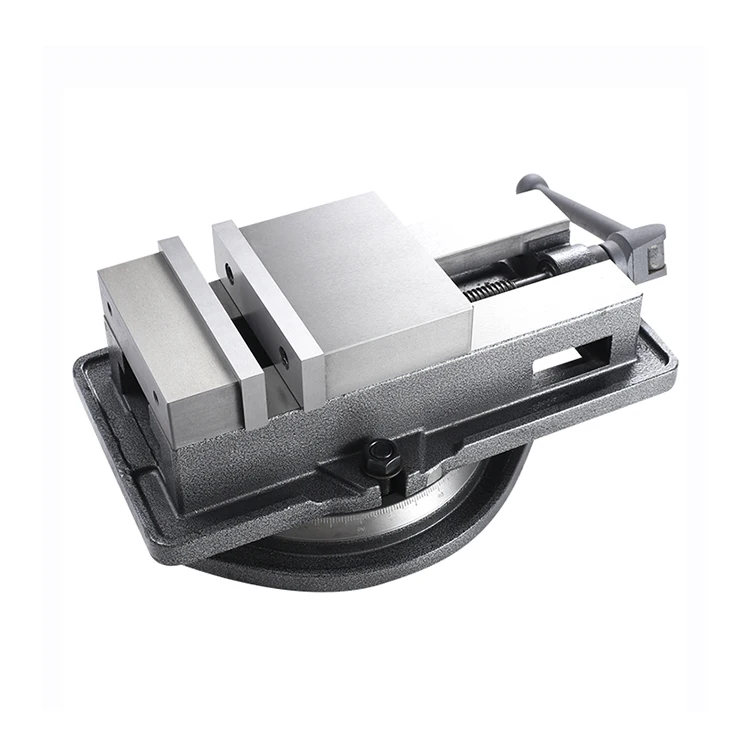

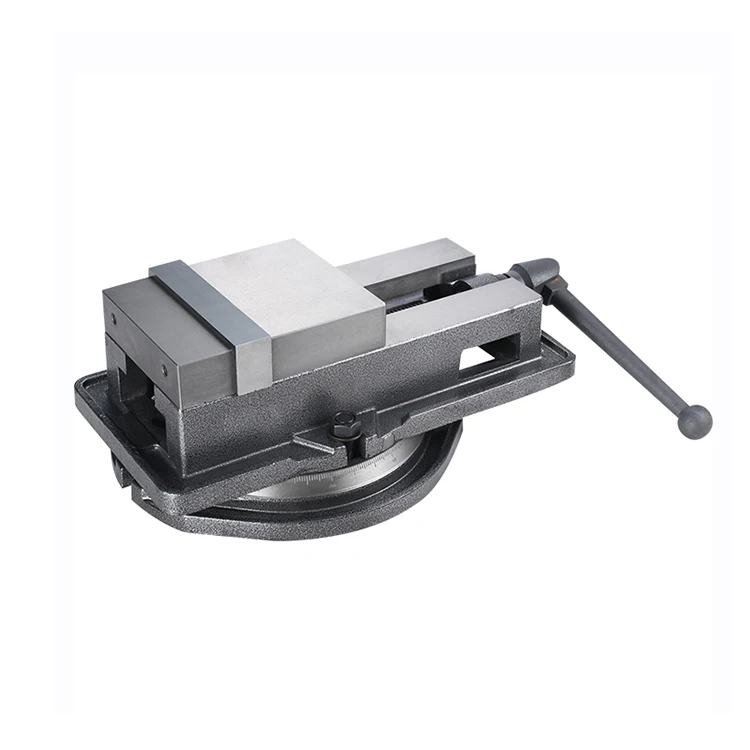

Accu Lock Machine Vice

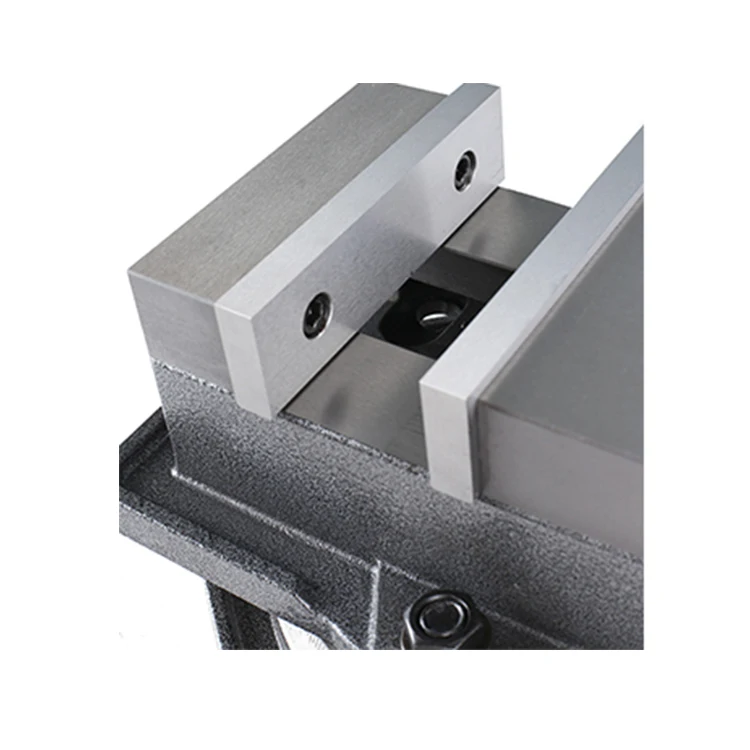

1.It is one of main attchments for milling, drilling machine, it is particularly suitable for the finishing of precision parts. 2. The accuracy of vice (parallelism and squareness)is 0.025mm/100mm. 3. The special segment in the movable jaw forces the vertical pressure downward when the horizontal. pressure works, so that this jaw does not lift the workpiece. 4. Four positions allow extra capacity to change opening of jaw.
Specification
Model | Width of jaw (mm) | Height of jaw (mm) | Max. opening (mm) | G.W./N.W. (Kg) | Packing Volume (cm) | Packing |
QM16100 | 100 | 32 | 100 | 14/13 | 36*24*14 | Carton |
QM16125 | 125 | 40 | 125 | 21/20 | 42*27*15 | Carton |
QM16160 | 160 | 45 | 170 | 33/32 | 45*31*18 | Carton |
QM16200 | 200 | 50 | 230 | 46/45 | 56*35*20 | Carton |
QM16160H | 160 | 45 | 160 | 35/34 | 46*31*19 | Carton |
QM16160L | 160 | 45 | 200 | 33/32 | 49*31*17 | Carton |
Details Images
Packing & Delivery
Company Profile
Sichuan Machinery Imp. & Exp. Corp., established in 1980, who have more than 33years history of importing and exporting goods in many industries.Our products cover natural bristle and filament paint brushes, steel wire brushes, other paint accessories, metal/wood working, power tool accessories, machine accessories, measuring tools & instruments, machinery & power tools and building hardwares. Now we're undergoing efforts to expand the product line of Gardening
Products. Our product is very comprehensive,refer to every aspects of garden product.
Our products are mainly exported to Europe, South America, the Middle East and Russia. By now, we have gained good recognition and reputations from our customers for high-quality products and thoughtful services we offer. Growing up together with customers is our persevering target. We sincerely wish to establish a business relationship with you. We are ready at any time to supply you with products of top quality, competitive price and shorter delivery time, OEM orders also welcome.
Email Address: jasonlee@scmiec.com
FAQ
1. What do you do?
A: Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail
cutter and Accessories, ect.
2. Can you do OEM for us?
A: OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.
3. Can you help us to do some change about your product?
A: Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance
department for your final confirmation. All procedures will be informed and confirmed with you in advance.
4. Can I get a sample?
A: Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.
5. Are you a factory or trading company?
A: We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1980.
