Небольшая портативная волоконная лазерная маркировочная машина 50

Описание и отзывы

Характеристики

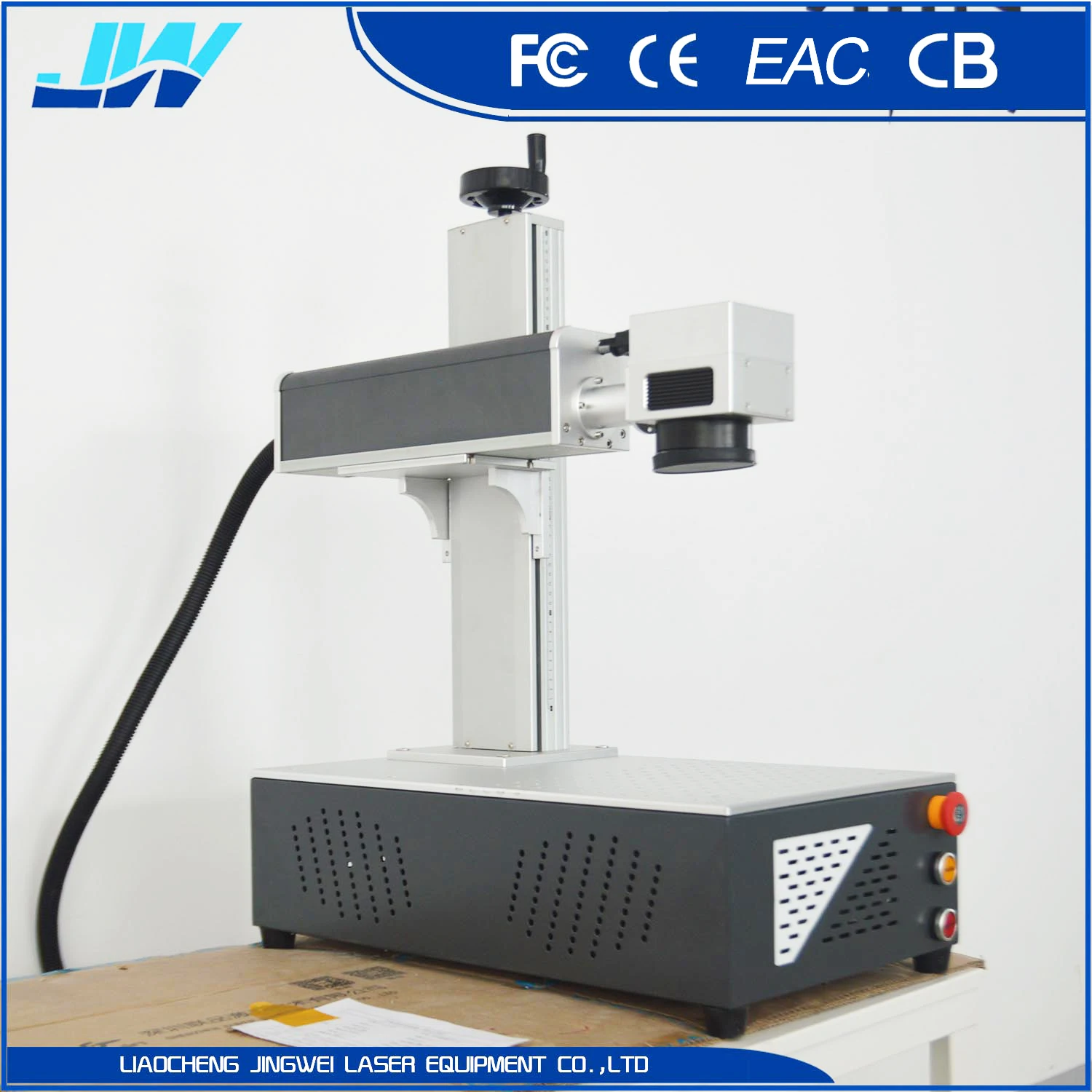

50w  small portable fiber laser marking machine

Applicable industry:

1.The machine can mark all metal most parts of plastic

2.Widely used in integrated circuit chips, computer accessories, industrial bearings, watches, electronics and Beilan brown communication products, aerospace devices, various auto parts, home appliances, hardware tools, molds, wires and cables, food packaging, jewelry, tobacco.

3.And military use Marking of graphics and text in many fields such as things, as well as mass production line operations.

Parameter
Machine type	Portable type
Marking range	70*70mm---300*300mm
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	7000mm/s
Marking depth	0 ~1mm  according the materails
Engraving line speed	≤7000mm/s
Repeatability accuracy	±0.001mm
Marking Format	Graphics, text, bar codes, two-dimensional code,automatically marking the date, batch number,serial number,frequency,etc..
Graphic format supported	Bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc..
working voltage	220V  or  110V
Unit power	<0.5kw
Working environment	Clean and dust free or dust less
Working (Humidity)	5%-75%,free of condensed water
Acceptable materials	metal, nonmetal, mirror, plastic, leather ,paper etc..
Advantage	Large size, relatively stable, large workpiece is more suitable, can be more integrated with external configuration.
MOQ	1 PCS



Raycus laser source	Wavelength  lens	Sino-galvanometer
Original BJJCZ control card	Taiwan Meanwell power supply	EZCAD 2.14.10 software



Spare parts with the machine
Manual book	1 pcs
Foot switch	1 pcs
USB disk (software, electronic instructions, Installation  instructions)	I pcs
Ruler	1 pcs
Tool	1 pcs
Power cord	1 pcs
Data line	1 pcs
Goggles	1 pcs
Testing materials	Some pcs

Package
