7 складных столов выдвижные рельсы металлические алюминиевые
- Категории: >>>
- Поставщик: Huizhou,Wanli,Hengtong,Hardware,Products,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Description

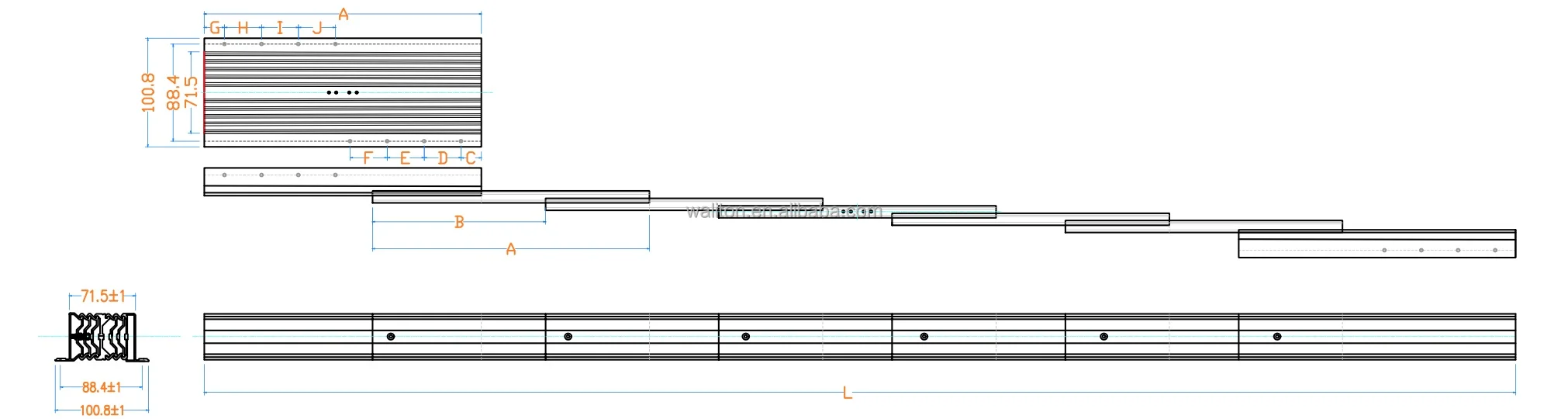

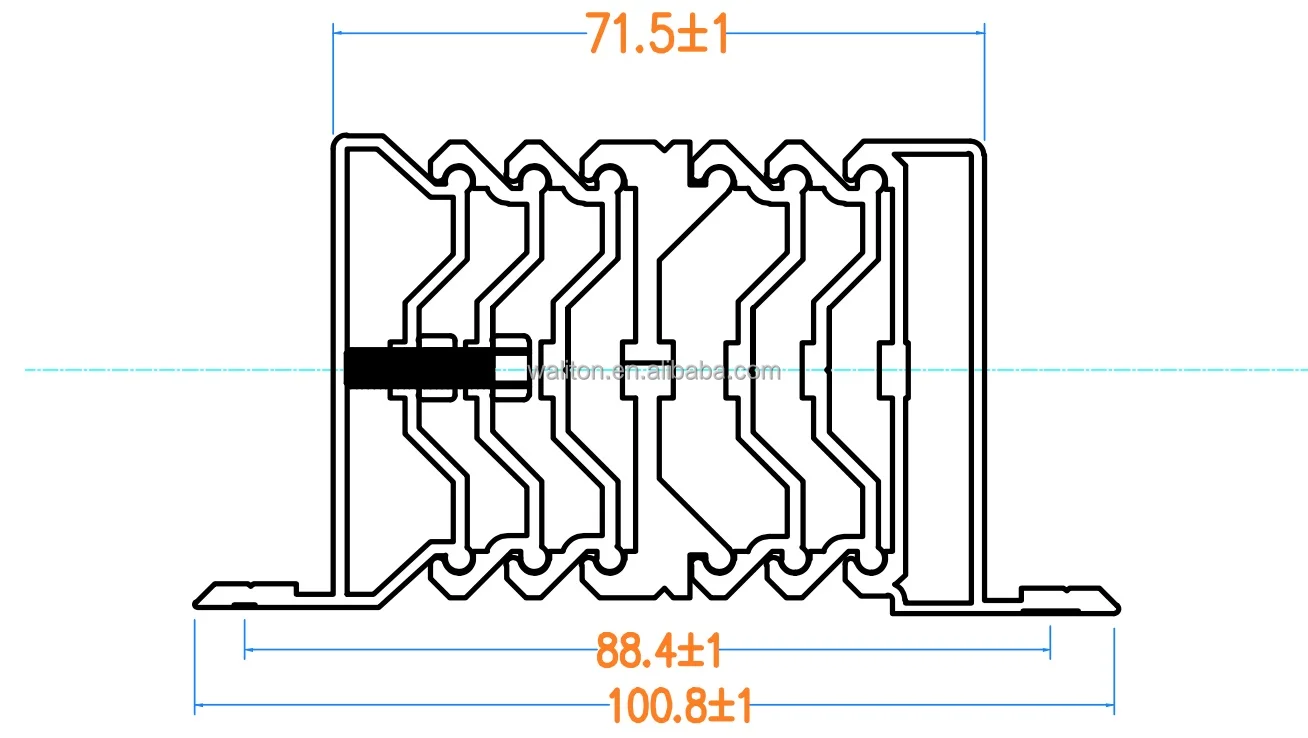

A | B | L | C | D | E | F | G | H | I |
300mm | 187.5mm | 1419.5mm | 32mm | 64mm | 64mm | N/A | 32mm | 64mm | N/A |
350mm | 237.5mm | 1869.5mm | 32mm | 64mm | 64mm | 64mm | 32mm | 64mm | 64mm |
400mm | 287.5mm | 2319.5mm | 32mm | 64mm | 64mm | 64mm | 32mm | 64mm | 64mm |
450mm | 337.5mm | 2769.5mm | 32mm | 64mm | 64mm | 64mm | 32mm | 64mm | 64mm |
500mm | 387.5mm | 3219.5mm | 32mm | 64mm | 64mm | 64mm | 32mm | 64mm | 64mm |
THE PRODUCTS SPECIFICATIONS | ||

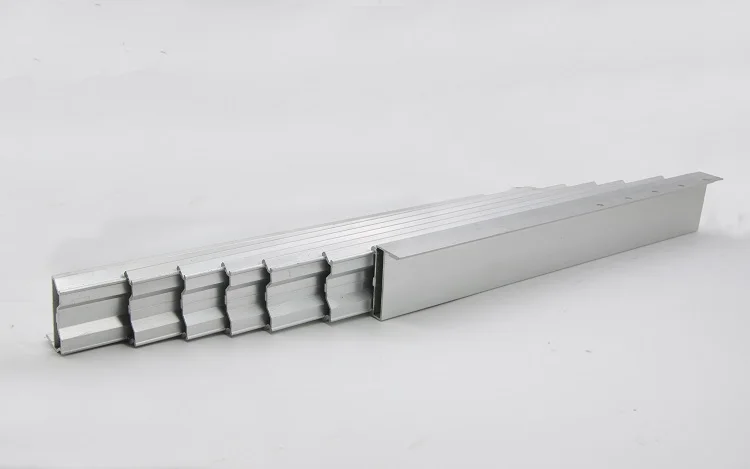

Product Name | 7-Section Transforming Table Aluminum Alloy Table Slide Rails | |
Item No. | WLT-TL03-7S | |
Drawer Slide Rail Material | Aluminum Alloy | |
Drawer Slide Section Steel Thickness | 1.7mm | |
Drawer Slide Rail Load Rate | 50kgs / 110lbs [ meet or exceed ANSI performance standards as established by BIFMA, BHMA and KCMA.] | |
Table Slide Available SECTION Length | 350mm, 400mm, 450mm, 500mm, 550mm, 600mm | |
Module | Mutiple Secitons Extension Opening | |
Mounting | Side mount and L- bracket bottom/top mounting | |
Disconnect | Non Disconnectable | |
Hole Pattern | 32mm | |
Type | NON Ball Bearing Aluminum Alloy Silence Travel | |
Travel | Steel Cable Synchronized Single Extension | |
Finish | Aluminum Alloy | |
Drawer Slide Rail Height | 1.97" [50mm] | |
Drawer Slide Rail Packaging | Bulk Pack: 1 pair per carton [available pallet bulk packaging] | |
Feature | • Mutiple sections extension table slide • light material for shipping cost saving • Non ball bearing moving quietly • Non-Disconectable slide members with bolt stopper for safety | |
Applications | Extendable table slides for small dining table,small kitchen table,tables set,dining tables for small spaces,space saving dining table | |
The Most Relevant Products

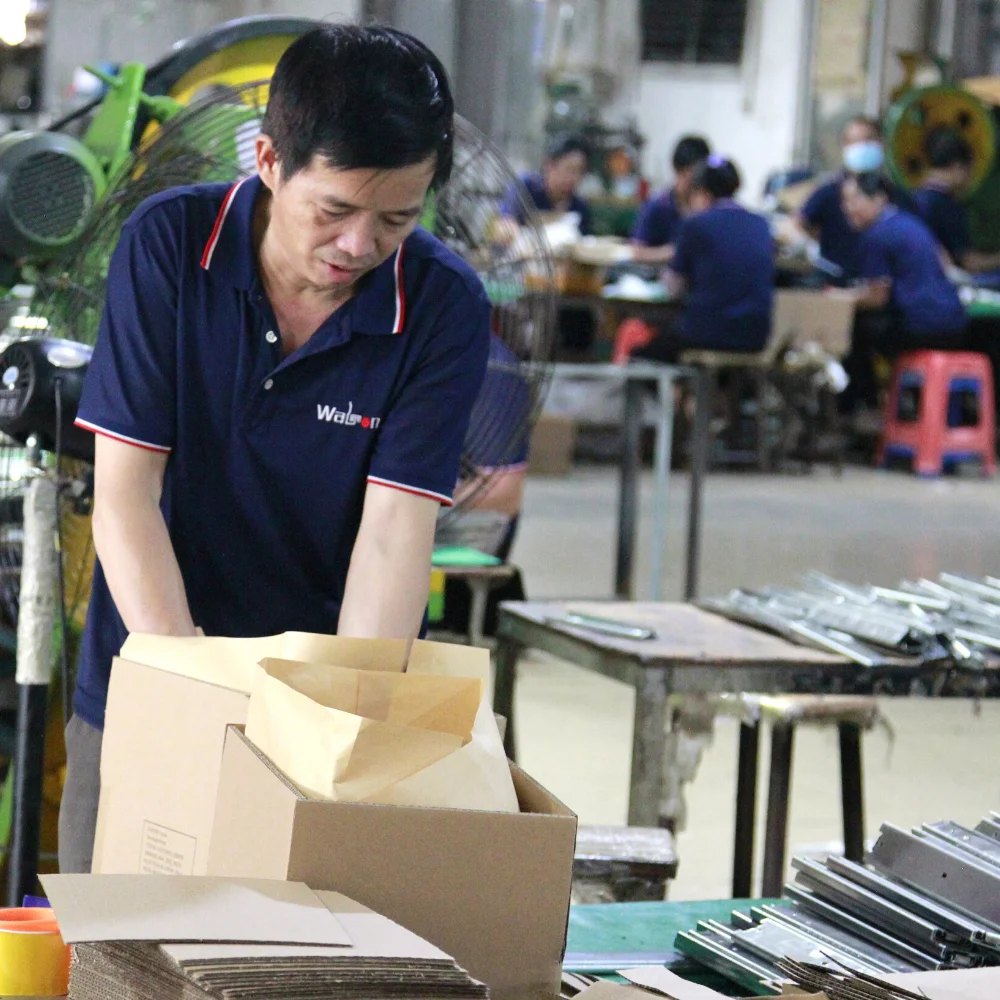

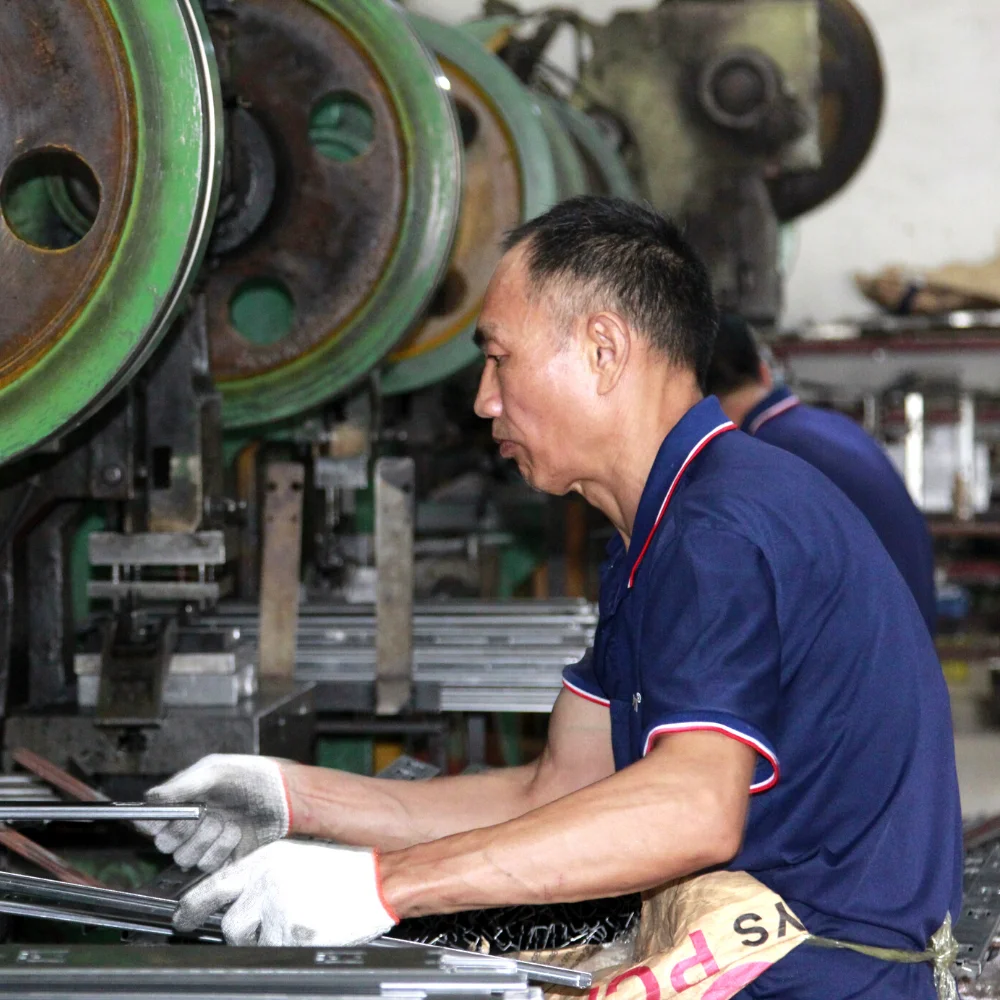

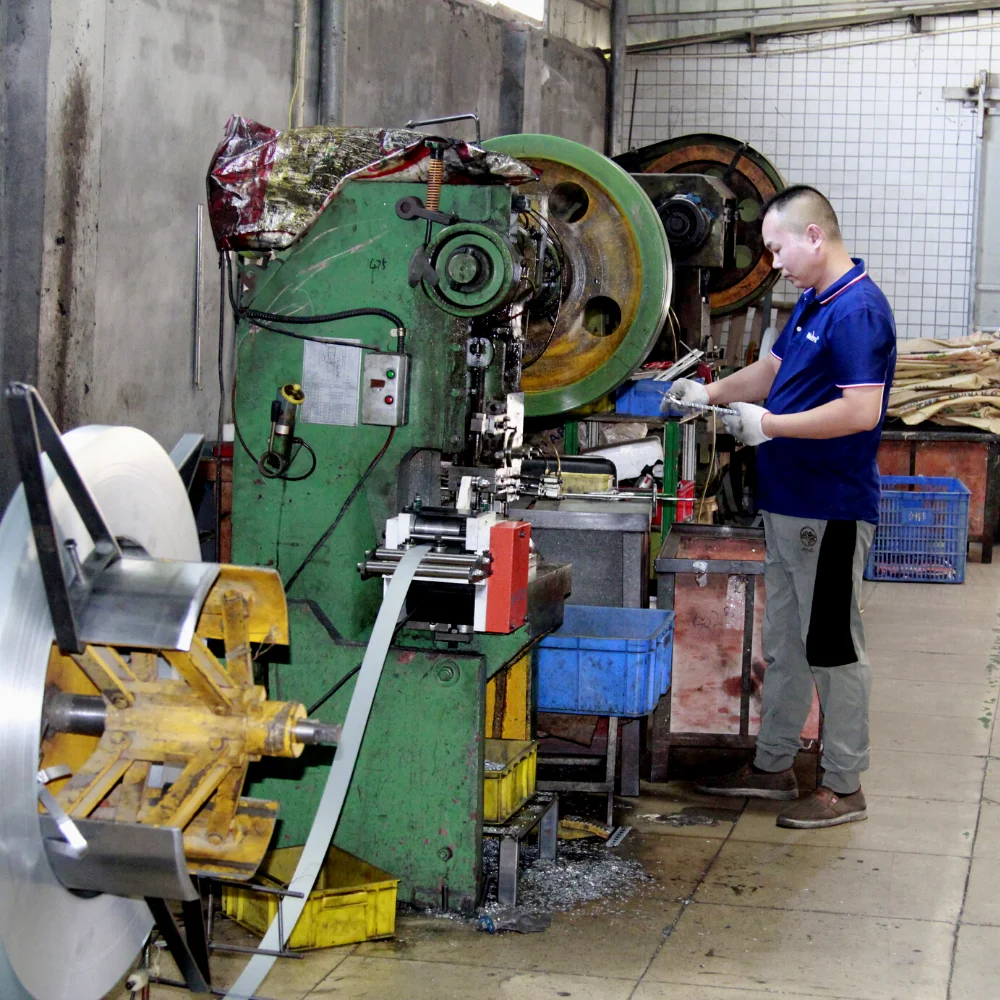

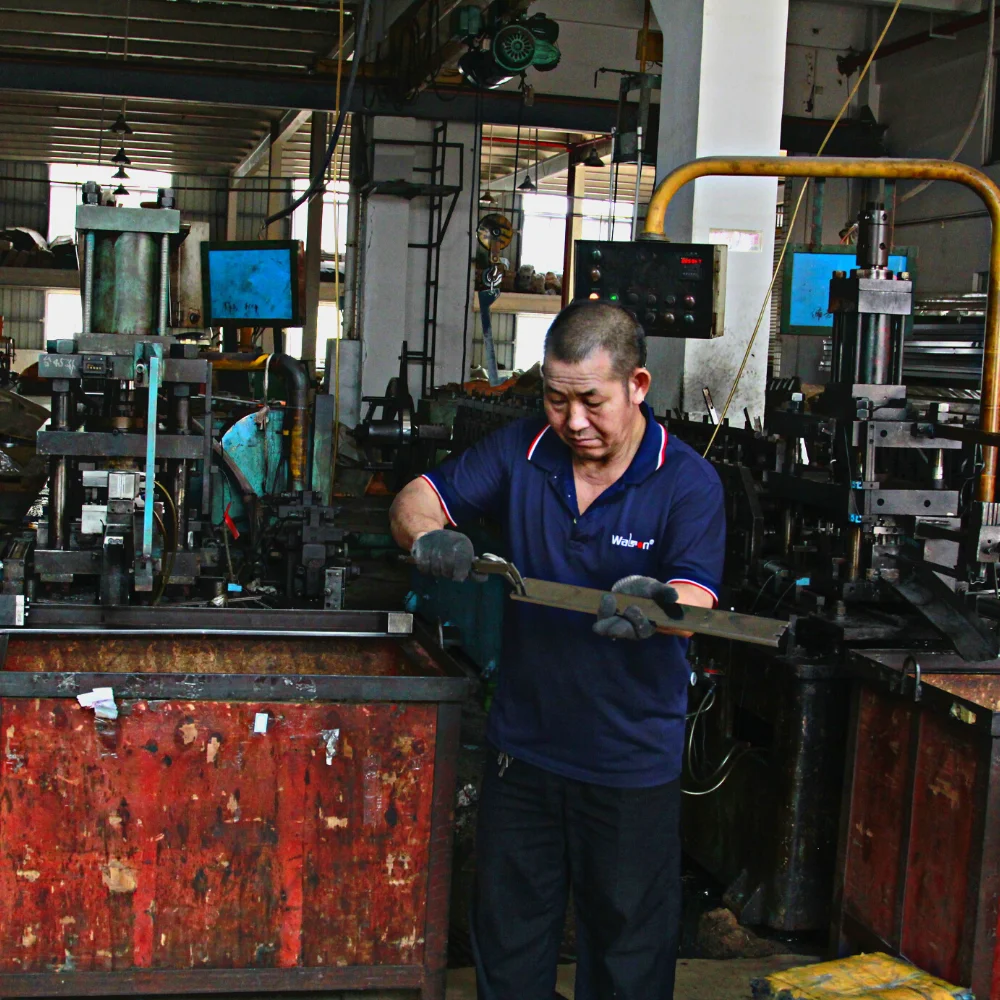

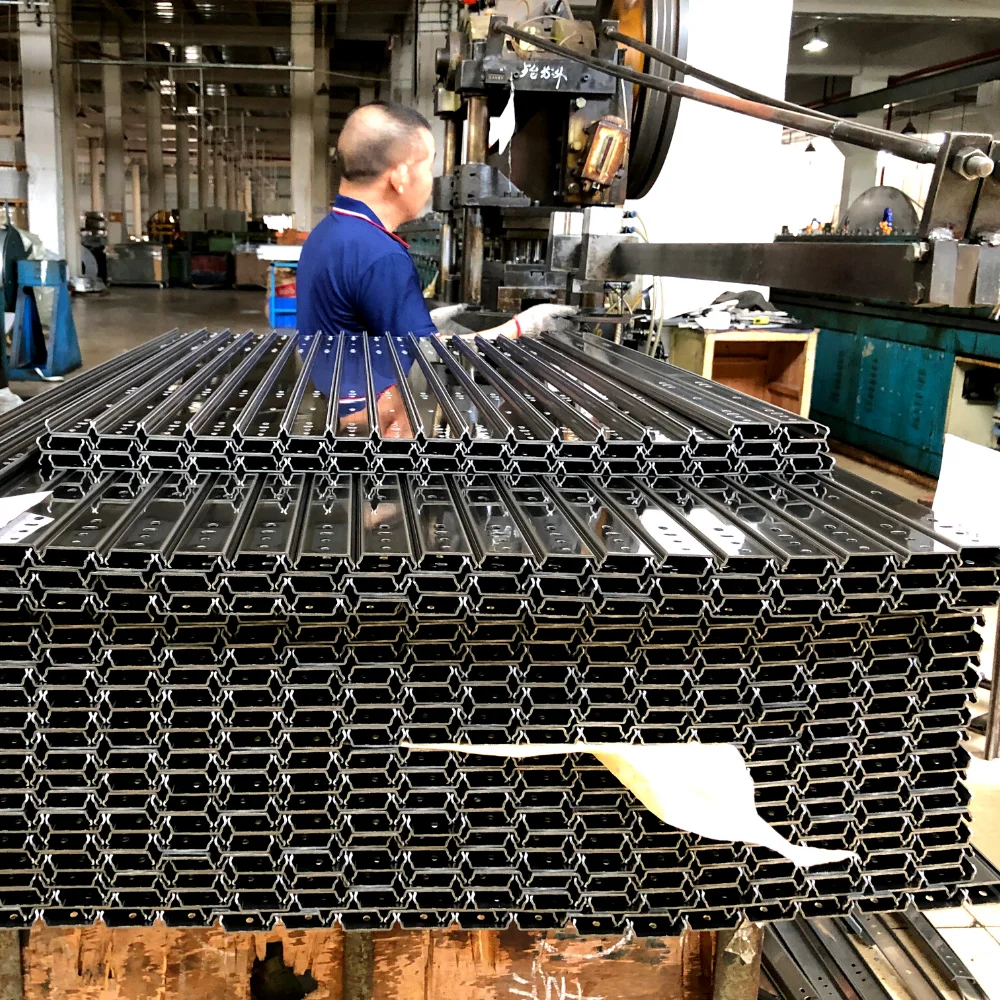

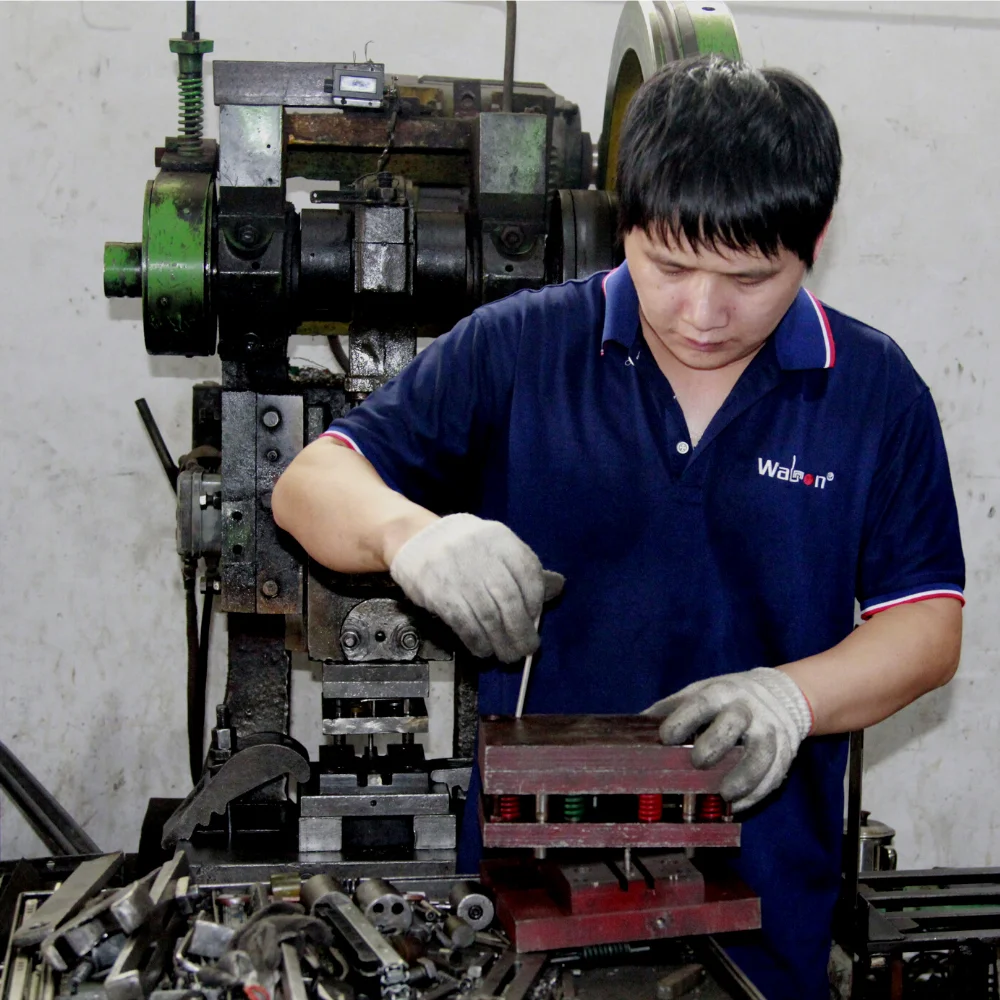

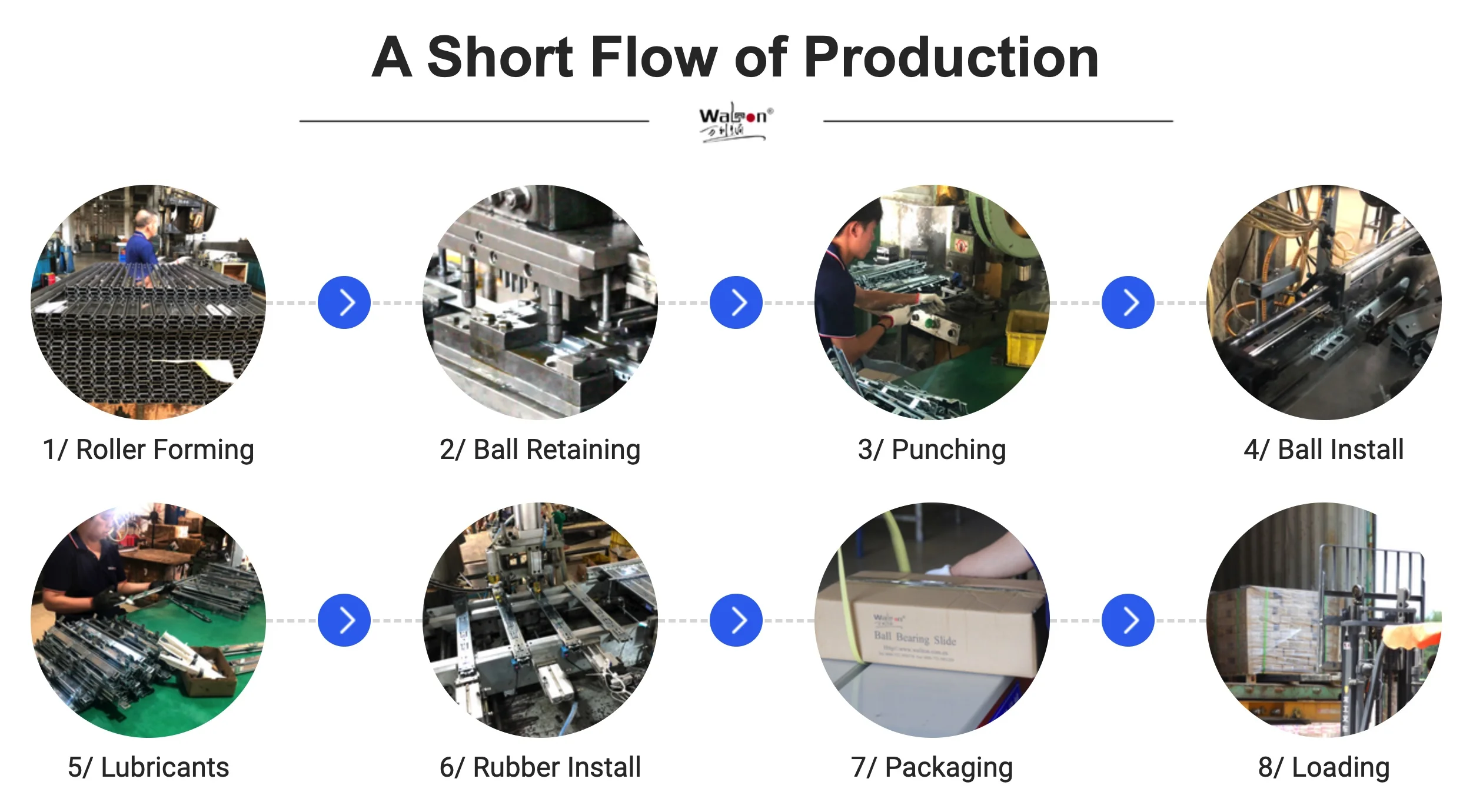

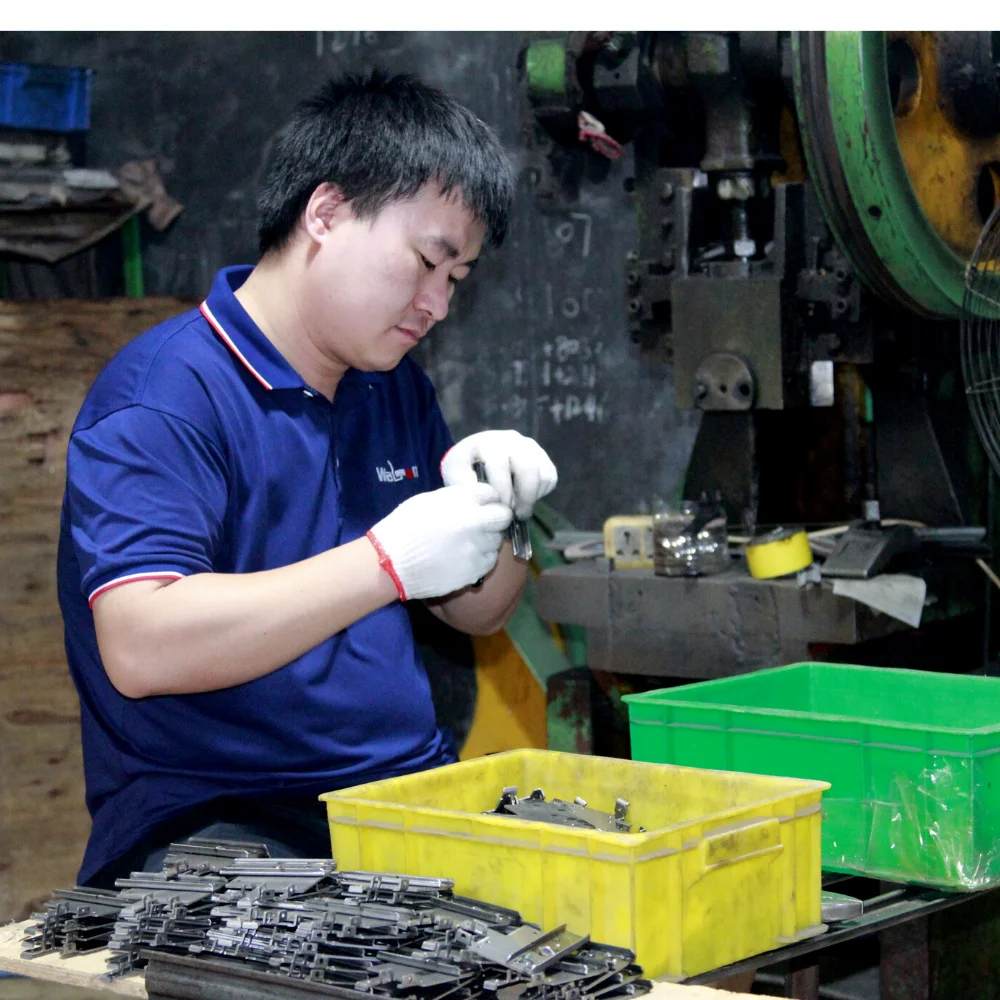

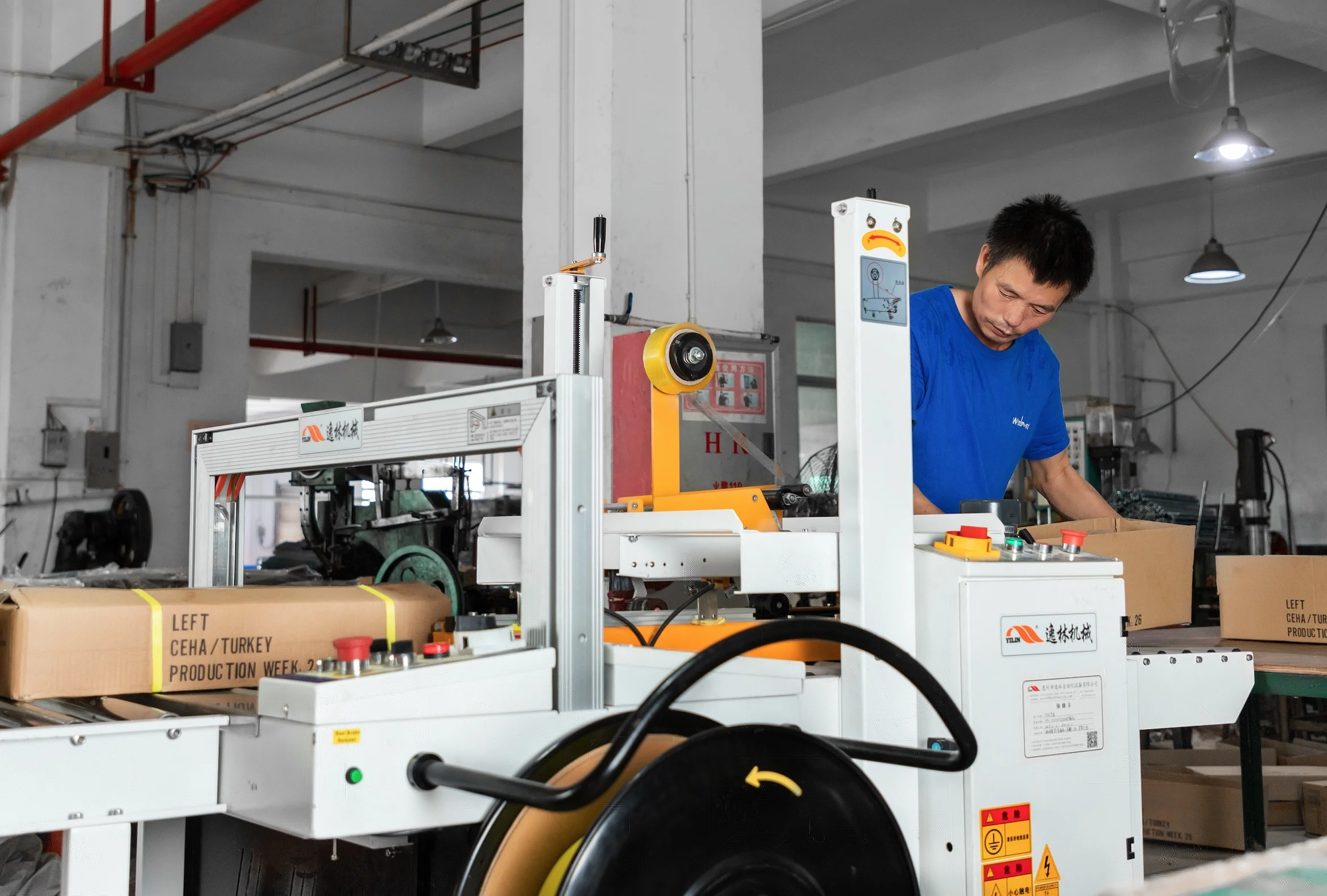

Manufacturing and Packaging
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

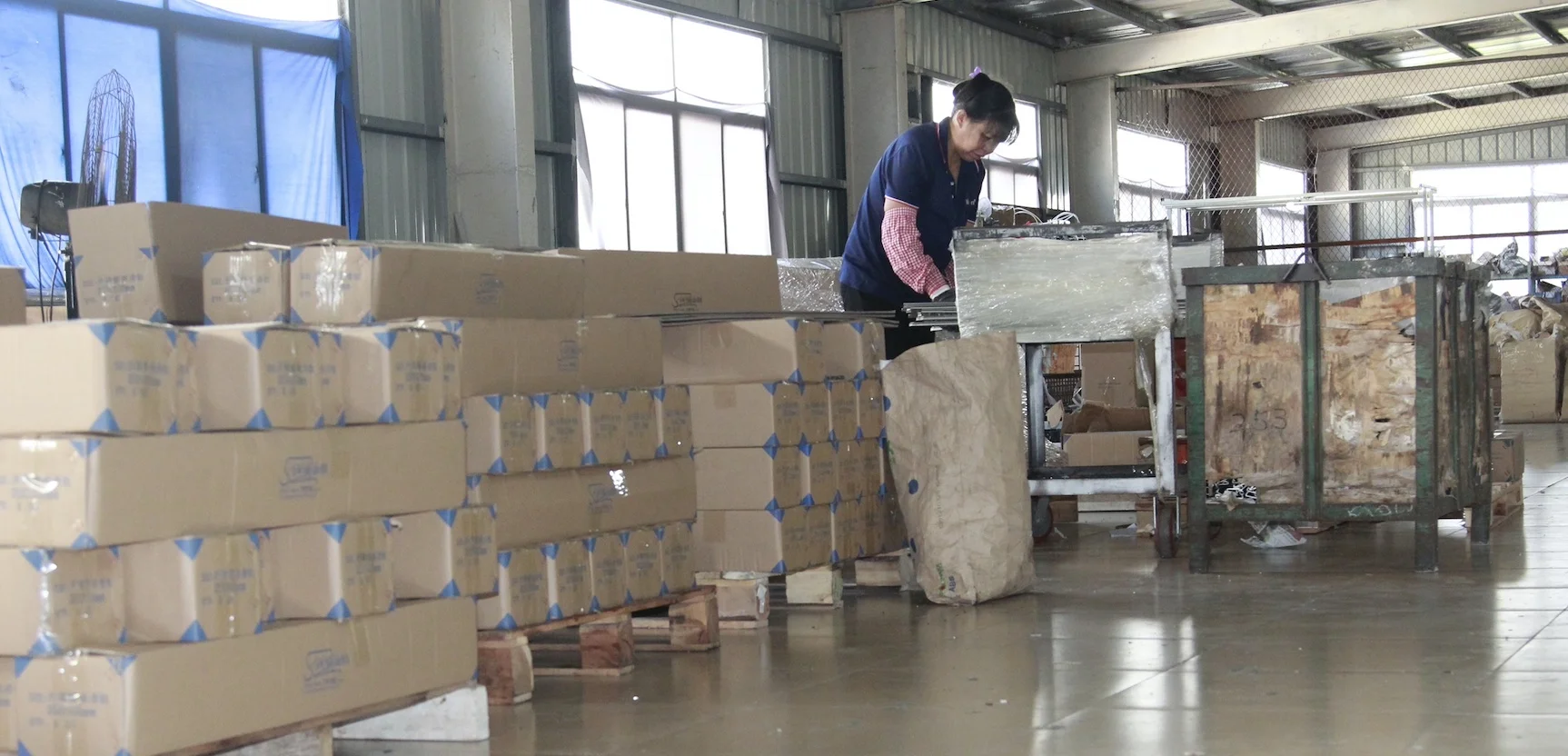

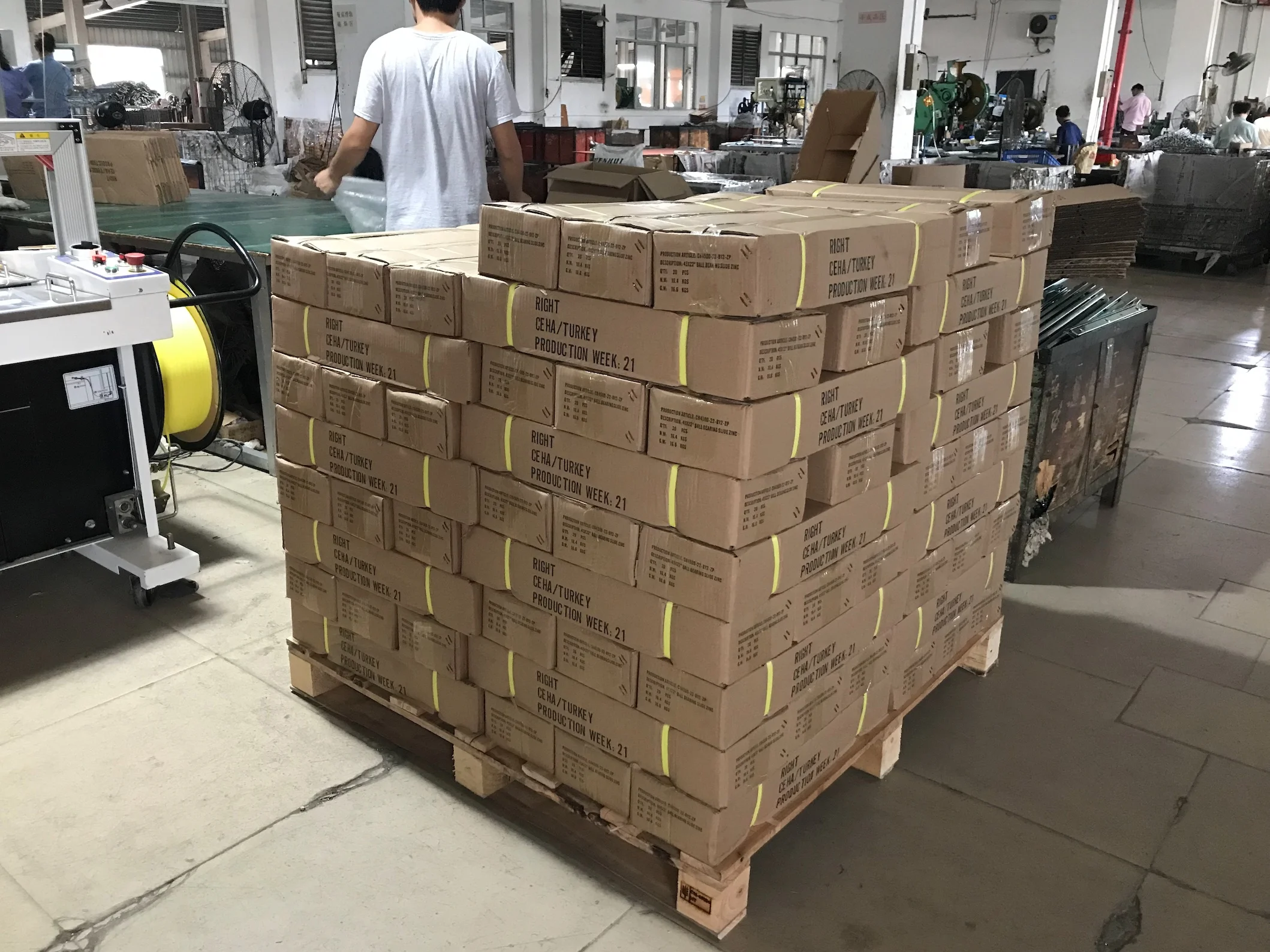

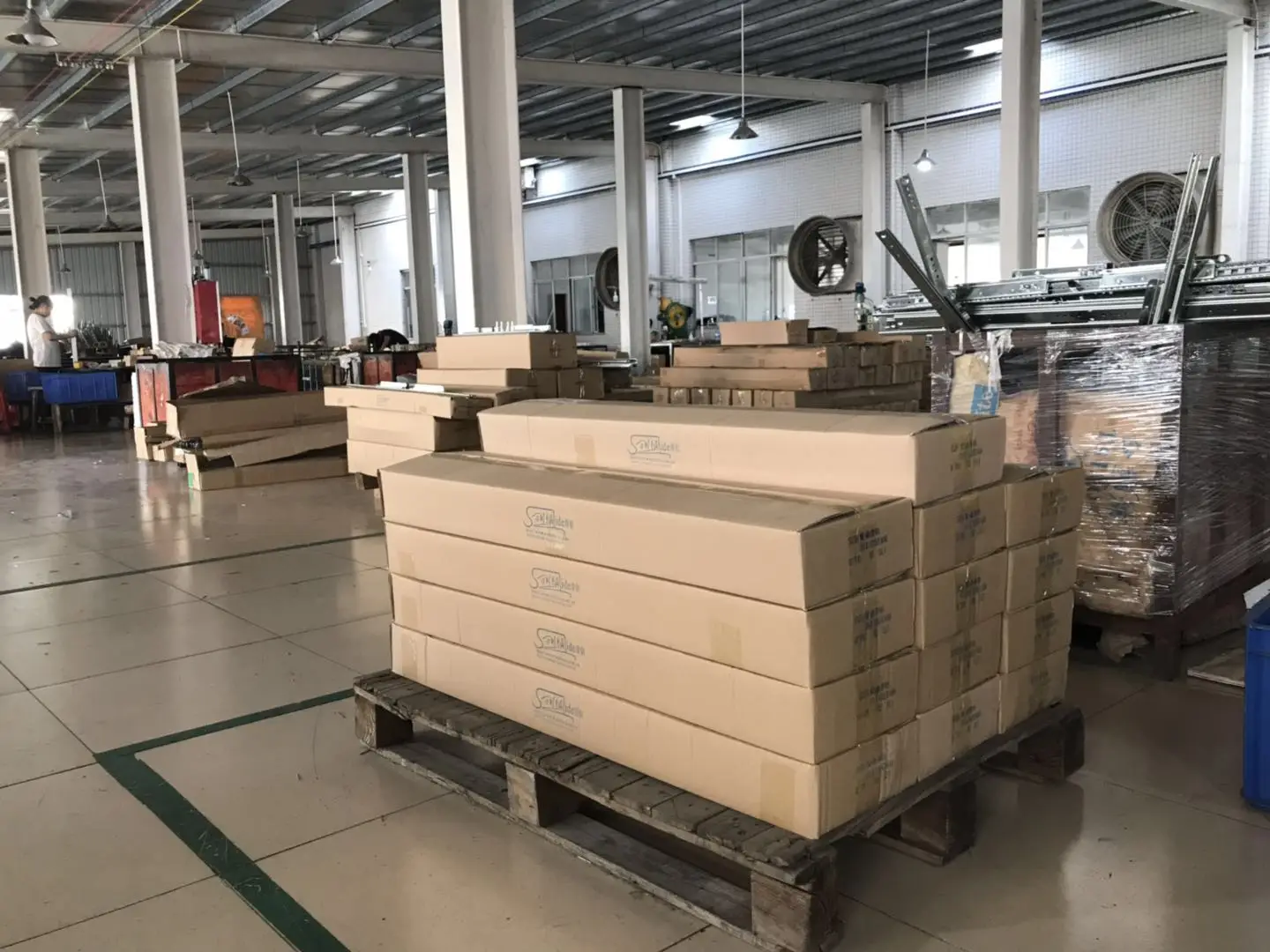

As usually, one sets drawer slide will be packed in a PE bag, 10 PE bags packed in a Carton.
