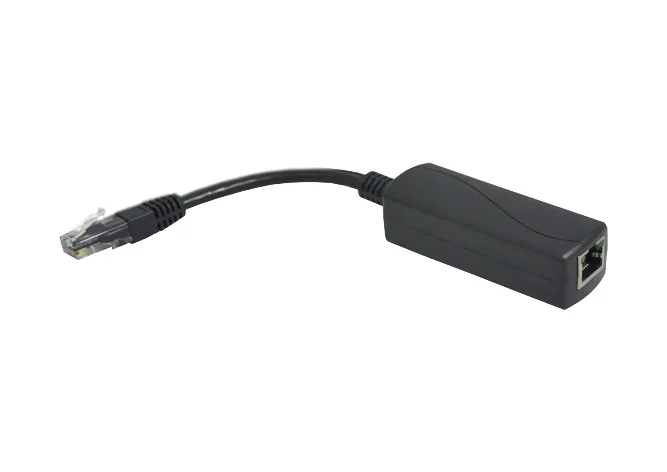

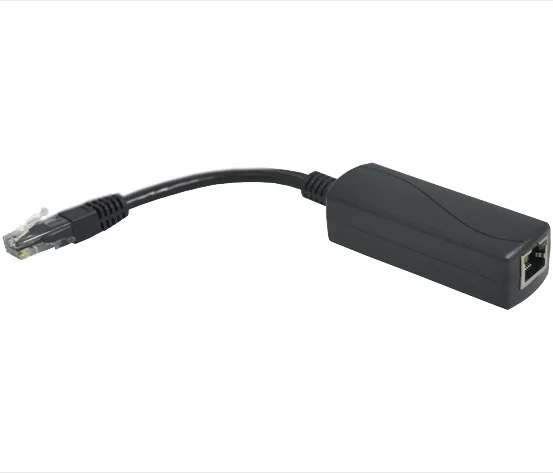

10/100/1000M 48V poe to 24V passive PoE converter for ubiquity wireless AP
Description
PoE Converter is esign to convert the Standard 802.3af/at PoE to proprietary 24V PoE. This enable better and easierintegration during deployment.
High voltage carries power more efficiently (using less current) than low voltage. The PoE Converter enables longer cable runs due to a more efficient power delivery – so your products can get the power they require even when they are located far from the 802.3af/at switch.
Features
l IEEE802.3, IEEE 802.3u, I EE802.3ab, IEEE802.3af, IEEE802.3at.
l IEEE802.3, IEEE 802.3u, I EE802.3ab, IEEE802.3af, IEEE802.3at.
Convert the Standard 802. af/at PoE to proprietary 24V PoE, Up to 24V 0.5A output.
Works with 10/100/1000 Mbps ports to deliver high throug put speeds over its wired connection.
Specification
Power over Ethernet | ||||||||
PoE Interfaces | 1 x RJ-45 Connector for 802.3af/at Power input 1 x RJ-45 Connector for 24V Power output | |||||||
Input PoE Standard | IEEE802.3af, IEEE802.3at | |||||||
Input PoE Voltage | 36~57V C | |||||||
Input PoE Pin Assignment | V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2) or V+ (RJ45 Pin4, 5), V- (RJ45 Pin 7,8) | |||||||
Output PoE Wattage | 12W | |||||||
Output PoE Voltage | 24VDC | |||||||
Output PoE Pin Assignment | V+ (RJ45 Pin4,5), V- (RJ45 Pin 7,8) | |||||||
Physial | ||||||||
Operating Temperature | 0 to 40℃ | |||||||
Storage Temperature | -10 to 70℃ | |||||||
Operating Humidity | 5 to 95% Noncondensing | |||||||
EMC Safety | FCC, CE, RoHS | |||||||
PoE Convertor | 1pcs | |||||||
User Manual | 1pcs | |||||||
