3d-камера высокой четкости система медицинских эндоскопических камер для ресэктоскопа
- Категории: Медицинские оптические приборы >>>
- Поставщик: Shanghai,Shiyin,Import,And,Export,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Application：
SY-GW1100C-N can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.

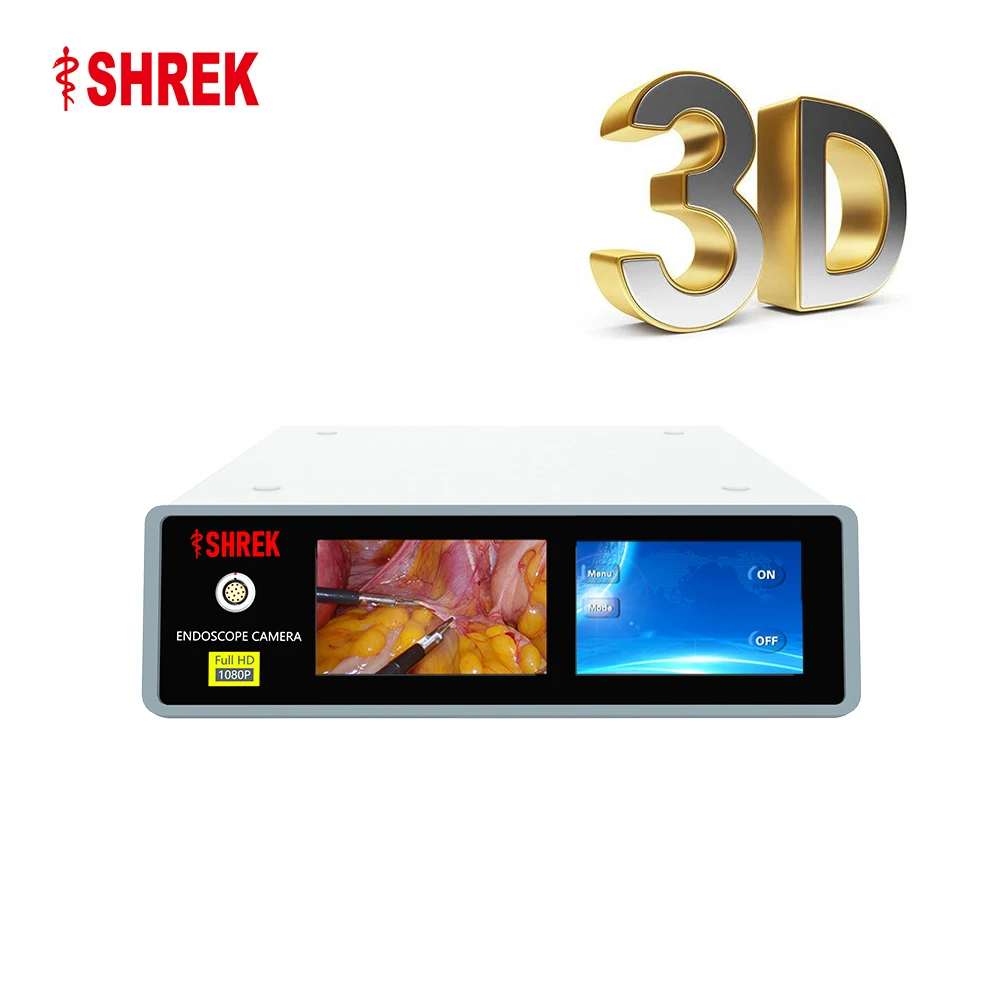

Product name | SY-GW1100C-N Endoscope Camera |
Image sensor | 1/1.8CMOS |
Language | English/Chinese |
Effective pixels | P:1920(H)*1080(P) |
Scanning frequency | N:60HZ P:60HZ |
Scan mode | Progressive scan |
Horizontal resolution | 1200TVL |
Digital zoom | 0-60x |
DNR | 3D Denoise |
SNR | ≥50dB |

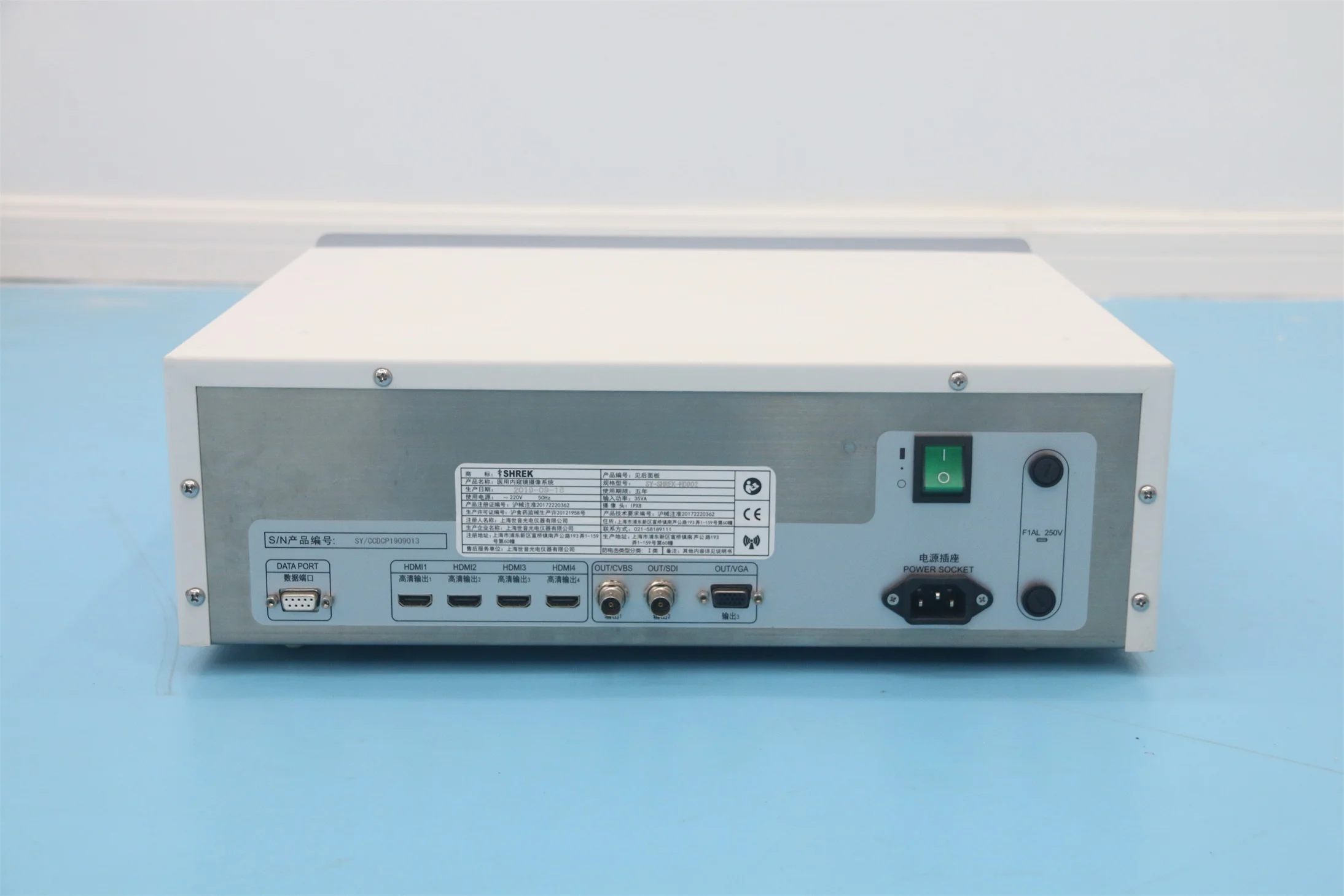

Output port | HDMI, SDI, BNC, VGA, remote control port |
Brightness | ODS adjustable |
DSS | 30x |
Product material：
1. Our endoscope camera system use 304 stainless steel, brushed metal which contributes to cleaning, disinfection and maintenance. Color of machine appearance wont change for long-term use.
2. Set screws use stainless steel material, so screws wont rust off and cause electrical short which extends service life of machine.
3. Baseboard of inner circuit board uses simple brass and protection cover, which is effective protection to antijamming of circuit and ground connection.
4. All signal cables use double-shielded, enhanced antijamming material which guarantee the antijamming capacity and long working life. The signal cable can stand 50,000 times bend by testing.
2. Set screws use stainless steel material, so screws wont rust off and cause electrical short which extends service life of machine.
3. Baseboard of inner circuit board uses simple brass and protection cover, which is effective protection to antijamming of circuit and ground connection.
4. All signal cables use double-shielded, enhanced antijamming material which guarantee the antijamming capacity and long working life. The signal cable can stand 50,000 times bend by testing.
Product advantages：

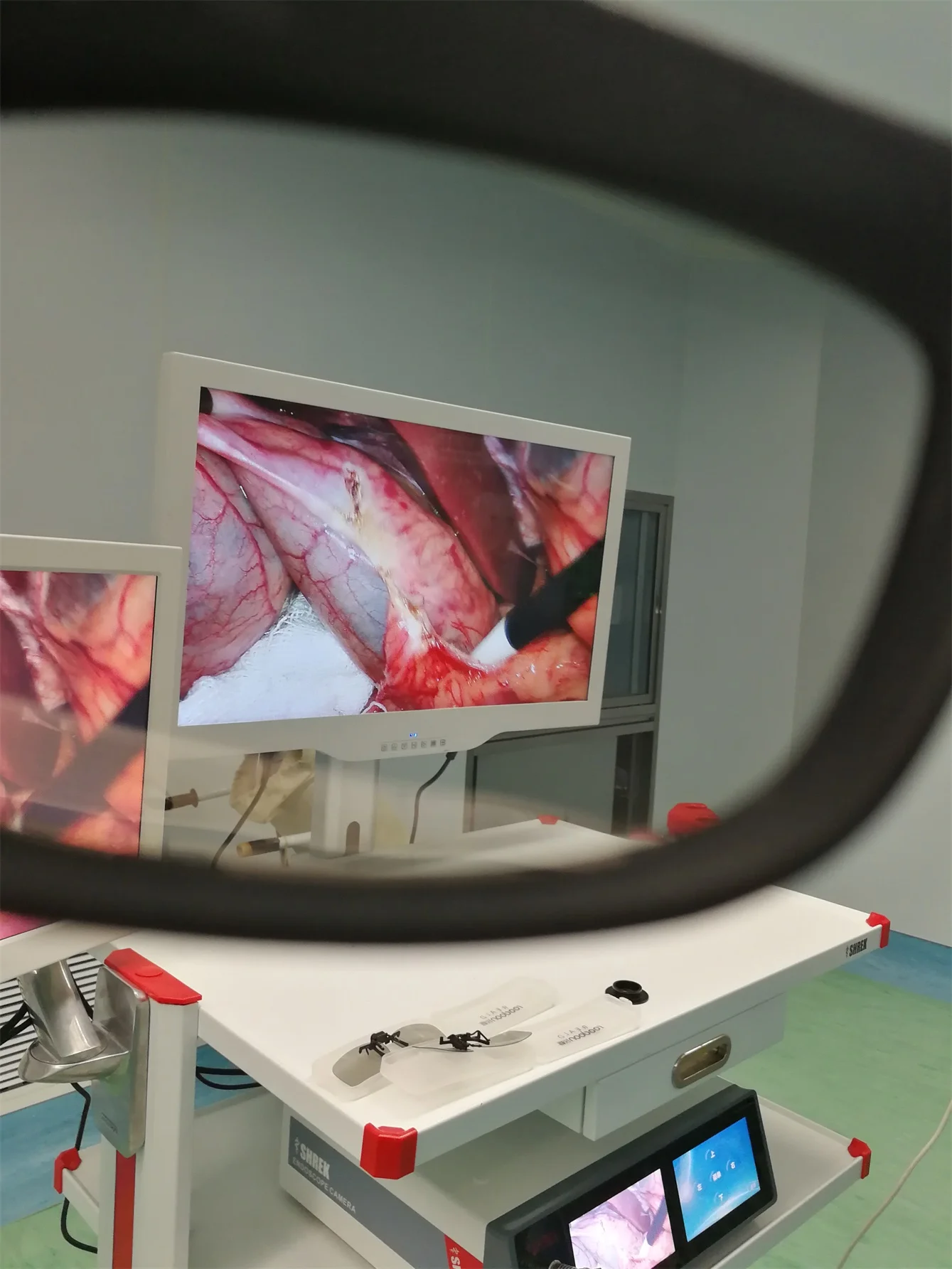

1.Digital FHD camera system, 3D & 2D dual mode, easy to operate.
2.Resolution: horizontal resolution is no less than 1200 lines. Real color, clear image, strong three- dimensional sense.
3. Full intelligent automatic white balance with one click(White balance and freeze buttons on the camera head)
4. Double 7" touch LCD screen, wear-resistant, scratch resistant, fastness, quick-witted.
2.Resolution: horizontal resolution is no less than 1200 lines. Real color, clear image, strong three- dimensional sense.
3. Full intelligent automatic white balance with one click(White balance and freeze buttons on the camera head)
4. Double 7" touch LCD screen, wear-resistant, scratch resistant, fastness, quick-witted.
5. Solving electromagnetic interference of energy platform during operation ( such as ultrasonic knife, plasma knife, electrosurgical unit, etc.)
6. Camera head waterproof: IP8X, to prevent water from entering the camera head during the surgery. (Low temperature plasma and soaking disinfection is available ).
7. Extinction speed is less than 0.1s, which can solve the operation delay of surgical images and reduce visual fatigue.
6. Camera head waterproof: IP8X, to prevent water from entering the camera head during the surgery. (Low temperature plasma and soaking disinfection is available ).
7. Extinction speed is less than 0.1s, which can solve the operation delay of surgical images and reduce visual fatigue.
8. Professional camera head and special needs of doctors are customized to meet the needs of different departments.
9. 4*HDMI outputs required for clinical applications. 1080P Intelligent digital full HD output.(1 for medical monitor; 2 recorder or workstation port; 3 our APP remote live broadcast)
10. Brightness, sharpness, freeze, d-zoom, language, rs485, reset, etc, all these can be operated accordingly.
9. 4*HDMI outputs required for clinical applications. 1080P Intelligent digital full HD output.(1 for medical monitor; 2 recorder or workstation port; 3 our APP remote live broadcast)
10. Brightness, sharpness, freeze, d-zoom, language, rs485, reset, etc, all these can be operated accordingly.
Application：
SY-GW1000L-N can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.

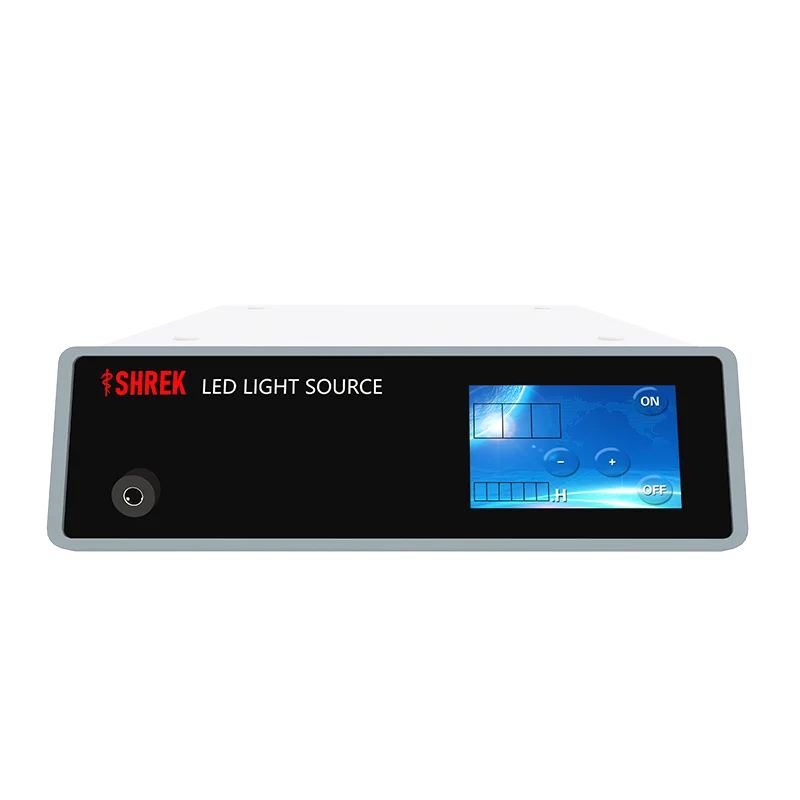

Product name | SY-GW1000L-N LED Light Source |
Input power | 100VA |
Power supply | AC100-240V 50/60Hz |
Light source | LED light |
Effective light power | ≥100mW |
Brightness | ≥1,200,000lx |
Color temperature | 6000±500K |
Noise | ≤55dB(A) |
Surface temperatures | ≤60℃ |
Light out | Diameter: (10±0.10)mm |
Host fuse | T2AL 250V AC |
Working environment | 5℃~40℃ |
Application：
SY-M320S can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.

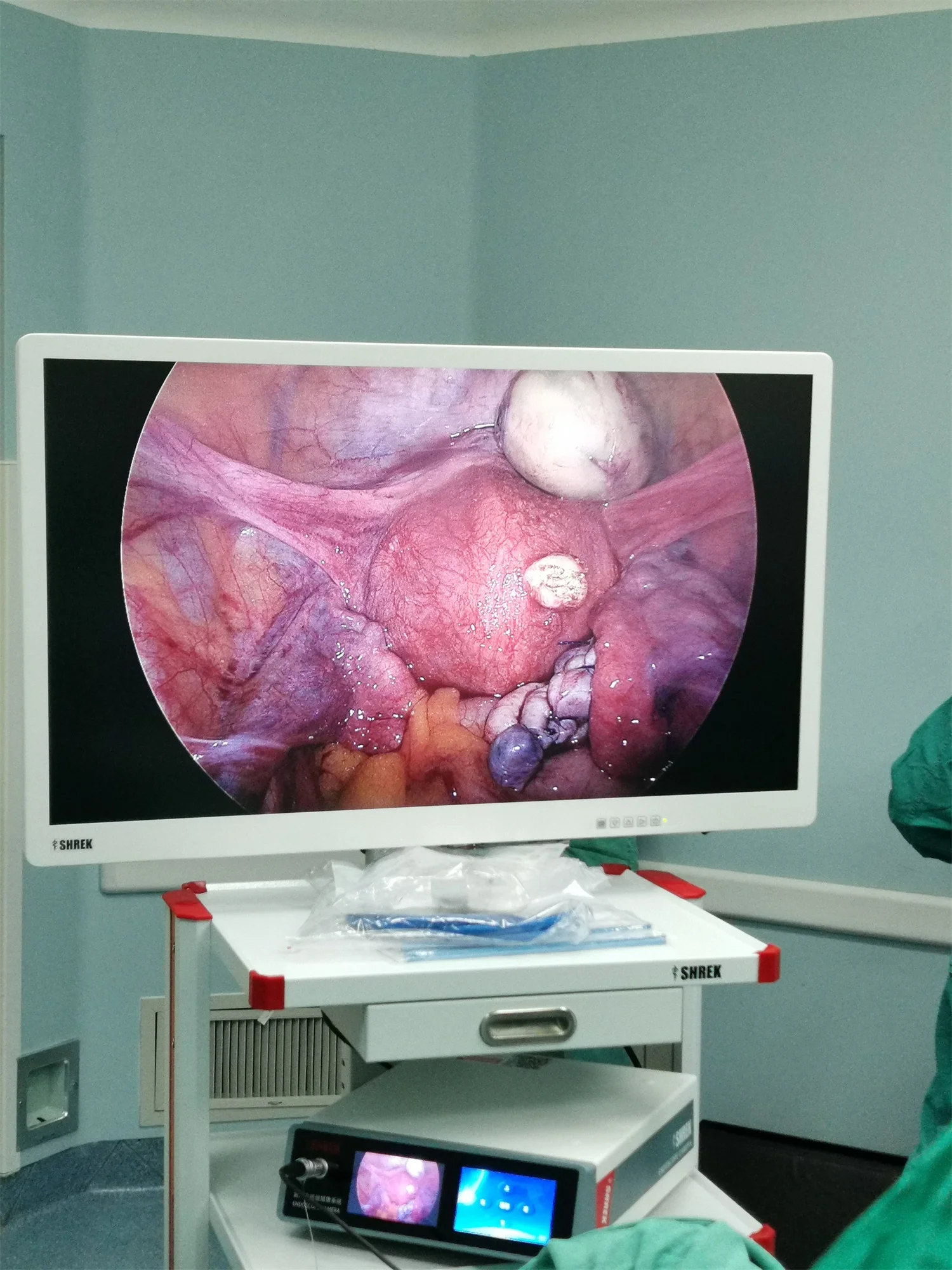

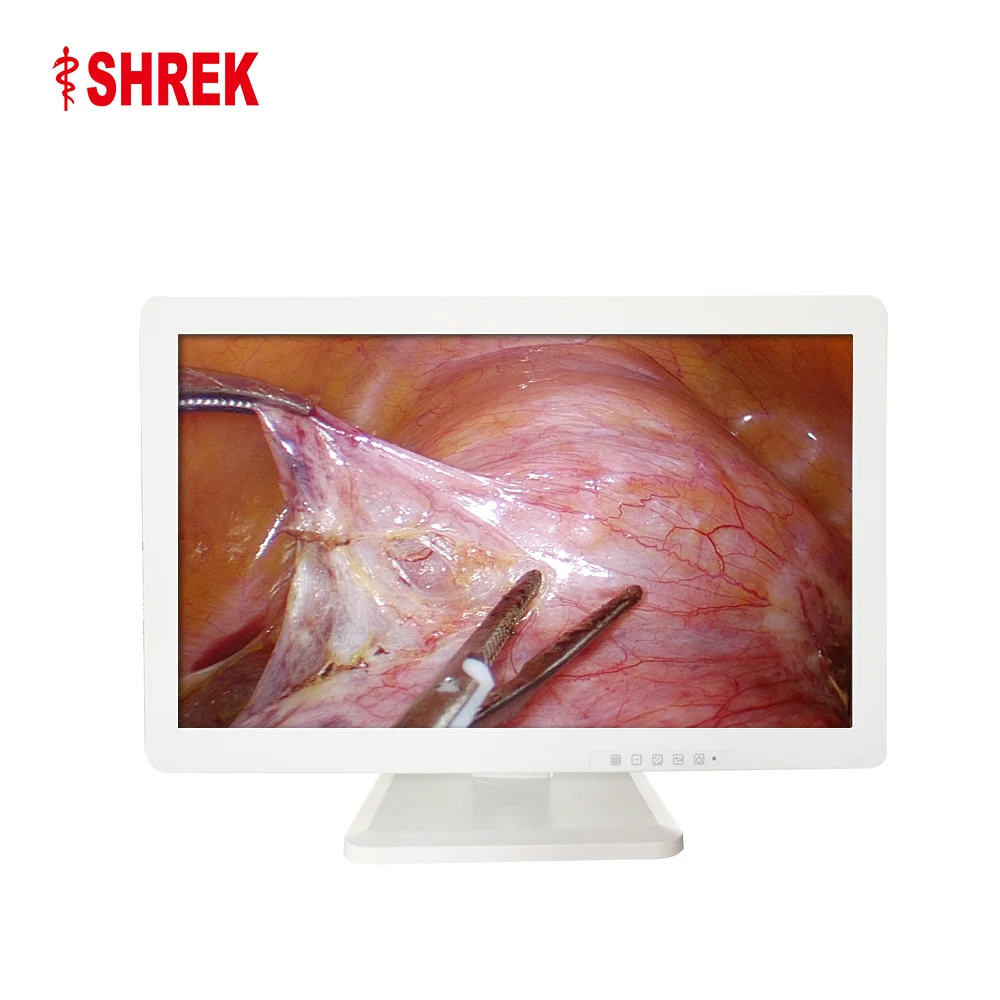

Product name | SY-M320S Medical Grade Monitor |
Screen size | 32” |
Power | 100~240V |
Resolution | 3840*2160 |
Color | 10.7billion |
Input signal | HDMI,DVI,SDI,CVBS,DP,VGA,USB |
Output signal | SDI |
Brightness | 700cd/㎡ |
Contrast ration | 1400:1 |
Response time | 8ms |
Display size | 697*392(mm) |
Application | General surgery, gynecology, ENT, urology, anorectal, orthopedics, plastic surgery, etc. |

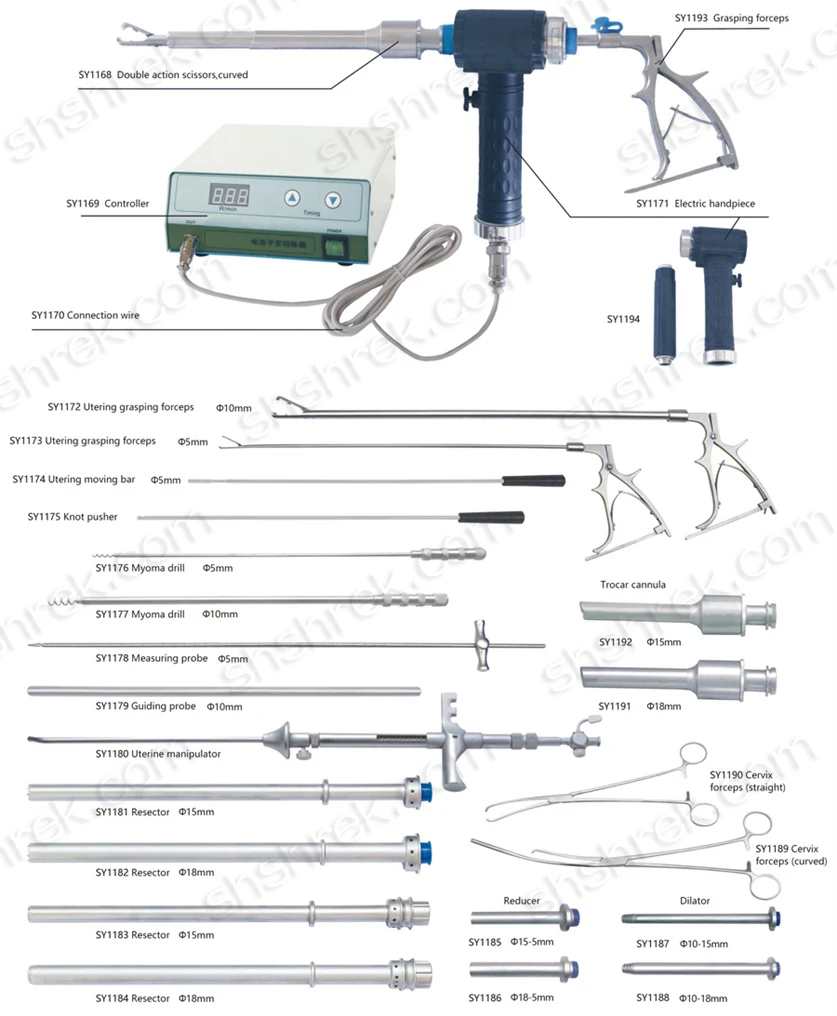

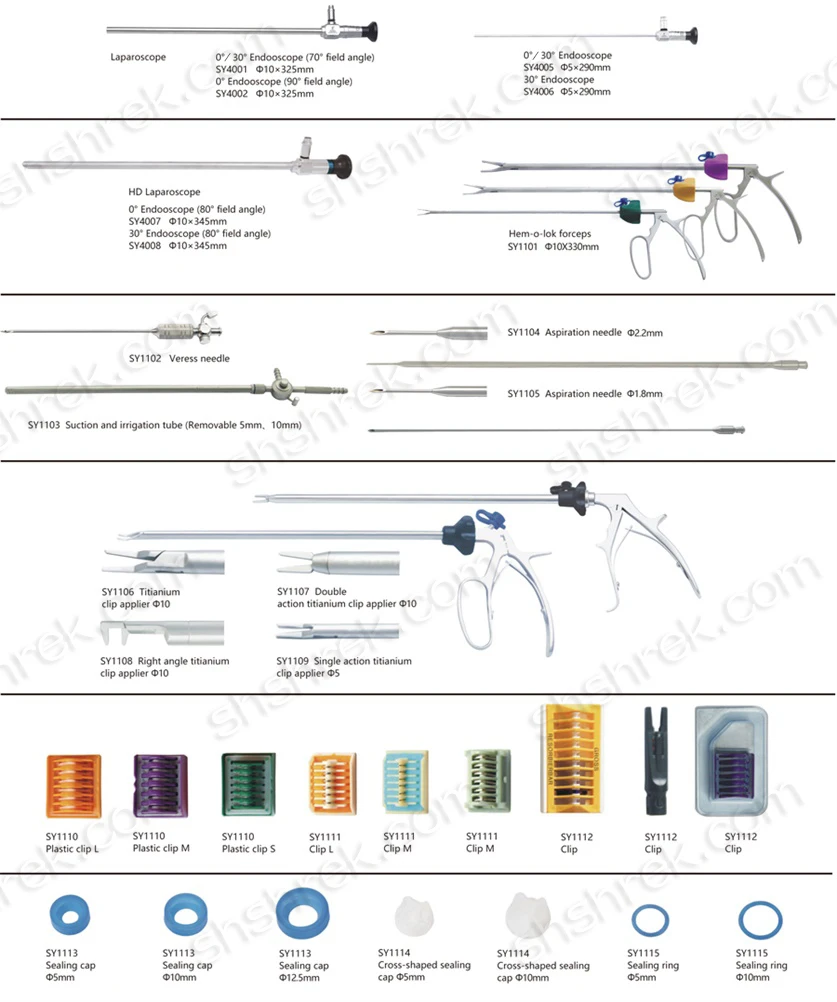

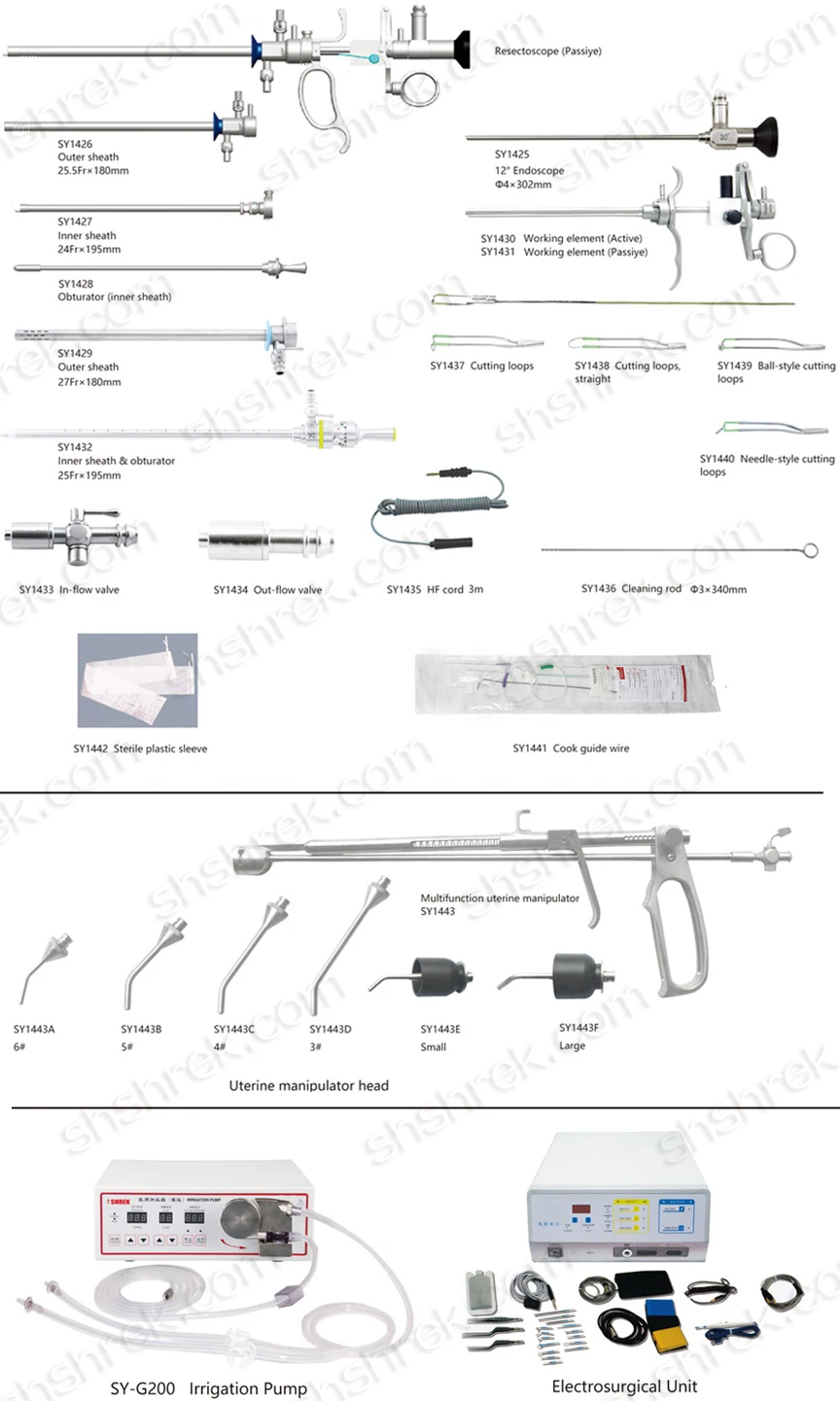

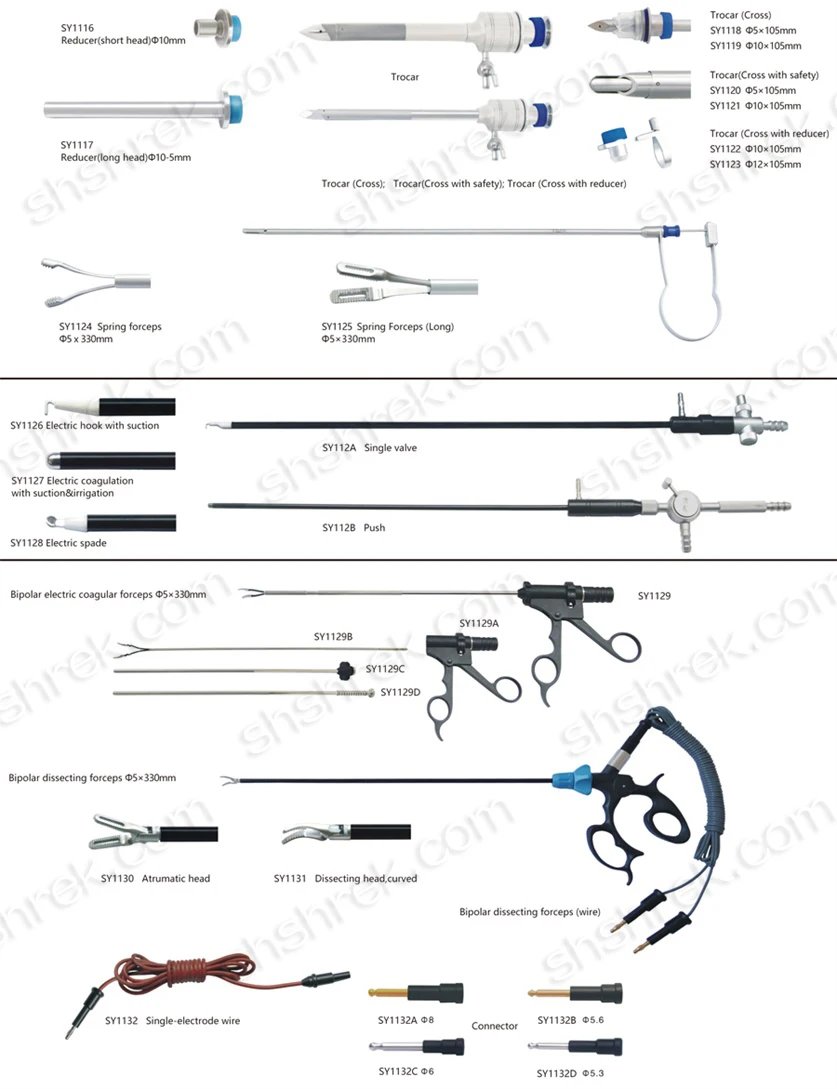

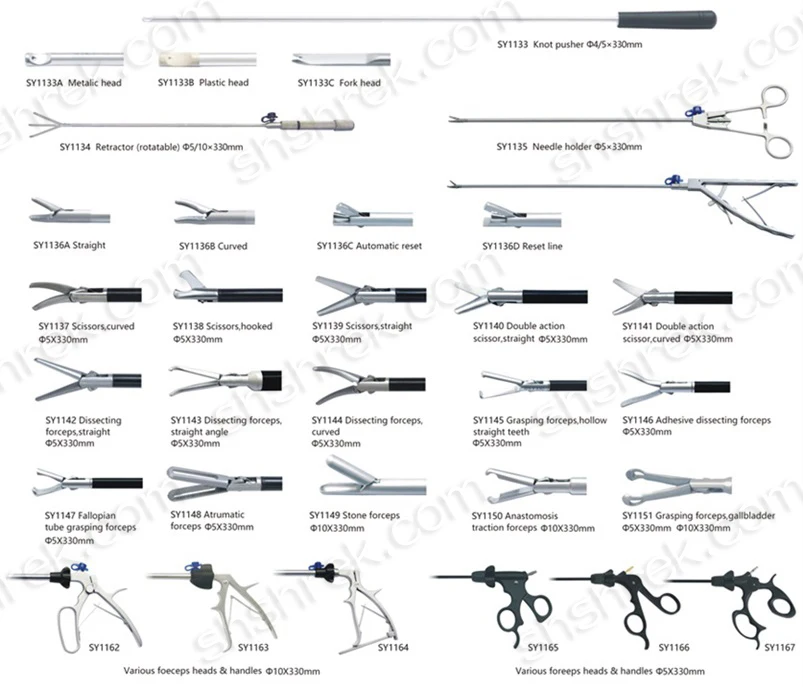

Laparoscopy Instruments

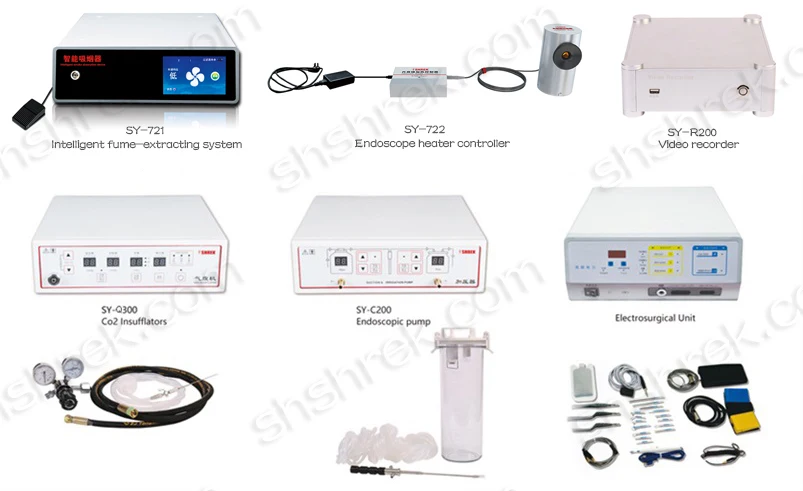

Laparoscopy equipment
Company Profile
Shanghai Shiyin Photoelectric Instrument Co., Ltd.
Shanghai Shiyin Photoelectric Instrument Co., Ltd. was established in 2009,located in Shanghai Nanhui Industrial Park. It is a high-tech manufacturing enterprise engaged in the research, development, production, sales and service of medical HD endoscope camera system.The company specializes in the production of intelligent dual-mode 3D endoscope camera system, 4K UHD endoscope camera system, digital Full HD endoscope camera system, endoscope remote control system, gas insufflator, irrigation pump, medical monitors, medical LED cold light source, instruments and other general-purpose minimally invasive solutions, which can fully meet the needs of customers in clinical departments.
SHREK BUSINESS EXPANSION
We regularly participates in medical equipment exhibitions at home and abroad, and establishes strategic partnerships with many domestic and municipal medical industry associations to comprehensively serve business development and create core values for partners.
SHREK PARTNER
SHREK products have been widely recognized by customers in medical institutions in China, Germany, the United States, South Africa, Poland,Ukraine, Egypt, Brazil, France, Spain and other countries.
Our Advantages
1.GOOD SERVICE
We provide professional operation training, the first time response, the equipment enjoys 1-3 years warranty!
2.QUALITY ASSURANCE
We have strict quality control procedures and systems！
3.FACTORY ADVANTAGE
Factory price, sufficient inventory of regular products, provide OEM service.
4.RICH EXPERIENCE
More than 19 years of production experience.Our equipment can meet various types of minimally invasive surgery such as laparoscopy, hysteroscope, arthroscopy,ENT, urology,etc.
