IEC 6A 10A socket switch noise filter

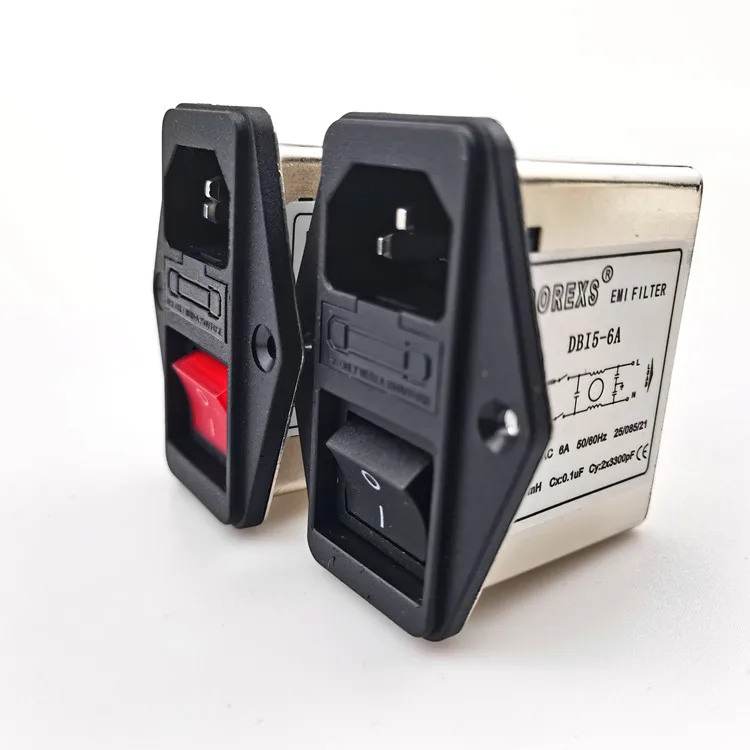

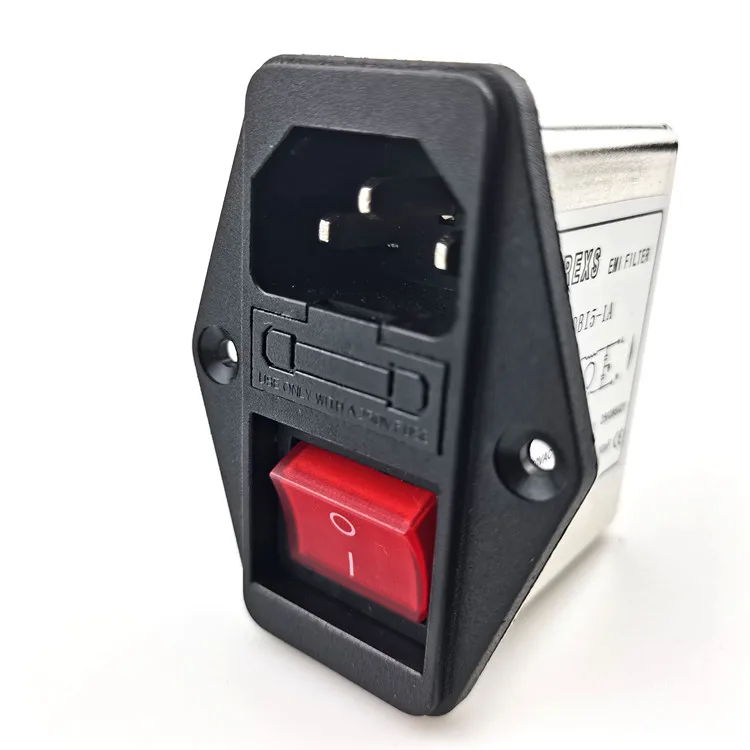

DBI5 IEC filter pictures:



DBI5 IEC filter Technical Data:

Rated voltage	115/250VAC
Line Frequency	50/60Hz
Test Voltage	1500VDC(line/line)
	2250VAC (line/ground)
Insulation Resistance	>50MΩ@500VDC
Temperature Rise	<30℃
Climatic category	25/085/21



Power filter dimensions (mm):

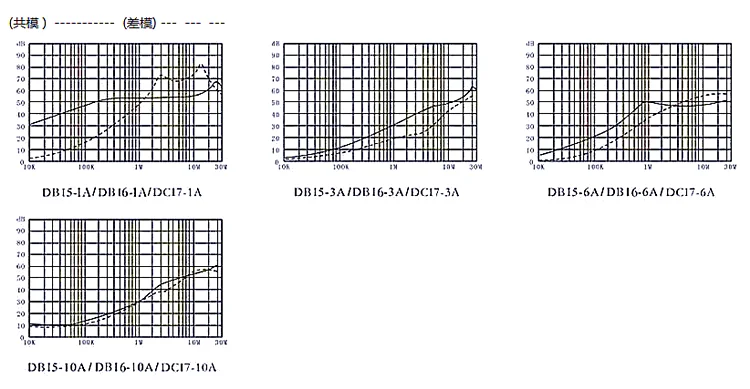

Attenuation characteristic diagram:

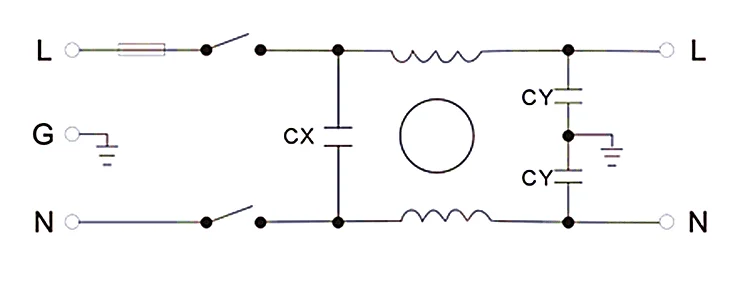

Electrical Schematics

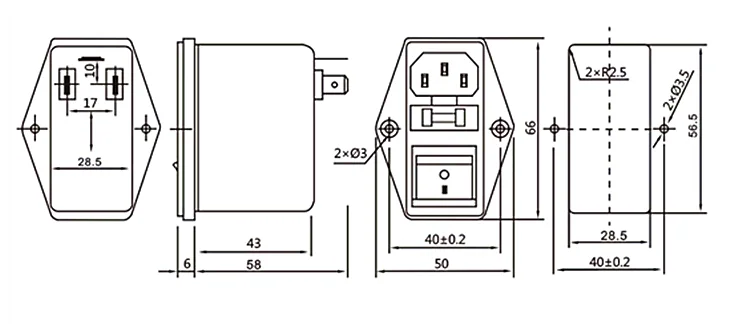

Outline Drawing and demessions(mm)

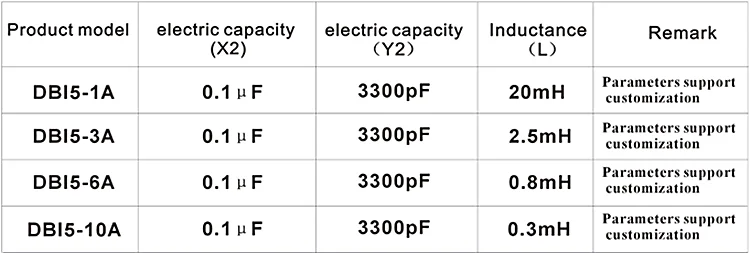

components parameters

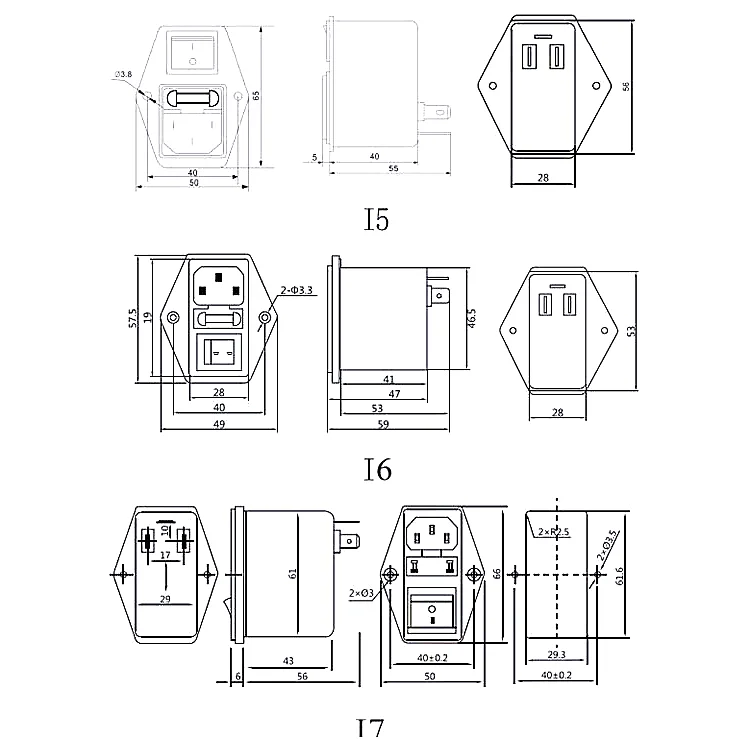

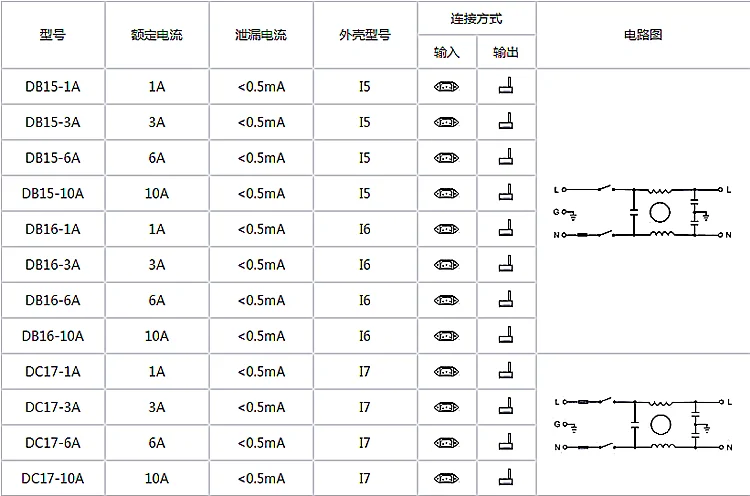

List of conventional power supply filters:

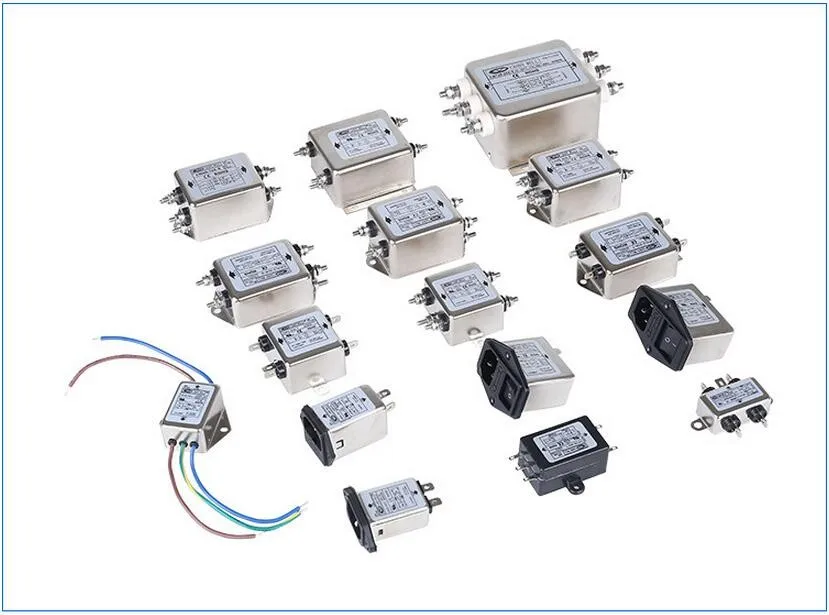

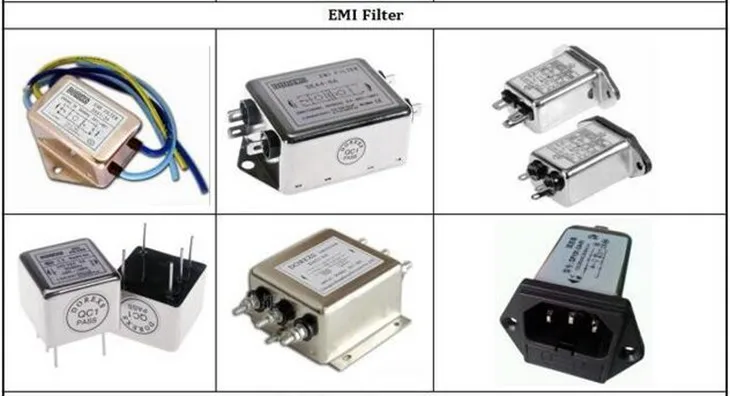

Other filters:

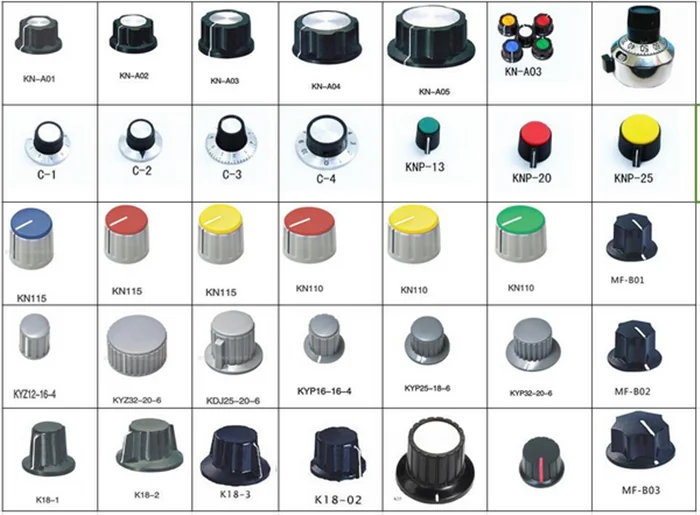

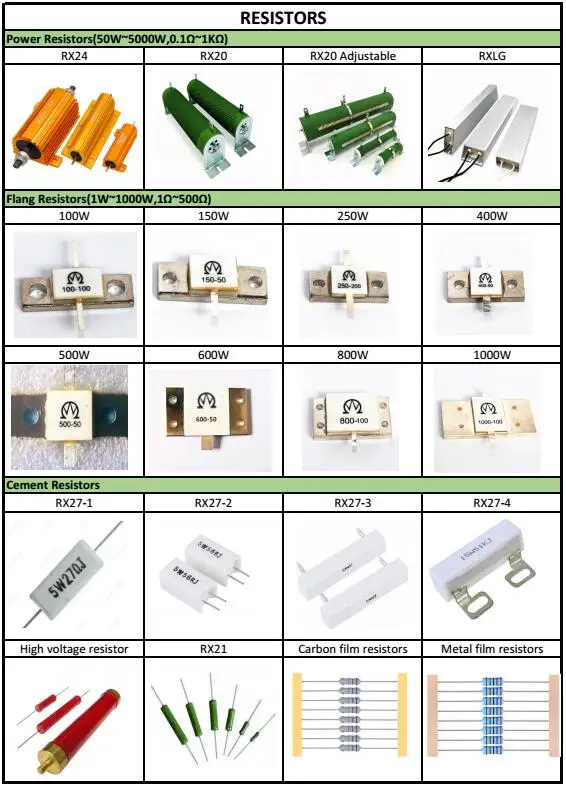

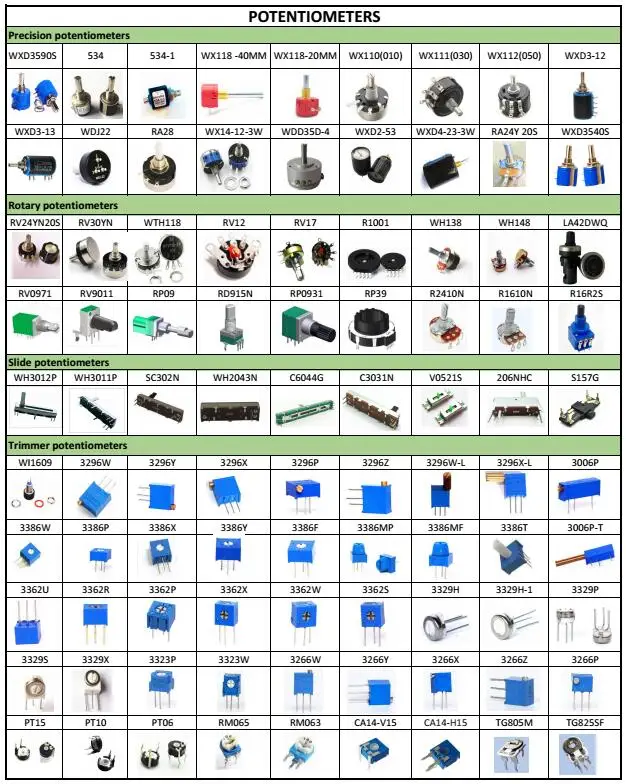

Othe components:

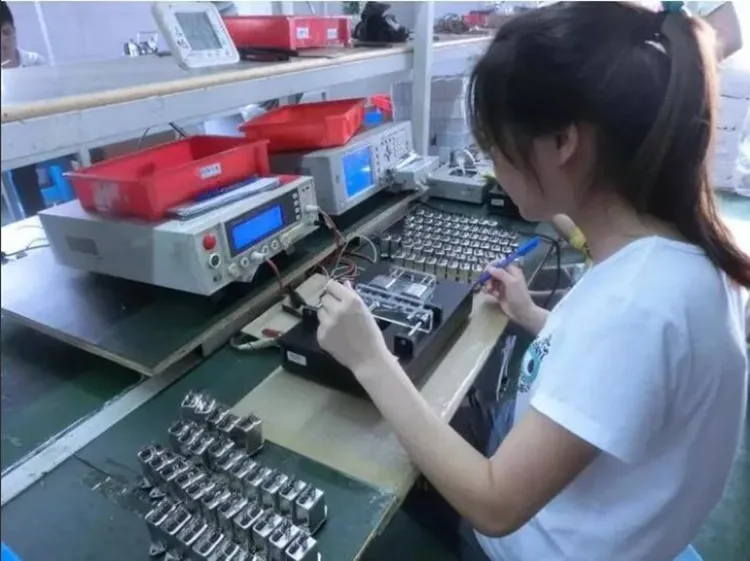

Factory:
