Product Overview

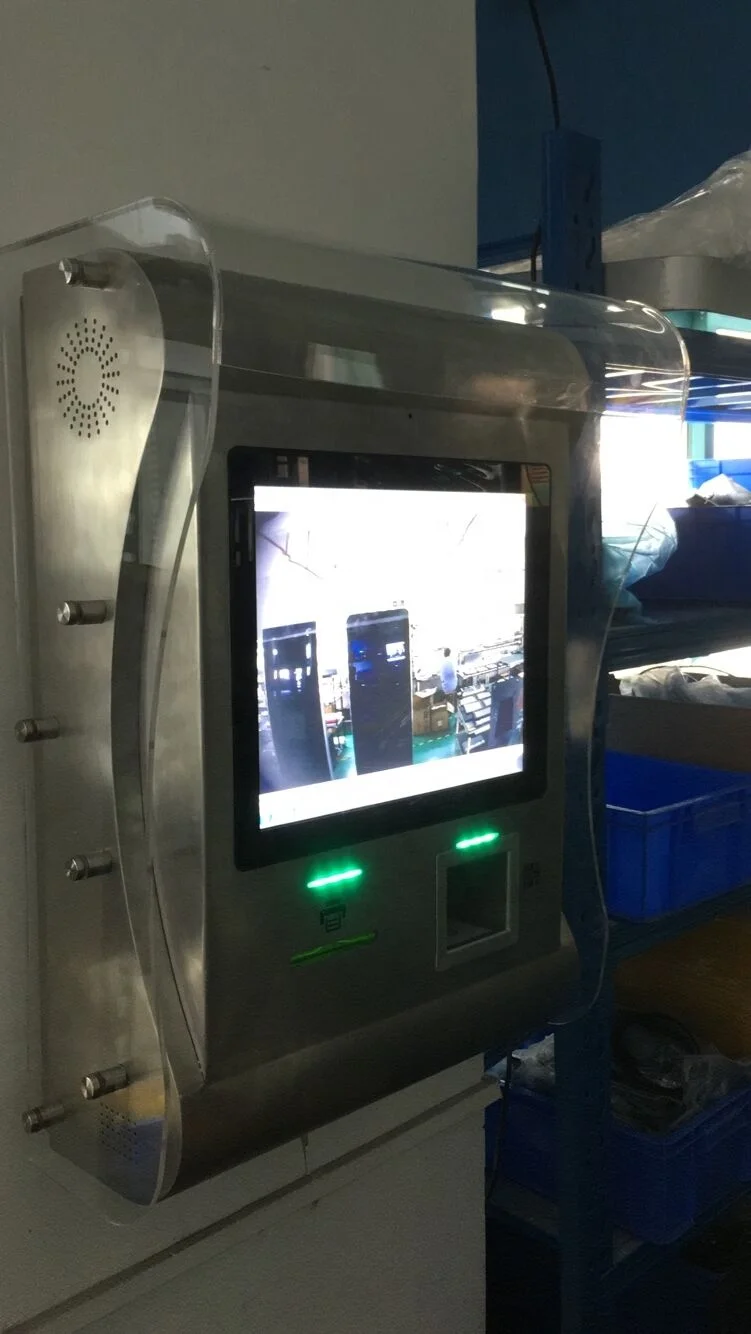

SJ11 wall mounted touchscreen stainless steel payment kiosk
ZKTEK provides all kinds of custom OEM/ODM ATM machine,interactive kiosk,information kiosk, touchscreen kiosk, touchscreen monitor, touchscreen computer, box ipc,digital sginages, pos and metal keyboard products
SJ11 wall mounted touchscreen stainless steel payment kiosk
FEATURES AT A GLANCE
* Linux Ready
Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.
* Internet
Web based internet access is used for the applications developped based on web browse and websites.
* touchscreen
Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and
location of a touch within the display area.
Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.
* Internet
Web based internet access is used for the applications developped based on web browse and websites.
* touchscreen
Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and
location of a touch within the display area.
* Projective capacitive touch
Projective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology
to install the capacitive sensors on the rear side.
Projective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology
to install the capacitive sensors on the rear side.
PRODUCT SPECIFICATIONS
SJ11 wall mounted touchscreen stainless steel payment kiosk
Name | Item | Parameter |
Host PC | CPU | Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB |
Video core | Integrated Intel HD graphics graphic card support 1920*1080 full HD | |
RAM | 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB) | |
Storage | 2* Serial ATA II, support 3Gb/s | |
- | 500G HDD(legacy 2.5″ hard driver) | |
Touchscreen Monitor | Touch technology | 17" projective capacitive touch |
Multi-touch points | 1 | |
LCD display Resolution | 1280x1024(LCD) | |
Touch screen Resolution | 4096x4096 | |
Durability | Scratch-free,More than 35,000,000 touches in one location without failure | |
Thickness | 6mm; Resolution: 4096x 096; Light Transmission:90%～92% | |
Protection | Vandalism proof, antirust, anti-acid, anti-dust | |
Surface Hardness | Mohs | |
Touch force | <100g; Response Time:16ms; Agency Approval:CE, FCC | |
Impact protection | Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters | |
Interface: | USB | |
Power supply | (over USB) | |
MTBF | >50000 hrs | |
Barcode Scanner | Decoding capability | Read almost all formats of 1D and 2D barcode |
Scan width(degree) | +/-65 degree; Scan angle: 360 degree Movement tolarence | |
Minimium size | 5 mil (PDF 417, UPCA, Code 39) | |
Interface | RS232/USB | |
Power supply | 5V or via USB | |
Brand | TECLY | |
Movement tolarence | 4 inch/second | |
Enclosure | Type of enclosure | Durable all stainless steel enlcosure |
Type of paint | Powder coated front, powder coated steel back covers | |
Style | Ergonomically sleek and smart design | |
- | Easy to install and operate with internal drawers | |
Ventilation | Internal fans for ventilation | |
Protection | Security mechanic locks | |
Environment | Moistureproof,Antirust,Anti-acid,Static free | |
Wheels | (optional) | |
Audio | AUDIO | Stereo amplified speakers: dual channel 5W8Ohm |
PRODUCT CONFIGURATION
ZKTEK Touchscreen monitor
Box320 industrial computer
B371 industrial computer
SIMILAR PRODUCTS

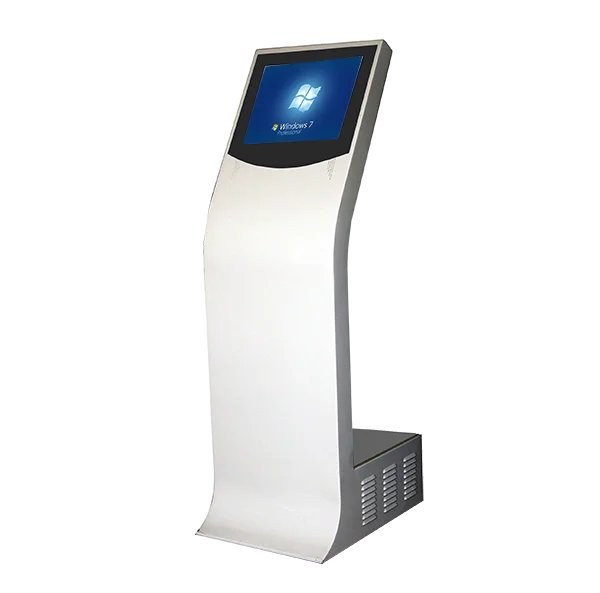

Model:Q5
Internet kiosk

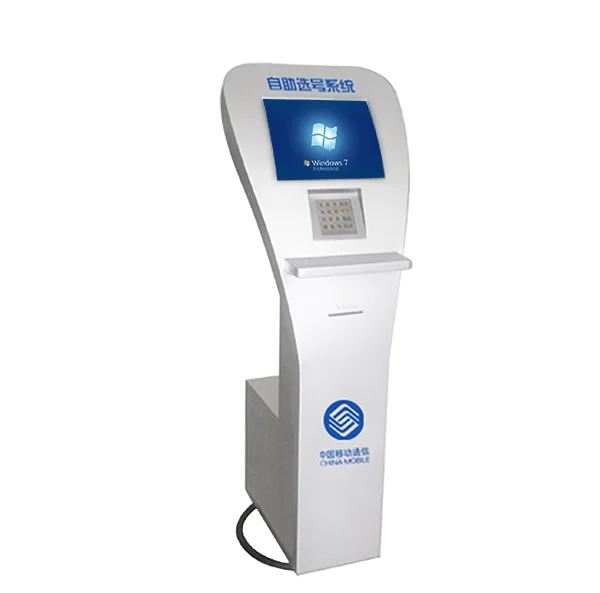

Model: F3
Information kiosk

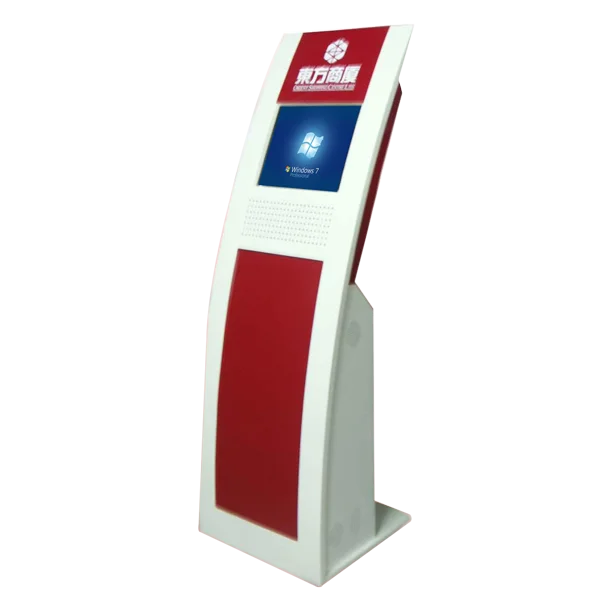

Model: Q7
Lobby kiosk
Certifications
SJ11 wall mounted touchscreen stainless steel payment kiosk
Why Choose Us
Product packaging
SJ11 wall mounted touchscreen stainless steel payment kiosk
ZKTEK KIOSK
Shenzhen Zhongkong Computers Co., LTD
Contact: Meiling He
Email: h@zktek.com/ h@zktek.cn/ sales@zktek.com
Tel: +86 755 26983900ext236 / Fax: +86 755 26983901 /
Email: h@zktek.com/ h@zktek.cn/ sales@zktek.com
Tel: +86 755 26983900ext236 / Fax: +86 755 26983901 /
Mobile/Wechat : 86 15527828302 Skype:zktekkiosk
website: www.zktek.com/ www. kiosk-machine.com
website: www.zktek.com/ www. kiosk-machine.com
