The multifunctional truck mounted dust suppression device adopts new technology to control air pollution. It is a new and more advanced technology industry with lower energy consumption and remarkable purification effect. The working principle is by the particles generated by the spraying process to suppress the dust in the air, then generate dust-control effect. Compared the water flow with common suppression device, the adsorption capacity has tripled, and the water consumption has reduced by 70%.
Technical parameter
Water tank volume | 8m³ 12m³ 16m³ 20m³ |
Dimension(m) | 9.9*2.5*3.7 |
Totally weight(kg) | 25000 |
KPH | 90km/h |
Front gauge(mm) | 2040 |
Rear track(mm) | 1860 |
Fuel category | diesel oil |
Wheel base(mm) | 4350+1350 |
Rotation angle | ±360° |
Spraying substance | Water mist, disinfectant liquid |
Spraying distance | 30m 40m 60m 80m 100m |
Operating mode | Manual/automatic |
Mist particle size | 40-200μm |

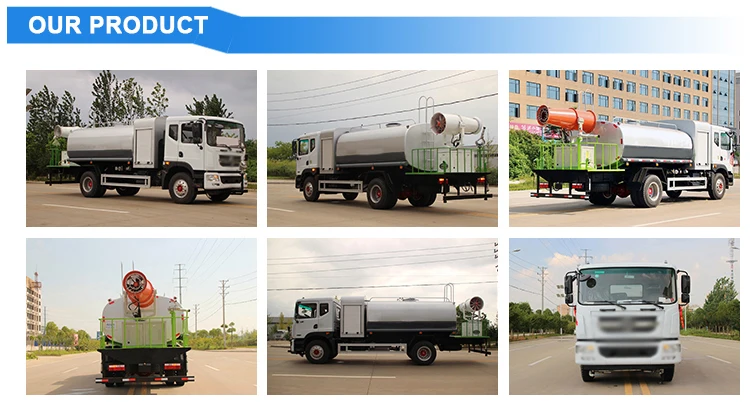

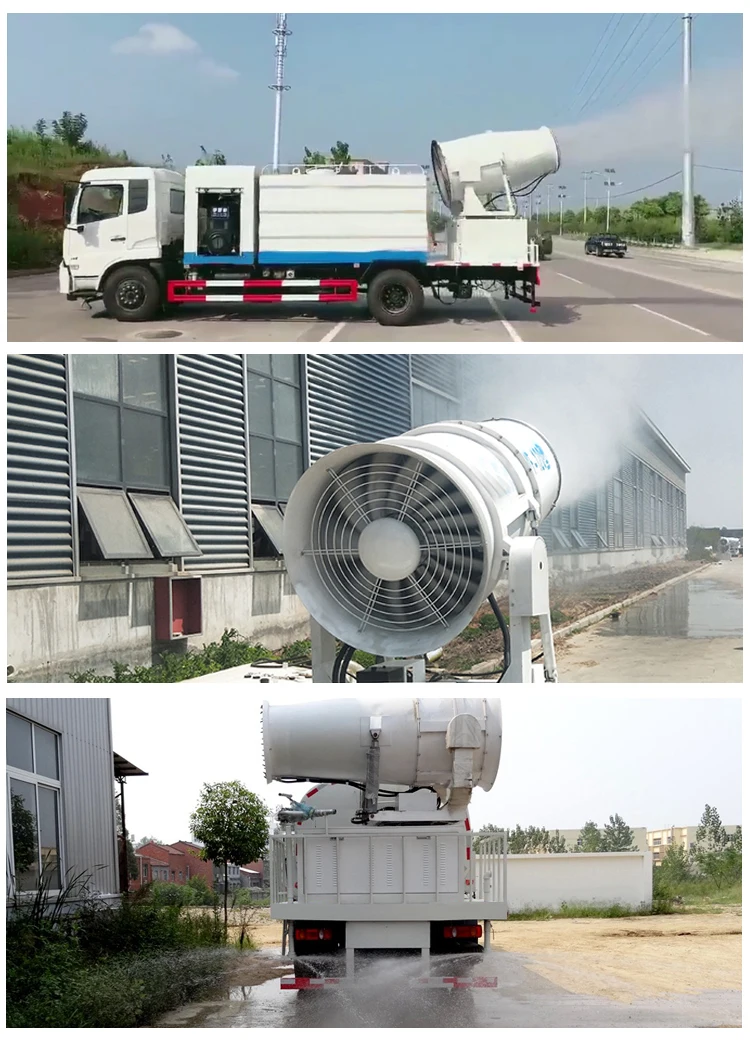

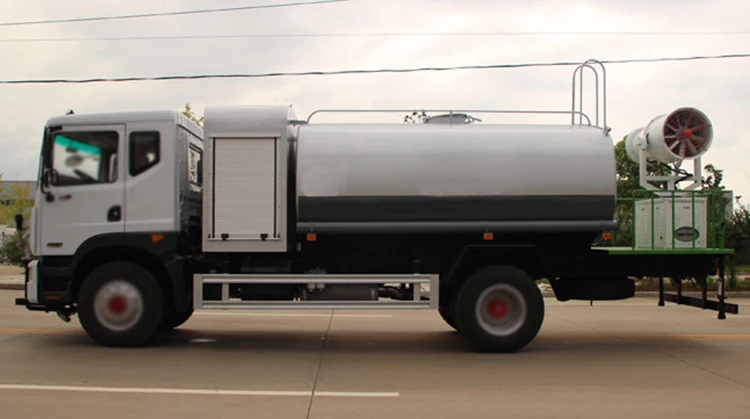

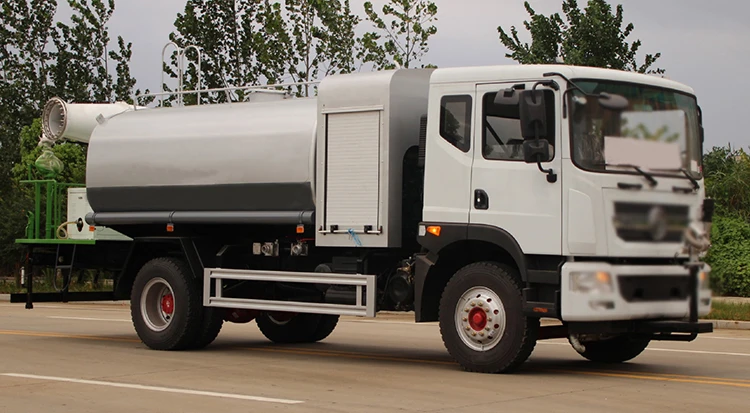

Water truck detail showing
Product Features:
1.Featured with long spraying rang ,large coverage area, by the tiny mist particle size to depress the dust soon.
2.Wide applications and high working efficiency, and kept strong penetration and adhesion force.
3.Both manual and remote control types available, easily to be operated.
4.Micro motor controlled the horizontal rotation, hydraulic motor controlled the elevation angle and switch up the angles very fast.
