1.8va мини электрический 9v 200ma трансформатор 12V 500ma 110v 220v
- Категории: Transformers >>>
- Поставщик: Hangzhou,Yozea,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

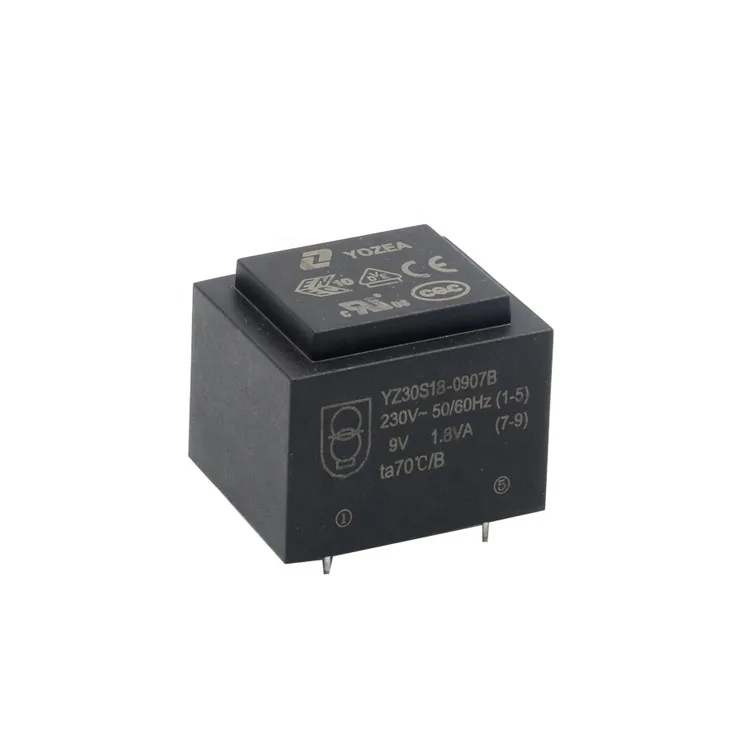

1.8va Mini Electric 9v 200ma Transformer
A Transformer is a static product, with no moving parts, which transforms electrical power from one circuit to another with changes in voltage and current and no change in frequency.
FEATURES AT A GLANCE
9v 200ma Transformer
Core Type: EI 30/15.5
Frequency: 50/60HZ
Power: 1.8va
Input Voltage: 110v, 115v, 220v, 230v, 380v, 400v, etc
Output Voltage: 6v, 7.2v, 9v, 10v, 12v, 15v, 18v, 24v, customized
Weight: 100g
Front View of Transformer
Pure Copper
Transformer Application
Special Features
Product type: Encapsulated transformer
Impregnation and dried process is in our company strictly controlled as the basic point in our products quality, avoiding possible.
problems such as:
Adherence of the resin is absent with the plastic
Air bubbles inside the component
Fissures
Penetration of the resin is absent.
Impregnation and dried process is in our company strictly controlled as the basic point in our products quality, avoiding possible.
problems such as:
Adherence of the resin is absent with the plastic
Air bubbles inside the component
Fissures
Penetration of the resin is absent.
Impregnation process on encapsulated transformers
Preparation of the components in the machine vats of mixture
Degassing of the resin and the flexibilizer and colouring in the vats of mixture during 4horas to a pressure of 1mbar. This process extracts the air that contains the mixture inside the vat, mixing sayings components during the time specified previously, assuring the perfect condition for the later process.
Degassing of the hardener for 4 hours to a pressure of 1 mbar, the same process as procedure previously described.
Preparation of the components in the machine vats of mixture
Degassing of the resin and the flexibilizer and colouring in the vats of mixture during 4horas to a pressure of 1mbar. This process extracts the air that contains the mixture inside the vat, mixing sayings components during the time specified previously, assuring the perfect condition for the later process.
Degassing of the hardener for 4 hours to a pressure of 1 mbar, the same process as procedure previously described.
Process of drying
This process will dry the resin up to turning it in occurred. Once the process is completed the component will be totally protected and will assures its reliability.
This process will dry the resin up to turning it in occurred. Once the process is completed the component will be totally protected and will assures its reliability.

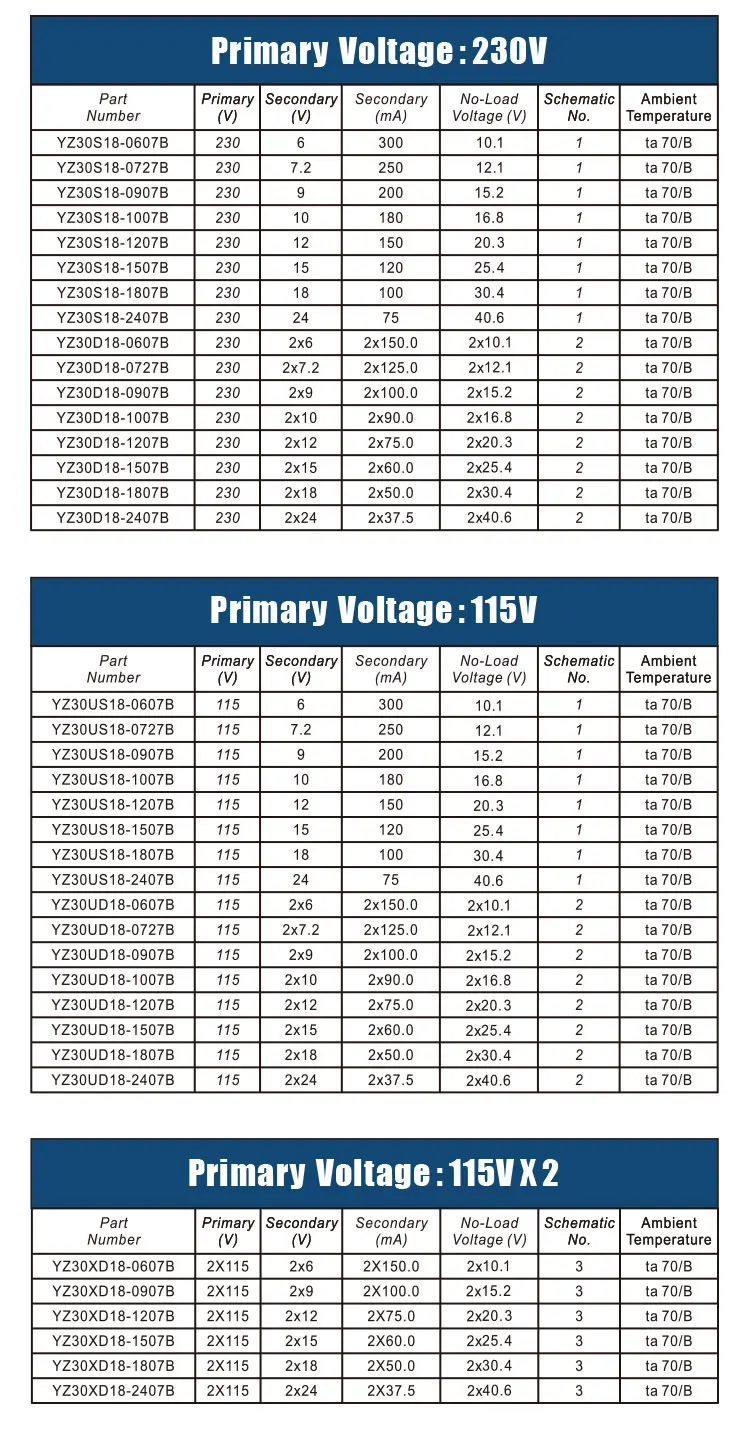

PRODUCT SPECIFICATIONS
SIMILAR PRODUCTS
FAQ
Q1: What is your MOQ?
A: 200 pieces for MOQ.
Q2: How many years of your warranty of your transformer?
A: 3 years of warranty for our transformer.
Q3: Are you factory or trading company?
A: we are 17 years professional manufacturer.
Q4: Can we get samples of transformer for testing?
A: Yes, Samples are available for free.
Q5: Can you print our brand?
A: YES, Just send us your design and we will make sample for you for confirm.
