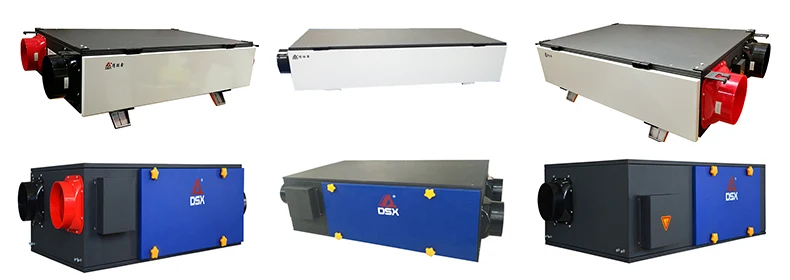

Высокое качество Рекуперация энергии рекуперация тепла система вентиляции HVAC свежий

Model

DSX-XF210H200G- DB01

DSX-XF210H300G- DB01

DSX-XF230H400G- DB01

DSX-XF230H850G-

DA01

Air Volume(m3/h)

200

300

400

850

Input Power(W)

40

80

140

300

Noise(dB)

30-50

30-52

30-53

30-55

Overall Dimension(mm)

900*550*210

900*550*210

900*550*230

1000*550*230

Filtering Mode

Physical Filtration

Control Mode

Intelligent Control

Main Body Material

Metal

Power Supply

AC220/110V,Single Phase,50/60Hz (Optional)

Application Area(m2)

70-100

100-140

140-180

280-380

Weight(kg)

25

25

28

30
