Product Description
Air Operated Oil Pump Kit-OA940D
Details Images

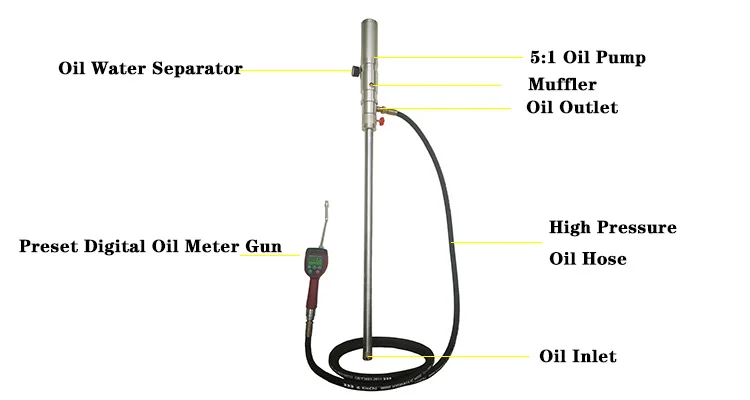

The pneumatic drum pump kit
All the parts in the kit are with high quality, service long time.

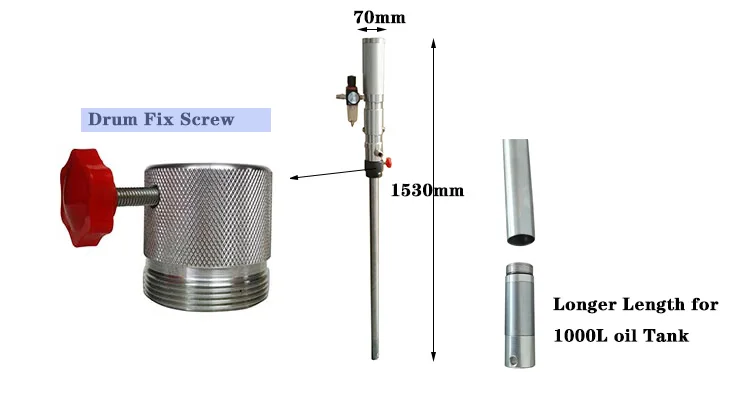

Metal Drum Fix Screw
The drum fix screw will make sure the pump firmly when pumping oil, no slipping.
5:1 High pressure oil pump
The oil pump can pump different kinds of lubricating oil, from thin oil to thick oil. Work at high efficiency.

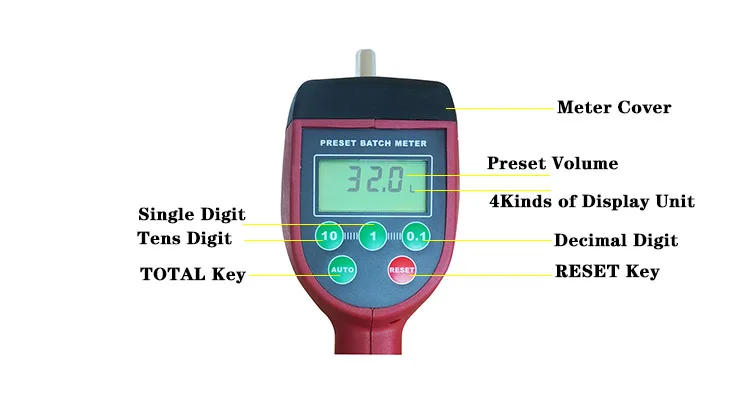

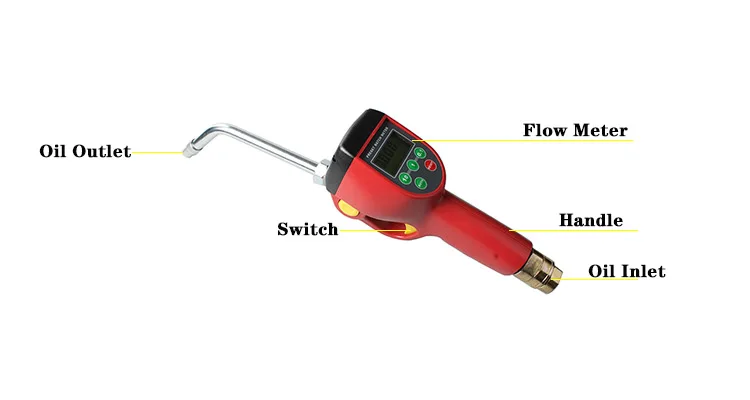

Convenient tool-Preset Digital Oil Meter Gun
The oil gun is an automatic system that can save labor cost and improve work efficiency very much.
Preset Oil Meter Gun(#3300) | ||||||||
Inlet | 1/2'' NPT -1/2''F | |||||||
Outlet | 1/2'' NPT - 1/2''F | |||||||
Min. Delivery | L/1'-0.1 L | |||||||
Max. Delivery | L/1'-15 L | |||||||
Min. Pressure | 0.5 BAR | |||||||
Max. Pressure | 70 BAR | |||||||
Oil Temperature | Max 60℃ | |||||||
Oil Viscosity | MAX SAE 240 | |||||||
Precise Unit | 0.01L | |||||||
Net Weight | 4.2 LB | |||||||
Preset Range | 0.1-99.9L | |||||||
Features
1.Mobile 5:1 oil pump and preset digital oil meter gun (Model #3300),easy to use & maintain
2. High flow rate to 18 L/min
3. Max air inlet pressure 6-8 BAR
4.Air consumption (per minute) 8 BAR
5.Best suited for a multiple fluid at a short to medium distance, typical fluids handled include: Lubricating oil such as Engine Oil, Gear Oil, Hydraulic Oil and Refrigerant
6.Pump can be barrel, cart or wall mounted.
7.Includes a set of Oil/Water Separator
8.1/2 in. x 4 m connection hose
2. High flow rate to 18 L/min
3. Max air inlet pressure 6-8 BAR
4.Air consumption (per minute) 8 BAR
5.Best suited for a multiple fluid at a short to medium distance, typical fluids handled include: Lubricating oil such as Engine Oil, Gear Oil, Hydraulic Oil and Refrigerant
6.Pump can be barrel, cart or wall mounted.
7.Includes a set of Oil/Water Separator
8.1/2 in. x 4 m connection hose
What's Included
(1) Oil pump kit
(1) Preset Digital oil meter gun
(1) 1/2 in. x 4 m connection hose
(1) Preset Digital oil meter gun
(1) 1/2 in. x 4 m connection hose
Company Profile
Shenzhen Folawing Technology Co.,Ltd focus on the automotive aftermarket,based on more than 10 years of rich R&D experience, we can provide various customized dispensers and non-standard equipment, which are used for lubrication in Oil change Maintenance Center, Auto Repair shops, Automobile, Auto door locks/brakes/wipers/seat rails, Ships, Agricultural Vehicles, Subways etc. It is also widely used in Workshop Production Line, Metallurgy, Paper-making, Electronics, Electric Power, Port, Construction Machinery. In addition, it can be used in Bearing when assemble the seal cover, the Reduction Gear in Micro Motor Industry Assembly line and Gear Pair Assemble in Electric Tool Industry, etc.
Our Advantages
1. A strong technique team, with more than 10-year experience of making lubricating equipment.
2. ODM products can be supplied, especially the non-standard high precision lubricating dispensers.
3. Products are with stable quality and low maintenance cost.
4.Competitive price and quicky delivery.
5.We provide best service for all of our guests!
FAQ
Q1: What's your delivery time?
A: Usually we have oil pumps in stock.For other normal models, the delivery time is 15-20days.
Q2: What's the MOQ?
A: Based on the product models.Usually for 1model, the MOQ is 30pcs.
Q3: What kind of ODM equipment can you supply?
A: All kinds of lubricating equipment, such as Quantify Oil Dispenser, Grease Dispenser and Heavy Duty Hose Reel can be designed and produced based on customer's requirements.
