LUYI 3 axle 60ton 80 ton low boy low bed trailer with hydraulic extendable ladder
Products Description
-LUYI Low Bed Truck Trailer have advanced technology and reliable performance.
-All parts and components use the products of well-known domestic and foreign manufacturers. They are purchased, inspected and used in strict accordance with the requirements of the quality system documents to ensure that the vehicle performance is good.
-Suitable for transitional transportation of roads, railways, waterways and ports, bulk cargo transportation of mineral resources and transportation of special materials.
-LUYI Low Bed Truck Trailer adopts advanced manufacturing technology, automatic submerged arc welding of vertical beams, and sandblasting of the overall frame to effectively eliminate welding stress, using advanced fixtures and technology throughout the production process to ensure the formation and assembly accuracy of the work Pieces.
Dimensions | 13000*3000*(700mm-1200mm) (According to customer demand) |
Axle specs. | FUWA ,YAHUA or BPW Brand |
Suspension | Mechanical or air supension (American or German) |
Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20 |
King Pin | JOST 2" or 3.5" traction pin |
Support legs | JOST, FUWA or YAHUA brand 28T |
Wheelbase | 7180/6680/6260+1310+1310mm,Or other |
Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
Ladder | Manual or hydraulic automatic |
Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
Tire | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
Spare Tire Carriers | 2 pieces |
The material of Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. |
Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) |
Platform plate | 5/6/7 mm Diamond Plate |
Brake | Kemi Brand of China |
Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks |
ABS system | optional |
Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
Tool box | 1 sets(waterproof type) |
Spare tire carrier | 1 sets(Patent type) |
Painting | Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
Packing | Polish with wax before shipping |

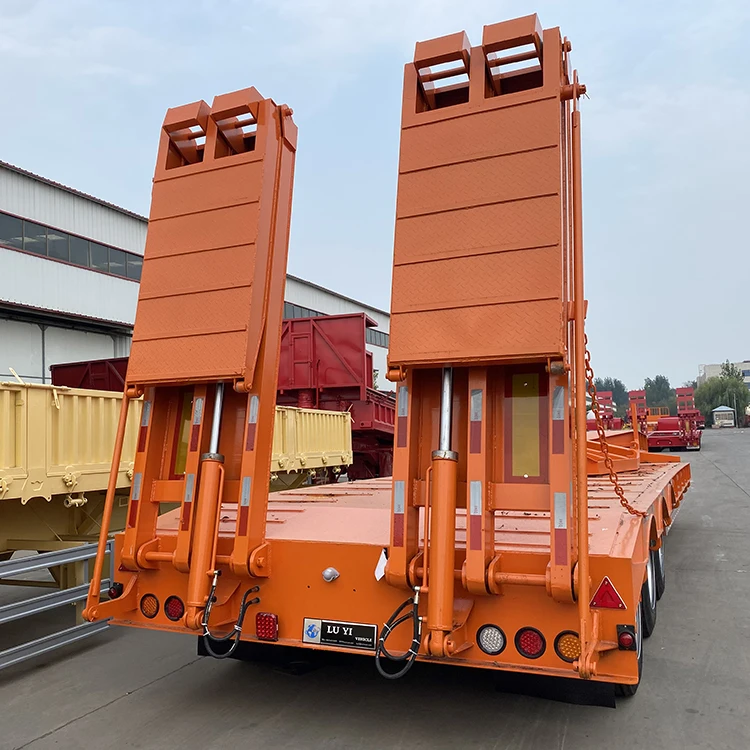

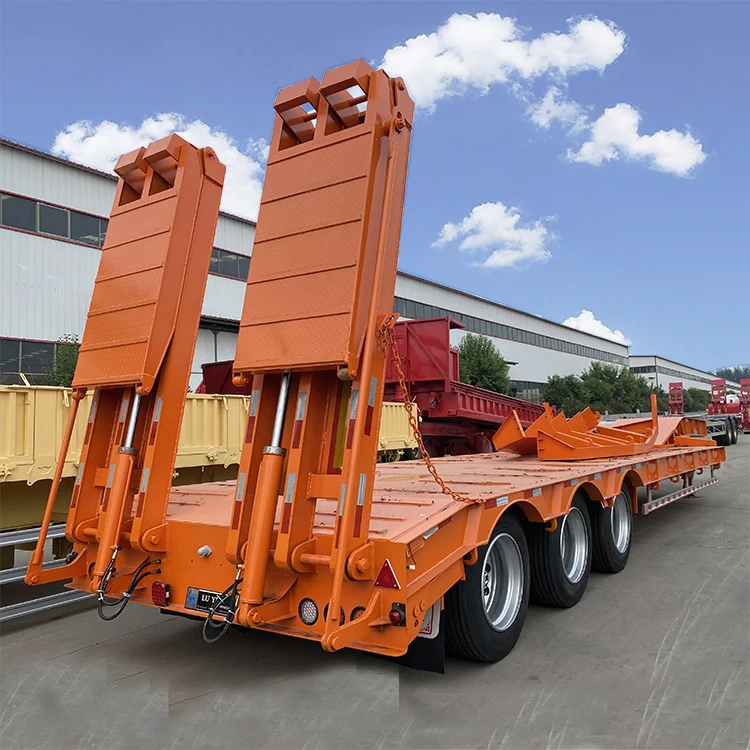

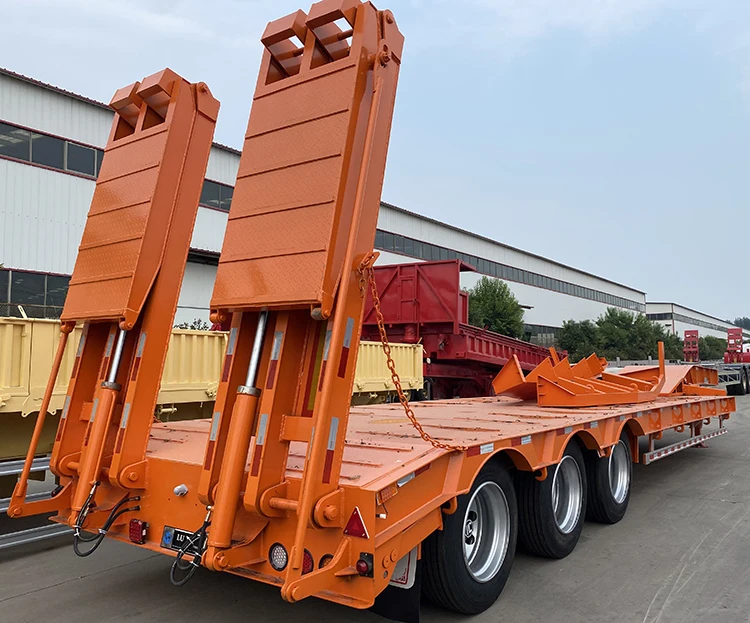

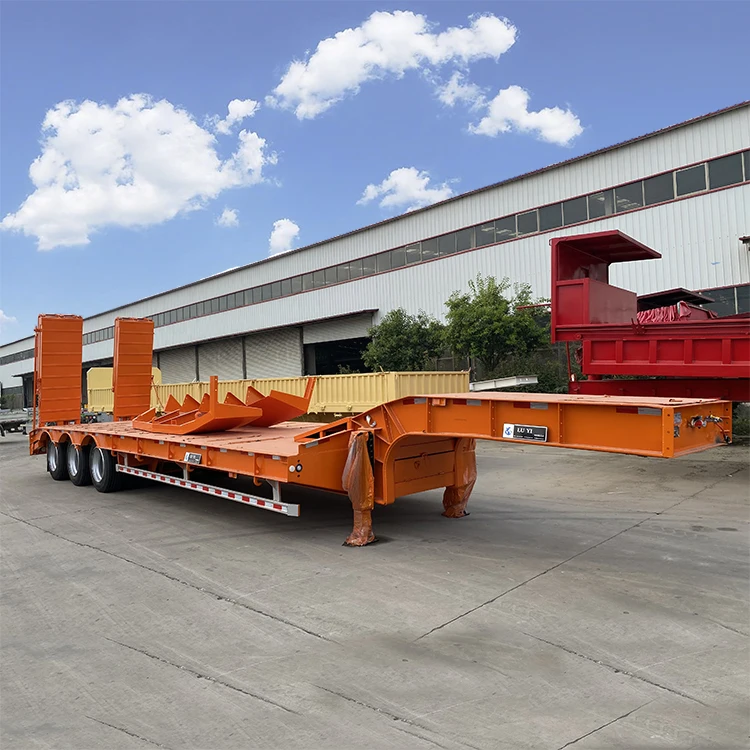

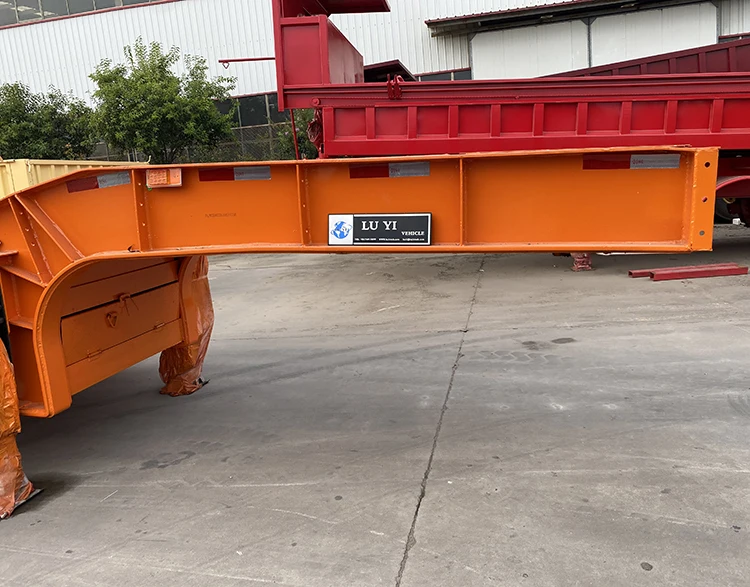

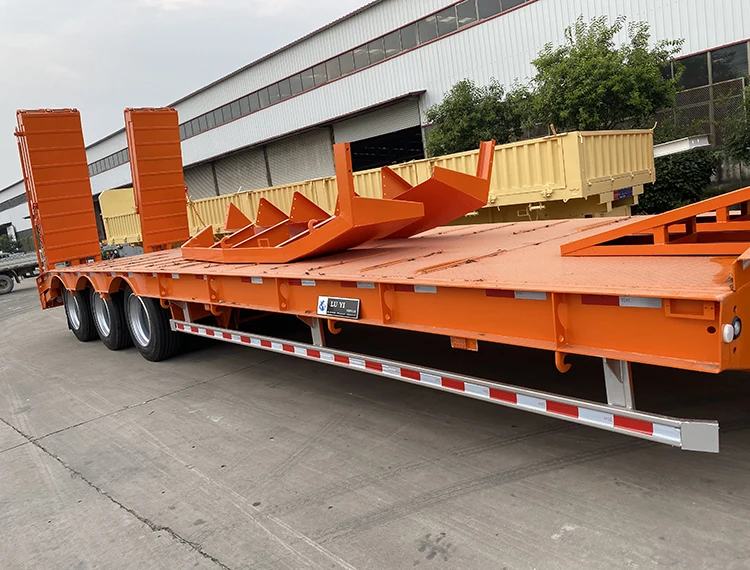

Product Display
Low center of gravity
More Stability
More Safty
Less transportation costs

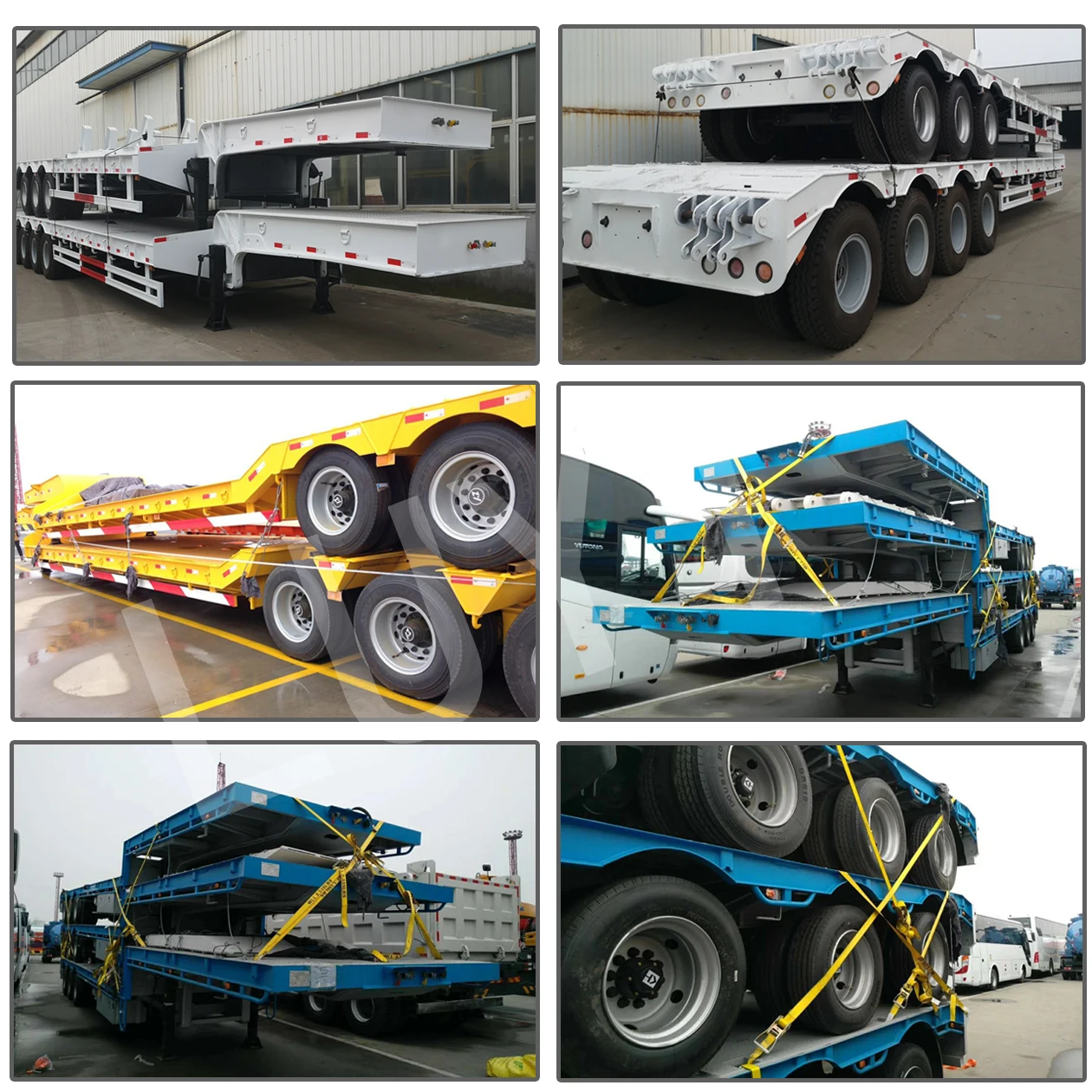

Product packaging
Recommend Products

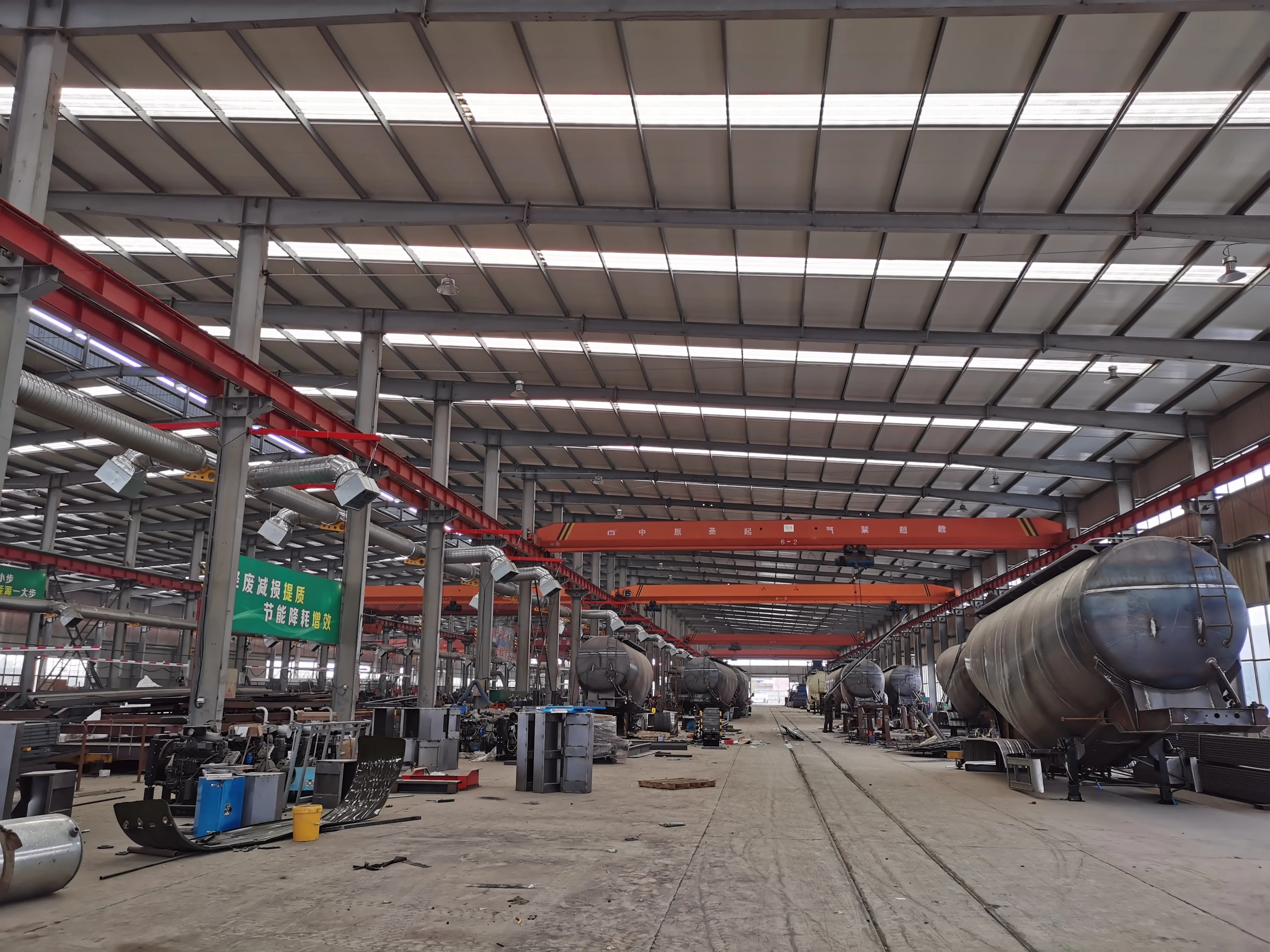

Company Profile
Shandong Luyi Vehicle Co.,Ltd , is a professional trailer manufacturer with an export qualification of China’s ministry of
commerce. Luyi Vehicle main products are Flatbed,low bed,Tipper,Skeleton,Van,Sidewall, Modular trailer, Fuel /bulk cement tanker,Special customized semi trailers ,Truck , spare parts, etc.
commerce. Luyi Vehicle main products are Flatbed,low bed,Tipper,Skeleton,Van,Sidewall, Modular trailer, Fuel /bulk cement tanker,Special customized semi trailers ,Truck , spare parts, etc.
Luyi Vehicle has passed the certification of ISO, CCC , CE , BV, SASAO , DOT , ADR etc. with excellent product quality and reputations，and our products have widely exported to Africa , Middle Asia ,Middle East Asia ,South America and Australia etc.
Customer Photos
Luyi Vehicle has served more than 80 countries. Including Germany, Australia, Africa, southeast Asia, the Middle East, South Africa, South America, etc., and has established 78 service points in 50 major market countries
