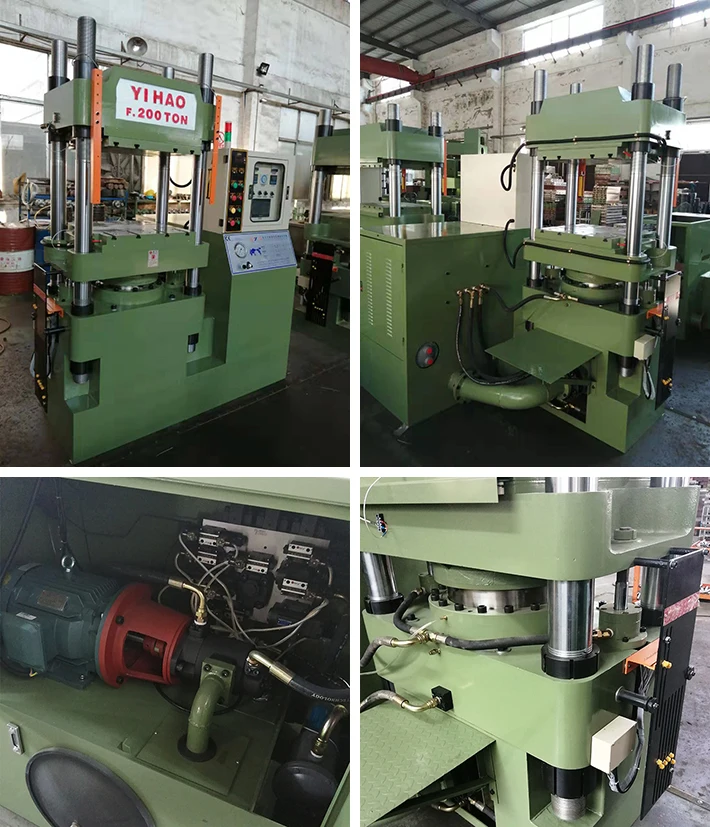

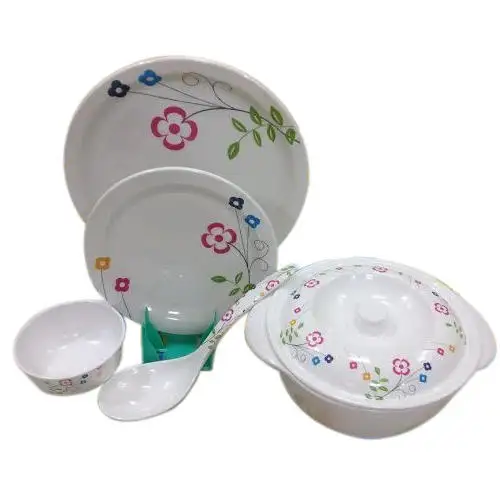

YIHAO 200 ton melamine tableware molding machine can make melamine/urea/bamboo fiber tableware, such as plate, bowl, tray, dish, spoon, cup, ashtray, and etc.

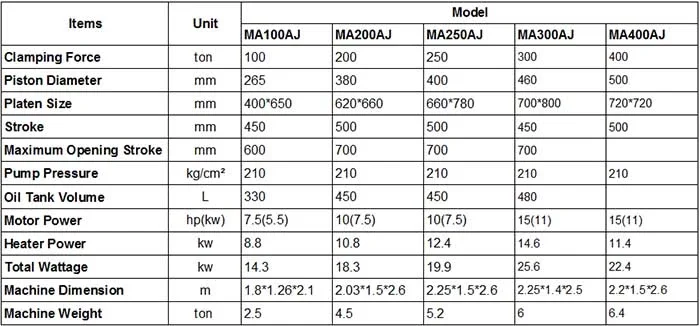

clamping force | 200 ton |
main cylinder diameter | 350mm |
plate size | 600*650mm |
opening stroke | 500mm |
maximum opening distance | 750mm |
pump pressure | 210kg/cm2 |
oil tank volume | 405L |
motor power | 10hp(7.5kw) |
heating power | 12kw |
total wattage | 19.5kw |
dimension | 1.85*1.5*2.4m |
weight | 4 ton |
Machine Features:
1. PLC control system, simple operation, low failure rate, easy maintenance.
2. High and low pressure loop system, the machine moves smoothly without noise, high and low speed free adjustment.
3. Adopting safety grating to ensure safety operation.
4. Suitable raw material: melamine, bamboo fiber, urea, bakelite, fiber and other thermosetting material.

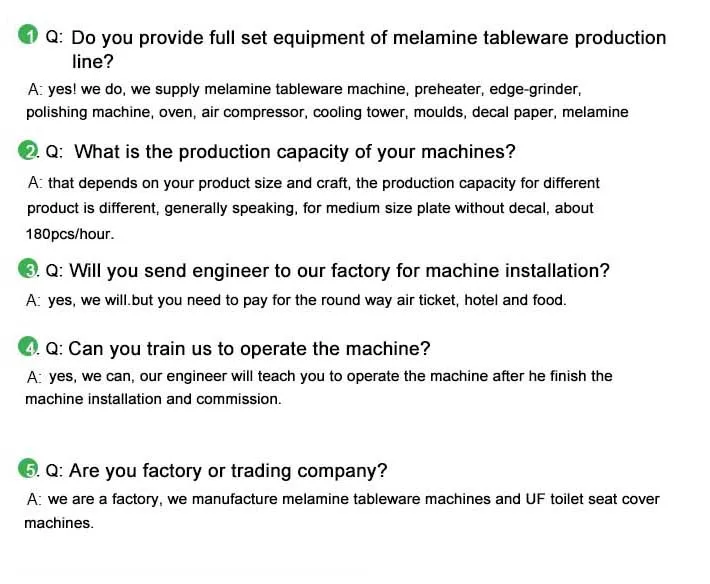

1. for small problems, we offer online video technical support.
2. for big problems, we will send engineer to your factory to repair machines for you
3.for new machine installation and commissioning, we will send engineer to your factory.

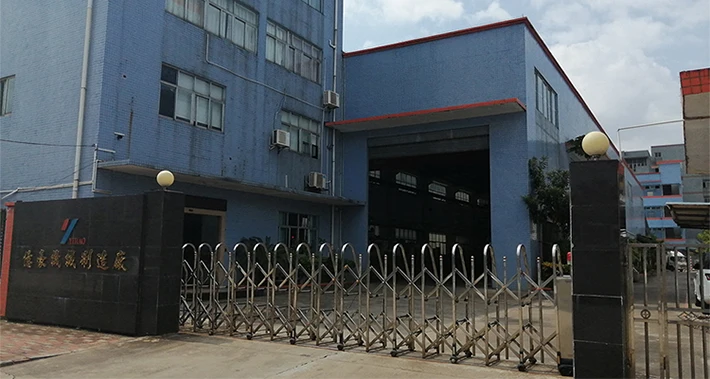

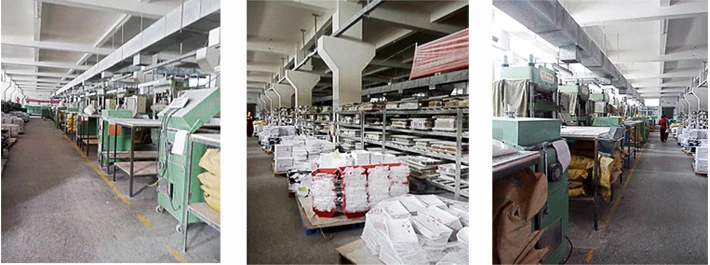

In June 2004, due to business expansion, we set up factory in Dongguan city Hengli town. Dongguan Hengli Yihao Mechanical Manufacture Factory is engaged in professional R & D and manufacturing high precision hydraulic presss rubber moulding machine, toilet seat cover moulding machine, melamine tableware molding machine, melamine tableware molding machine, double-color melamine moulding machine, cup mode melamine tableware molding machine, double-layer toilet seat cover moulding machine, mahjong moulding machine and so on.After several years of development, the factory has professional production line and technical personnel to ensure good quality machines.The spirit of Yihao Mechanical Manufacture Factory is quality first, service first, customers first. The purpose is customer demand is our pursuit, the interests of customers is our interests.We adhering to the modern enterprise scientific management methods, pioneering and innovative, forge ahead, has developed into a machinery manufacturing industry star enterprise. The customer on my Yihao machinery manufacturing plant products praise, achieve economic and social benefits. Yihao mechanical Manufacture Factory will be combined with the mechanical structure of the oil control system, circuit control system, production and service of professional R & D and manufacturing technology to manufacture in line with the needs of the hydraulic machinery and equipment. We are willing to work with new and old customers to create a better future.
