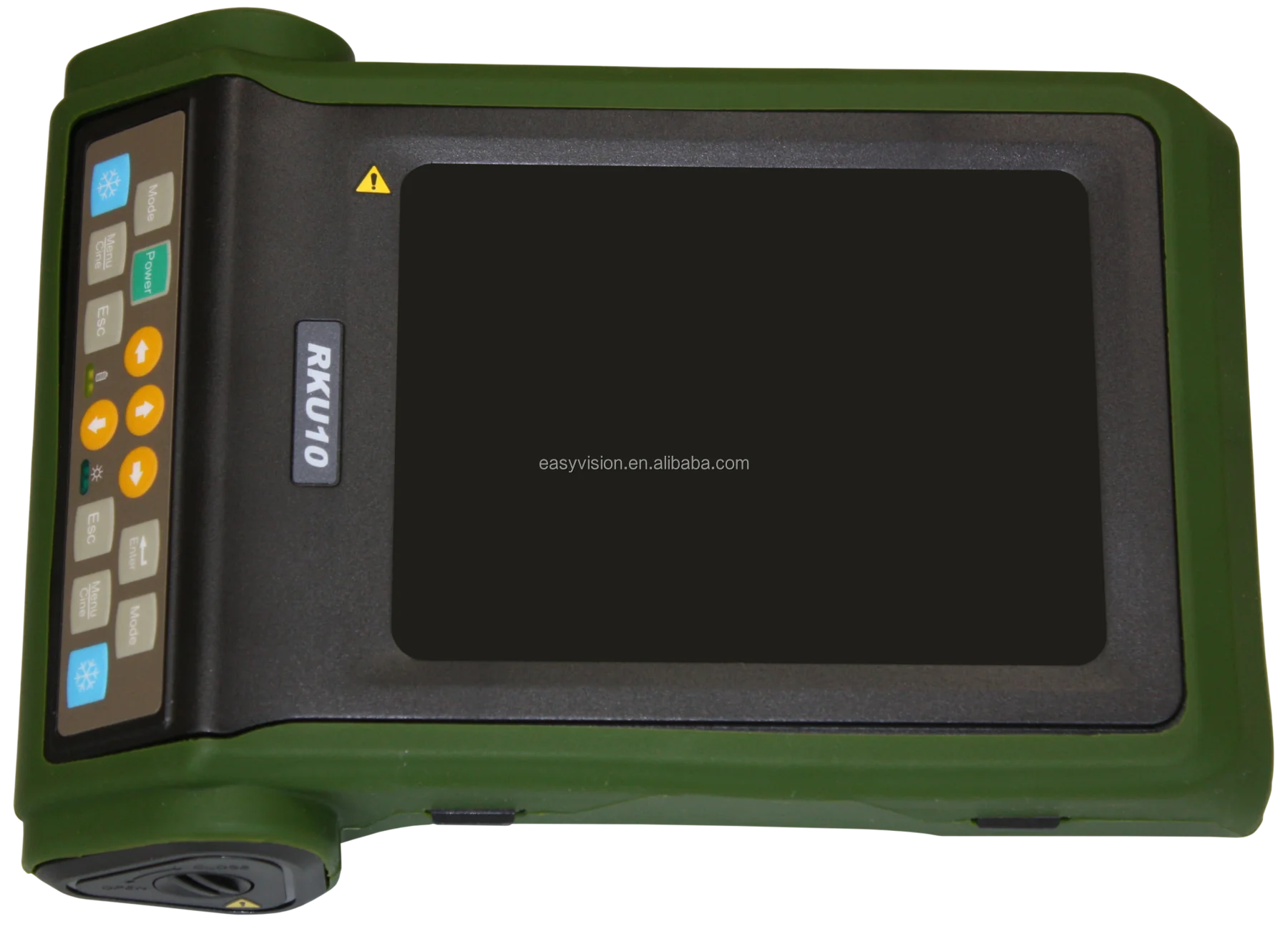

RKU10 is with light weight, long-time battery work, unique ring design, multiple use method, very convenient for long-time using but eliminating operating fatigue, different probes available for different animals.
Feature
Net weight：1.1kg. Smart and light.
High-capacity lithium Battery ,more than 6 hours work.
Standard configuration 1 pc of sunshine cover, suitable for use in outdoor strong sunshine.
Available for left/right hand alternative use, eliminating operate fatigue.
Multiple use method: hand-held, chest hanging, back hanging , waist hanging, etc.
Optional professional ultrasound goggle, convenient for outdoor use, meet different need.
Sophisticated craft, have soft rubber coat, splash-proof, dust-proof.
Specification
Monitor
adopt 5.7" high resolution LED display, with High brightness, high contrast, wide viewing angle, suitable for outdoor use
Display mode
B,2B,4B ,B/M,M
Gain
0~127dB
Contrast
27~90dB
Magnification
0.8,1.0,1.2,1.5,1.6,2.0,2.4,3.0
Storage
100 frames permanent storage
Cine loop
256 frames
Normal measurement
Distance, circumference, area (trochoid or ellipse), volume, etc.
Cardio measurement
Depth, slope, heart rate, cycle
OB measurement
Cattle, dogs, horses, pig, cats, goats, camels and sheep and pre-gestational age birth
Specifical for Swine
Back-fat and lean automatic calculation function /span
Grid measurement
6 different(none,point grid,line grid, 10mm point ruler, 2mm point ruler, 10mm&2mm point ruler)
Details Images
Available for alternative left/right hand use
Smart and light
5.7 High resolution LED

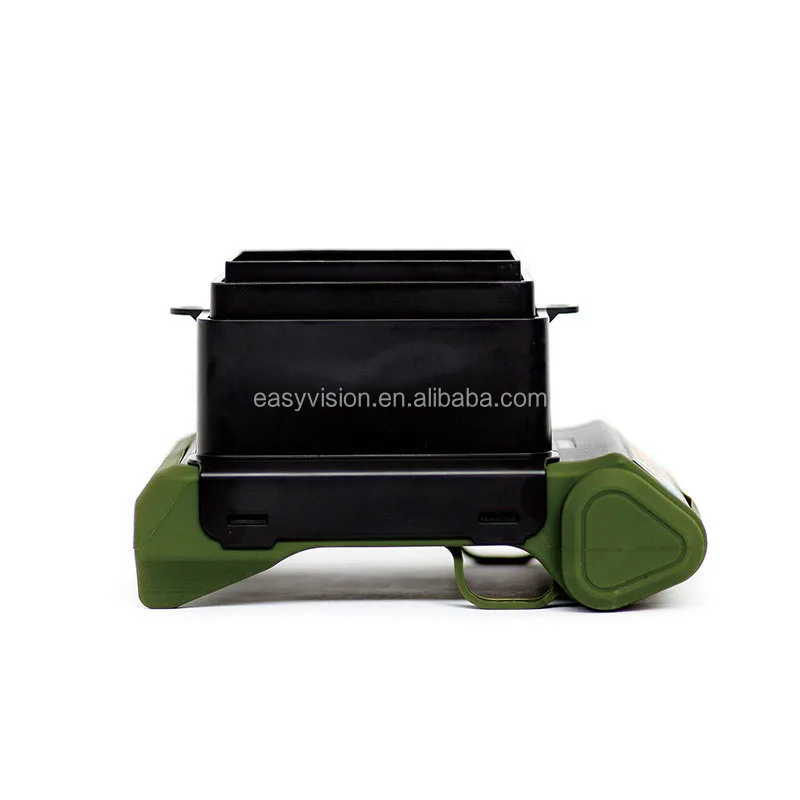

Sunshine cover

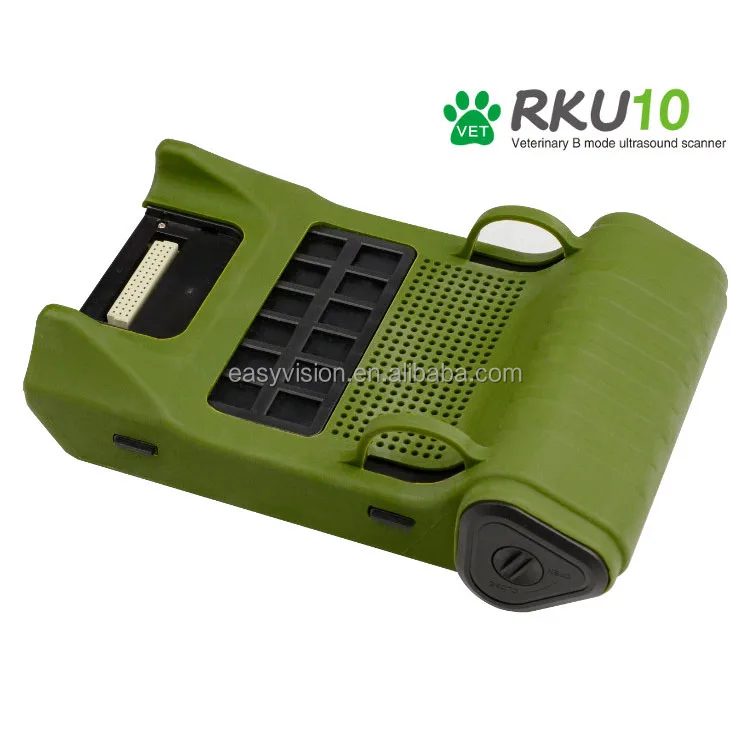

Soft rubber cover
High-capacity Li-battery, Working time ≥ 360mins
Product packaging
Standard Configuration
Main unit
1 pc
6.5MHz linear rectal probe
1 pc
Power adapter
1 pc
Internal lithium battery
1 pc
Soft rubber coat
1 unit
Sunshine cover : (A,B,C three sections adjustable)
1 unit
Black plastic suitcase
1 pc
Base Charger, belt, probe socket spatula
1 pc for each
Optional:
1
4.0Mhz multi-frequency convex rectal Probe
2
6.5MHz multi-frequency micro-convex probe
3
3.5MHz multi-frequency convex probe
4
7.5MHz multi-frequency linear probe7.5MHz multi-frequency linear probe
