Designed widely for diagnosing of pregnancy, fertility and disease on bovine, equine, ovine, canine, feline, goat, swine, llama and other animals.
Features
Notebook, internal li-battery easy to move.
Feature
Menu operation, easy to operate.
Net weight :2.2kg, light
Support 5 customized languages: English, Spanish, Russian, French, Portuguese
10.4" LED. Before is 10.4" LCD. More brightness, engergy saving, wider viewing angle than LCD
USB port for extracting images + print image and report via printer
Measurements: basic (distance,area , etc. ) + OB(EDD and GA for 7 kinds animal) + Cardiac
OB report
Specification
1
10.4" High resolution color LCD display, high brightness, high contrast, wide visual, and clear image
2
Single probe socket, automatically identify the probe, support several optional probes
3
Body mark: 1. General use 2. Bovine 3. Canine 4. Equine 5. Feline 6. Cadioloy, 7. Swine---7kinds, total 27 PCS for body marks with probe position.
4
Display mode: B\2B\4B \B/M\M, total 5 kinds
5
8 kinds of Magnification, maximum display depth is 240mm
6
Gain range: 0~127dB
7
Dynamic range: 27~90dB
8
Gray: 256
9
Intelligent TGC control: Near-field and far-field adjustment
10
Adjustable and intelligent focus
11
Pseudo-color: 8 kinds (incl. B/W)
12
Permanent image storage: 100 frames
13
Cine loop: 256 frames
14
Puncture guiding function(2 guiding lines, angel and position adjustable)
15
General measurement: Distance\Perimeter, area (tracing method, ellipse method), volume, etc
16
Cardiac measurements: Depth, slope, heart rate, time
17
OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama
18
Automatically calculate the Back fat and Lean percentage of swine
19
OB report function
20
USB port support large capacity USB disk (support document management/software upgrades/one-key storage), and color laser printer directly print various image and reports
21
Dual-mode TV output: PAL/NTSC, it could connect to thermal printer and ultrasonic working station
22
Dual power supply. Power: AC110/230 -15%~+10%(self-adaption supply voltage)60/50Hz± 1Hz
23
Battery: High-capacity lithium Battery( 2700mAh), more than 200 minutes work
24
Net weight: 2.2kg
25
Main unit size: 290x245x48mm(length x width x height)

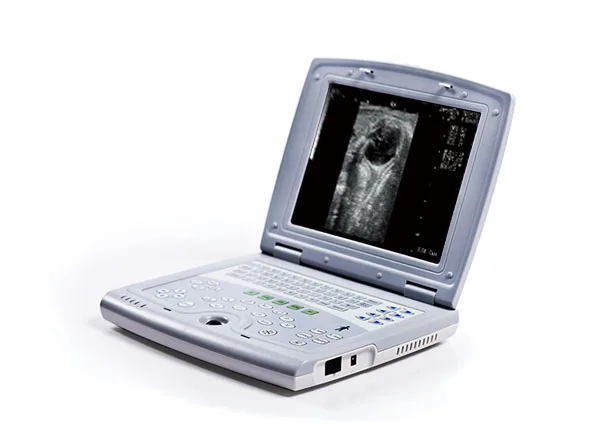

Details Images
Product packaging
Standard Configuration
Main unit
1 pc
6.5MHz linear rectal probe
1 pc
Power adapter
1 pc
Internal lithium battery
1 pc
Metal case
1 pc
Optional:
1
4.0MHz multi-frequency convex rectal Probe
2
6.5MHz multi-frequency micro-convex probe
3
3.5MHz multi-frequency convex probe
4
7.5MHz multi-frequency linear probe7.5MHz multi-frequency linear probe
