Кран манипулятор 25 тонн с метровой стрелой телескопической стрелы тележкой

Цена:98 000,00 $ - 101 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

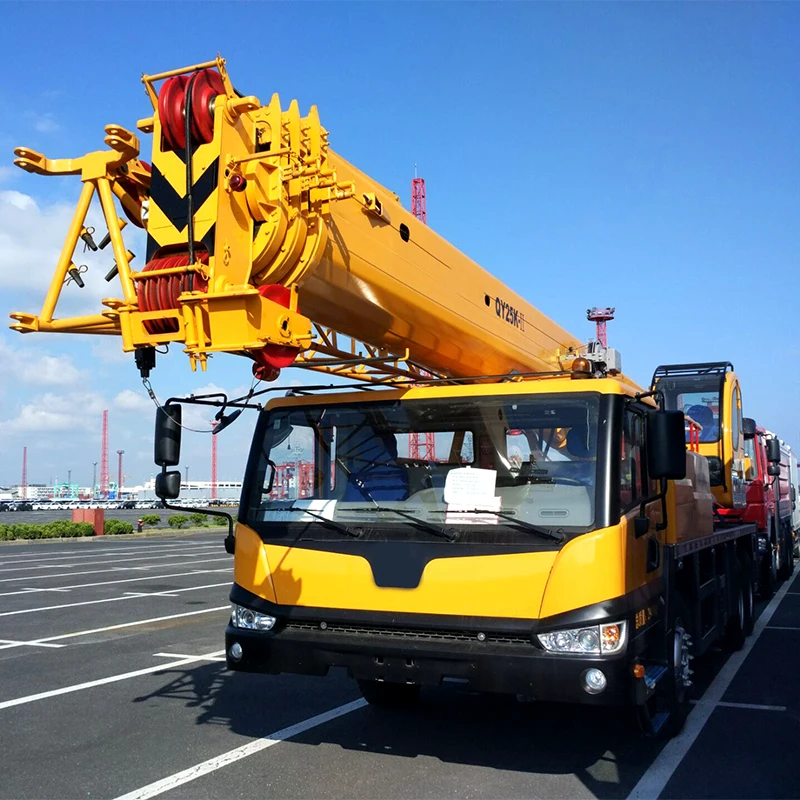

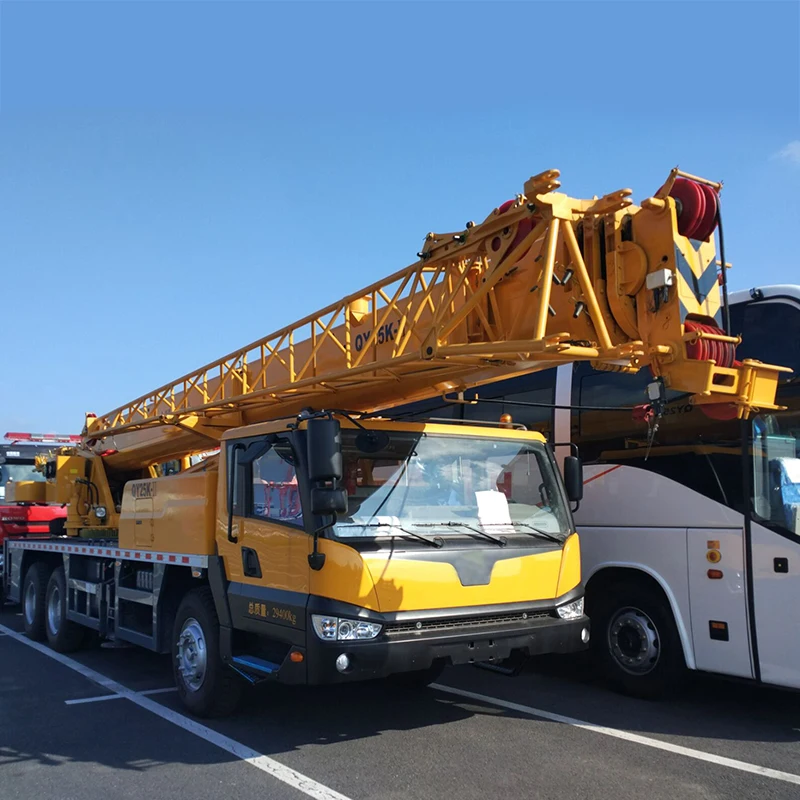

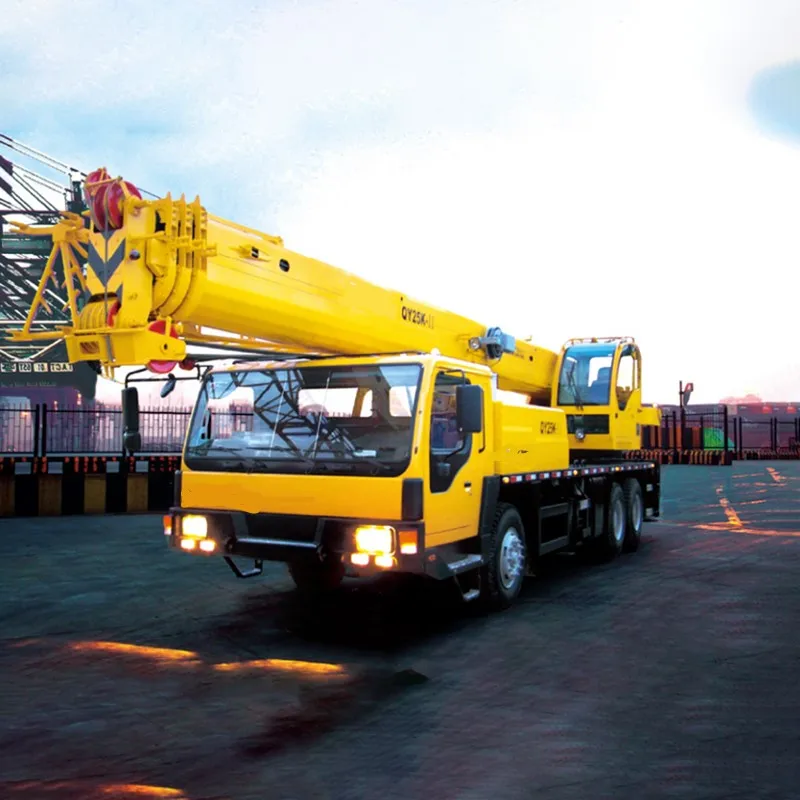

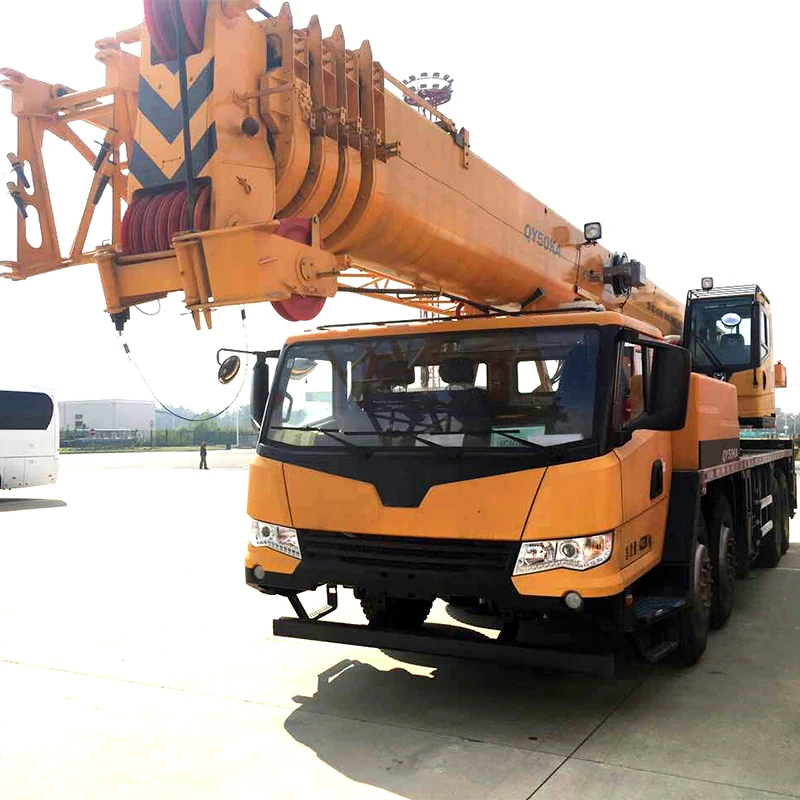

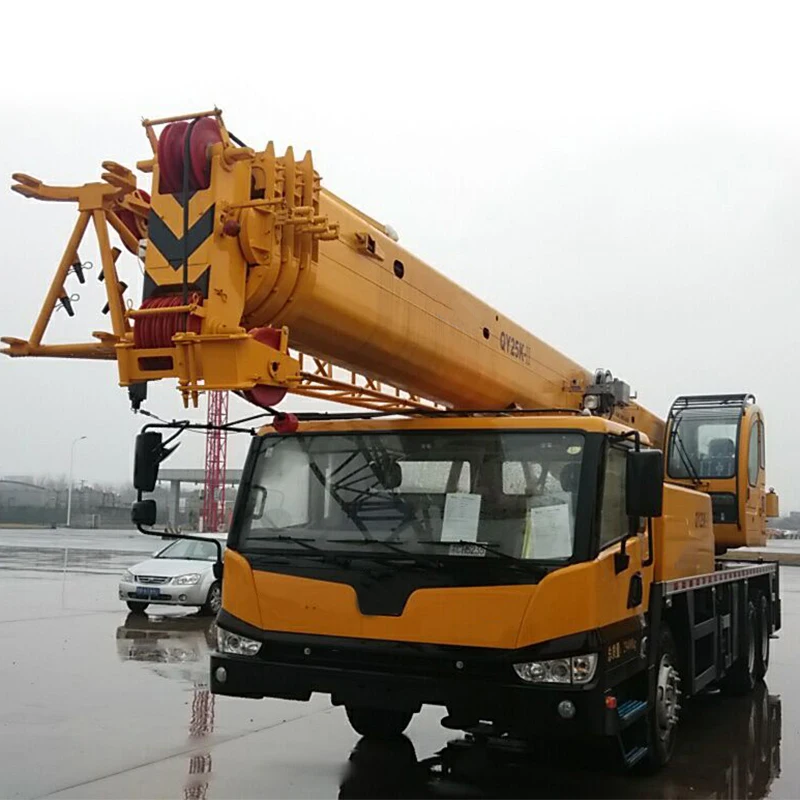

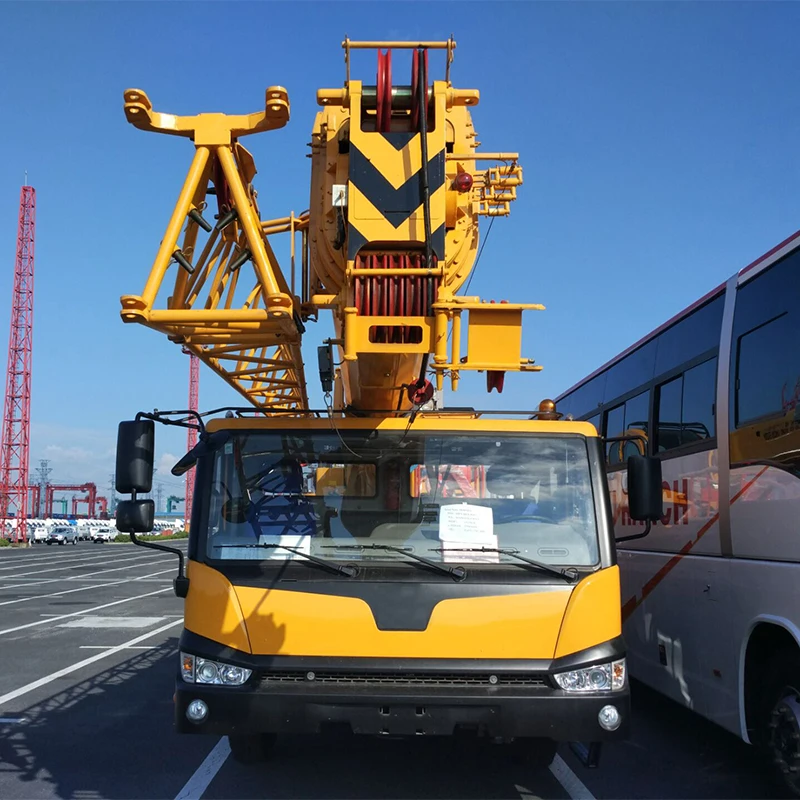

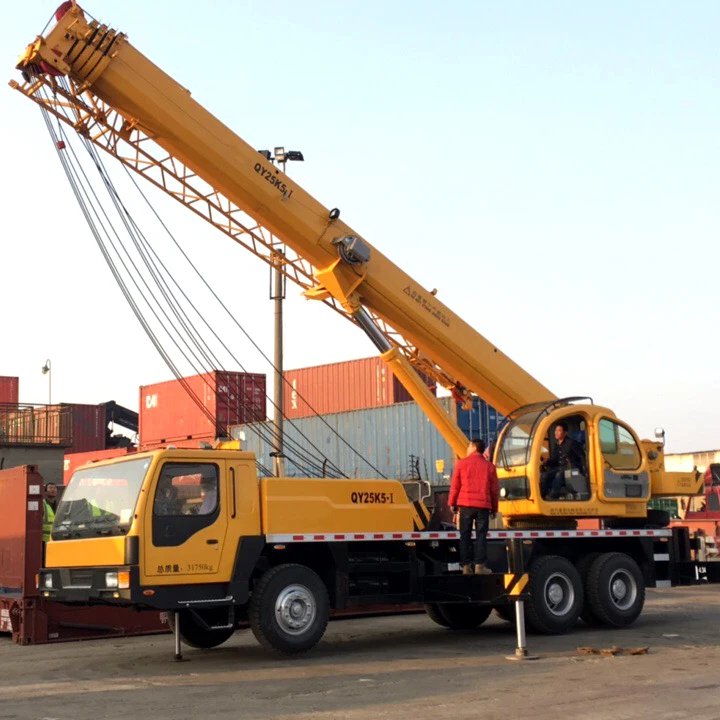

Crane Manipulator 25 Ton With 25 Meter Boom Telescopic Boom With Truck Basis

Product Description

Category	Item	Unit	Parameter
Outline Dimensions	Overall length	mm	12680
	Overall width	mm	2500
	Overall height	mm	3400
	Axle base	mm	4425+1350
	Wheel base	mm	2074/1834/1834
Weight	Total vehicle mass in travel configuration	kg	32865
Power	Model		SC9DF290Q3
	Rated power	kw/(r/min)	213/2200
	Rated torque	N.m/(r/min)	1200/1400
Travel Performance	Max. travel speed	km/h	90
	Min. turning diameter	m	22
	Min. ground clearance	mm	275
	Approach angle	°	11
	Departure angle	°	12
	Braking distance(at 30 km/h)	m	≤10
	Max. grade ability	%	41
	Oil consumption per 100km	L	≤32
Noise	Exterior noise level in accelerating	d-B(A)	88
Noise	Noise Level at seated position	d-B(A)	90

Packaging & Shipping

QY25K-I_2 (4).JPG QY25K-II_7 (1).jpg QY25K-II_7 (2).jpg QY25K-II_7 (3).jpg QY25K-II_7 (4).jpg QY25K-II_7 (5).jpg QY25K-II_7 (6).jpg
