Прямая продажа с фабрики; 500kvaa 750kva 1000kva 1500kva установленной накладкой 13.8kV-400/230V 60Hz петлей
- Категории: Industrial Controls >>>
- Поставщик: Beijing,Daelim,Green,Ep,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

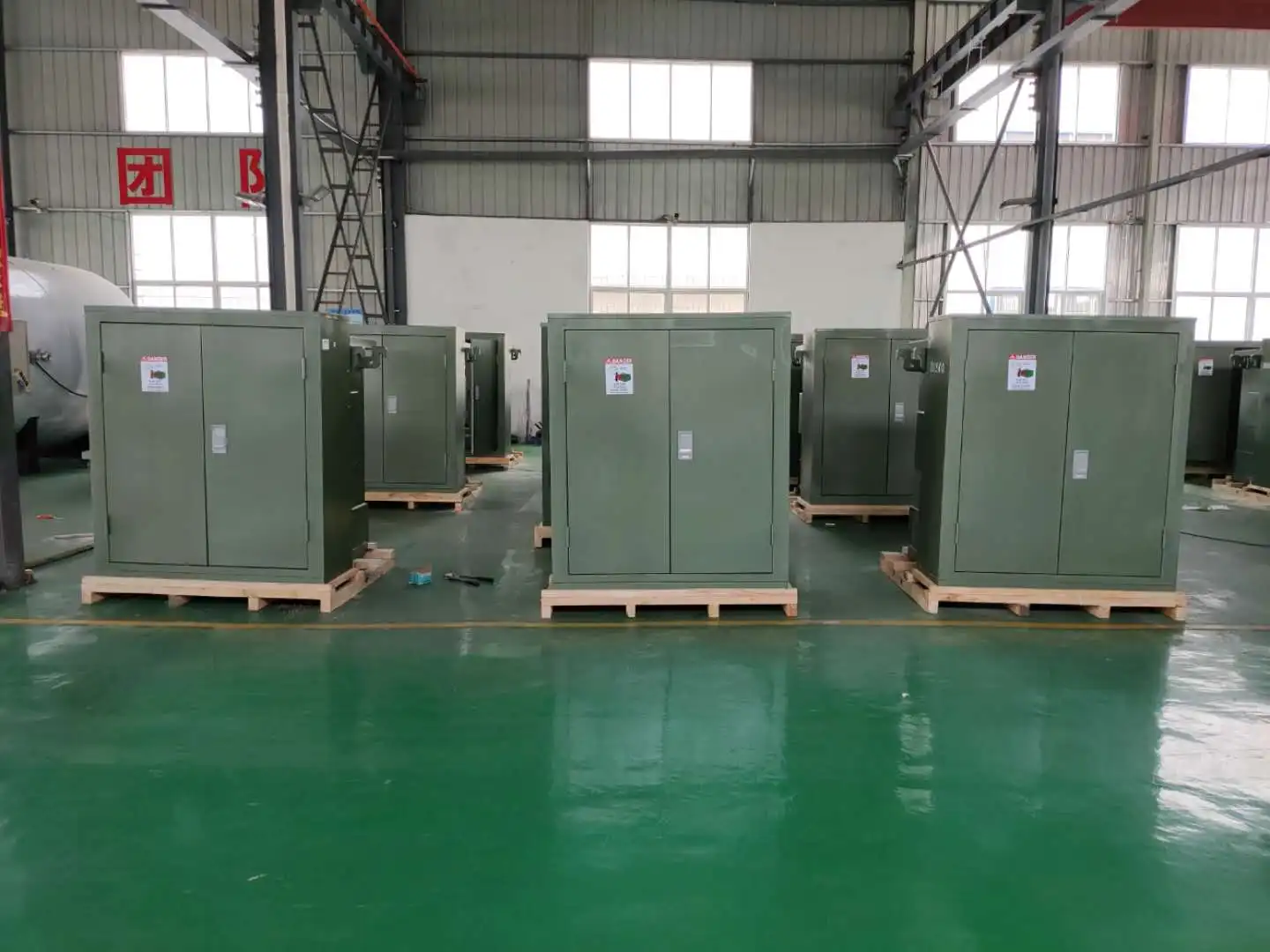

Liquid-filled Loop Feed Pad Mounted Transformer
The liquid-filled pad-mounted transformer is available in both live front and dead front construction, with or without taps. The transformer uses aluminum or copper winding and is optimized to maximize efficiency and footprint. It has many advantages such as high voltage, no drifting of the neutral point, low loss, small volume, saving investment, etc. Our pad-mounted transformer is designed and tested in accordance with industry standards including CSA, ANSI C.57, DOE, and IEEE as applicable.
Technical Specification
Data for Liquid-filled Loop Feed Pad Mounted Transformer | ||||||||
Rated Power (KVA) | High Voltage (V) | Low Voltage (V) | Loss (W) | |||||
No-load Loss (W) | On-load Loss (W) | |||||||
75 | 34500/ 19920/ 13800/ 7957/ 13200/ 7620/ 12470/ 7200 or others | 240 480 480Y/ 277 600Y/ 347 | 180 | 1250 | ||||
112.5 | 200 | 1500 | ||||||
150 | 280 | 2200 | ||||||
225 | 400 | 3050 | ||||||
300 | 480 | 3650 | ||||||
500 | 680 | 5100 | ||||||
750 | 980 | 7500 | ||||||
1000 | 1150 | 10300 | ||||||
1500 | 1640 | 14500 | ||||||
2000 | 2160 | 20645 | ||||||
2500 | 2680 | 27786 | ||||||
3000 | 3300 | 30300 | ||||||
3750 | 4125 | 37875 | ||||||
1200 | 1320 | 12120 | ||||||
Product Details
− Mild steel, optional stainless steel tank
− Three-point latching door for security
− Removable sill for easy installation
−Stainless steel cabinet hinges and mounting studs
− Live front construction & dead front construction
− Steel HV/LV compartment barrier
− Steel HV/LV compartment barrier
− Oil drain plug for 500 kVA and below
− 1” drain valve with sampler for 750 kVA and above
− Oil fill plug
− Five-legged core/coil assembly.
− Removable LV neutral ground strap; as required
− Nameplate per ANSI requirement
−Self-actuating pressure relief valve
− Lifting lugs (4)
Certifications
Our main products can be manufactured within international standards such as IEEE, ANSI, IEC, and CSA.

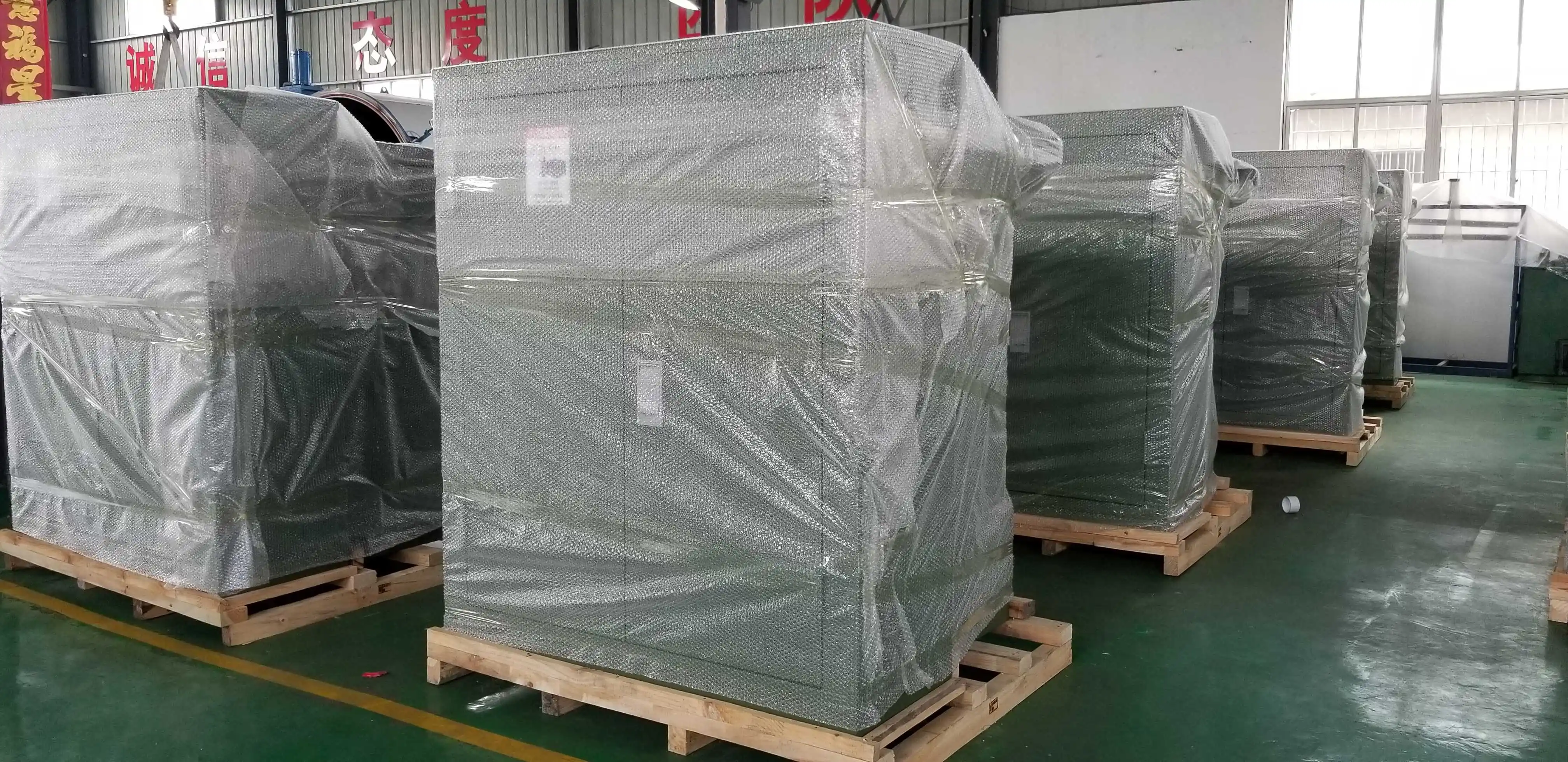

Packing & Delivery
Packaging: Wooden case or according to client's requirements
The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards.
Shipping: Land transportation/Ocean transportation
Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option
for our clients.
Over 10 years of business experience makes us pack well and deliver fast, satisfying our customers all over the world!
The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards.
Shipping: Land transportation/Ocean transportation
Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option
for our clients.
Over 10 years of business experience makes us pack well and deliver fast, satisfying our customers all over the world!
Our Service
Over Service
1. We provide customized service and we can produce transformers according to several international standards, such as: ANSI/IEEE,
IEC, etc.
2. We provide technical solutions and price solutions for our customers for free.
3. We provide local installation service for many countries, in which we have professional installation team in cooperation.
IEC, etc.
2. We provide technical solutions and price solutions for our customers for free.
3. We provide local installation service for many countries, in which we have professional installation team in cooperation.
Daelim Story
Twenty years ago, China's transformer manufacturing industry just got rid of the stage of pure imitation and began to focus on the development of higher performance transformers. Driven by the wave of reform and opening up, China's transformers began to be exported to the world. As the earliest transformer trader, DAELIM had been sold Chinese transformers to all around the world in just a few years. The transformers sold by DAELIM are of high quality and low price, which can meet the basic requirements of most markets and are deeply loved by customers. More and more customers are willing to give orders to DAELIM, which has laid a solid foundation for the rapid development of DAELIM, which became one of the best domestic power equipment exporter and overseas project contractor ten years ago.

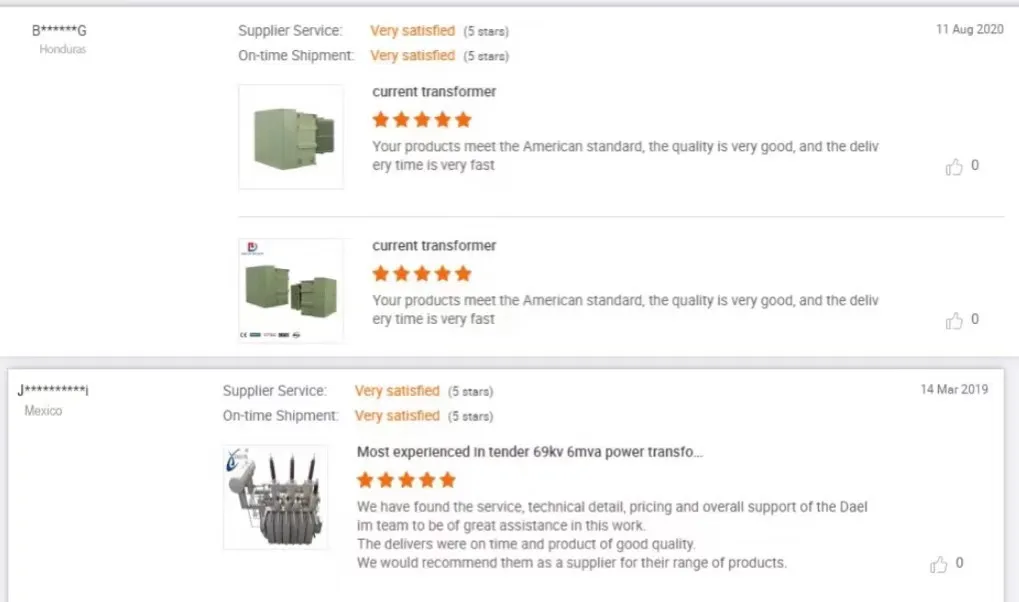

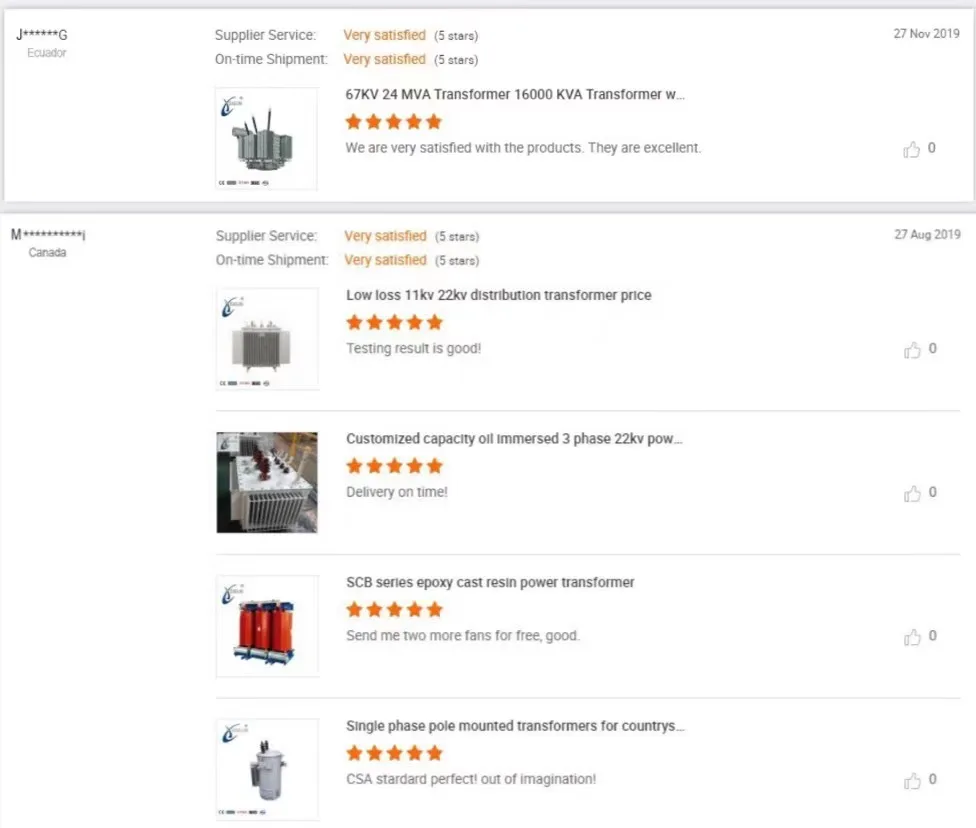

Customers Review
Our products got a high reputation and selling well around Canada, Mexico, Honduras, Ecuador, Guyana, Panama, Spain, Australia, and Africa.
Q&A
Q: Are you a trading company?
A: No. We are a transformer manufacturer. We have our own transformer factory in Jiangsu province.
Q: How long is your delivery time?
A: Generally it is 20 days if the goods are in stock, or 30 days if the goods are not. It is according to the quantity.
Q: What is the standard of package?
A: Export standard package or special package according to customer's requirement.
Q: Which markets have you already sold your products to?
A: South America, North America, Europe, Middle East, Africa, etc.
Q: How long have you been worked in the electric industry?
A: We have been worked in the electric industry for nearly 25 years.
Q: Why should I choose Daelim?
A: After comparing the quality, delivery, and price of the same products, you will find out the answer.
A: No. We are a transformer manufacturer. We have our own transformer factory in Jiangsu province.
Q: How long is your delivery time?
A: Generally it is 20 days if the goods are in stock, or 30 days if the goods are not. It is according to the quantity.
Q: What is the standard of package?
A: Export standard package or special package according to customer's requirement.
Q: Which markets have you already sold your products to?
A: South America, North America, Europe, Middle East, Africa, etc.
Q: How long have you been worked in the electric industry?
A: We have been worked in the electric industry for nearly 25 years.
Q: Why should I choose Daelim?
A: After comparing the quality, delivery, and price of the same products, you will find out the answer.
