Vmanx изготовленный на заказ 0 125 мм-0 188 мм Датчик давления сиденье автобуса датчик заполнения сиденья автомобиля ремень
- Категории: Auto Sensors >>>
- Поставщик: Shenzhen,Zhongman,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Title: | Vmanx Custom 0.125Mm-0.188Mm Thickness Bus Seat Pressure Sensor Car Seat Occupancy Sensor Seat Belt | |
Attribute Parameter | ||
Operating Voltage： | Min 0/Max 5.5V | |
Working Current： | Min 0/Max 50mA | |
Peak Current： | Min 0/Max 100mA | |
Non Triggering Resistance（non load）： | Min 10.0K/Max ∞Ω | |
Trigger Resistance（carrying human body）： | Min 0/Max 100Ω | |
Insulation Resistance（no load）： | Min 10/Max 20MΩ | |
Technical Parameter | 1. Heat flow analysis, design and development. | |
Tevture of Material： | PET | |
Material Surface Thickness： | 0.125~0.188mm | |
Output Signal： | Resistance＜100Ω | |
Film Thickness： | 0.4~0.65mm | |
Gum Back： | 3M Glue | |
Ambient Temperature： | -40℃~+80℃ | |
Persistence： | ＞200000 | |
Special Test Weight | ||
Single Point Pressure Range: | ＜50g 100%Non Conductive | |
Single Point Pressure Range: | ＞200g 100%Conductive | |
Connector： | According To Customer Requirements | |
Application Program: | Safety Belt Reminder(SBR) Taxi Automatic Message Accounting System Sensors For Airbags Medical Bed Massage Chair Office Chair | |
Details Images

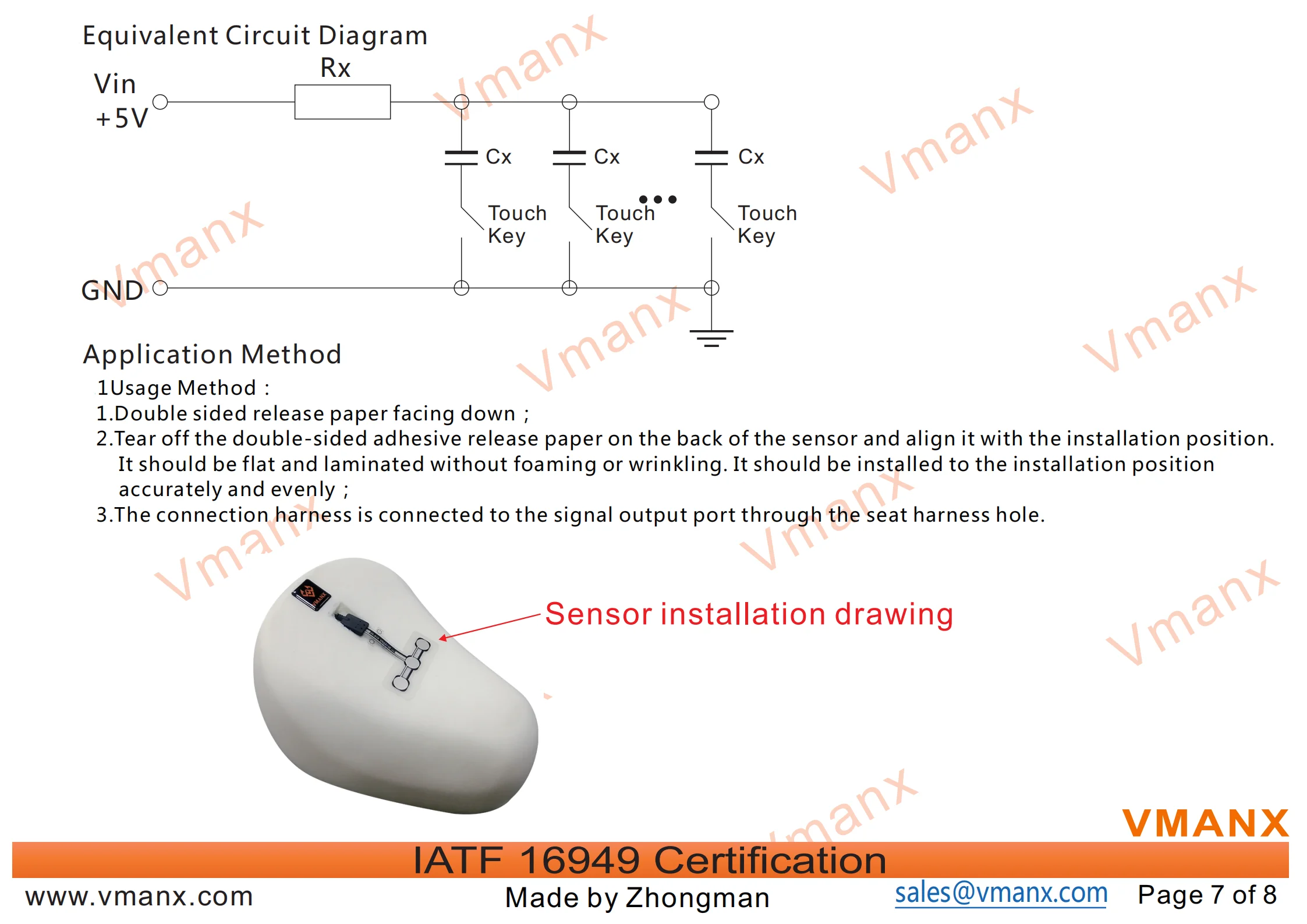

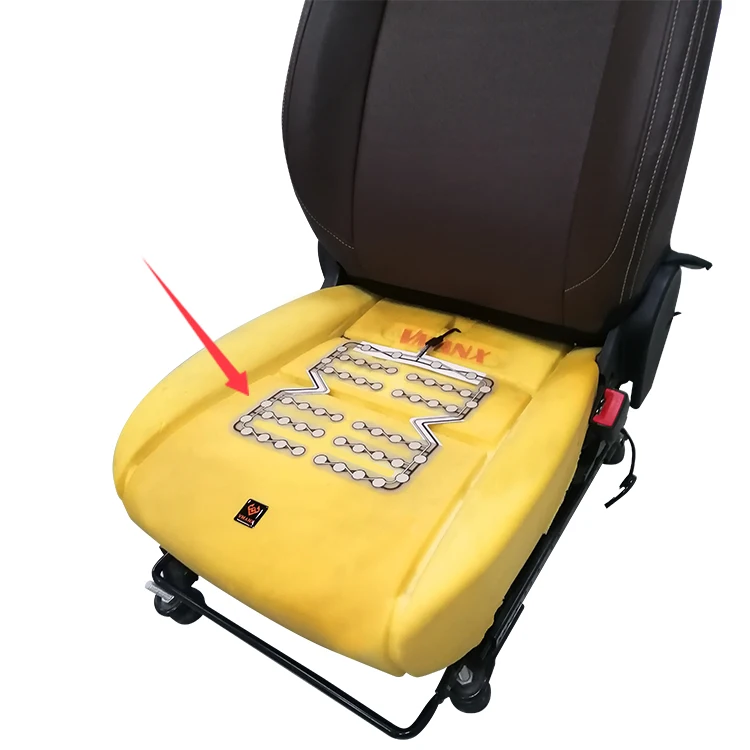

Sensor Installation Drawing
Usage Method : |
1.Double sided release paper facing down ; |
2.Tear off the double-sided adhesive release paper on the back of the sensor and align it with the installation position. It should be flat and laminated without foaming or wrin kling. It should be installed to the installation position accurately and evenly ; |
3.The connection harness is connected to the signal output port through the seat harness hole. |
Features and advantages:
1. It can detect whether someone is sitting,Output the signal to the safety belt warning device.
2. Long service life.
3. Various forms (single point, double point trigger, can be designed according to customer requirements, etc.)
2. Long service life.
3. Various forms (single point, double point trigger, can be designed according to customer requirements, etc.)
