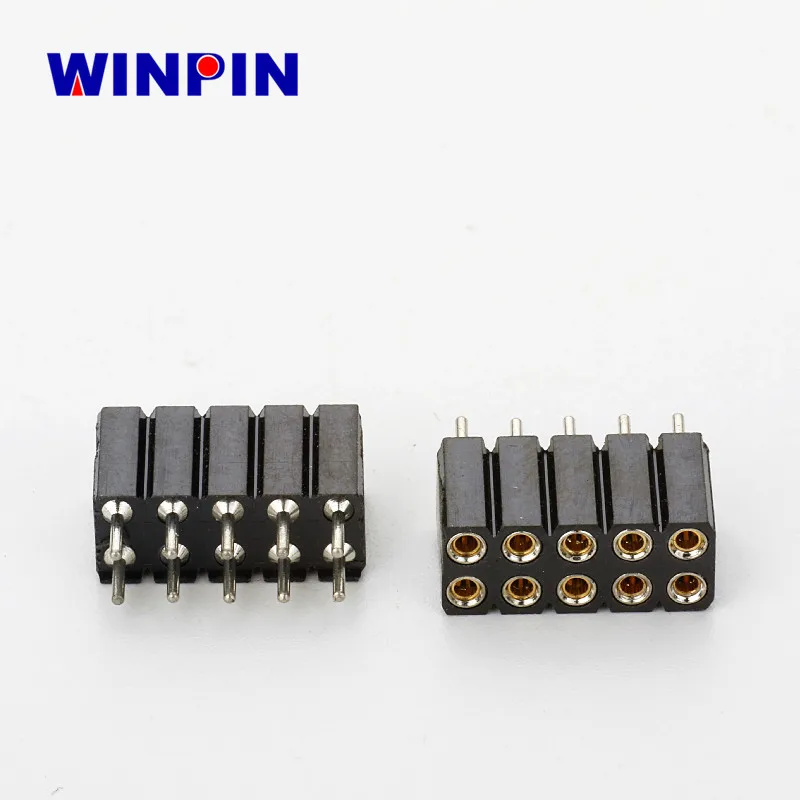

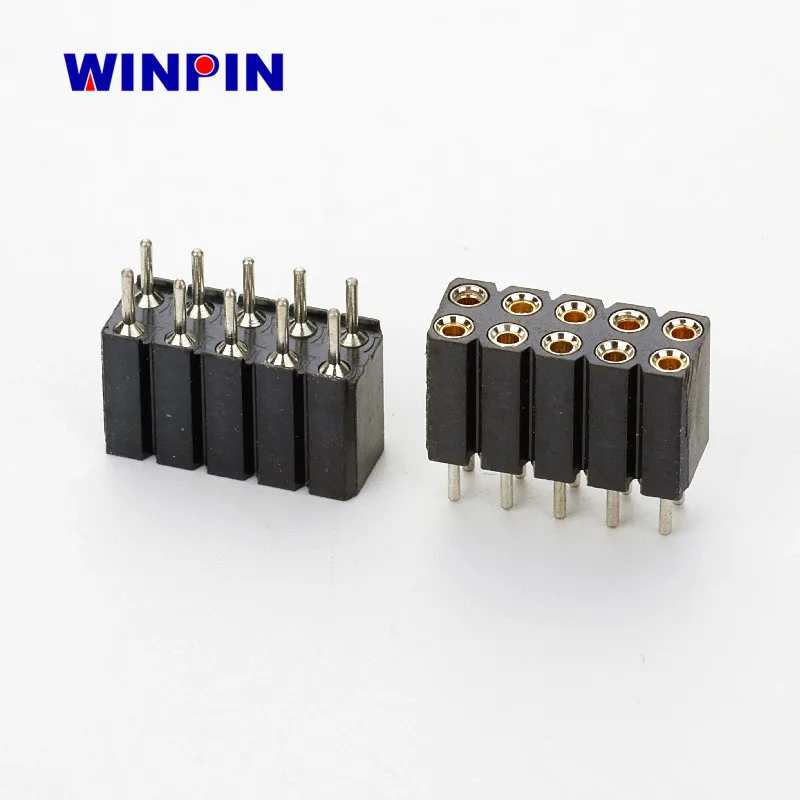

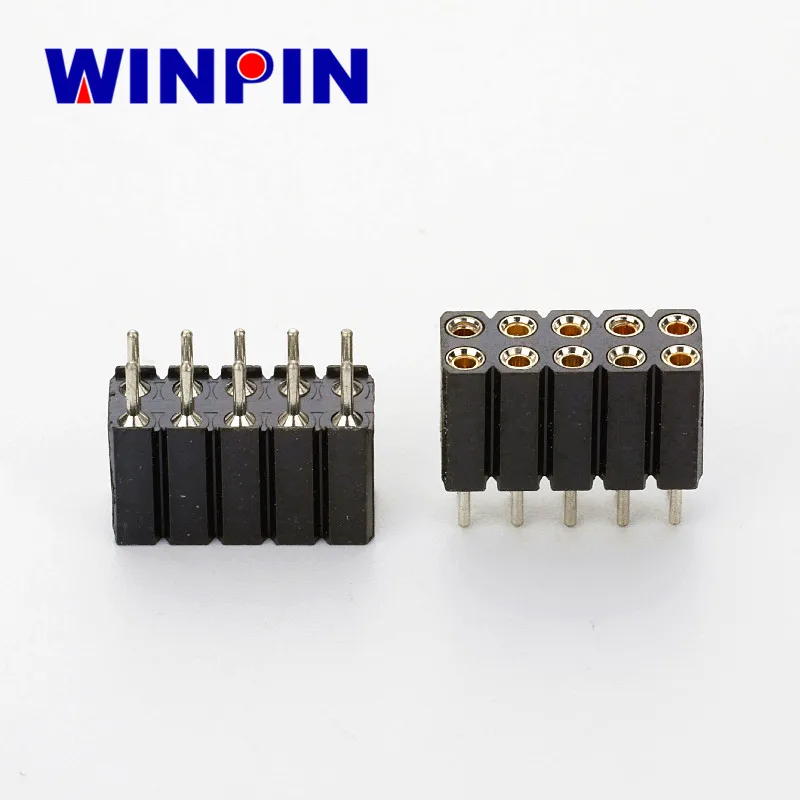

WINPIN популярный продукт двурядные женские круглый разъем 20p

Цена:0,20 $ - 0,25 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Contact Resistance:	10m Ω Max	Insulation Resistance:	1000m Ω Min
Contact Sleeve Material:	Brass CuZn36Pb3(C36000)	Insulation Material:	Polyester PPS+30%GF Black
Contact Plating:	Au, Sn over Ni	Material Flammability Rating:	UL94-V0
Contact Plating Thickness:	G0 to G6	Operating Temperature:	-40°C to +105°C
Current Rating:	1.0AMP	Withstand Voltage	500V AC/DC
No. of Row:	1	Mounting Type:	Right Angle Type (RA)
No. of Positions:	20P	Termination:	Solder Type
Pitch:	2.54mm	Packing:	Original Packing
Row Spacing:	-	Certificate:	ROHS,REACH,SGS,ISO9001/14001
Contact Clip Material	BeCu(C17200) (3 finger)	Manufacturer Standard Lead Time:	1-3 Weeks

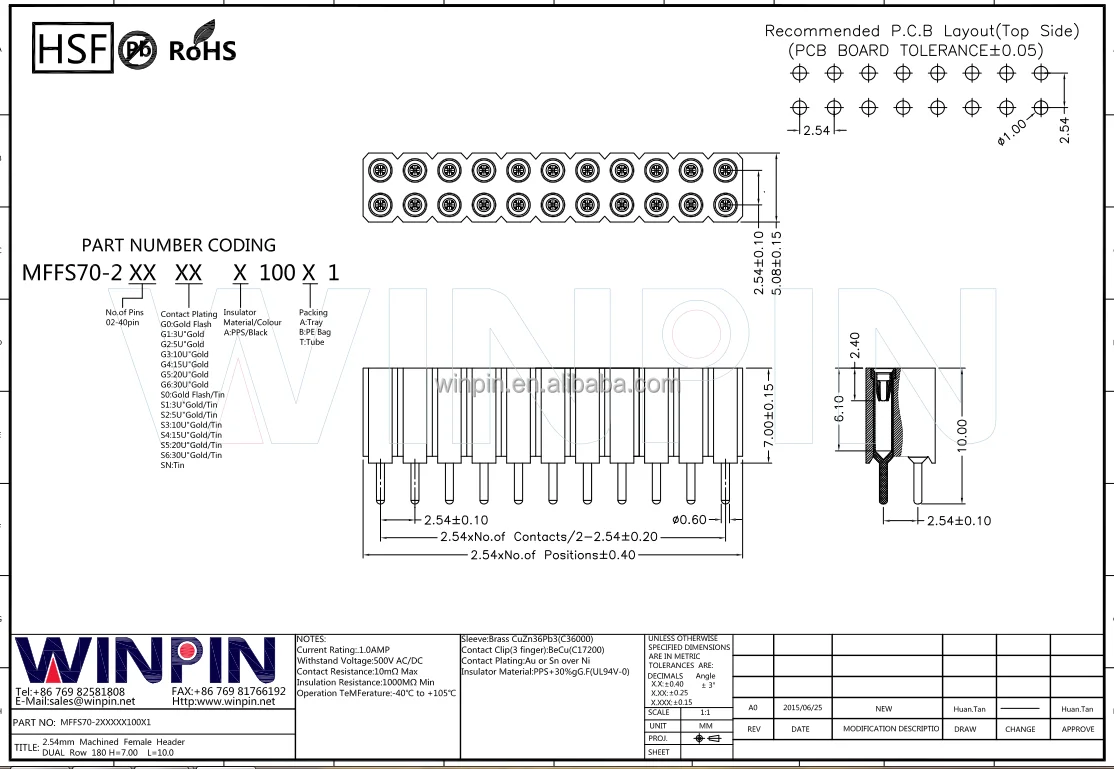

Customized Your Requested Part Number

Please code according to the specifications you need.

It is more convenient to make inquiries by code
