Product Description
Product name | Vertical plate lifting clamp vertical pipe lifting clamp |
Usage | For lifting plate vertically |
Load range | 1-5ton |
MODEL | WLL (T) | SCOPE(MM) | WEIGHT(KG) |
SCDH-1 | 1 | 0-20 | 5.2 |
SCDH-2 | 2 | 0-30 | 8.4 |
SCDH-3 | 3 | 0-35 | 11.8 |
SCDH-5 | 5 | 0-50 | 17.5 |
Detailed Images

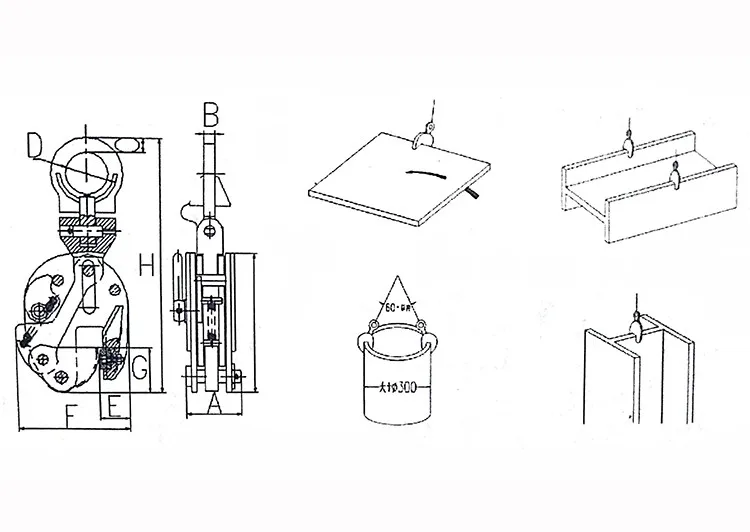

Vertical plate clamps pick and carry steel plates in the vertical plain though options with articulating (swivel) lifting eyes are also available that can connect to a horizontal plate then lift & turn to the vertical position.

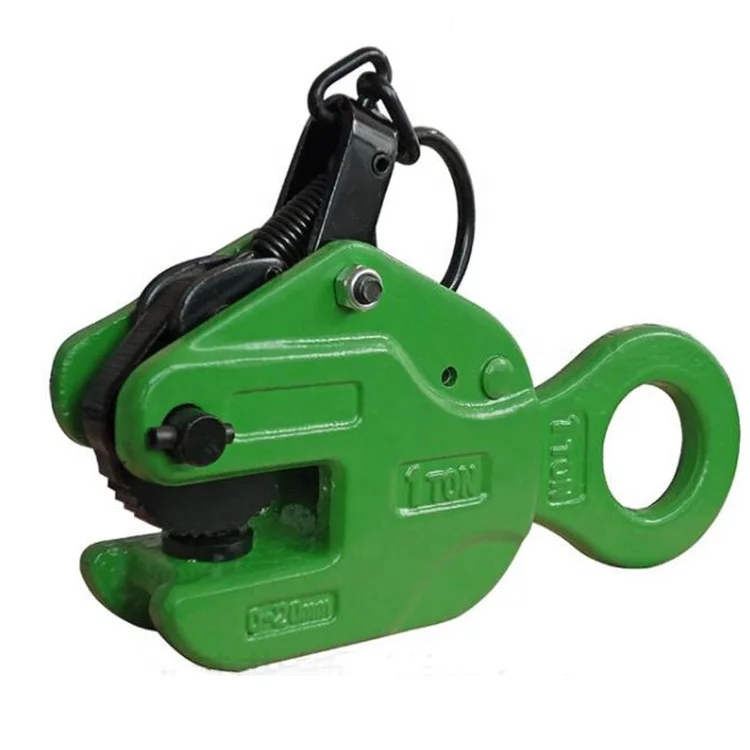

Vertical plate lifting clamp.
Ideal for lifting heavy sheet metal and steel plates in a vertical position, as well as lifting and rotating through 180 degrees
They can also be used for transporting steel constructions and profiles. It is recommended to use a pair of plate clamps in conjunction with a spreader beam for long materials which have a tenancy to sag of flex.
