Products Description
pvc edge banding machine pvc making automatic
1.The pvc edge banding production line is equipped with the corresponding main machine, die and auxiliary machine, and can be used for the production of a variety of customary edge banding after mixing the suitable granule-carapace extrusion-printing temple_upper.
2.Raw materials used: PP, PE, PS, ABS, PVC, etc., especially designed screw and barrel, to ensure that the equipment is extruded and excellent plasticizing effect.The third set is an electric vacuum water tank, and the mechanical height adjustment and direction-finding adjustment are convenient for operation, and the roughness ensures the precise shaping of the product. The guiding device crawler ensures high speed and stability of traction.
3.The pvc edge banding making machine is mainly used to produce various PVC edge banding, which is widely used in high-end furniture, kitchenware, bedroom suites, office series.

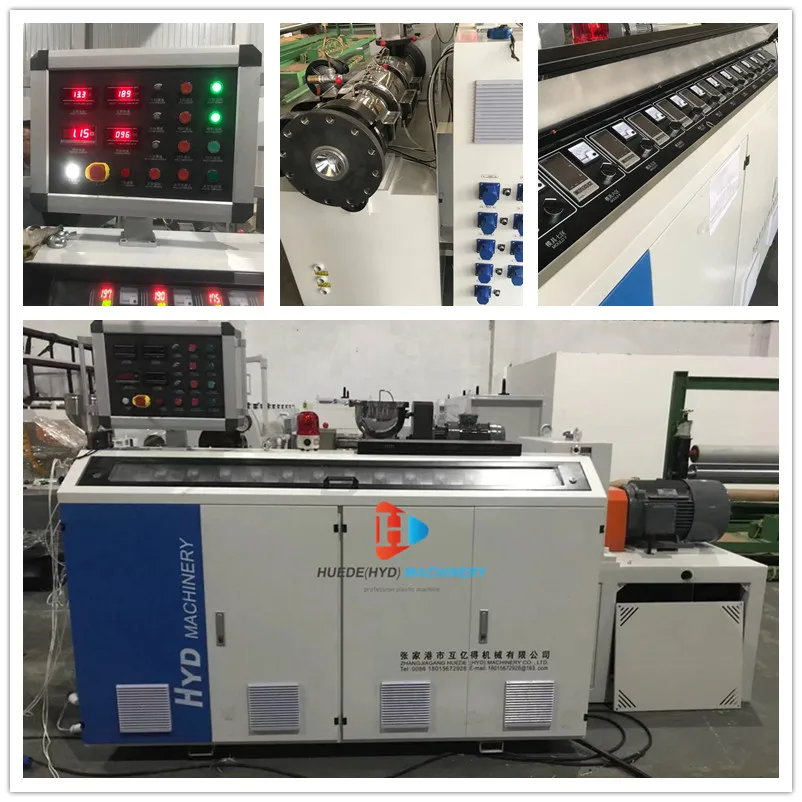

Double Screw Extruder Machine
1.Length: 3500MM
2.OutPut: 50-150Kg/hr(According to the model)
3.Material of screw: 38CrMoAlA
4.Usage: PVC raw materials, mixing, extrusion process
2.OutPut: 50-150Kg/hr(According to the model)
3.Material of screw: 38CrMoAlA
4.Usage: PVC raw materials, mixing, extrusion process
(Click the picture to turn to extruder page)

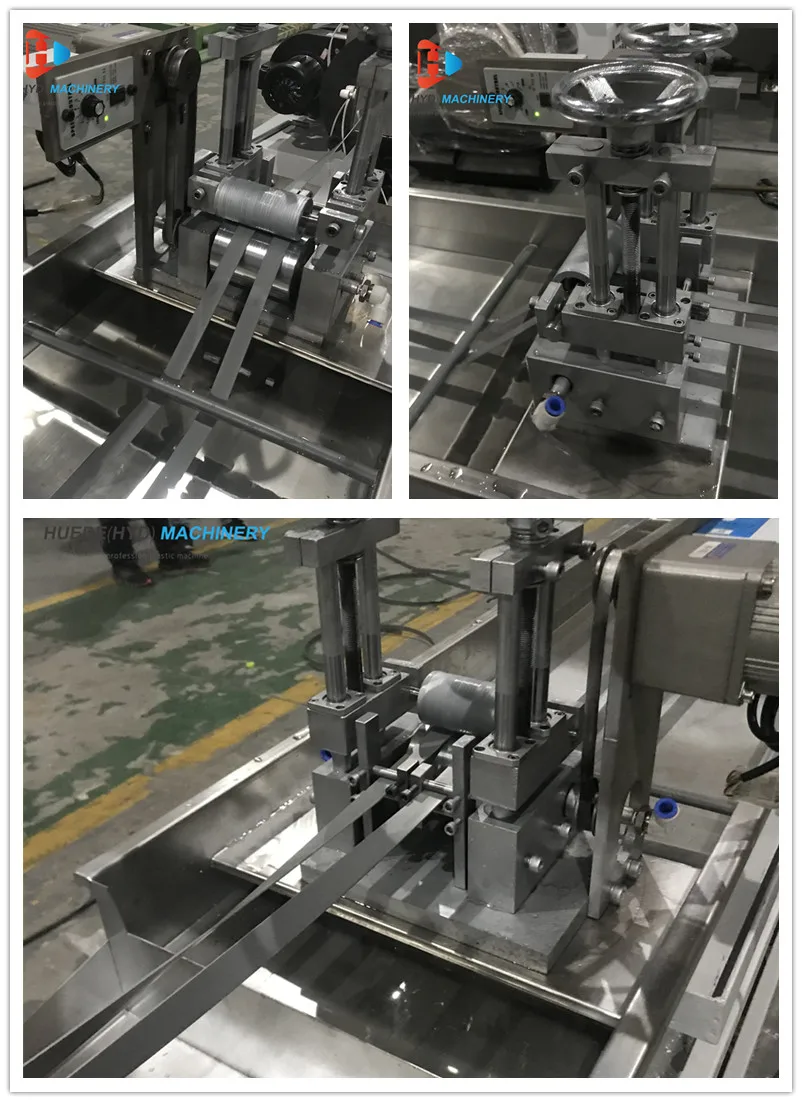

Embossing Machine
1.This kind of Embossing Machine can process different kind of edge band.
2.Usage:Press the pattern on the edge band.

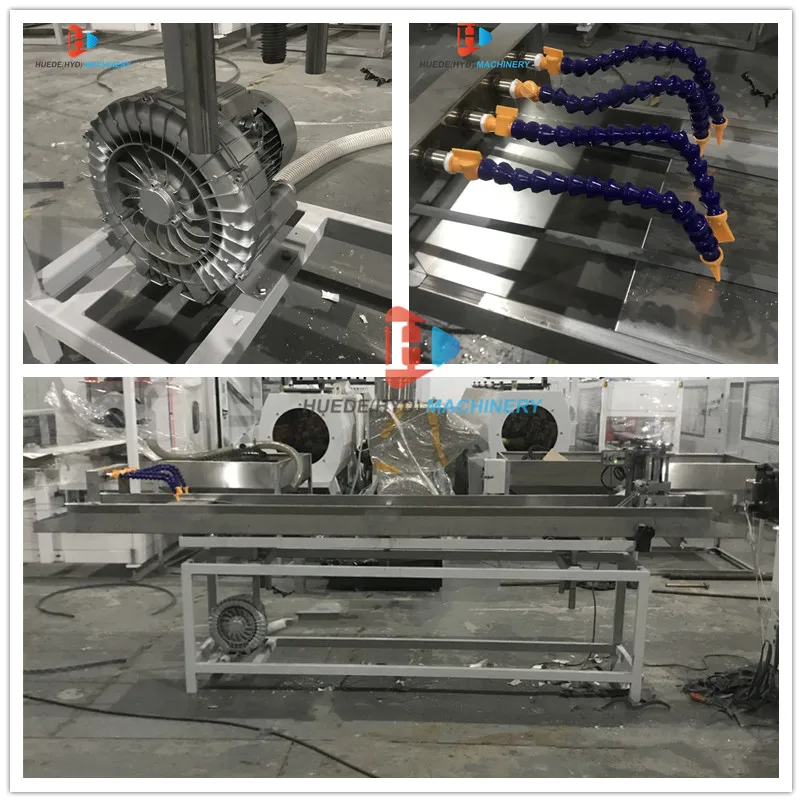

Cooling water tank and blowing system
1.Length: 3500MM
2.Usage: This system can cool and blow dry the edge banding.

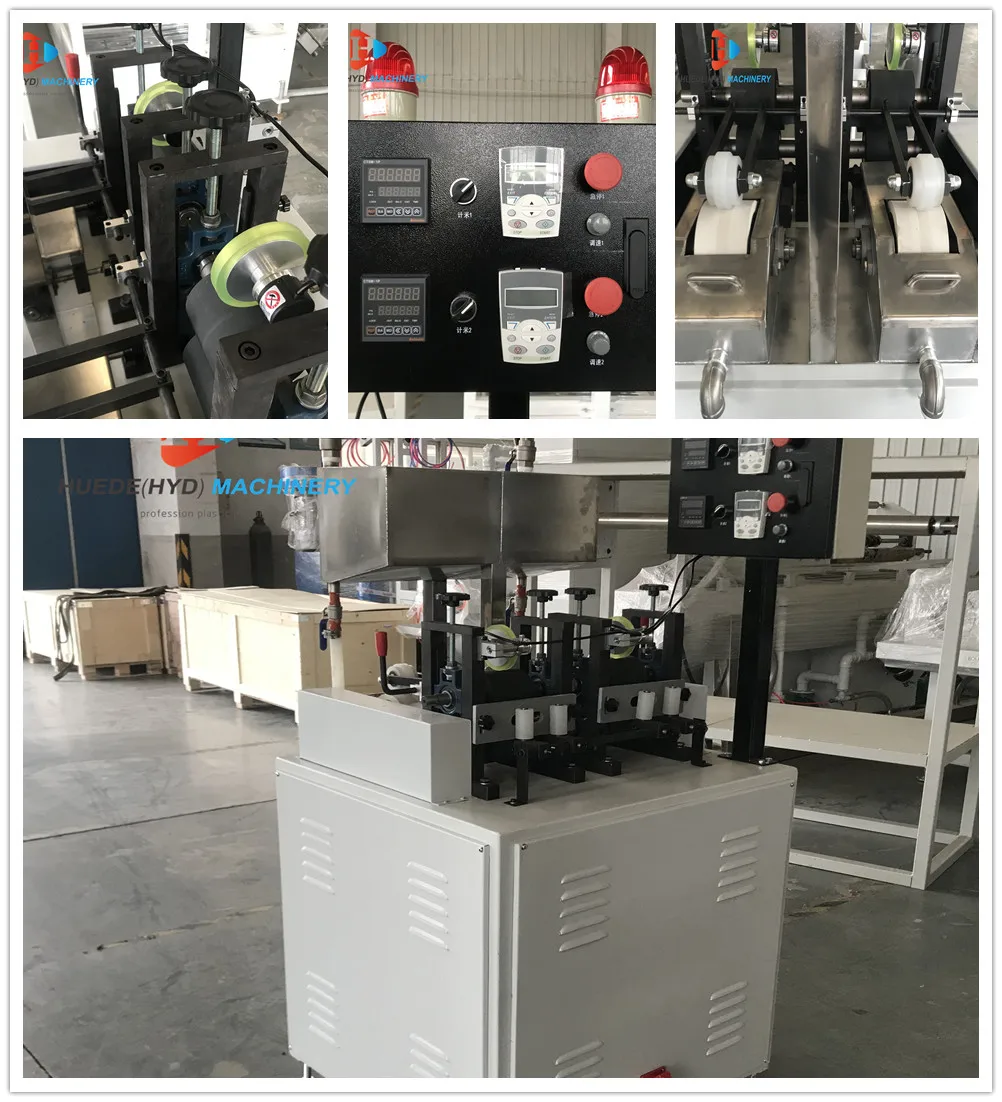

Hauling off and gluing machine
1.Usage: This machine haul off and apply glue to the edge band.
(Click the picture to the machine page)

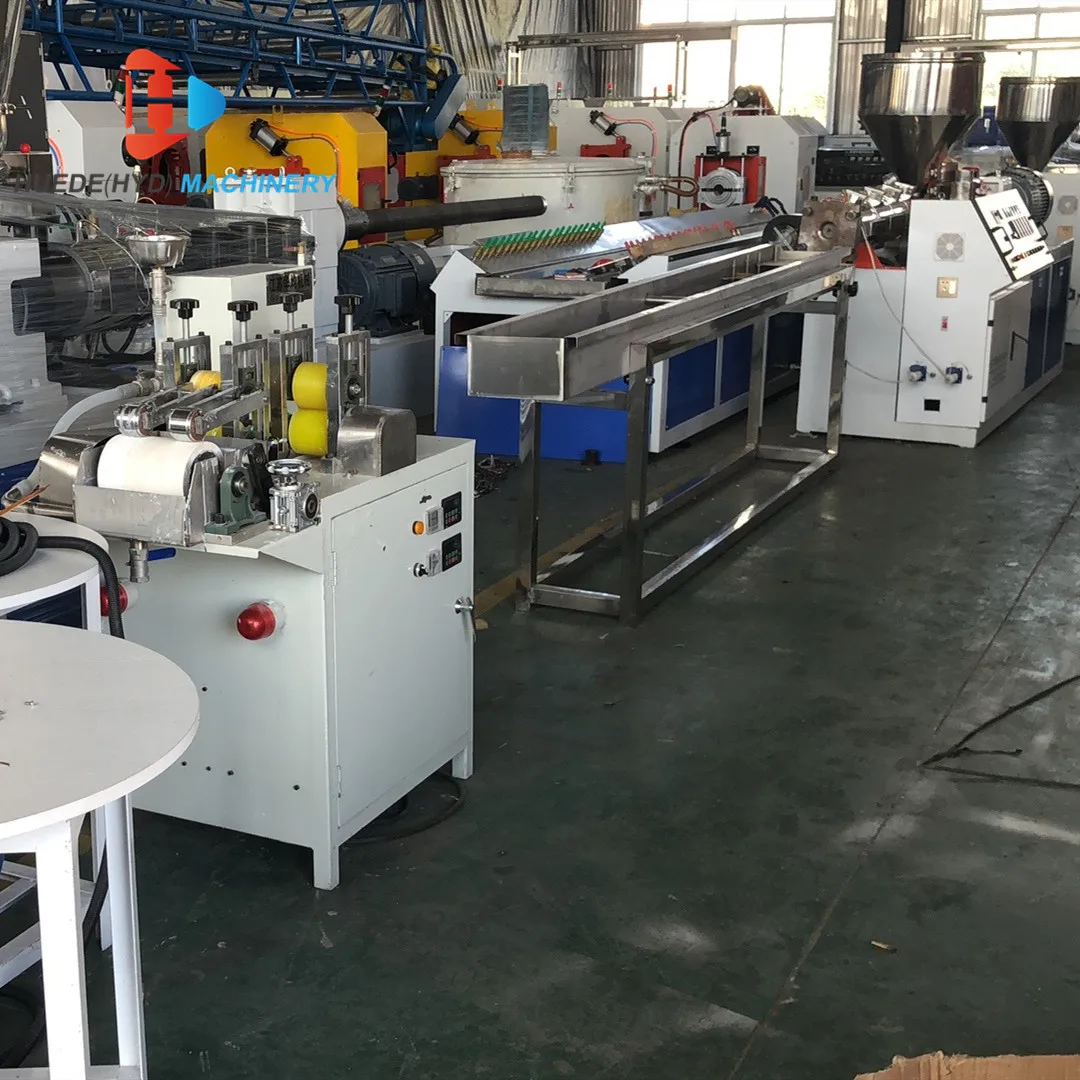

PVC Edge Banding Production Line
Model | SJSZZ51 | SJ65 |
Extruder Model | SJSZ51/105 | SJ65 |
Mould Cavity | 2 cavity | 2 cavity |
Max Output(kg/h) | 1100kg/day | 1200kg/day |
Drive Motor Power(kw) | 37kw | 37kw |
1 | SJSZ-51/105 double screw extruder | 1set |
2 | Die Mold | 1set |
3 | Embossing unit (emboss roll not included,as per client sample) | 1set |
4 | Water cooling tank | 1set |
5 | Haul-off&gluing unit (with length metering unit) | 1set |
Customer&Service
All equipment, including parts and components, shall be guaranteed for 24 months, and any problem within the warranty period shall be replaced free of charge (except screw and barrel)
NEW CUSTOMERS:
1.COUNTRIES WITH ENGINEERS(1)$800 per time, excluding food, accommodation and shipping dates, only 10 days.
2. COUNTRIES WITHOUT ENGINEERS
(1) USD 100 per day
(2) Visa free
(3) Round-trip air ticket
(4) Board and lodging
2. COUNTRIES WITHOUT ENGINEERS
(1) USD 100 per day
(2) Visa free
(3) Round-trip air ticket
(4) Board and lodging
REGULAR CUSTOMERS:
1.If you need on-site installation and commissioning services, you can install the video remotely for free and enjoy a 40%
discount.(According to the new customer charging standards.)
discount.(According to the new customer charging standards.)
Packing&Delivery
FAQ
Q1:Are you trading company or factory?
A1:We are factory,we have our own workshop.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: Normally production time is around 10-20 days,the exactly depend on what kind of machine you order. The shipping time is based on your destination port
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: Normally production time is around 10-20 days,the exactly depend on what kind of machine you order. The shipping time is based on your destination port
