OBALS 20W 28W 38 Вт 40 56 76 60 84 114W SMD Led решетчатое


Поделиться:

Цена:1 849,55 ₽ - 5 418,31 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Hot Selling

High Power Aluminum Indoor Ip54 38w 76w 114w Recessed Cob Led Grille Light

Product Description

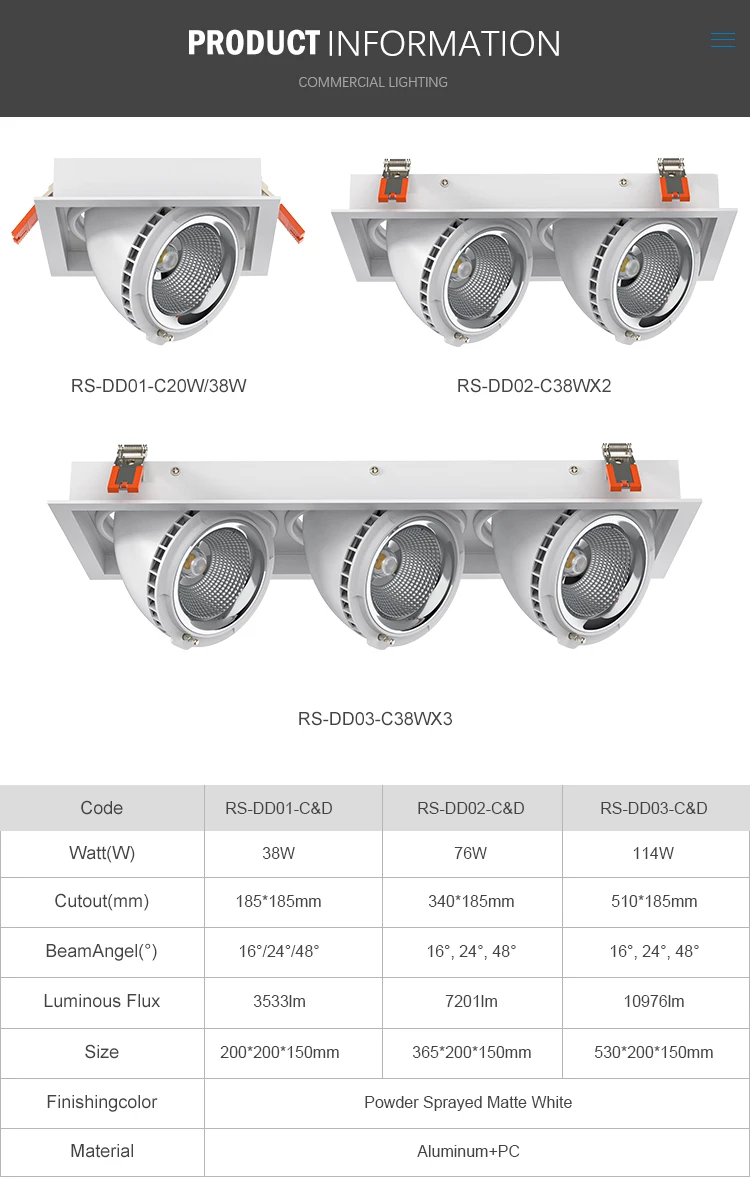

Product parameters

 Brand name  OBALS
 Model

 RS-DD01-S

 RS-DD02-S

 RS-DD03-S
 Power  20W/28W/38W

 40W/56W/76W

 60W/84W/114W

 Size

 200*200*150MM

 365*200*150MM

 530*200*150MM

 Cutout

 185*185MM  340*185MM  510*185MM
 Light Source

 SMD

 Input Voltage

 AC220-240V 50/60Hz

 Material  Aluminum

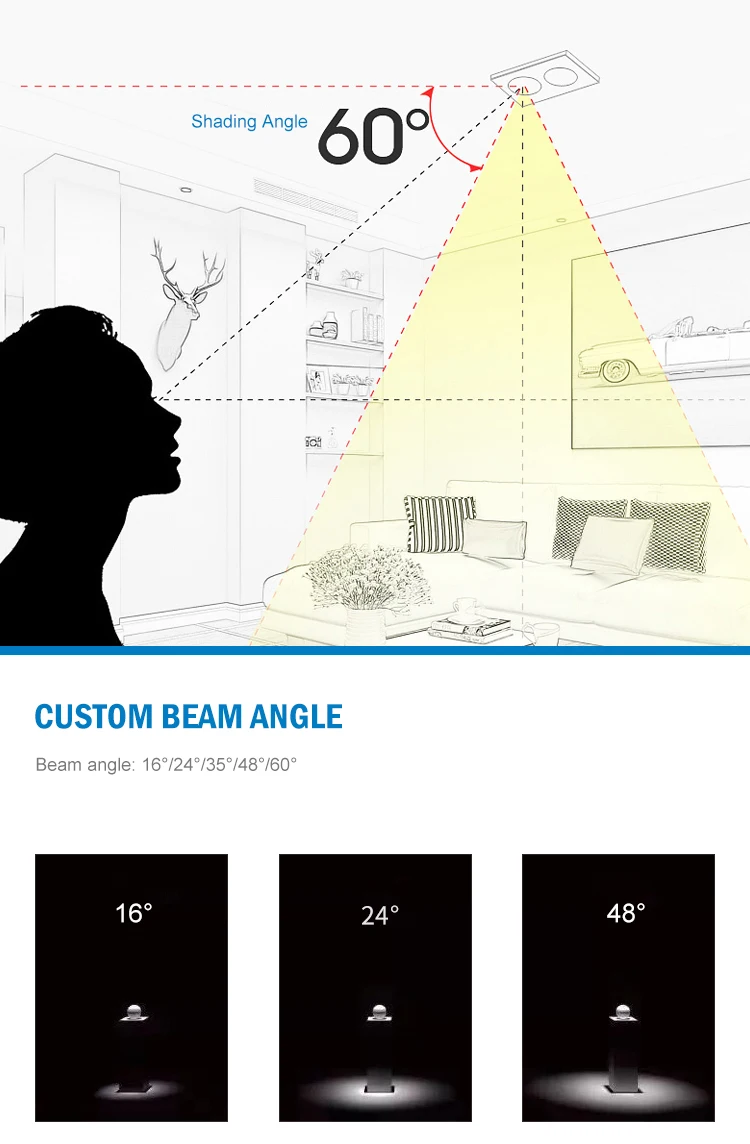

 Beam Angle

 60°

 Adjust angle

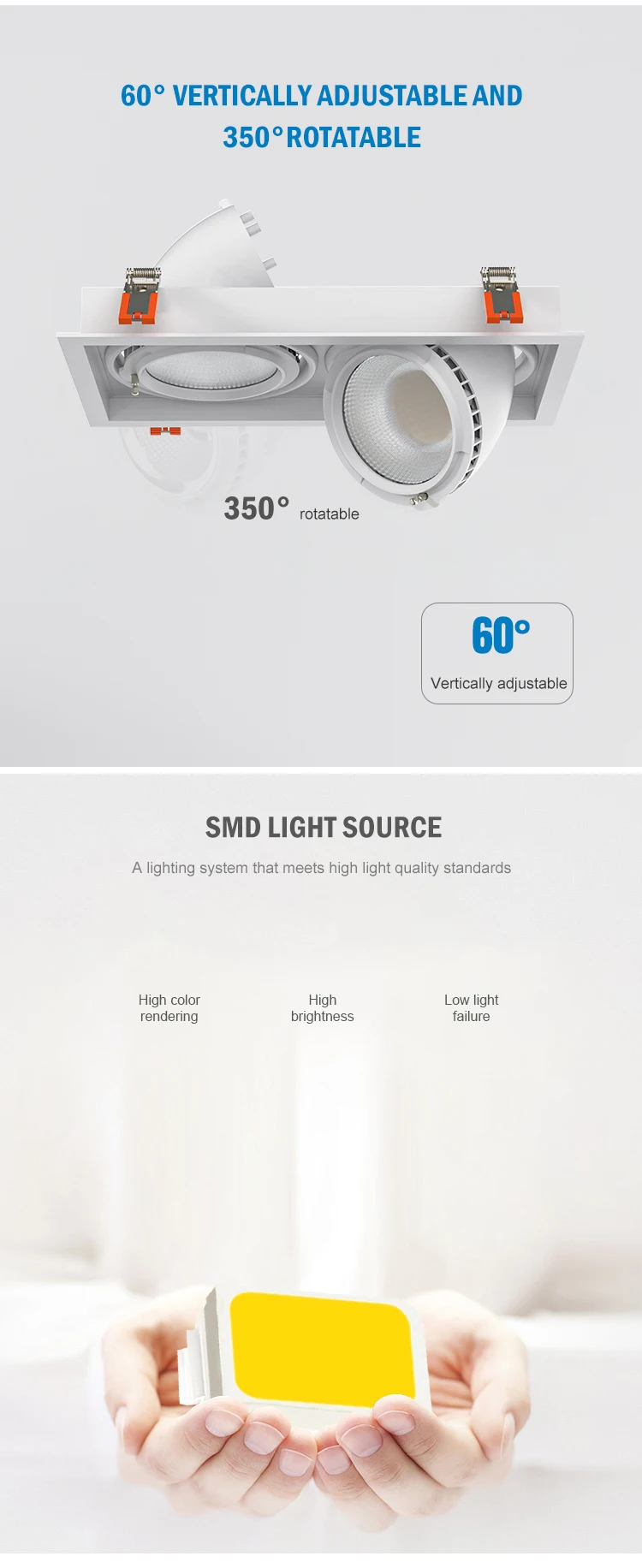

 Level adjust 0~350°+vertical adjust 0~60°

 IP Rating  IP20

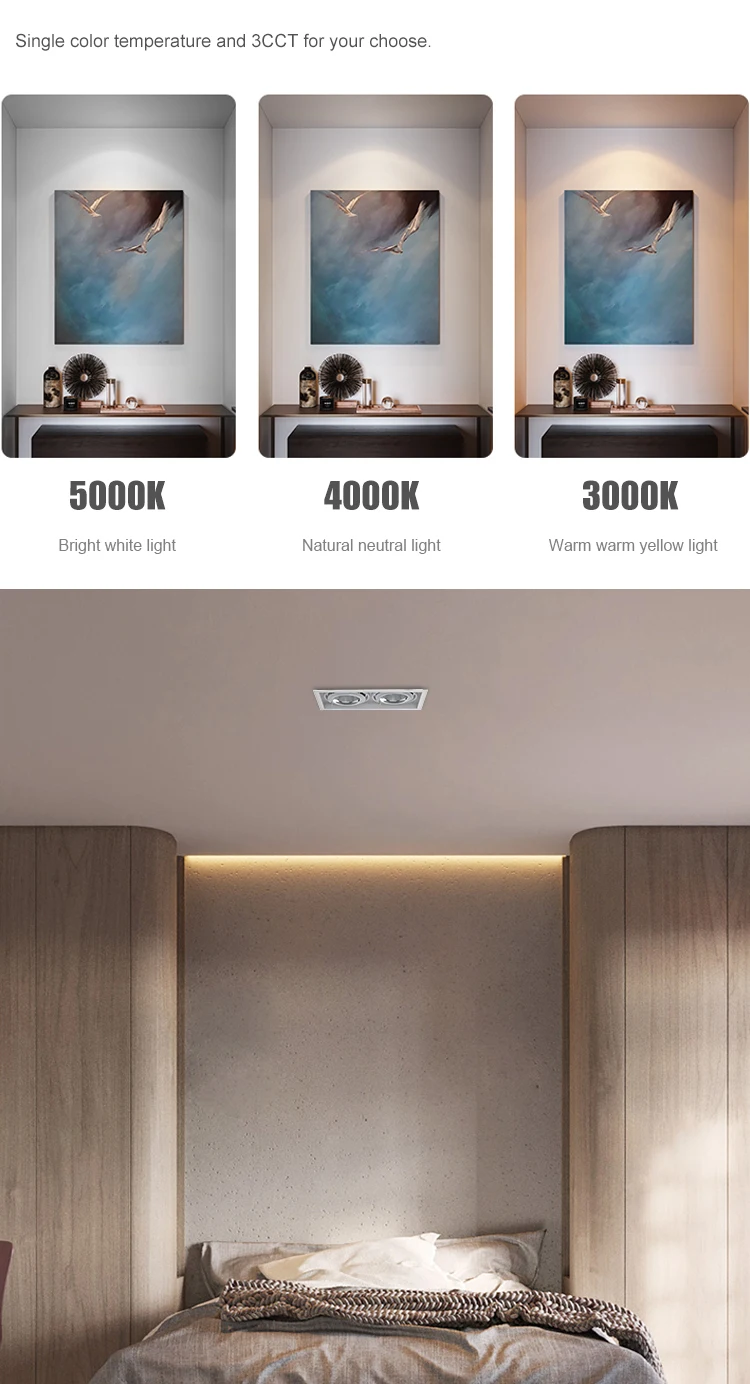

 CCT  3000K/4000K/5000K
 CRI  Ra>80
 Protection Class  ClassⅢ
 Application  Exhibition halls, galleries, bars, cafes and dining outlets.etc
 Warranty  3 years



Contact us for more discounts and product information!!!

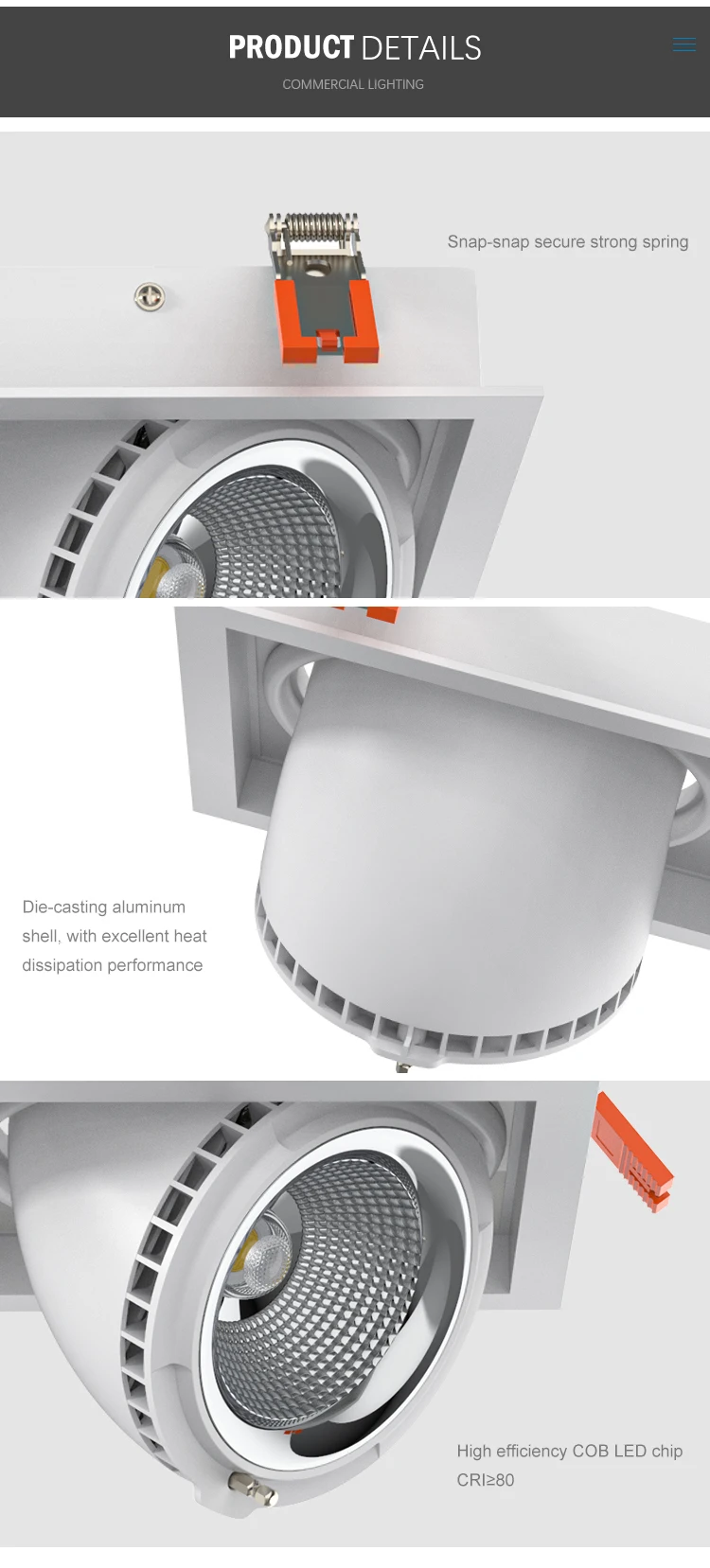

Product Detail




Contact us for more discounts and product information!!!




Contact us for more discounts and product information!!!




Contact us for more discounts and product information!!!

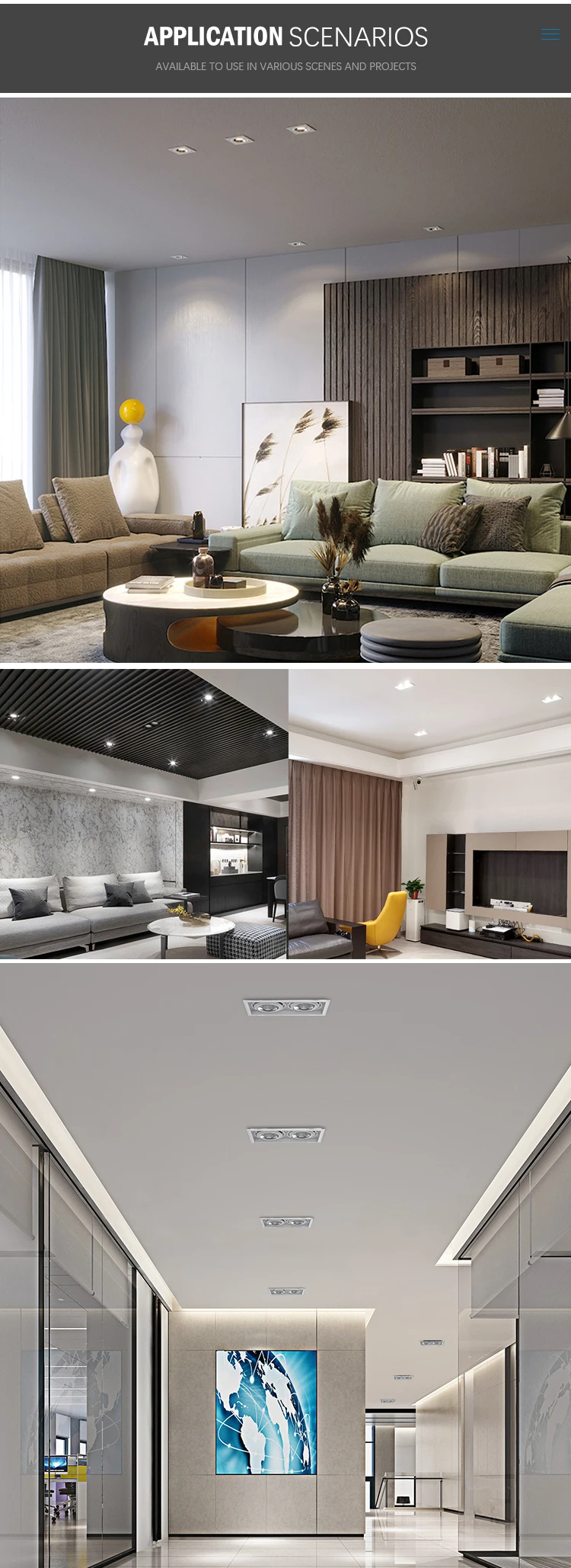

Application




Contact us for more discounts and product information!!!

Company Information

_09.jpg_10.jpg_11.jpg_12.jpg_13.jpgContact us for more discounts and product information!!!

Packaging & Shipping

_14.jpgClick here for relevant delivery information!!!

FAQ

Q1. What is the warranty of your products?

For most of our old products, the warranty is 5 years. However, we develop the new products with the purpose of competitive price, so the warranty is 3 years only. And, for other economical products like panel light, etc, the warranty is 2 years.



Q2. What about your payment terms?

Our standard payment term is 30% deposit prepaid by T/T, and the balance should be paid before shipment. But, when our cooperation is getting bigger, we can also adjust percentage of T/T, and support other payment terms, such as L/C, O/A, etc.



Q3. Can you support OEM and ODM design?

Yes. OEM and ODM design is no problem for us. We own independent R&D team, and we have rich experience on helping customers to find perfect solutions. We can also help customers design their product package.



Q4. What is lead time for the order?

For samples(if not the new products), it normally takes 3-5 days, while mass order would need 20-40 days according to order quantity. For customized products, it roughly needs about 90 days, including opening the molds. In addition, if you need very urgent delivery, we can also send you the goods from our other customers at local.



Q5. What about your product quality? Do you have quality control?

We pay great attention to product quality. There is 4 quality inspection procedures in our company, including IQC, IPQC, OQC, FQC. In addition, we have spent a lot on purchasing profession quality inspection equipment to control and improve our product quality.



Q6. How long do you do aging testing for products?

For our old products which have been very mature and bore verification from market, normally we do aging testing for 8 hours at least. For the new products, we will do aging testing for 24 hours to ensure the quality.



Q7. Can you please offer IES files for Dialux?

Yes. We have testing equipment with well-known brand “EVERFINE” for integrating sphere and dark room. We can offer IES files for your each orders. If necessary, we can also help you do the Dialux, but we need you to send us the detailed demands.



Q8. How long do you deal with complaint?

We can give you a fast, high effectively and cheerful after-sales service. Normally we need 3days to provide solutions after all necessary information collected. If it is due to quality problem, we will give compensation accordingly, but we need you provide us with detailed photos and video. After our QC analyse and find out the reason, we will give you the solutions.
