RF Fixed Attenuators SMA Male Conn. Termination 10Watts
RF Fixed Attenuators SMA Male Conn. Termination 10Watts
RF Fixed Attenuators SMA Male Conn. Termination 10Watts
RF Fixed Attenuators SMA Male Conn. Termination 10Watts
RF Fixed Attenuators SMA Male Conn. Termination 10Watts
RF Fixed Attenuators SMA Male Conn. Termination 10Watts
RF Fixed Attenuators SMA Male Conn. Termination 10Watts

RF Fixed Attenuators SMA Male Conn. Termination 10Watts


Поделиться:

Цена:7,71 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Paramenters




Specification


An attenuator is a circuit used to introduce a predetermined attenuation within a specified frequency range. It is generally indicated by the decibel number of attenuation introduced and the ohmic number of its characteristic impedance.Attenuators are widely used in cable television systems to meet the level requirements of multiple ports.There are two kinds of attenuators: source attenuator and active attenuator.

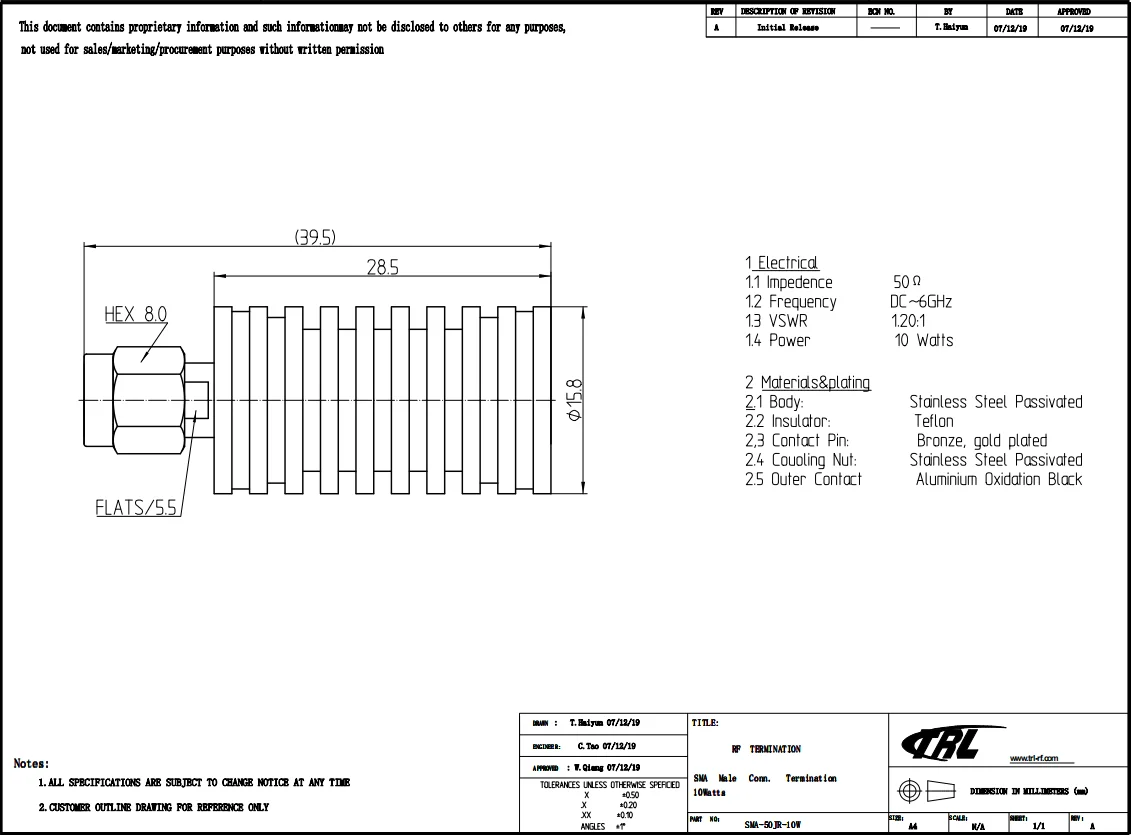

SMA Male Conn. Termination 10Watts Fixed Attenuator

Teruilai P/N: TRL-SMA-50JR-10W

RoHS Certificate: Compliant


Frequency range
DC-6Ghz
Connector parts
MaterialBrass
Plating
VSWR
1.20:1
Body
Stainless Steel
Passivated
Characteristic impedance
50Ω
Contact Pin
Bronze
Gold Plated
Power
10Watts
Couoling Nut
Stainless Steel
Passivated
Outer Contact
Aluminium Oxidation Black
Insulator
Teflon










Recommend Products








Company Profile




Teruilai
an well-known designer & manufacturer based in Danyang city
Danyang Teruilai Electronics Co.,Ltd(TRL for short) is an well-known designer & manufacturer based in Danyang city,Jiangsu.Province, China. We Provide our customers with excellent RF Connectors & cable Assembly , RF Microwave-Passive components andvalued-added services that meet or exceed our customer’s expectations.
TRL was initially established in Xi’an City, China since 2008, by the development of our company, we invested a new factory inDanyang City, Jiangsu Province in 2013, which mainly produces RF-Microwave connectors,and Cable Assemblies especially forMicrowave Connectors such as 1.85mm, 2.4mm, 2.92mm 3.5mm etc. With so many years of experience and continuous improvement, we havegained very good reputation from our customers in different markets such as Rohde & Schwarz in Germany, Mini Circuit in the USAand ST in Singapore, etc.










Events






Qualification honor












Packing & Delivery






TRL will provide standard export packaging, while satisfying the freight requirements when exporting, as much as
possible to protect the products from shipping damage.


FAQ


Q1: Are you a factory or a trade company?
We are a factory specialized in Developing, manufacturing RF& Microwave Connectors.


Q2: How long is your delivery time(lead time)?
Within 7 days if we have stock, otherwise it will take about 20days if no stock


Q3: It is ok to print our logo on your products?
Yes, we can.


Q4: Can you send a sample for us to develop?
Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.


Q5: Can your company accept customize?
Welcome OEM & ODM.
