CE 5ton мощность наземный автомобильный подъемник с 2

The guiding barrel and piston of lifting cylinder use the high-quality alloy steel as the material with hard chromium coated, so it is quite durable.

The seal of cylinder is Parker, which is excellent in sealing property and long service life.

Pipeline explosion valve is equipped inside the cylinder. It can ensure the security when there are uncommon conditions on oil pressure pipeline.

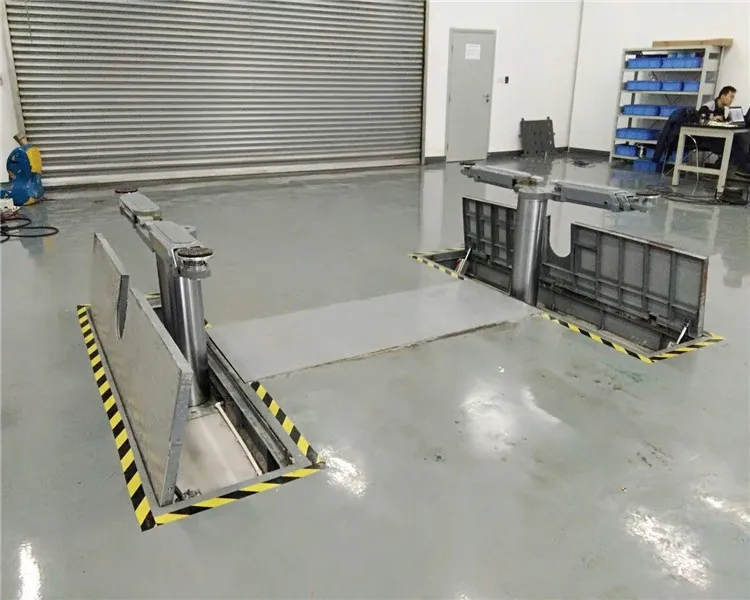

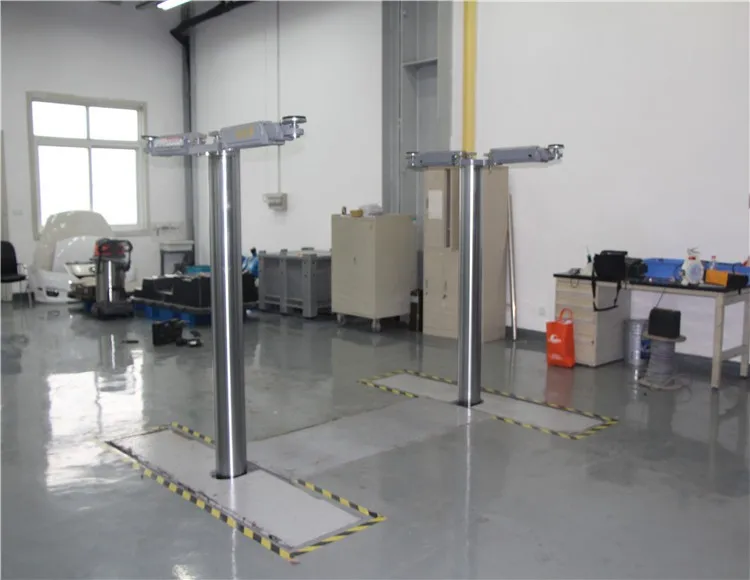

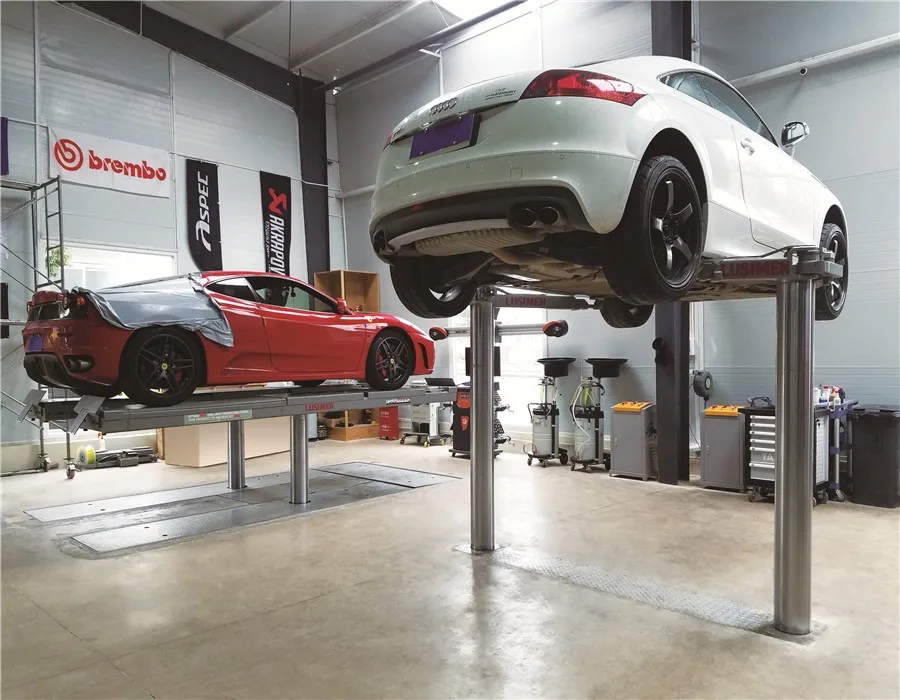

The lifting columns of two post and multi post lifts are rigidly connected with synchronous beam(separated type),so it is excellent in synchronous performance and steady.

Guiding pipes screwed on the chromed traverse guarantee synchronized movement and avoid rotation of the run ways

Equipped with mechanical pneumatic locks, it can stop in any position automatically to ensure safety.

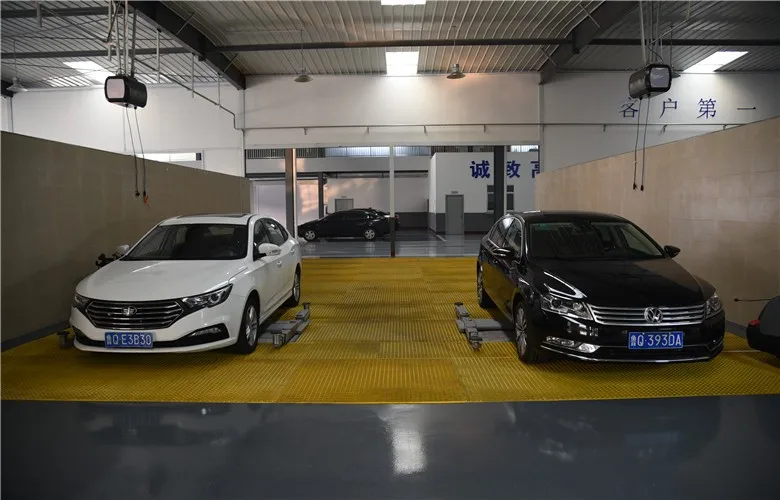

It is wisely used in check-in,repair&maintenance,body repair and car washing

Lifting Capacity 5000KG

Max.Lifting Height 1850mm

Raising/Lowering time 40-60sec

Supply Votage AC220/380V/50Hz; AC230/400V/50Hz

The pressure of the air source 0.6-0.8Mpa

Main Unit Length 2690mm

Main Unit width 415mm

Main Unit height 2514mm

Motor Speed 2850 rounds/min

Output of oil pump 13.3Ml/round

Set pressure of the overflow valve 10MPa

Solenoid valve pressure AC220 V /50 Hz

Power 2.2kw

Sound level (measured at control console) ≤75 dBA

N.W. 1760KG
