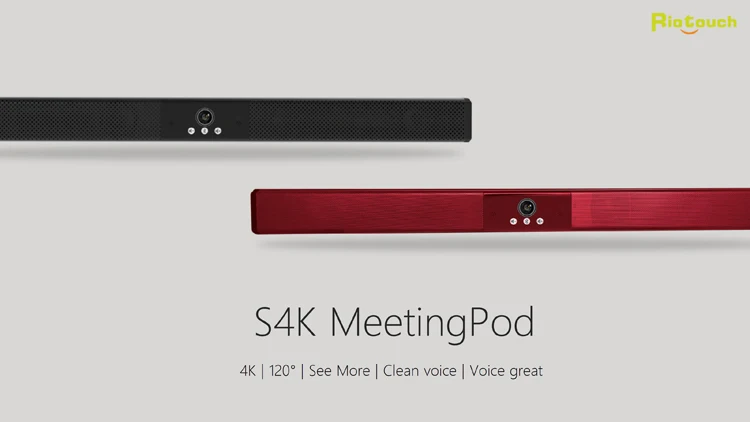

Riotouch Conference Partner MeetingPod S4K
Riotouch MeetingPod is conference partner, it's an all in one video soundbar with 4K UHD camera and soundbar together. It makes group video calls easier and more efficient, delivering exceptional audio and video quality for enterprises. With FOV 120° 4K UHD camera, clean lifelike voice speaker, USB play and play all in one design, MeetingPod will upgrade your conferencing experience.

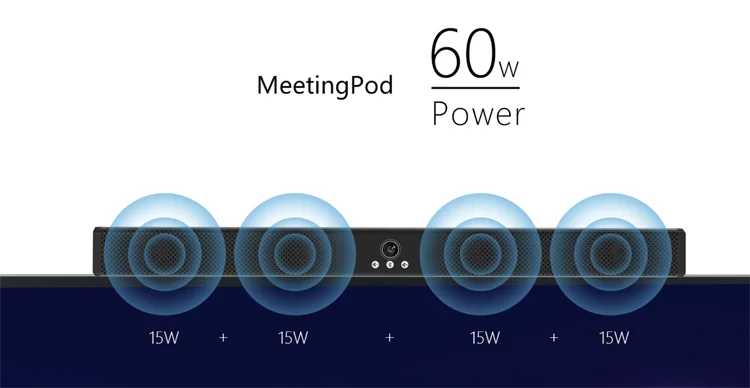

Riotouch MeetingPod S4K - with 60W loud voice (4X15W Speakers)
Riotouch MeetingPod S4K - with 60W loud voice (4X15W Speakers)

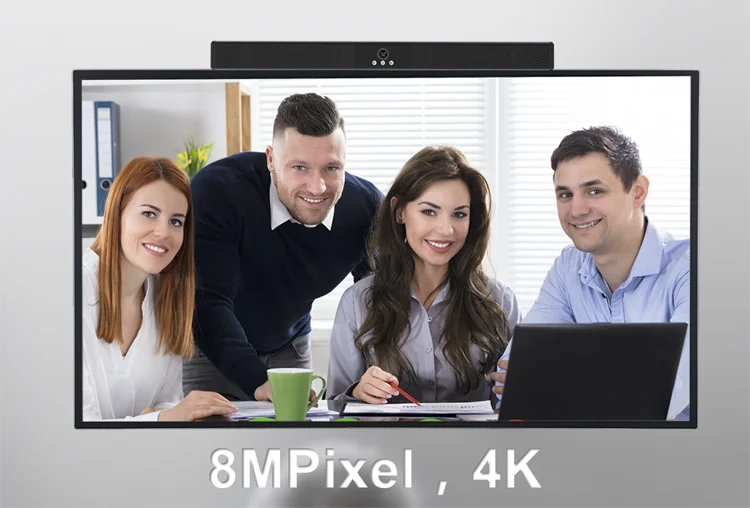

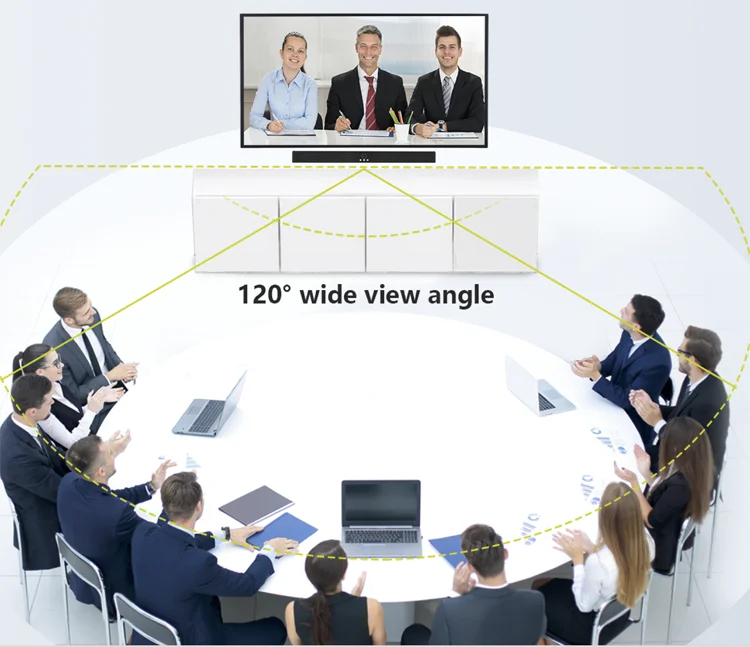

Riotouch MeetingPod S4K - With FOV 120° 4K UHD camera

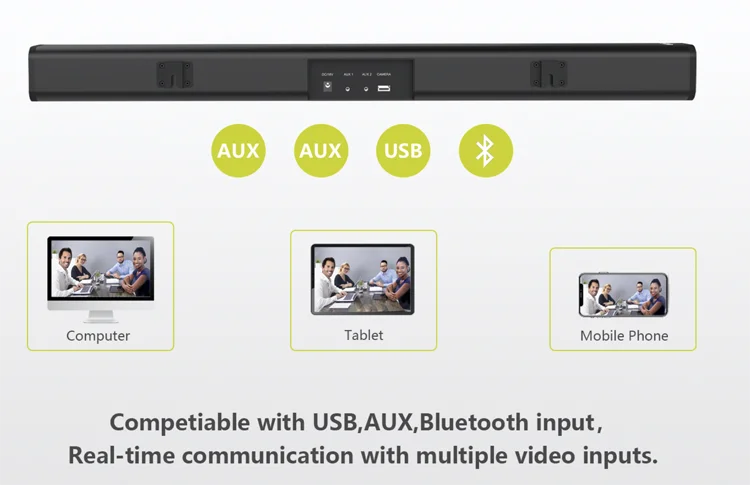

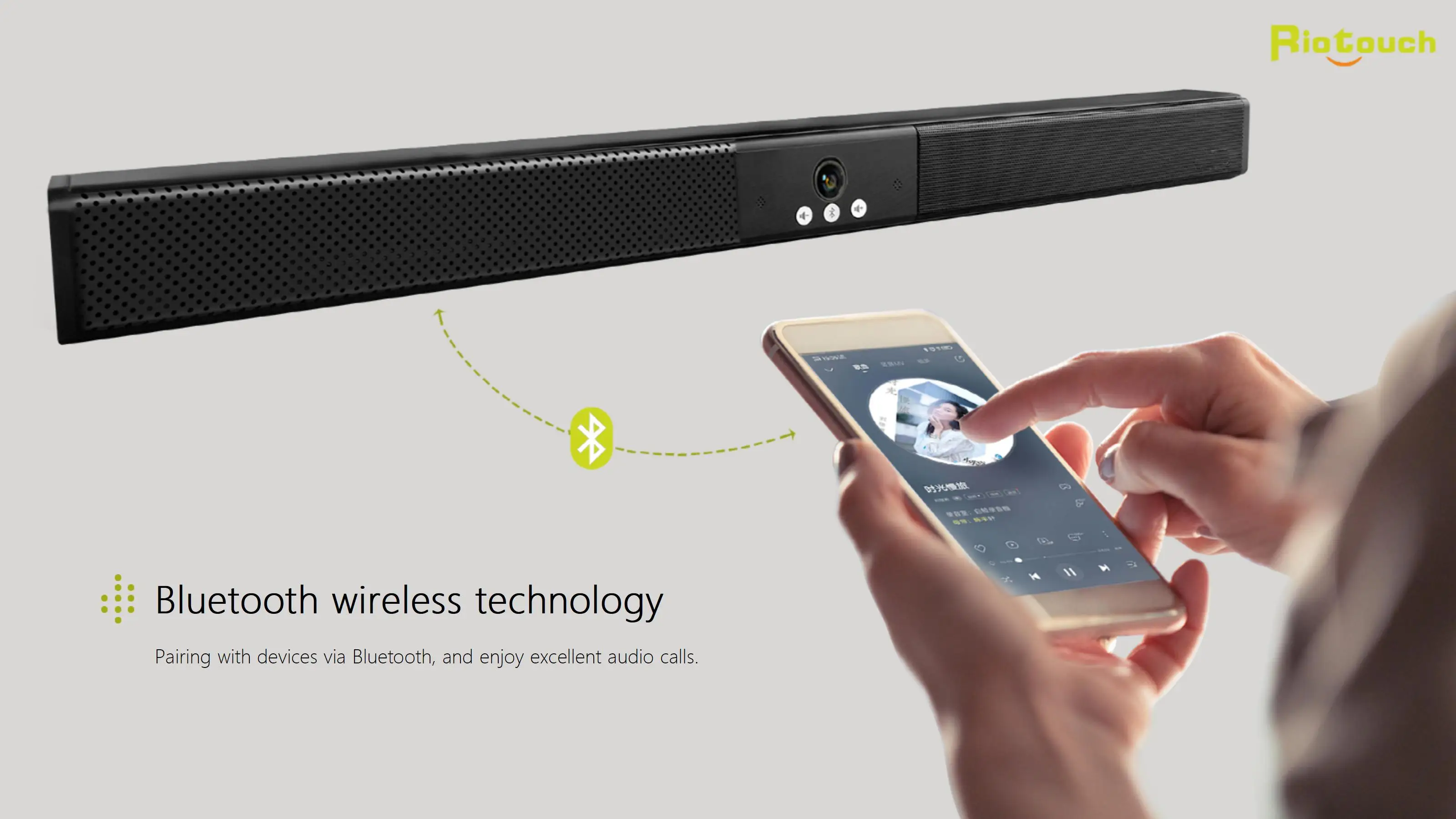

Riotouch MeetingPod S4K Supports USB/two Aux/BT connecting
Riotouch MeetingPod S4K Supports USB/two Aux/BT connecting
Riotouch MeetingPod S4K supports Mixing inputs, dual channels

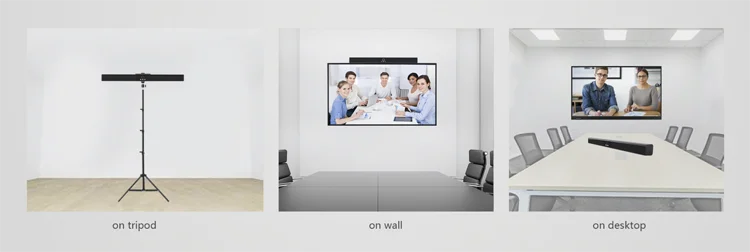

Riotouch MeetingPod S4K supports multiple installations.
Riotouch MeetingPod S4K supports multiple installations.

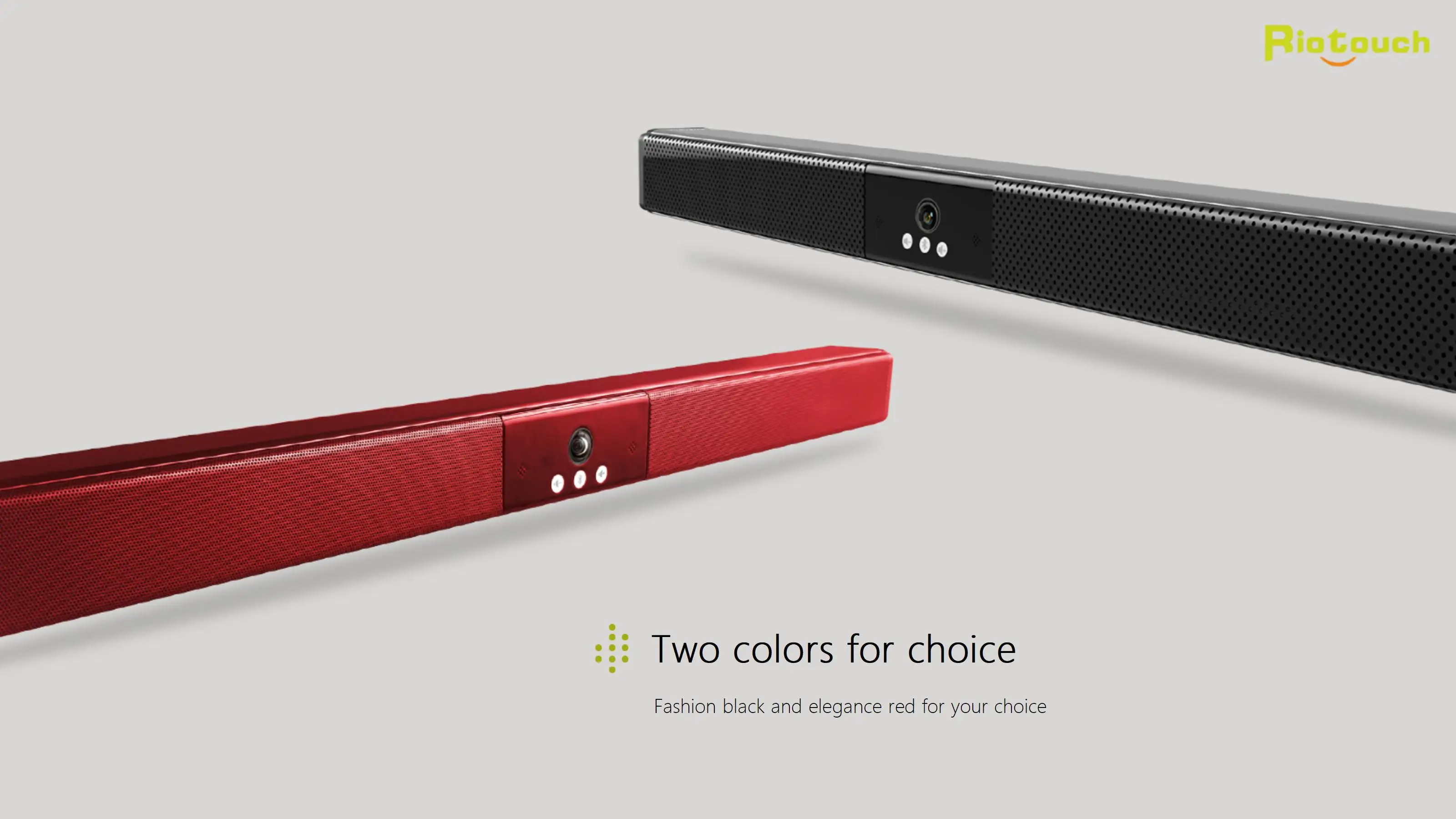

Two colors for choose
Product Advantages
Specification
Items | Specification | Details | ||
Camera | ||||
Lens | Sensor Type | 1/2.5" | ||
Focal Length | 2.22 mm ± 5% | |||
FNo. | 2.4± 5% | |||
Total Length(in air) | 24.1± 0,2mm | |||
Max Image Circle | Ø7.4mm | |||
Optical FOV(D) | 120°± 3°(Ø7.2mm) | |||
Optical FOV(H) | 110°± 3°(Ø6.22mm) | |||
optical FOV(V) | 75°± 3°(Ø3.5mm) | |||
Relative Illumination | >40% | |||
TV Distortion | ≤5%(Ø7.2mm) | |||
Max Chief Ray Angle | 12.5° | |||
Sensor | Image size | 1/2.5 | ||
Total number of pixels | 3864*2218 approx. 8.57 M pixels | |||
Number of recommended recording pixels | 3840*2160 8.29M aspect 16:9 | |||
Max Frame Rate(frames/s)@All pixels | 30 | |||
I/F | sub LVDS 10ch MIPI 4Lane | |||
Chroma | Color,RGB | |||
Application | DSC Cam | |||
ISP | Compression format | MJPEG / YUV2 (YUYV) | ||
Interface type | USB2.0 | |||
Microphones | Bluilt-in | |||
Clock Frequency | 6-72 MHZ | |||
Power supply | USB BUS POWER | |||
Power consumption | DC 5V,260mA | |||
Auto Exposure Control (AEC) | support | |||
Auto White Balance (AEB) | support | |||
Auto Gain Control (AGC) | support | |||
Speakers | ||||
Amplifier | Storage temperature | -20°C to 70°C | ||
Operating temperature | 0°C to 60°C | |||
Input Voltage | 18V | |||
Input Current | 4A | |||
Input resistance | 8Ω*4 | |||
Type of enlargement | D Type | |||
Gain | 20dB | |||
Work efficiency | 0.9 | |||
Frequency Range | 100HZ- 20KHZ | |||
Output Power | 15W*4 | |||
Number of channels | 2 | |||
Impedance matching | 4Ω | |||
input interface | DC/AUX1/AUX2/USB | |||
Output port | 2pin(2.54mm) | |||
BlueTooth | Launch radius | 10m | ||
Operating Voltage | 3.3V | |||
Frequency stability | 土20KHz | |||
Frequency Range | 2402-2480MHZ | |||
Built-in Microphone | ||||
Directivity | Omni-Directional | |||
Connectivity | USB 2.0 | |||
Condition | Value | |||
Sensitivity | f=1㎑, S.P.L =1Pa, 0㏈=1V/Pa | -38dB | ||
Output impedance | f= 1㎑ | 2.2㏀ | ||
Current Consumption | VCC=2.0V , RL = 2.2㏀ | 150~500㎂ | ||
S/N Ratio | f=1㎑, S.P.L =1Pa (A-Weighted Curve) | 58dB | ||
S-VS | VCC=2.0V to 1.5V | -3dB | ||
Operating Voltage | N/A | 2dB (Center) | ||
Maximum input S.P.L. | N/A | 110dB (Max) | ||
Operating system & Environment | ||||
Storage temperature | -20°C to 70°C | |||
Operating temperature | 0°C to 60°C | |||
Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC | |||
Physical specifications | ||||
Product Size | 715*60*60 mm(L*W*H) | |||
Package dimensions | 950*120*130 mm(L*W*H) | |||
Net weight | 1.69KG | |||
Gross weight | 2.60KG | |||
Accessories | ||||
Adaptor | 18V/3.5A 1pcs | |||
USB Cable | 1.5m 1pcs | |||
3.5mm Audio Cable | 1.5m 1pcs | |||
Bracket | 1 set | |||

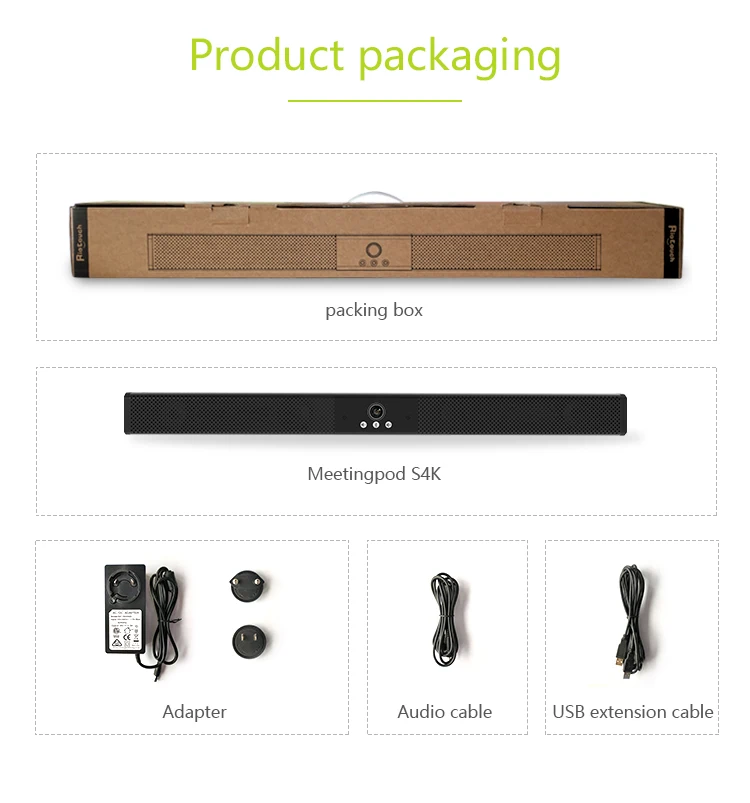

Product packaging

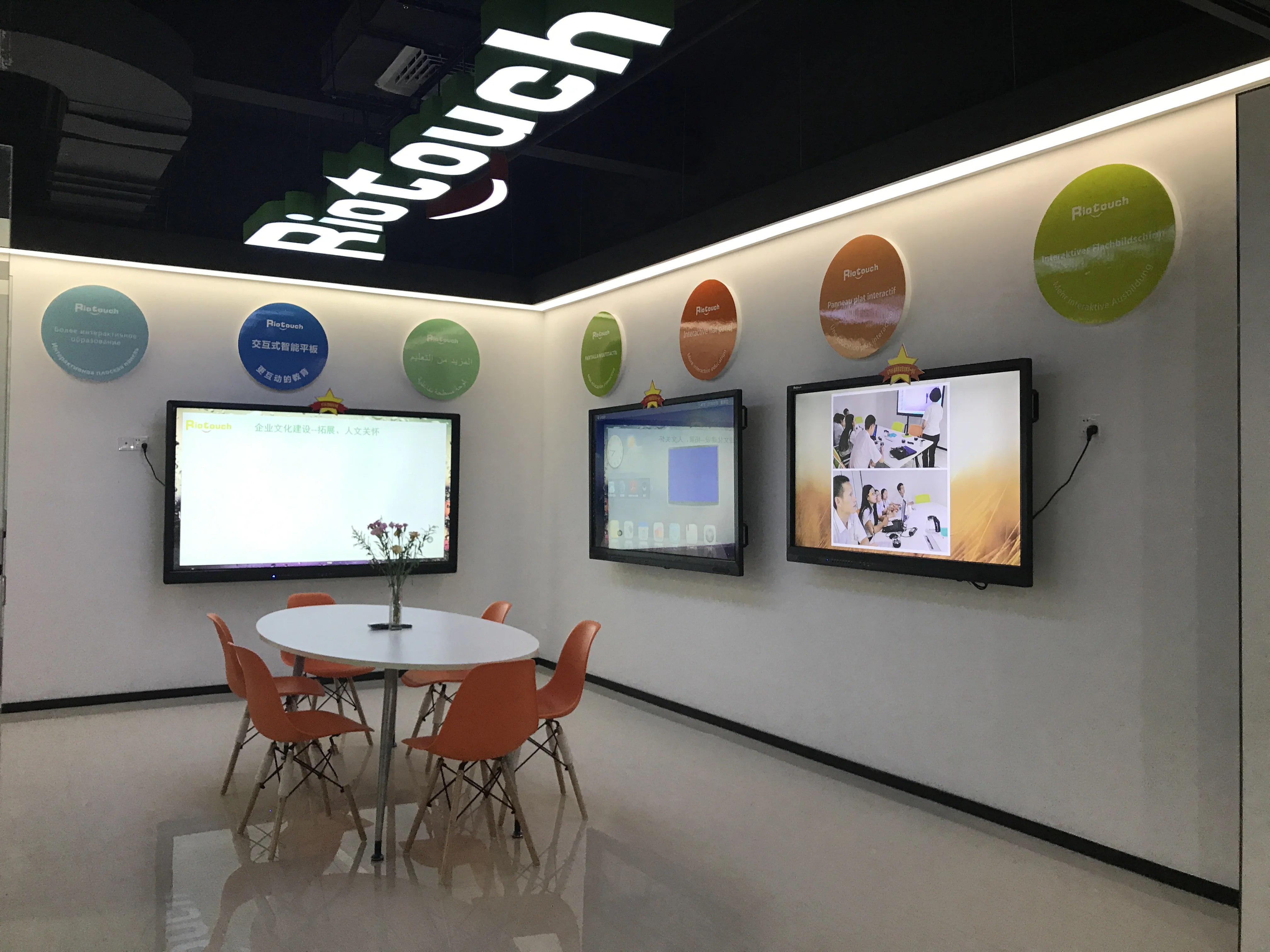

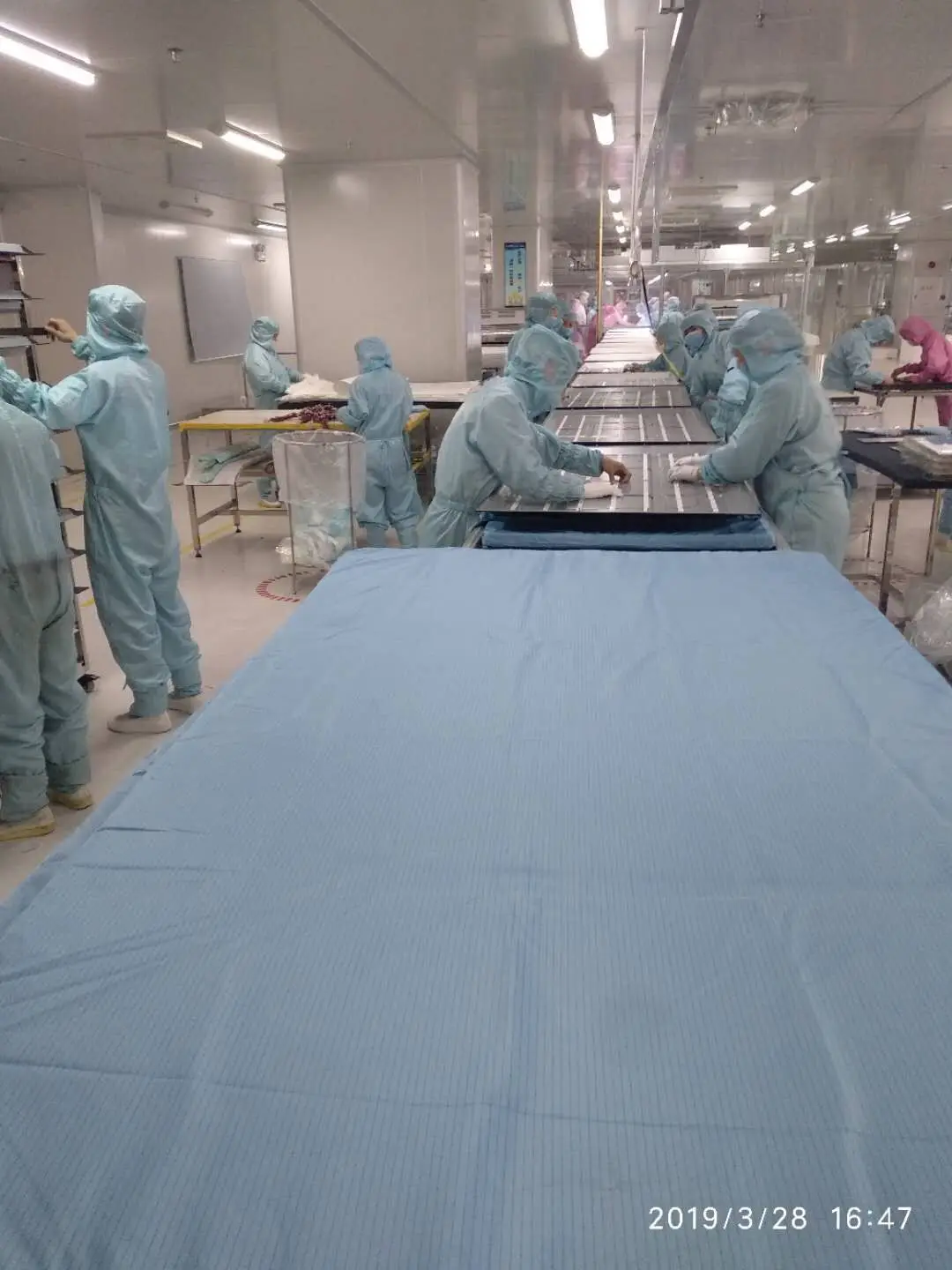

Company Introduction
Riotouch is a professional manufacture in the interactive plat panel and whiteboards more than ten years, We have our professional Sales team, strong Design, R&D,After-sale service team, to provide our super value products and services to our customers. And we have added MeetingPod, TeachingPod, MeetingHey, TeachingHey etc. accessories for conference and education.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
