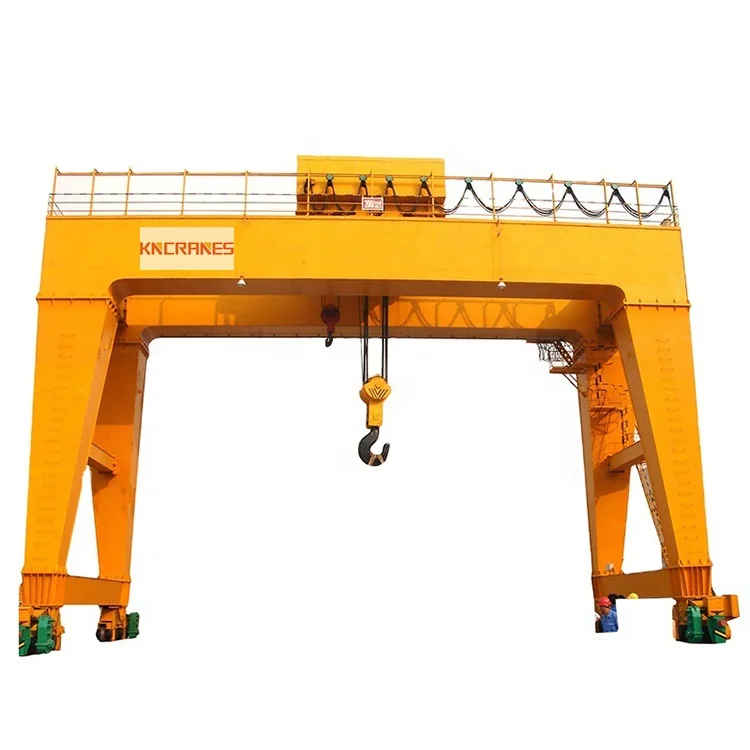

New design electric European winch box type 150 ton 450 ton double beam gantry crane with hook

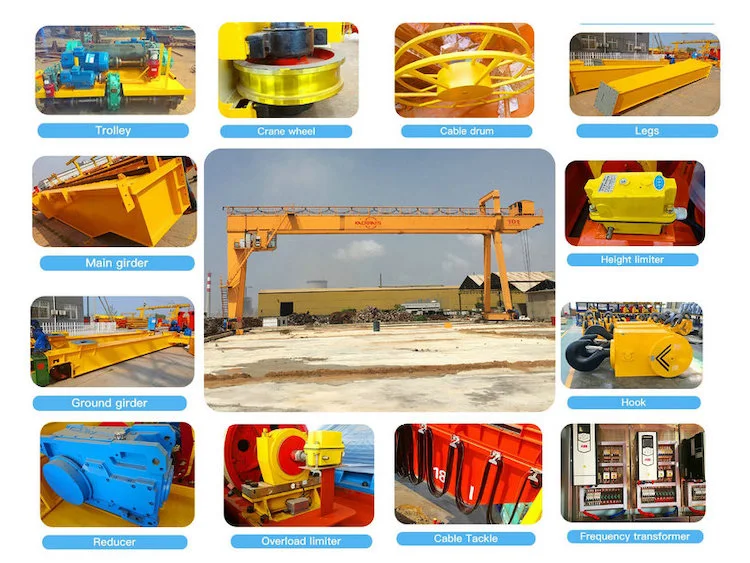

Product display
New design electric European winch box type 150 ton 450 ton double beam gantry crane with hook is a cost-effective alternative wherever the installation of bridge cranes is impractical due to a need for a raised runway structure. They are also an ideal supplement to bridge cranes at the workstation level. It can lower the investment on structure and space.
Product Description
Technical Data
Loading capacity
5 ~ 800t
Lifting height
3 ~ 30 m or customized
Lifting speed
Single speed: 3 ~ 8 m/min; or customized
Variable frequency speed: 1 ~ 20 m/min; or customized
Span
5~35 m
Lifting mechanism
Winch trolley or hoist trolley
Working class
A3 ~ A7
Working temperature
-20 ~ 40 ℃
Power supply
AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage
DC-24 / 36V
Motor protection class
IP54 IP55 IP65
Control way
Ground handle control(Push button),wireless remote control,cabnient control
1.Double box beam with steel legs moving through the ground beam as crane travelling system
2.The camber of main beam will be designed as Span*1-1.4/1000.
3.Steel Material: Q235 or Q345
4.Shot-blasting Sa2.5 for main girder and supporting beam
5.Epoxy zinc rich high quality painting.
6.Electrification and outfitting
7.Brand: CHINT SIEMENS Schneider
8.Conductor power supply: Cable Reel or busbar.
9.Frequency conversion, double speed, single speed, and all hoist and crane movements are independent and can be run simultaneously different design due to meet crane applications
10.Whole layout provides good protection against special working environment. Such as gas workshop, plants, warehouses etc.
Company Information
Packaging & Shipping
FAQ
1.How can I get a precise crane offer? A.To providing you a precise crane offer efficiently, please kindly provide details as flowing:
a).Lifting capacity,. material weight(unit as tonnage) b).Lifting height; (unit as meter) c).Crane span, the width of inquired crane(unit as meter) d).Crane traveling length; when rail track/runway beam needed, traveling length shall be provided e) Working power; power source at site(unit as voltage, phase and Hz)with red is mean necessary for offering solution 2.Can I get your crane products with customized personalized service? A.Yes, Kinocranes promise customized personalized products are available for our clients all the time. Just freely let us know your special demands about the products, our engineering team will work on that. 3.What should I do if l'm not able to install the crane after buying? A.Freely contact us. Our engineering team available for oversea service with crane installation, inspection and commissioning.
