ST1388 Smart Pay as you go Solar Home System is STS (Standard Transfer Specification) compliant, keypad-input type, electronic load controlled Portable PAYG Solar Home Systems and Mini grids suitable for your room,house, workshop and community.
It is a reliable and environmental solar solution for off-grid areas, which can power DC TV, DC Fan, Lights, Radio, Torch and your cellphone after few hours charging.

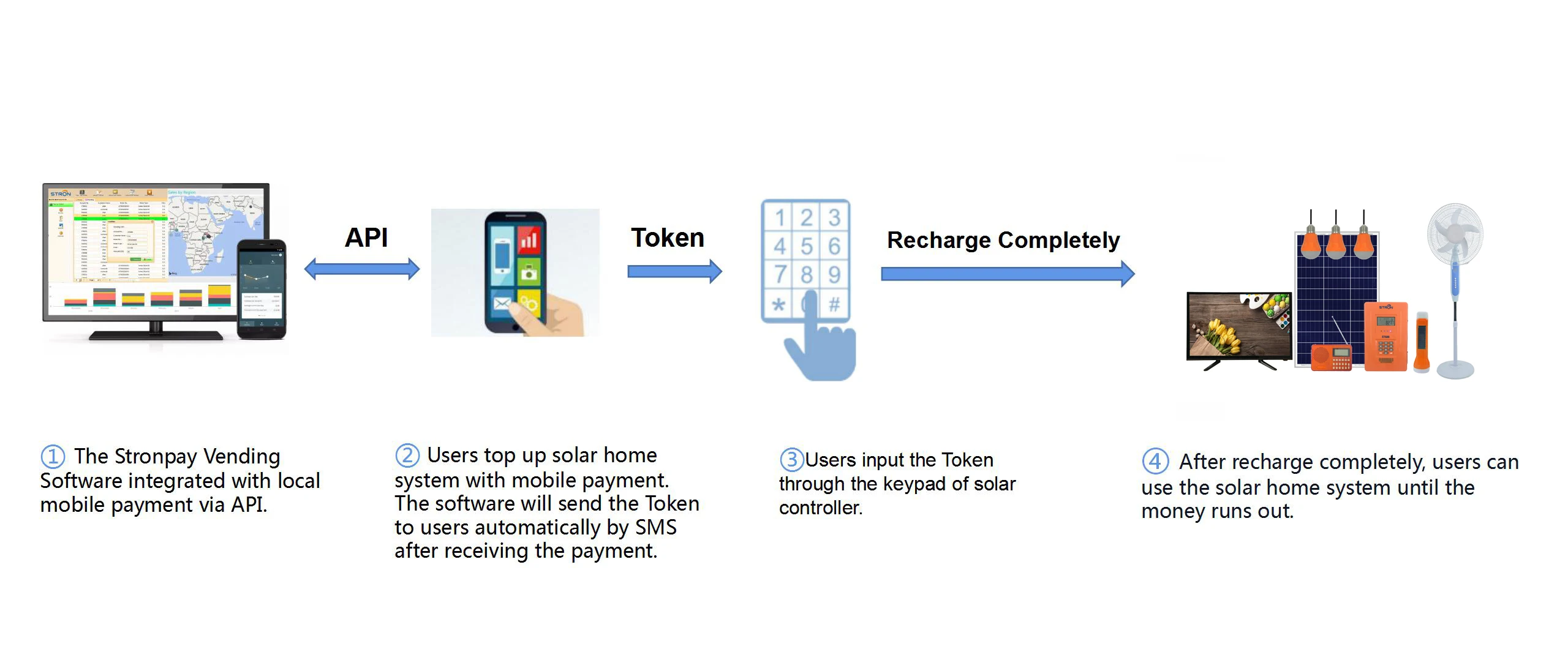

The Pay As You Go solution can make clean energy becomes more affordable, people can make payments on a daily, weekly or monthly basis. The solar controller is able to be top up with recharge Tokens generated by Stronpay vending software, which can integrated with local mobile payment via API, like M-PESA, MTN,Airtel,etc. People can easily pay with their mobile phone and get the recharge Token via GSM.
Main Features
1. Meet the Lighting Global Quality Standard
8. Plug-and-play design for bulb and charging cable
2. STS (Standard Transfer Specification) compliant
9. Flexible price and debt collection setting
3. Provide Stronpay Solar vending software
10. Long life-time (5years) of Lithium battery
4. Recharge by inputting 20digits TOKEN by keypad
11. Over 10 years’ data storage in absence of power
5. Battery can be fully charged in 3 hours
12. Easy to install, top-up and go
6. High powered charging cable for mobile phones
13. High quality with a 2-year warranty service.
7. High brightness bulbs and powered USD port
Details Images

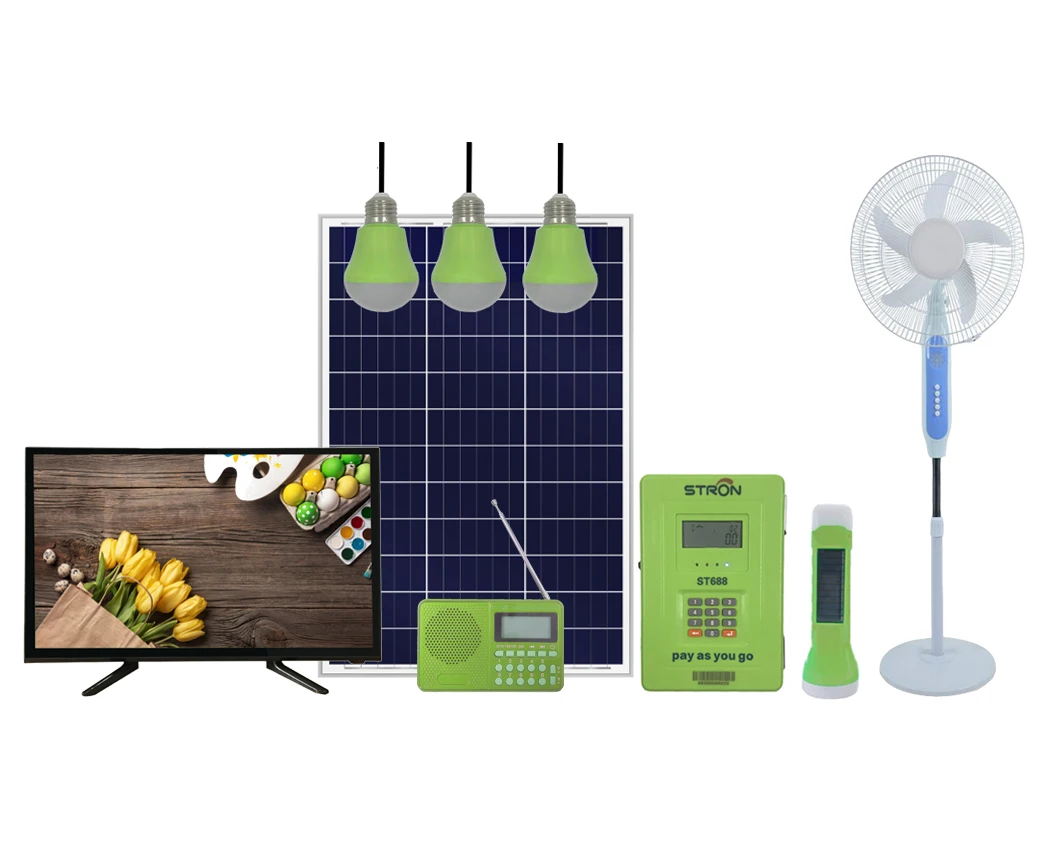

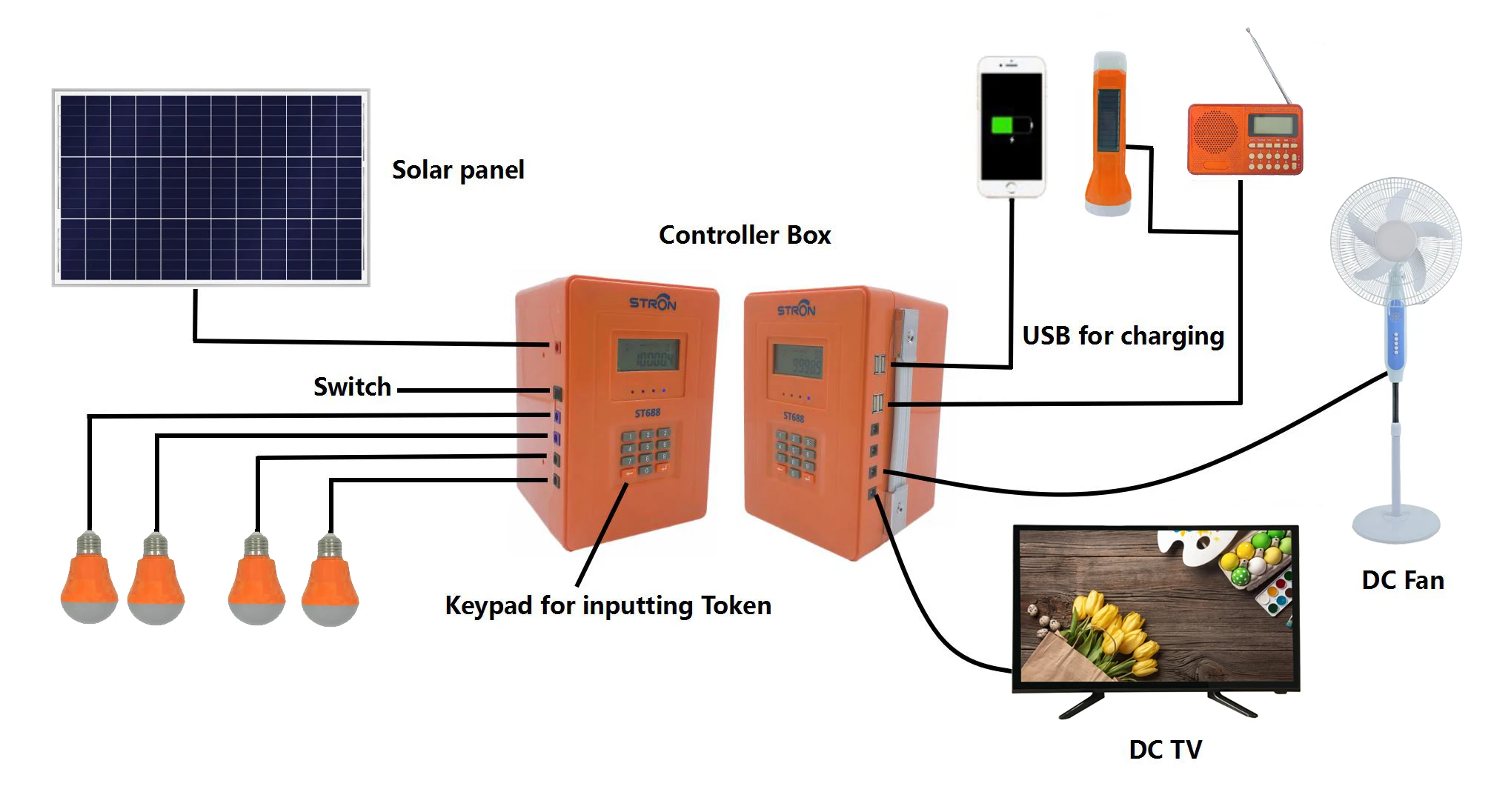

Components Detail
Product Name
Solar Home System
Pay As You Go Function
Keypad Token Input Mode
Solar Pannel
10-100W 12V Polycrystalline solar pannel

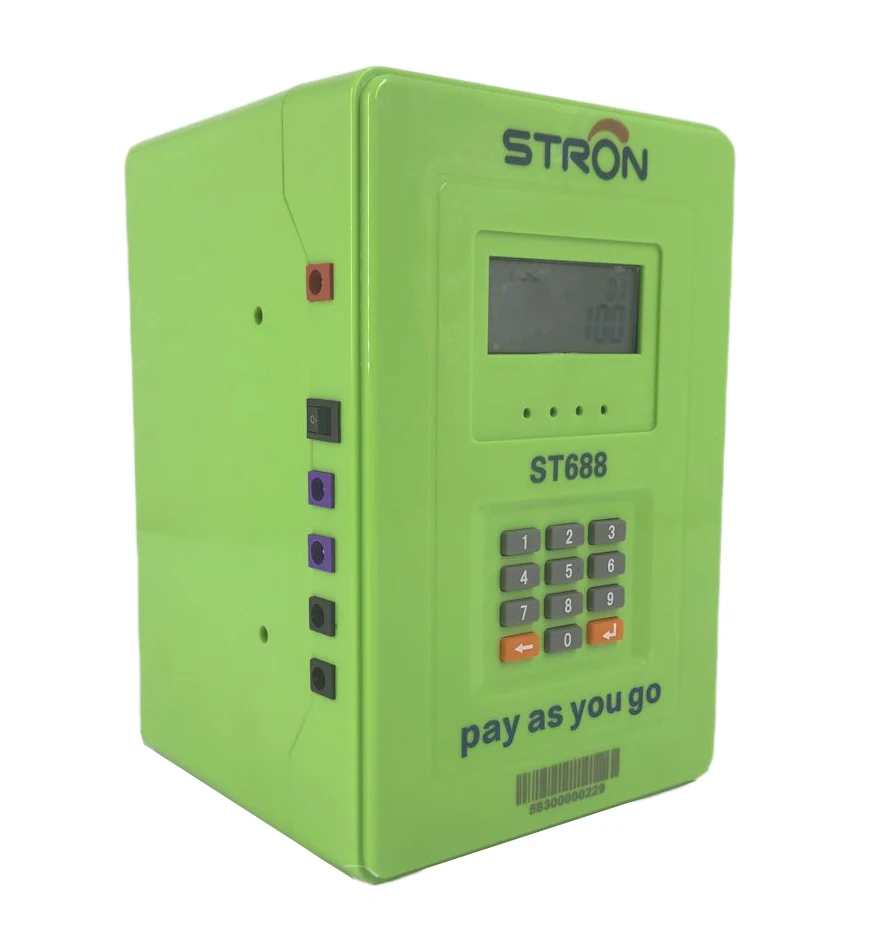

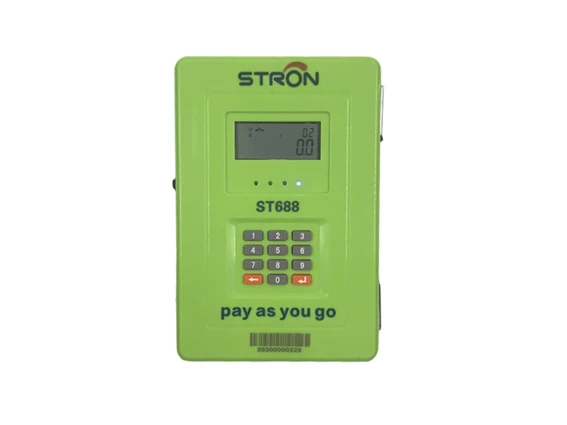

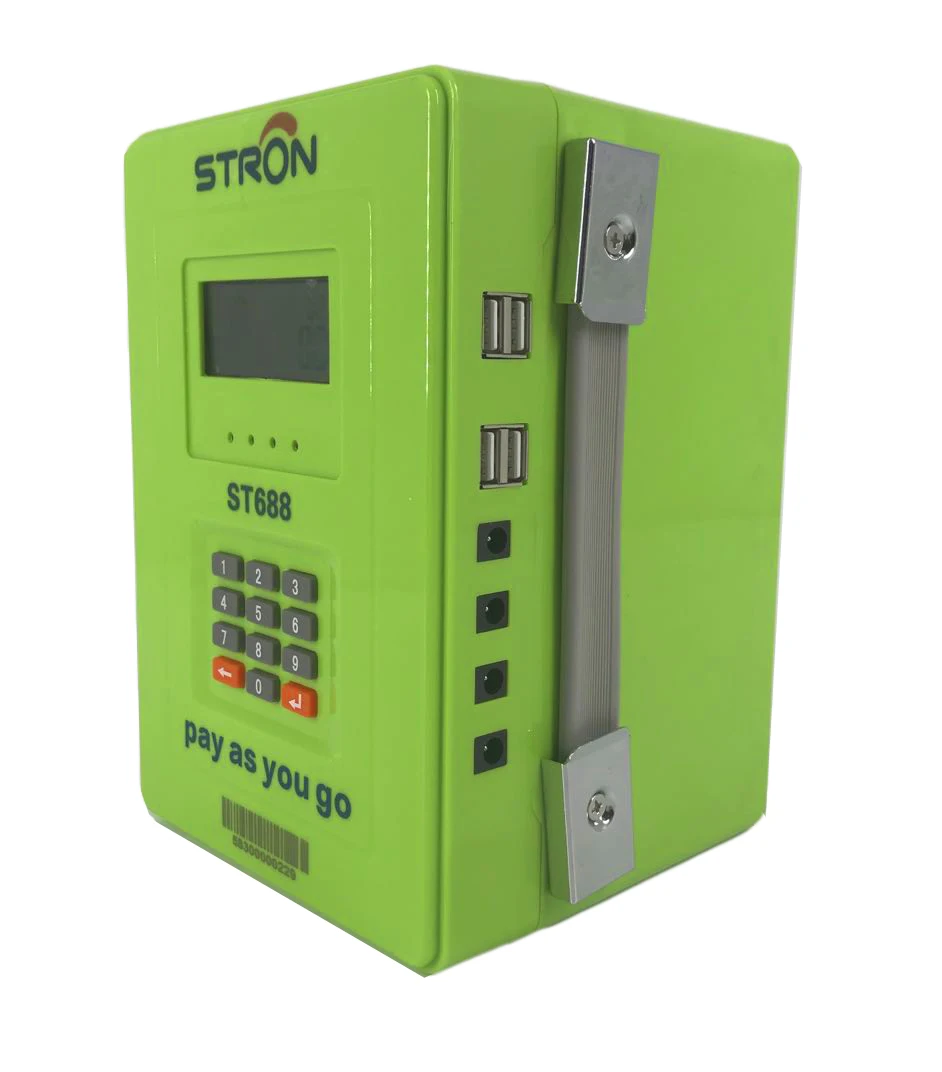

Controller Box
1 PC
Battrey
Electronic controller include 76.8-307.2Wh Lithium baterry
DC TV
19”LED 2K HD digital 16W TV, Supports both satellite dish and antenna
DC Fan
16”DC 12V, 10W 1200rpm/<10W with 2.5m DC cable
Lighting
3 sets 3W LED light with 5m cable
Torch
Solar tourch with reading light
Radio
External Radio with music player
USB phone charger
1pc of 4 type phone charger
USB output
4 USB port for digital products
Vending Software Details
Vending Software
STS standard encryption web based vending software
Token Printer
Print Token Receipt
Handheld Vending Machine
Vending APP in Android system including Token Printer
Instruction/Warranty sheet
English
Vending software Quotation
For Free

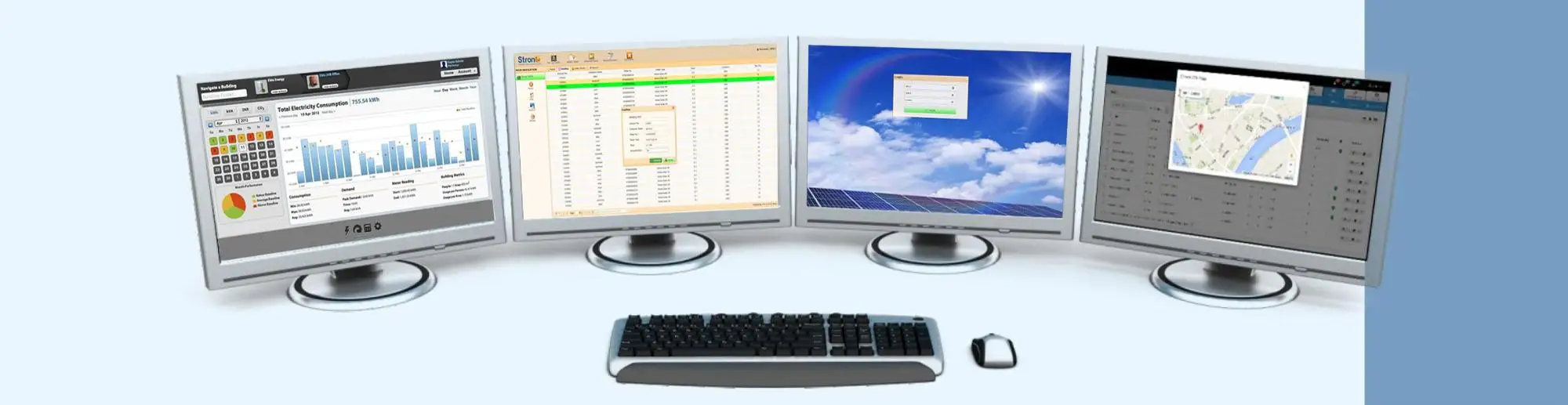

Stronpay Vending Software---For Free
Features and benefits of CMS
1. Scalable customer and meter installation bases 2. Can interface with various systems 3. Can Set Tariffs and clearance level for CMC 4. Support third party payment platform such as Mobile money, M-PESA, online banking.
Features and benefits of CMS
1. User friendly and easy operation 2. Customer & meter management 3. Vending and statistic report 4. Multi-operator and permission to access 5. Easy installationand zero maintenance

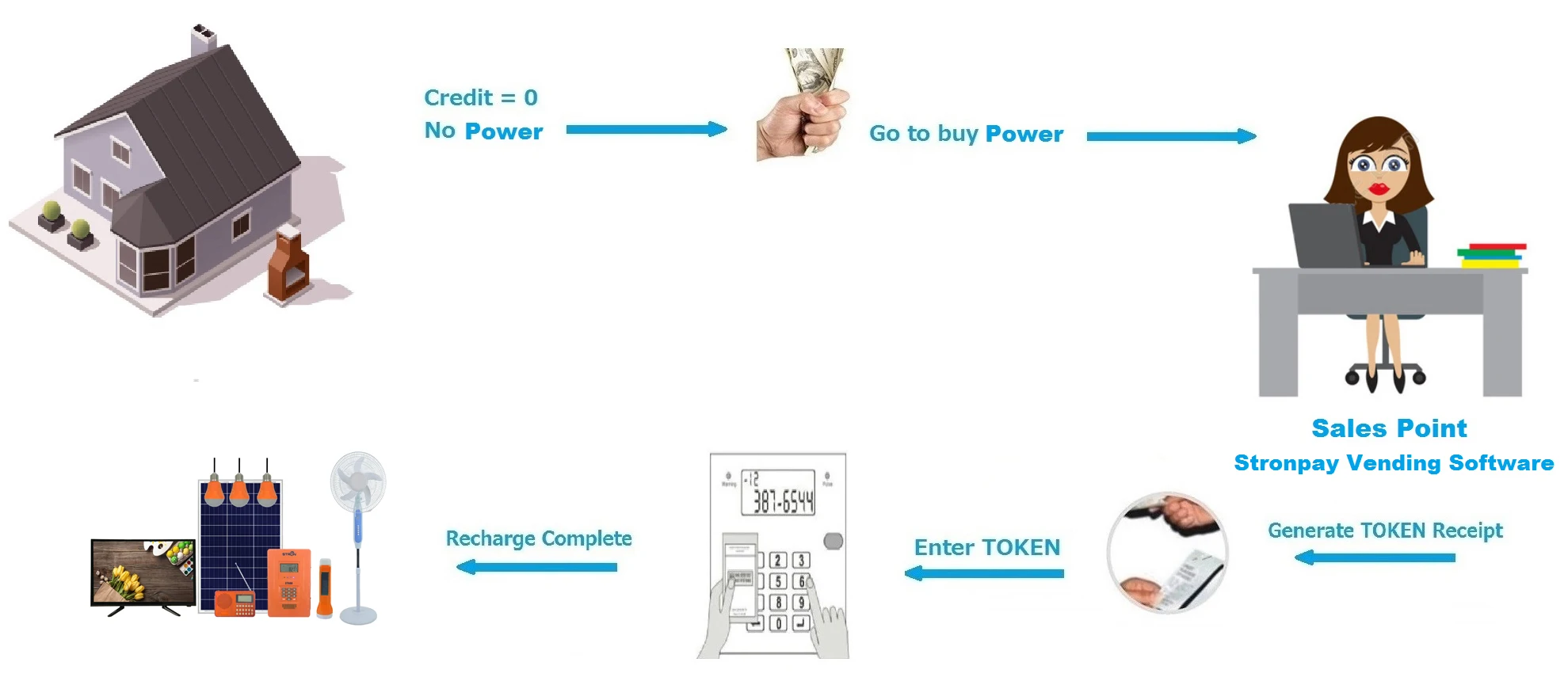

Operation of vending software
1. Login vending system
2. Solar number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up solar kits
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
Prepayment Management System
The system adopts the Enhanced Client /Server database, covering entire workflow and works perfectly with all types of prepaid meters and solar home system.

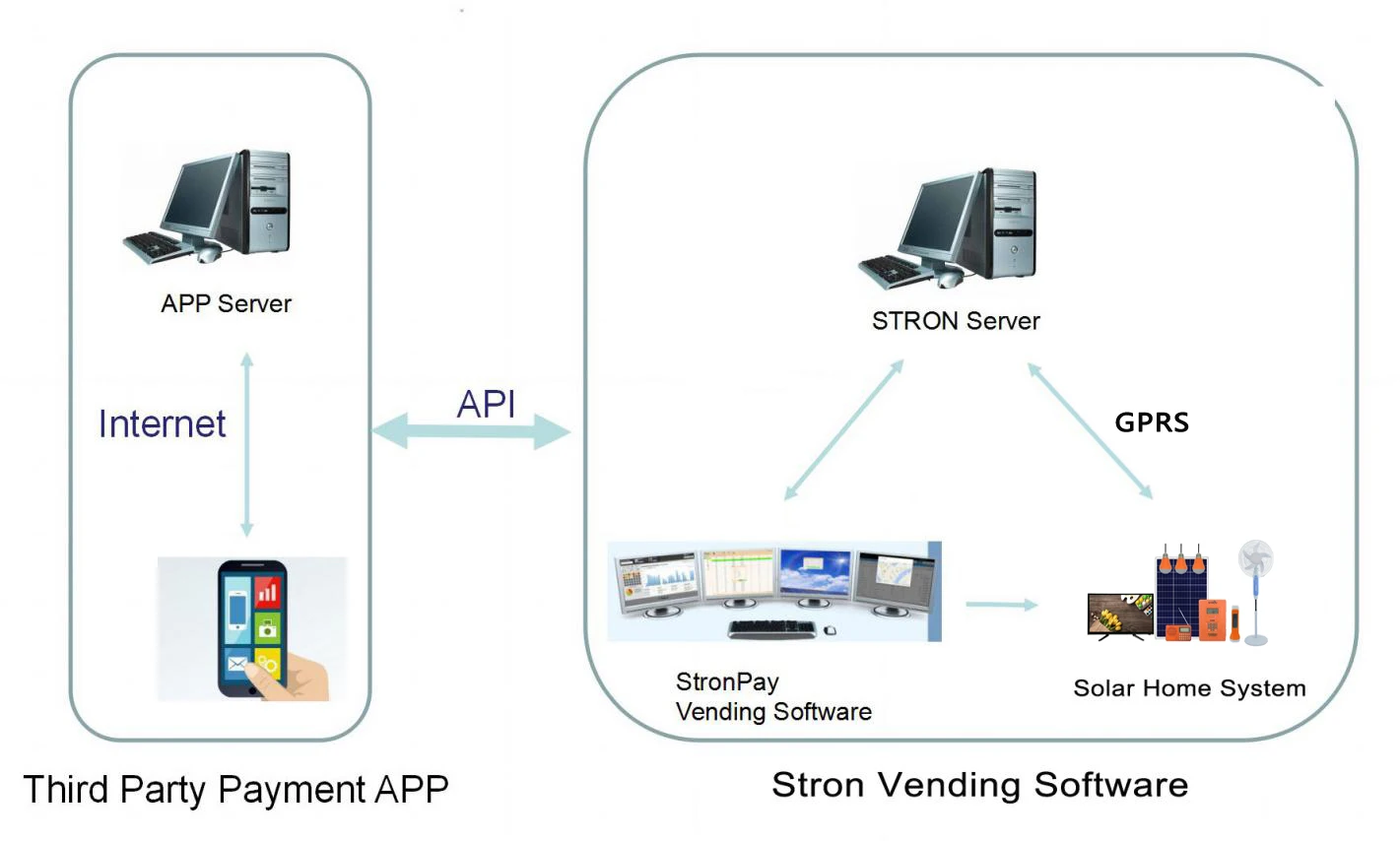

Recharging by the third party platform or local mobile payment with API
Company Introduction
Hunan Stron Smart Co., Ltd is founded in 2007, is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, among which 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.
Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, while a number of its products and technologies have won the national, provincial and municipal awards.
