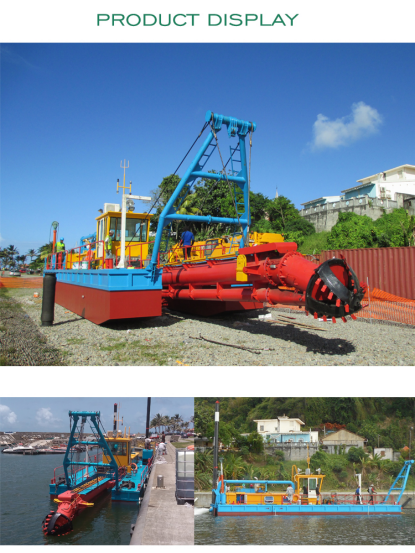

USA technology Gold Sand Dredger Machine / Cutter Suction Dredger
8 inch cutter suction dredger,10 inch cutter suction dredger,12 inch cutter suction dredger,14inch cutter suction dredger
General Description:
Cutter Suction Dredger is self-propelled or non self-propelled, portable cutter suction dredger. Hull can be dismantled and re-assemble easily with box structure . equipped with horizontal shifting devices, cutter
ladder lifting devices, spud devices, deck crane and so on. Widely used in sand-excavating, river dredging, desilting, reclamation for channels and land, port construction, etc.
Advantage:
Reliable and Efficient
The key component like engine, pump and hydraulic system are adopted the international brand.
Tested in pool before delivery.
Quality testing for each dredger before delivery to ensure all func
tion working properly.
Services
experienced engineers to guide installing and training
local workers. 24/7 technical support standby. Free spare parts in the
first year, low cost for services.
Dismantled and easy transport.
|
Ser. |
Model |
Pump |
Dredging |
Dimensions |
Suction/Discharge |
Engine(s) |
|
|
|
Capacity |
Depth |
|
Pipe Dia. |
Power |
|
1 |
-CSD200 |
500m3/hr |
1-8m |
21*4.8*1.4m |
250/200mm |
224kw |
|
2 |
-CSD250 |
800m3/hr |
1-10m |
25*5.2*1.6m |
300/250mm |
336kw |
|
3 |
-CSD300 |
1200m3/hr |
1-12m |
27*5.4*1.6m |
350/300mm |
559kw |
|
4 |
-CSD400 |
2200m3/hr |
1-14m |
33*6.4*1.8m |
400/400mm |
746kw |
|
5 |
-CSD450 |
3000m3/hr |
1.5-15m |
38*7.3*2.0m |
500/450mm |
895kw |
|
6 |
-CSD500 |
3500m3/hr |
1.5-16m |
40*7.8*2.0m |
600/500mm |
1231kw |
|
7 |
-CSD550 |
4500m3/hr |
1.5-18m |
44*8.8*2.2m |
650/550mm |
1690kw |
|
8 |
-CSD600 |
6000m3/hr |
1.5-20m |
48*9.0*2.4m |
700/600mm |
2190kw |
1) Cutter head is driven by hydraulic motor; cutter bearing has lubrication seal-in units.
2) The dredge pump is driven by the main diesel engine through the reducing gear box.
3) The shifting winches, cutter ladder and lifting winch are driven by the hydraulic motor

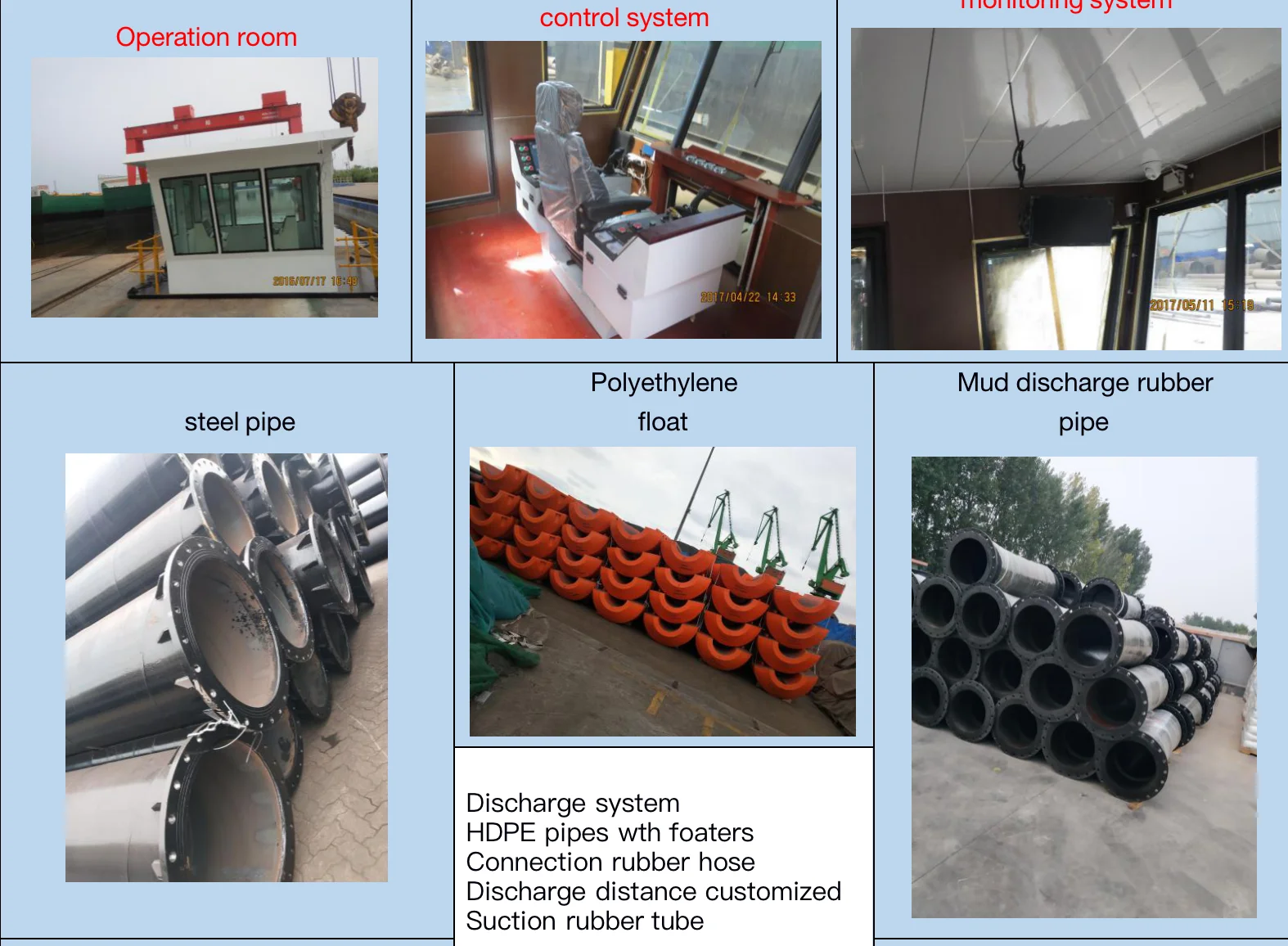

Dredger Pontoon
Name: dredger Pontoon
Pontoon material: Ship steel plate
Structure: Can be dismantle and assemble at working site
Pontoon quantity: two side photons and one main photon
Main Application
1) Mineral Mining(such as gold mining,iron mining,tin mining etc)
2) Excavate sand and stone under water as building materials
3) The engineering Land Reclamation/Beach Restoration
4) Port,Lake,River,Harbor,Channel and Dam Desilting
4) New waterway, harbor basin and Canalization new canal were dug, and agricultural water conservancy channels were built
5) Used for trench excavation of submarine pipelines, tunnels and other hydraulic structures
Cutter Suction Dredgers, characterized by strong geographical environment adaptability, simple structure, easy maintenance, reliable performance, long service life, low costs and large workload (1,000 to 4,000 cubic meters per day) are ideal choice for sand field and river sand mining. It can also be used in salt mining in salt lakes, offshore and river dredging, hard riverbed mining, waterway improvement and development. Dug sand after screening and separation is pure and inclusion-free, which is an ideal choice for the building industry.
Cutter suction dredgers can be installed with ore dressing equipment to extract gold, iron ore and other minerals, featuring a high degree of automation, high extraction accuracy and large processing capacity. It leads the industry both at home and abroad.
Main Features
1.Modular design
The modular structures the dredgers be transported fast and easily and commissioned quickly at dredging sites.
2.Focus on innovation
The highest efficiency and the minimal downtime will ensure the best profit for every dredging project.
3.Short delivery time
will prepare various main components of dredgers in the workshop, like diesel engine, dredging pump and cutter head, which can greatly shorten delivery time
The modular structures the dredgers be transported fast and easily and commissioned quickly at dredging sites.
2.Focus on innovation
The highest efficiency and the minimal downtime will ensure the best profit for every dredging project.
3.Short delivery time
will prepare various main components of dredgers in the workshop, like diesel engine, dredging pump and cutter head, which can greatly shorten delivery time
