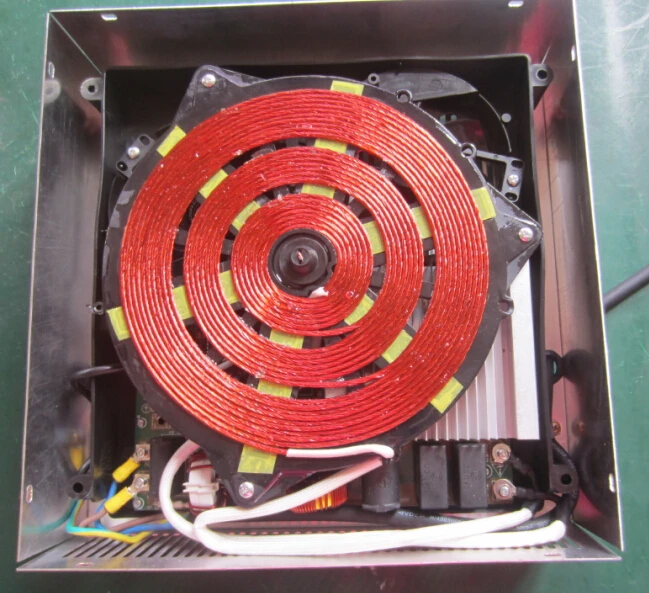

3500 induction cooker component parts
Specifications of 3.5KW induction cooker PCB and spare parts | |||
PCB Model No. | HW-3.5KW-E | Power | 3.5KW |
PCB Technology | Single switch | PCB Size | 250*120*40mm |
IGBT | With Infineon IGBT | PCB Standard | CE,RoSH,EMC |
Power Level | 600-3500KW | Temp Range | 60-240℃(140-464℉) |
Glass Size | 340*340*4mm | Control Box | Knob+ Button |
Coil Protection | Over Heating,Sensor Open or Short Circuit, Open Circuit Protection etc | ||
PCB Protection | Over or Under Voltage,Over Current,Over Heating,Default Phase Protection etc. | ||
IGBT Protection | Over Heating,Over Current,Exception Driven,Sensor short /open circuit Protection etc. |
ON/ OFF: After connect with electric, all of light and the digital tube light on, then light off. The switch light flash, and digital tube flash show"----". Press "ON/OFF" button,the digital tube shows "5". The machine will work with 1600W, Press "ON/OFF" button again, the machine will be work off. | |||
Down/ Up:The "DOWN" and "UP" button used for increase and decrease the power. The lowest power is 400W and the highest power is 3500W. Total 9 level power adjust. |
Main Features of commercial induction cooker | |||
1)Specialize in quick frying,boiling,hot pot,stewing and etc | |||
2)Can deal with large amount of dishes in a short time,suit for canteen,restaurant. | |||
3) Press button system, LED digital display, quite easy to use | |||
4)Safety and energy saving compare with the traditional cooking method | |||
5)Overheating and boiling dry protection,anti-low/high voltage warning | |||
6)Induction cooker with CE/Rosh certificate ensure the safety | |||
7)No electromagnetic radiation,safe for chef. | |||
8)OEM/ODM is acceptable |
