Product Description
GENERAL
ADL400 is a smart meter designed for power supply system, industrial and mining
enterprises and utilities to calculate the electricity consumption and manage the electric demand. It
features the high precision, small size and simple installation. It integrates the measurement of all
electrical parameters with the comprehensive electricity metering and management provides
various data on previous 48 months, checks the 31st harmonic content and the total harmonic
content, realizes the remote communication and the remote control with switching input and relay
output and boasts the alarm output. It is fitted with RS485 communication port and adapted to
MODBUS-RTU .ADL400 can be used in all kinds of control systems, SCADA systems and
energy management systems. The meter meet the related technical requirements of electronic
meter in the IEC62053-21standards
Specification | 3 phase 3 wires, 3 phase 4 wires |
Reference voltage | 3×100V, 3×380V,3×57.7/100V, 3×220/380V |
Accuracy class | ±0.2%(Error±0.2 percent) |
Input current | 3×1(6)A, 3×10(80)A |
Power | Active, reactive, apparent power, error±0.5 percent |
Frequency | 45~65Hz |
Energy | Active energy(Accuracy class:0.5, 1) reactive energy(Accuracy class 2) |
Clock | ≤0.5s/d |
Energy pulse output | 1 active photocoupler output |
Width of pulse | 80±20ms |
Pulse constant | 1000imp/kWh,10000imp/kWh (Correspond with the basic current) |
Interface and communication | RS485:Modbus RTU |
Range of communication address | Modbus RTU:1~ 247 |
Baud rate | 1200bps~19200bps |
Relative temperature | -25℃~+55℃ |
Relative humidity | ≤95 percent (No condensation) |
Product performance description

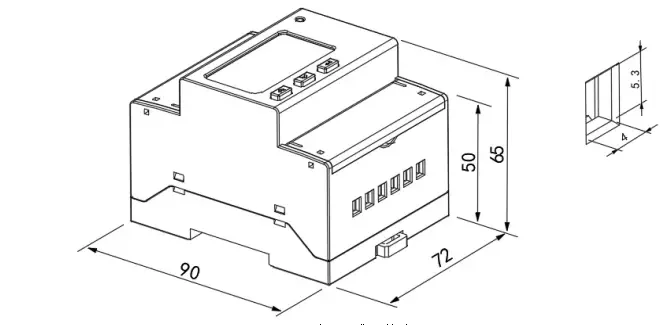

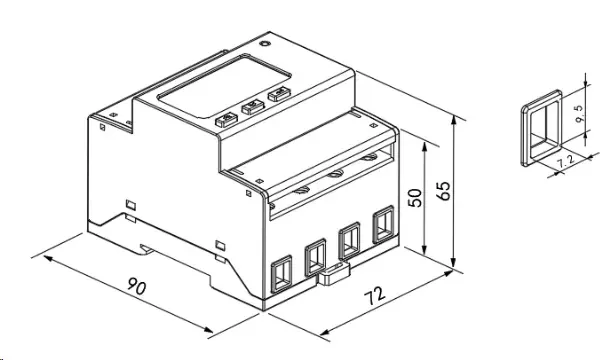

DIN RAIL INSTALLATION
ADL400 is a smart meter designed for power supply system, industrial and mining
enterprises and utilities to calculate the electricity consumption and manage the electric demand.
enterprises and utilities to calculate the electricity consumption and manage the electric demand.
Details Images
Direct Connect

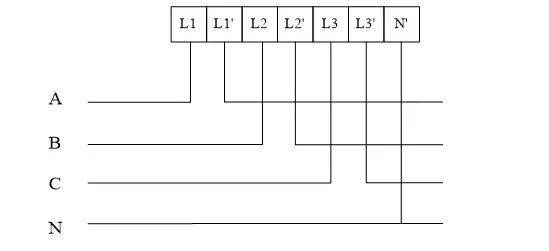

3 PHASE 4 WIRE

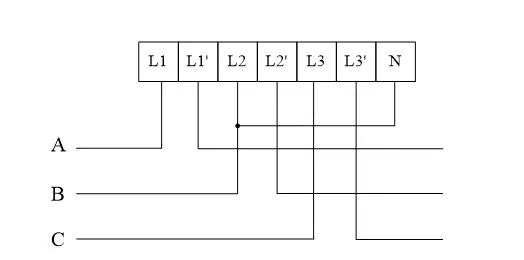

3 PHASE 3 WIRE
CT Connect
3 PHASE 4 WIRE
3 PHASE 3 WIRE
